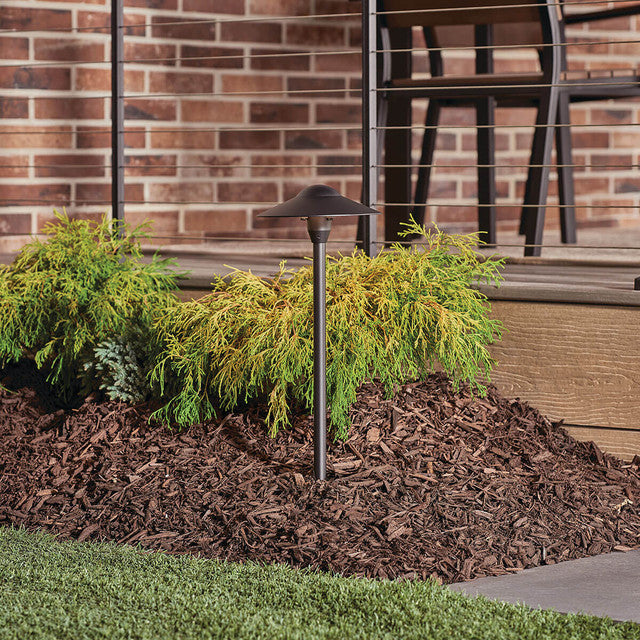

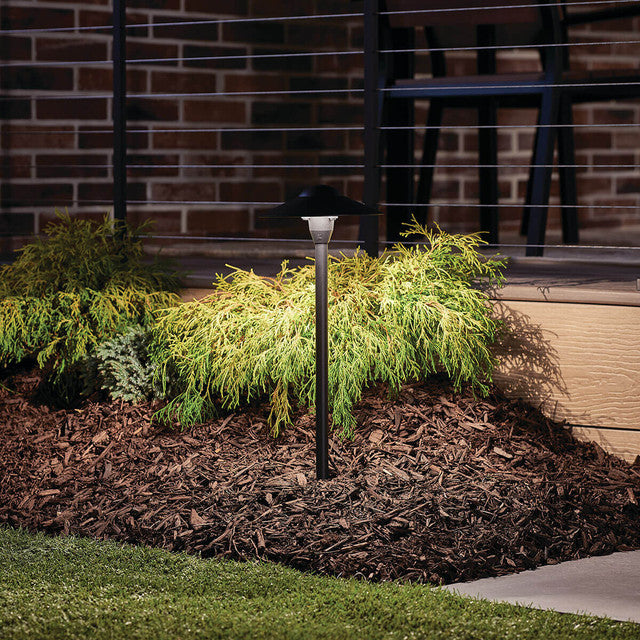

Kichler 15310BKT - 8" Wide 12V  Dome Path Light Textured Black

The eight-inch Domed Path Light in Architectural Bronze illuminates sidewalks, stone pathways and lawn areas while adding a pool of light to highlight boulders and low growing annuals or perennial plant beds. Customize color temperature (CCT), wattage, and lumen output based on the LED bulb selection. These drop-in, low voltage fixtures are compatible with a any T5 wedge Professional and Contractor Series LED Lamps and are a great economical choice for any design application.

Features

• The T5 Wedge socket lamp base is optimized for Kichler LED drop-in lamps, ensuring easy installation and light output selections.
• The durable, solid, thick-wall aluminum construction withstands harsh weather conditions.
• Kichler Lighting Landscape products are compatible with our contractor series LED Lamps, 12/2 wire and a wide range of Kichler Transformers.
• All 12V low voltage drop-in fixtures require a fixture, LED Lamp, low voltage wire and a transformer to operate as a system.
• What's in the box: path light, 8-inch slotted in-ground stake and locknut, 24 inches of usable #18-2, SPT-1W leads, and cable connectors.

Specifications

• Height: 21.00"
• Width: 8.25"
• Operating Voltage Range: 12 VAC
• Voltage: 12V
• Lamp Included: Yes
• Lamp Type: T5
• Included Bulb Type: Xenon
• LED Bulb Compatible: Yes
• Max Bulb Wattage: 16.25
• Lead Wire Length: 24"
• Location Rating: CUL Wet Location
• Primary Material: Aluminum
• Finish: Textured Black
• UPC: 783927211369
