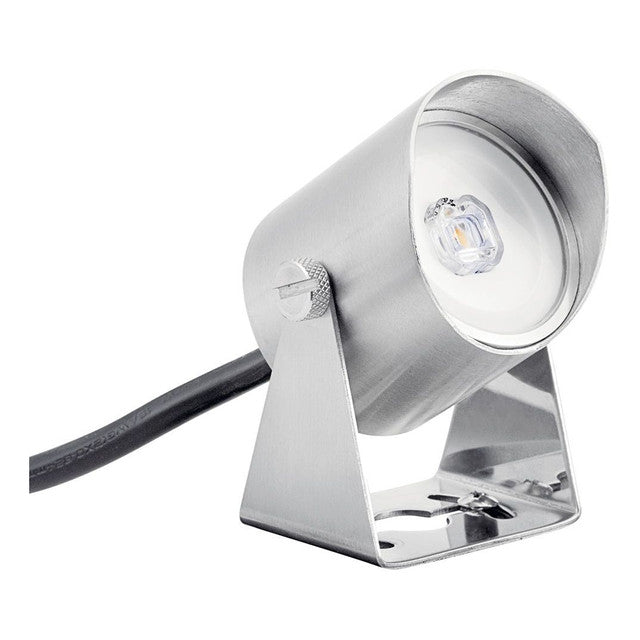

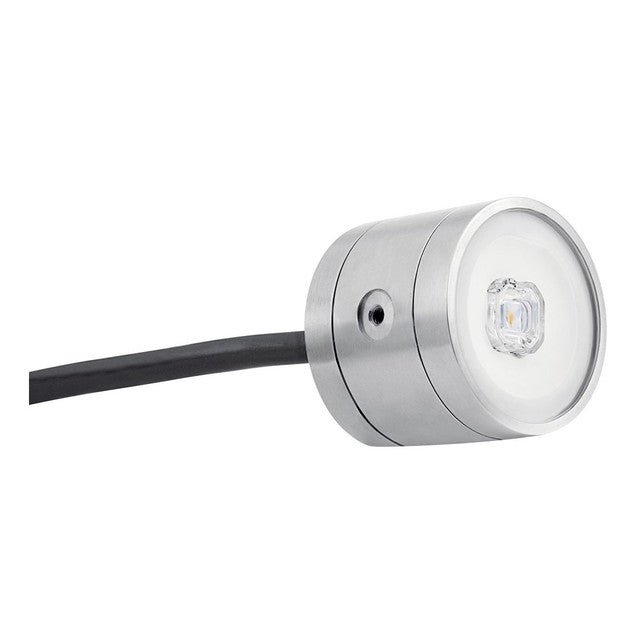

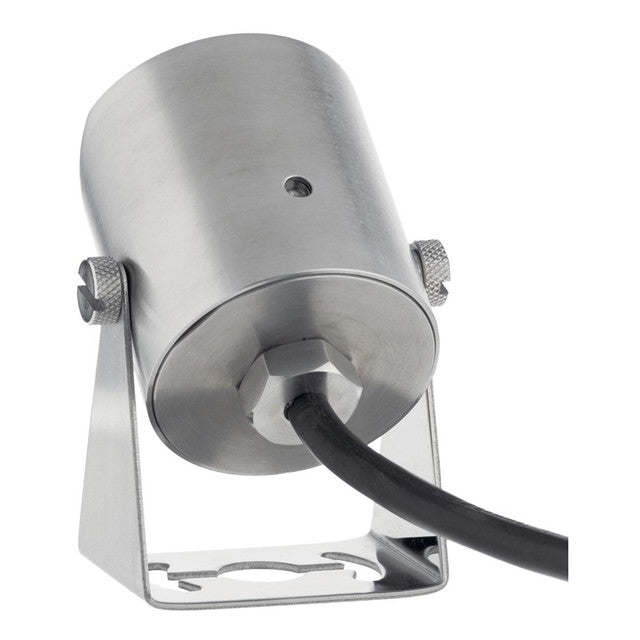

Kichler 16027SS30 - 12V Adjustable Lumen LED Underwater Accent in Stainless Steel

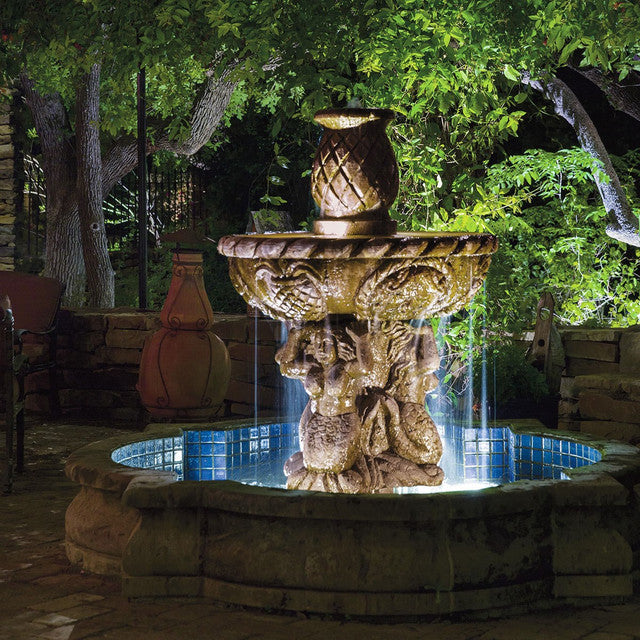

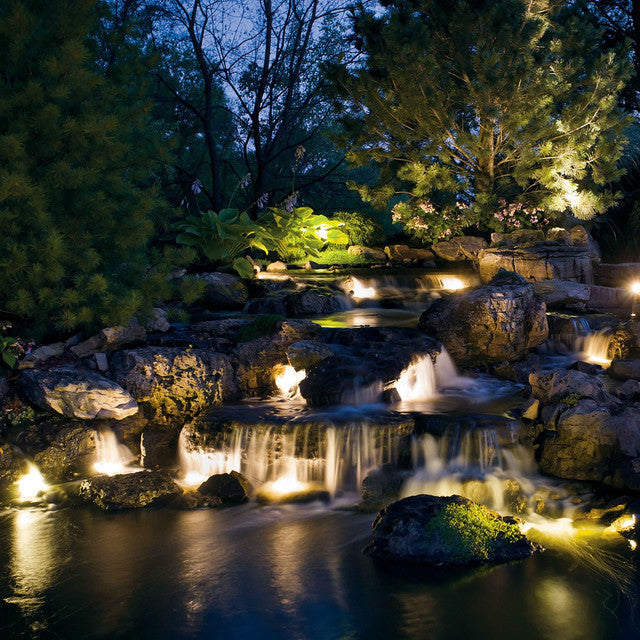

The VLO 3000K 12V LED Underwater Accent with Lumen Effects System allows you to switch between three lumen outputs: 100, 200 or 400 easily with the use of the Magnetic Key, which can be used to adjust the fixture underwater. Equipped with a removable and adjustable cowl and mounting bracket, the VLO Underwater accent light is perfect for use in ponds, fountains, water gardens, docks, streams, and is safe for use with aquatic wildlife and virtually any water additives.

Features

• VLO 3000K 12V LED Underwater Accent with Lumen Effects System and Stainless Steel finish.
• IP68 rated allows the fixture to be fully submerged in a pond, stream, fountain, or other water feature area and is safe for use with aquatic animals. Plus, this underwater accent light comes with a 4kV system surge protection to protect against power surges and irregularities.
• 2-in-1 water, accent fixture with an adjustable cowl, and mounting bracket give you the flexibility to install the fixture underwater as a downlight or near a body of water, such as on a patio or pergola, to highlight rocks and foliage.
• Corrosion resistant, the housing is designed with 316 stainless steel for use in all types of water and is safe for aquatic wildlife.
• Equipped with three lumen levels in one fixture for quick and easy adjustment during or after installation with the Lumen Effects System.
• Can be installed underwater or near a body of water and can be paired with our optional Weighted Mounting Base (16084BK) for projects that require the fixture to be weighted down.
• What's in the box? The VLO 3000K 12V LED Underwater Accent includes 25' of wire lead, detachable cowl, mounting bracket, and gel-filled wire connectors.

Specifications

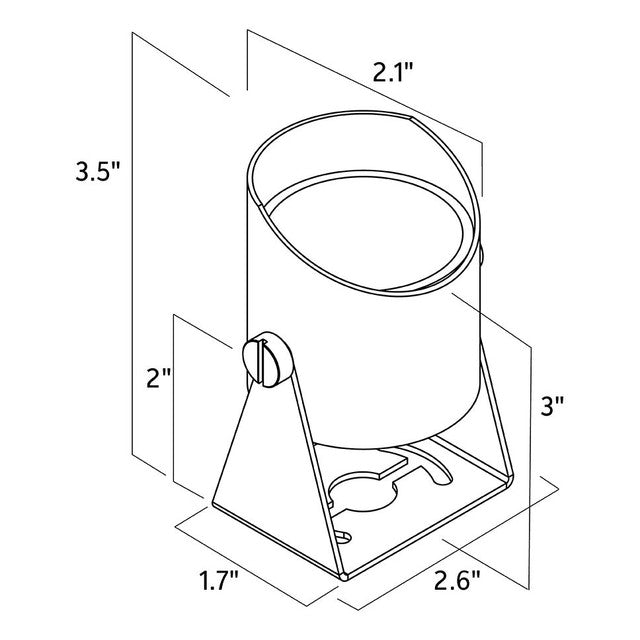

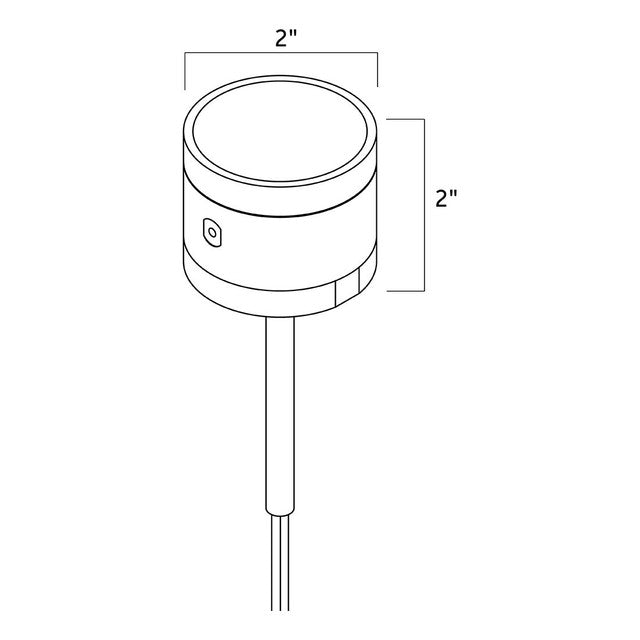

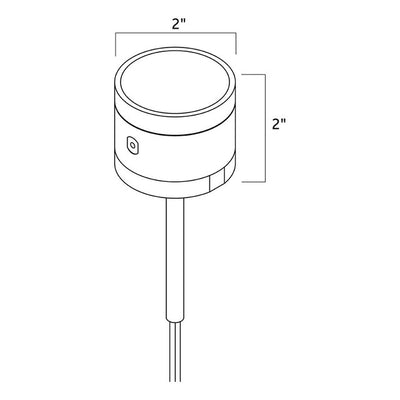

• Height 2.00"
• Length 2.00"
• Width 2.00"
• Operating Voltage Range 9-15 VAC
• Voltage 12V
• Integrated LED
• Delivered Lumens: 400
• Expected Life Span: 50,000 Hours
• Wattage: 6W
• Volt-Amperes (VA): 7.40
• Location Rating: UL Listed Wet
• Beam Angle: 60 Degrees
• Color Rendering Index (CRI): 80
• Color Temperature: 3000K
• Primary Material: Stainless Steel
• Finish: Stainless Steel
• UPC: 783927587525
