Kichler 16102AZT30 - 12" Wide 12V LED Ledge and Rail Hardscape Accent Light
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Hardscape BrochureKichler 16102AZT30 - 12" Wide 12V LED Ledge and Rail Hardscape Accent Light

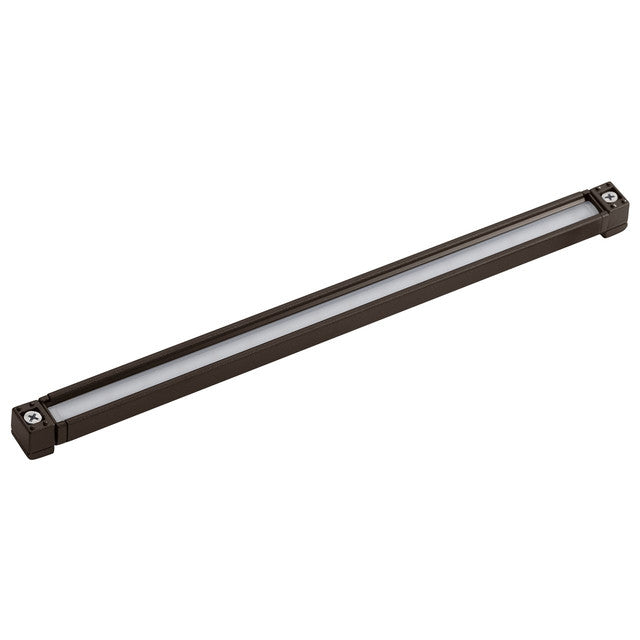

The 12V LED Hardscape light is an integrated, fully sealed LED fixture with a 270 degree pivot rotation from a mounting bracket which allows you to place the light precisely where it's needed. The 3" length option fits most design applications with a 3000K color temperature in a Architectural Bronze (AZT) finish. Custom optics ensure smooth, uniform light distribution virtually eliminating any hotspots or glare. Integrated with a 4kV surge protection to defend against power surges and irregularities.
Features
- The adjustable fixture can pivot 180 degrees for direct to surface install and pivot 270 degrees when installed with mounting bracket. Usable range is installation dependent.
- Offering a custom optical lens that diffuses light to deliver smooth, uniform output while eliminating hotspots and glare that may reflect off walls or installation surfaces.
- Can be installed either as a traditional downlight or as an uplight, on or off mounting bracket.
- Housing cavity and electronics are encapsulated to help keep all critical components protected against the elements.
- 4,000-volt system surge protection helps guard against system power surges and irregularities.
- Customizable mounting bracket with breakaway corner tabs that allow for easier installations in retrofit applications.
- Bracket is designed as an installation template with centering notch and screw pilot holes for installation guidance when mounting off bracket.
Specifications

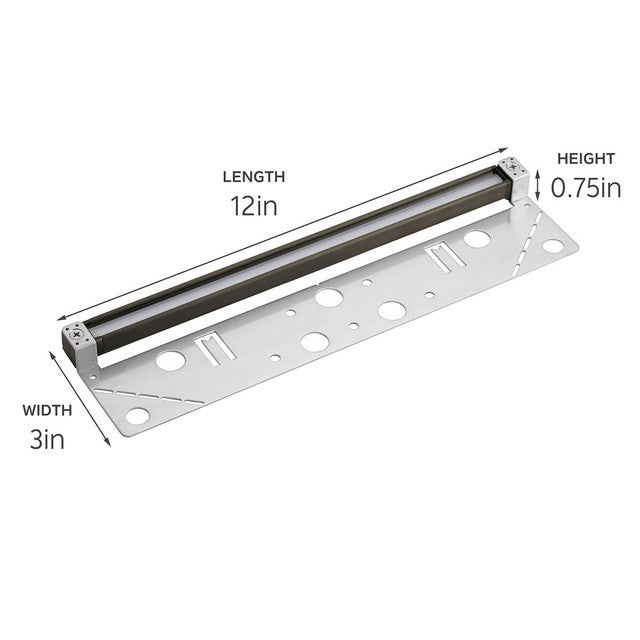

- Length: 12"
- Bracket Depth 3"
- Light Source: Integrated LED
- Color Temperature: 3000K
- Color Rendering Index (CRI): 80+
- Beam Angle: 108 Degrees
- Input Voltage Range: 9 – 15V (AC or DC with no loss in light output)
- Lumens: 85 lm
- Body: A380 Aluminum, C360 Brass casting

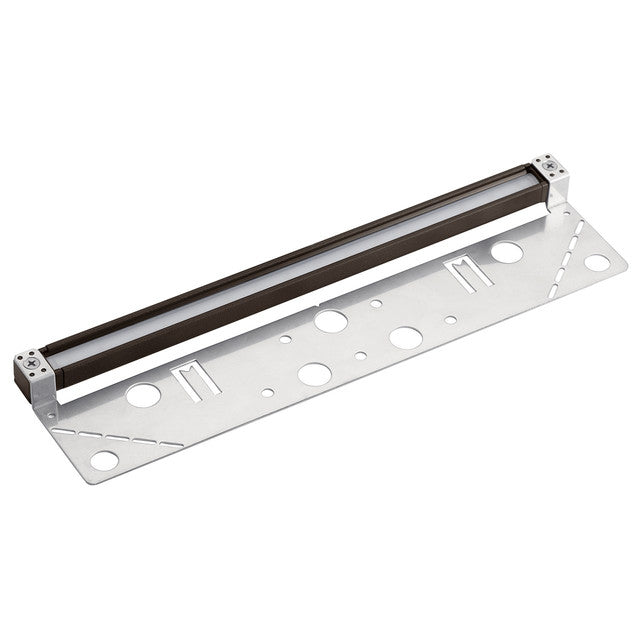

- Included Accessories: 304 stainless steel masonry bracket, off-bracket mounting kit, and 2 gel-filled wire nuts
- Finish: Textured Architectural Bronze
- UPC: 783927533706
