Kichler 16195AZT - 6" Wide 12V LED Path Light - Adjustable Color Temp in Textured Architectural Bronze

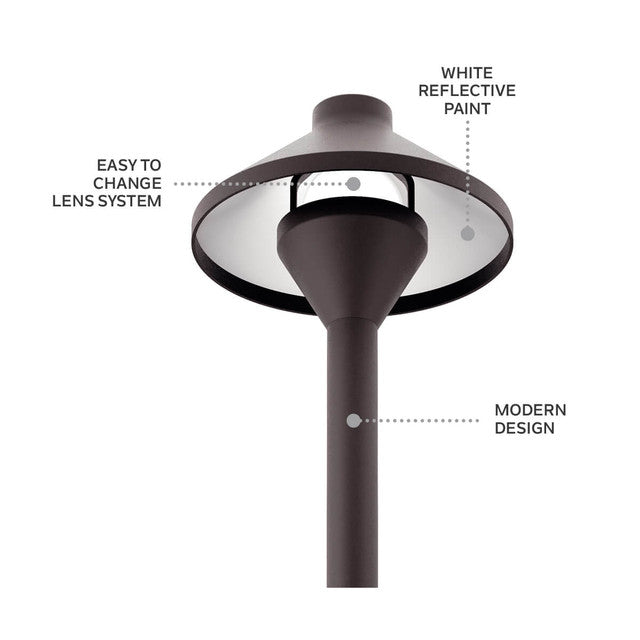

Kichler's 12V Adjustable Drop-In LED Path and Spread Light Kit in Textured Architectural Bronze lets you modify the color temperatures right on location. You can change the lamp from 3000k with a color lens filter to achieve a warm, white light, comparable to 2700K.

The included adjustable drop-in path and spread light offers a modern, sleek design, built to professional-grade standards, and is constructed with a durable cast aluminum housings. This easy-to-use product line simplifies the selection process by bundling everything together in one kit.

Features

• 2-in-1 professional customization series adjustable drop-in LED path and spread light kit
• 180 lumen Omnidirectional 3000K T3 LED Lamp bi-pin, ground stake, and wire connectors
• Amber warming lens to achieve a warm white light, approximately 2700K ​
• Clear tempered, shock resistance glass with a high tolerance for thermal expansion and stress
• Custom white reflective paint ensures even uniformity
• The clear glass (or the warming lens) sits between the harp and the gasket, the harp threads into the cup with the gasket and glass sandwiched between
• Designed with a 9-15V operating range to be able to add more fixtures to a run without any loss in light output

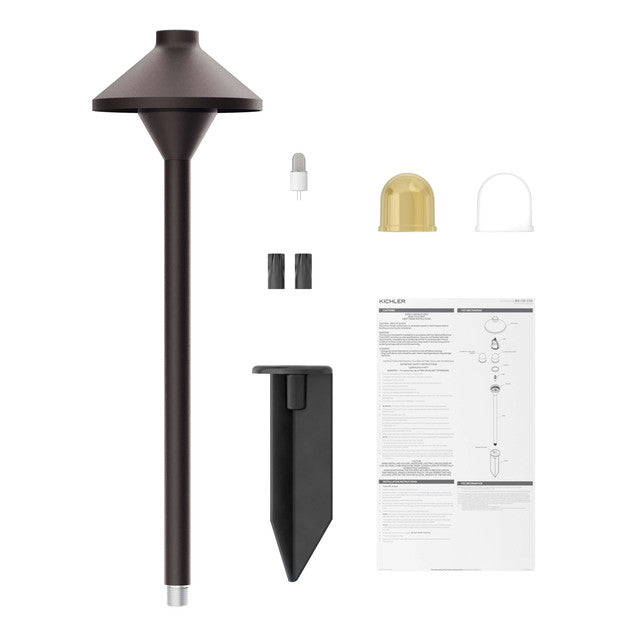

• What's in the box: landscape path light, 8 inch slotted in-ground stake, 2 gel-filled wire nuts, warming dome, 180 lumen Omnidirectional 3000K T3 LED Lamp bi-pin

Specifications

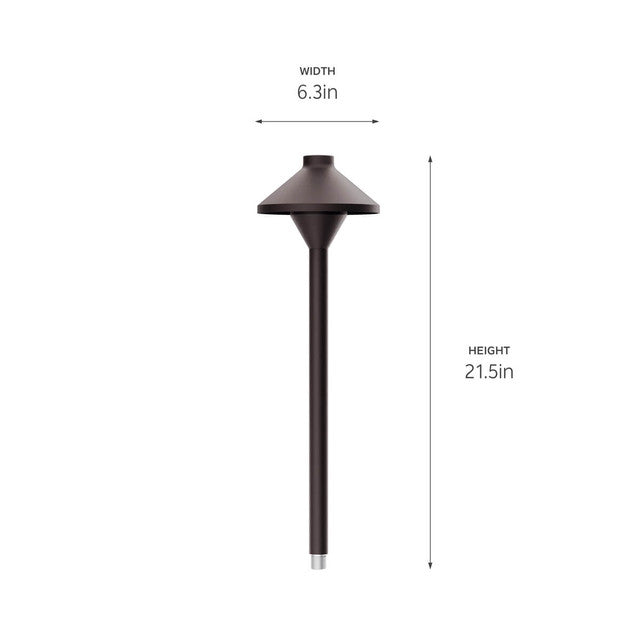

• Height: 21.50"
• Width: 6.3"
• Operating Voltage Range: 12 VAC
• Voltage: 12V
• Bulb Base: T3 Bi-Pin
• Included LED Bulb: T3 Bi-Pin, 1.5W, 2.4VA, 300 Degree Omni-directional, 3000K, 180 lumens
• Max Bulb Wattage: 10 Watts
• Lead Wire Length: 48"
• Location Rating: CSA UL Wet Location
• Body / Housing: Cast Aluminum
• Finish: Textured Architectural Bronze
• UPC: 783927011655

Related Video: Kichler's 12V Adjustable Drop-In LED Path Light Kits
