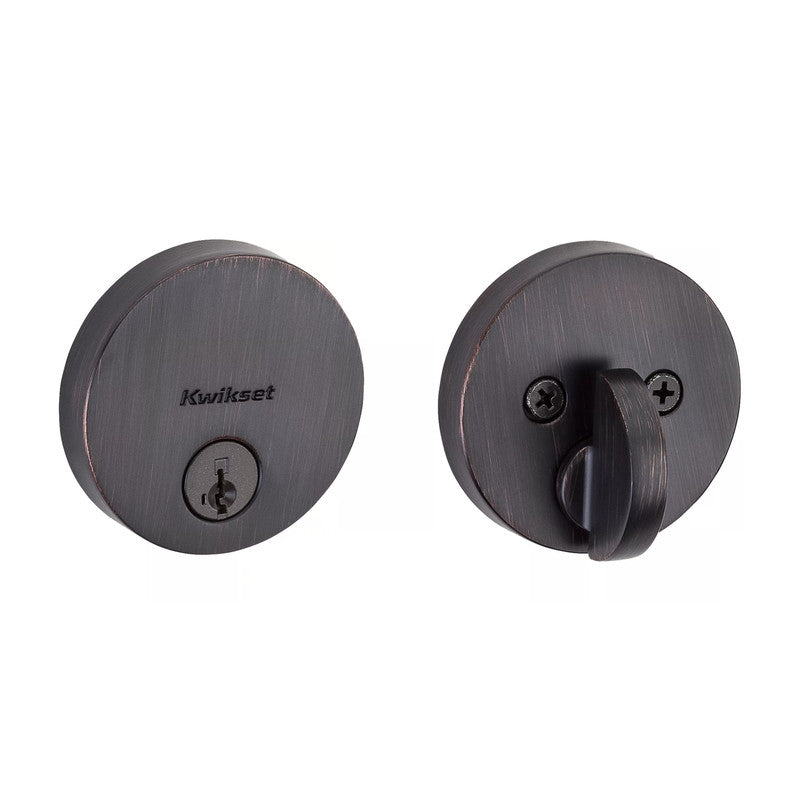

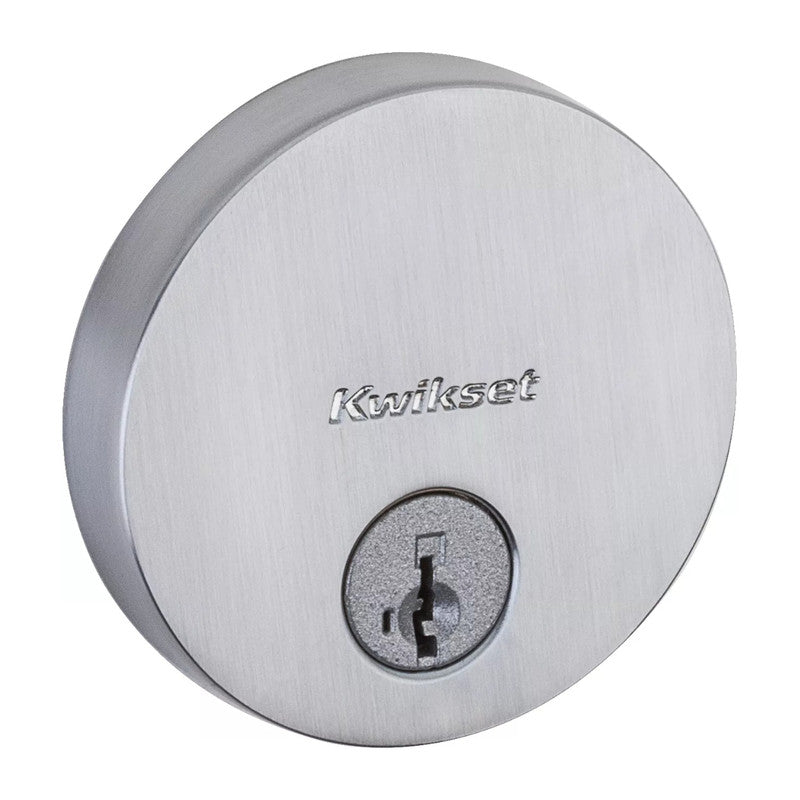

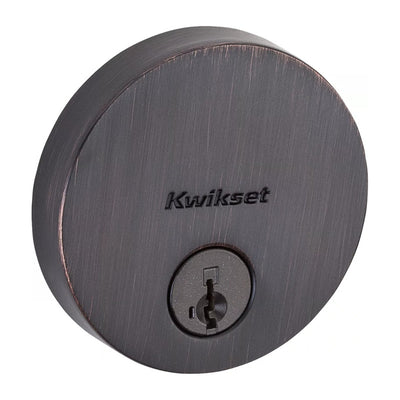

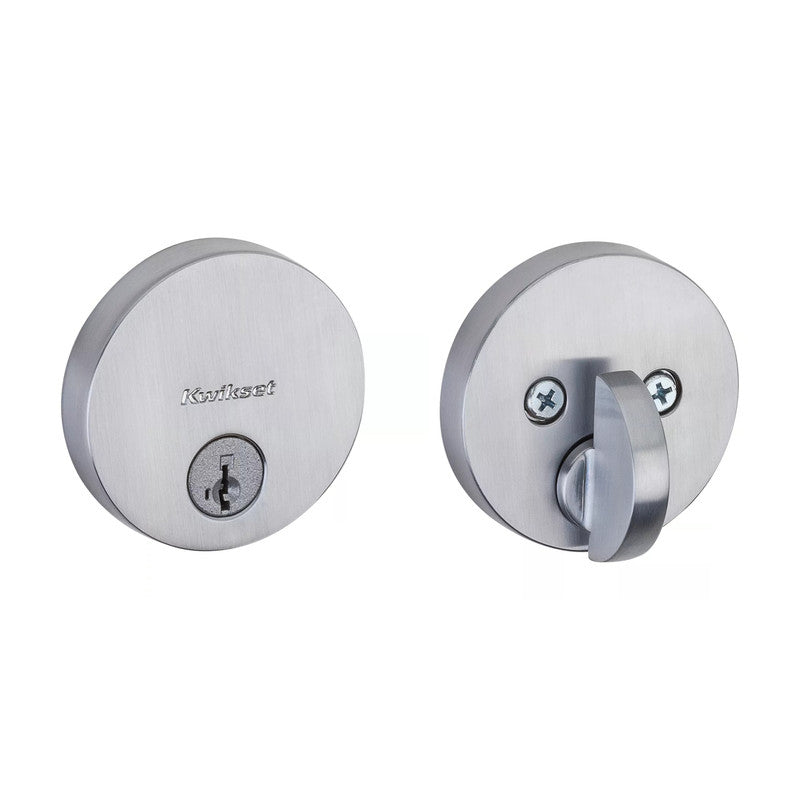

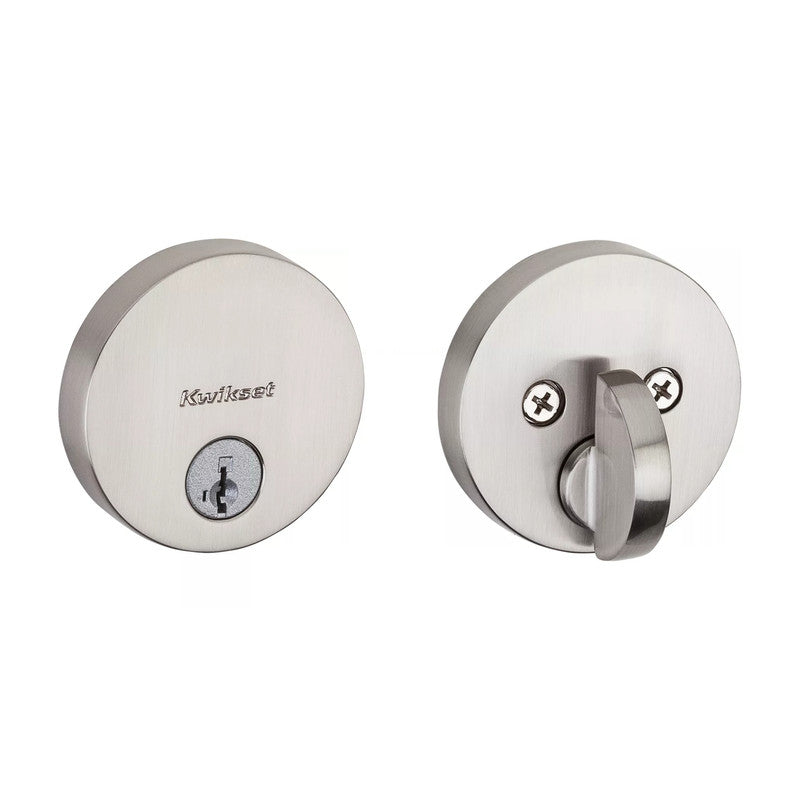

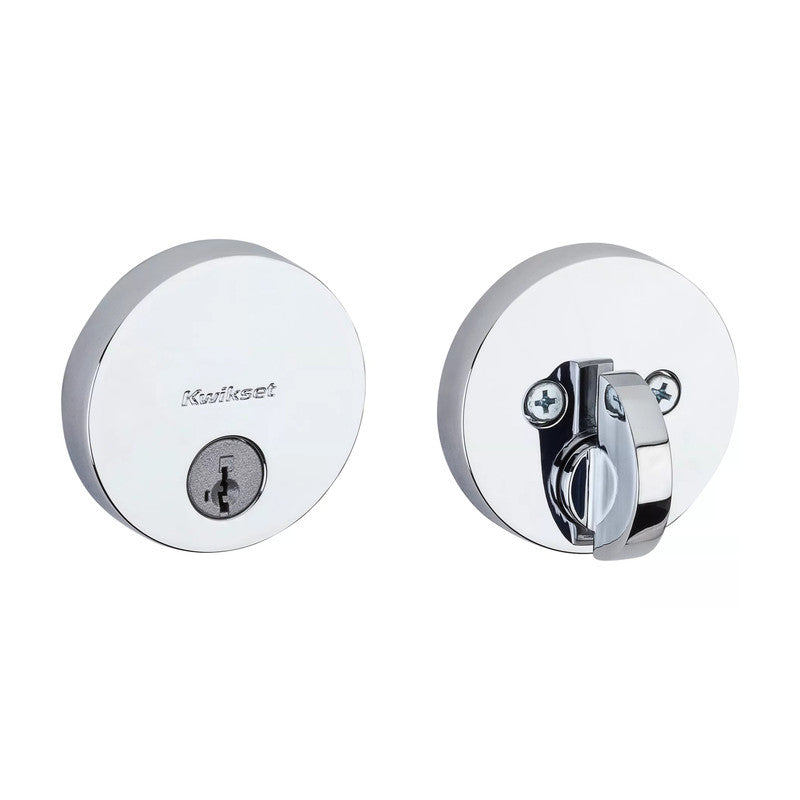

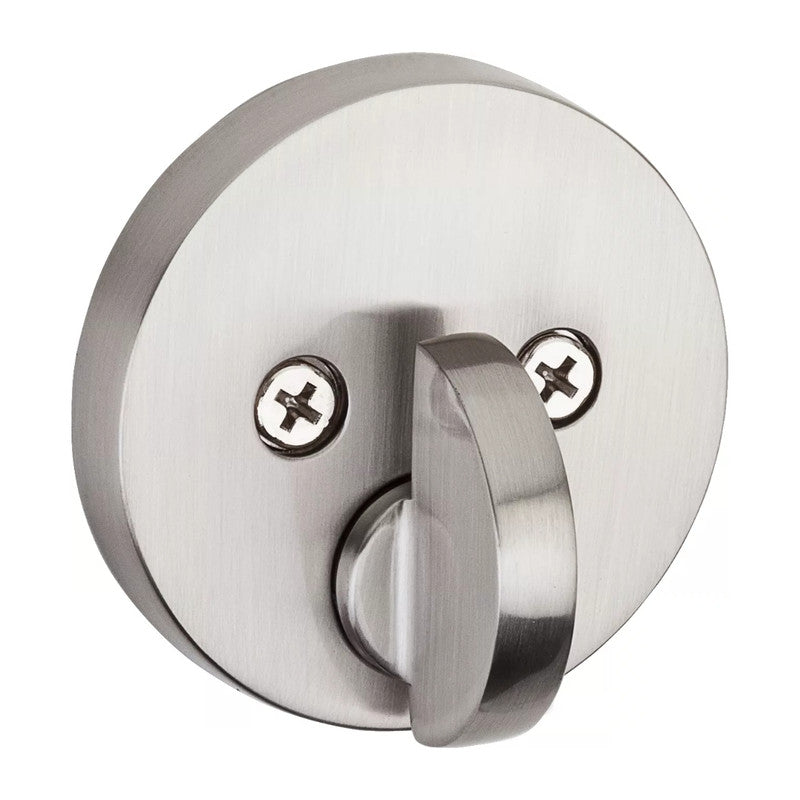

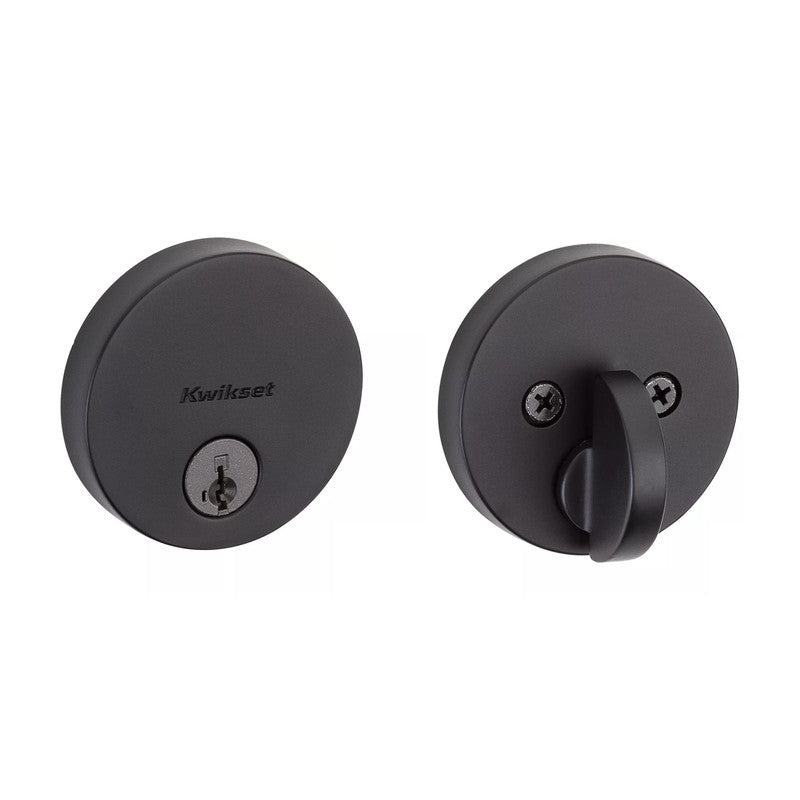

Kwikset 258RDT - Uptown Single Cylinder SmartKey Deadbolt

The latest in contemporary design, these deadbolts are the first of their kind, featuring a half-inch projection off the door and the latest version of Kwikset patented SmartKey Security.

Features

• Designer style and superior security with this Kwikset Signature Series product
• For use on exterior doors where keyed entry and security is needed
• Featuring SmartKey Security, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
• SmartKey Security re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options

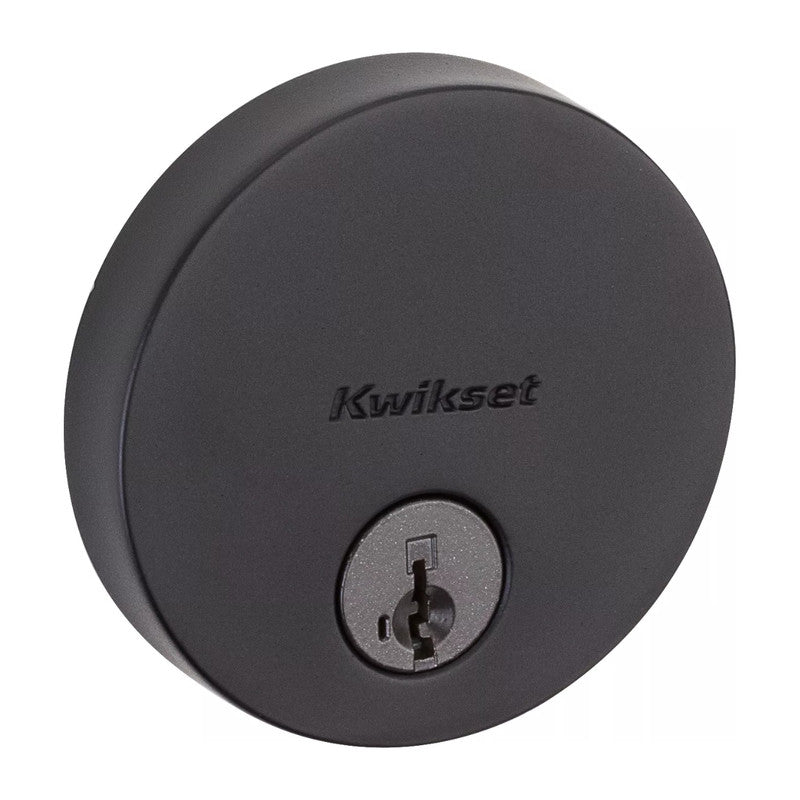

• Deadbolt operated by key outside and thumb turn inside Comes with 2 keys
• Deadbolt Latch has 3 interchangable faceplates - round corner, square corner, and drive-in collar
• ANSI/BHMA grade 1 certified
• Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
• Includes round deadbolt strike
• 1 inch deadbolt throw

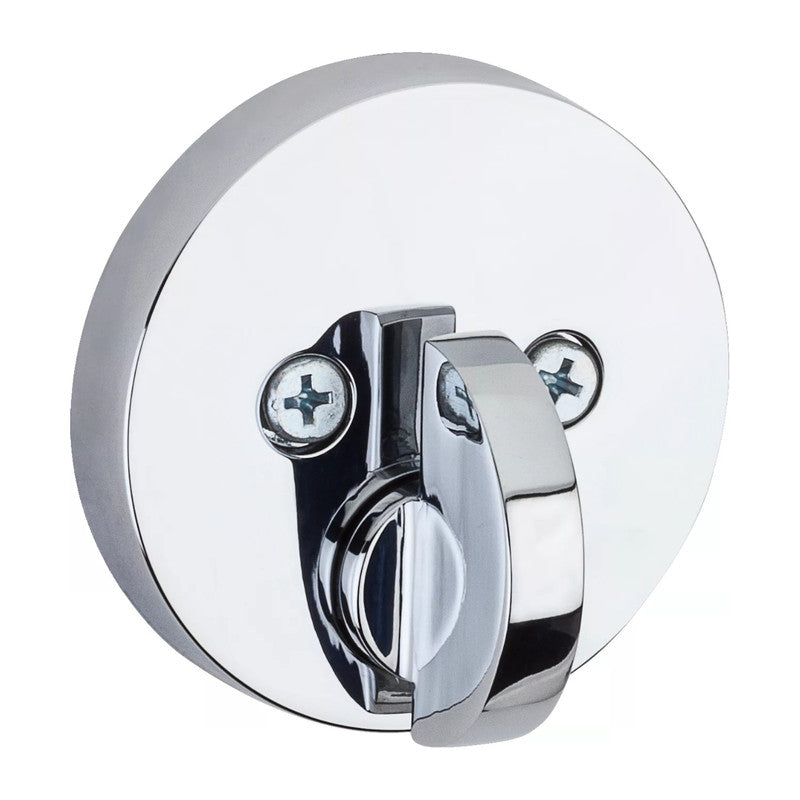

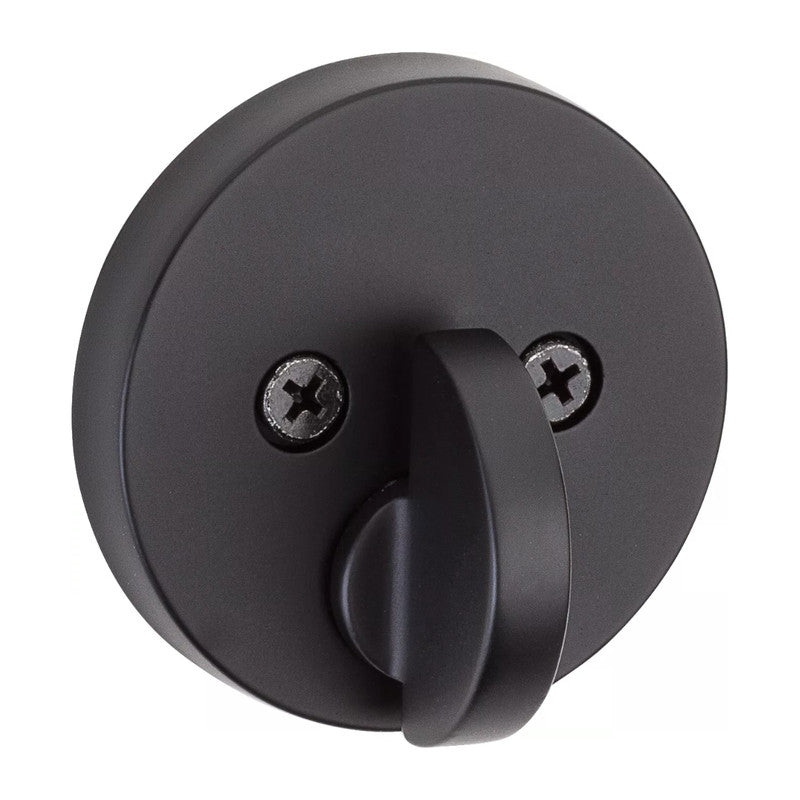

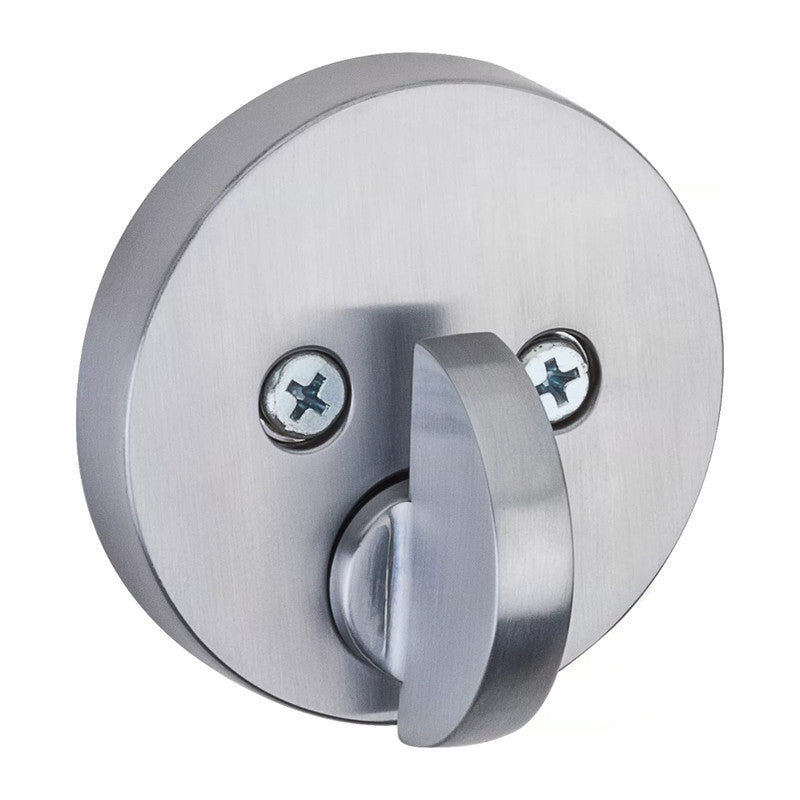

• Locking mechanism functions with turn piece on the interior of the lock
• Easily installs in minutes with just a screwdriver
• Lifetime mechanical and finish warranty

Specifications

• Door Prep: Cross Bore 2-1/8”, Edge Bore 1”
• Latch face: 1” x 2-1/4”
• Backset: 2-3/8” or 2-3/4” standard
• Door Thickness: 1-3/8” - 1-3/4” doors standard
• Faceplates: 1” x 2-1/4”
• Strikes: 1” x 2-1/4” full
• Bolt: 1” throw
• Door Handing: Reversible for right or left-hand doors
• ANSI/BHMA: Grade 1 Certified
