LD141 Submittal Sheet

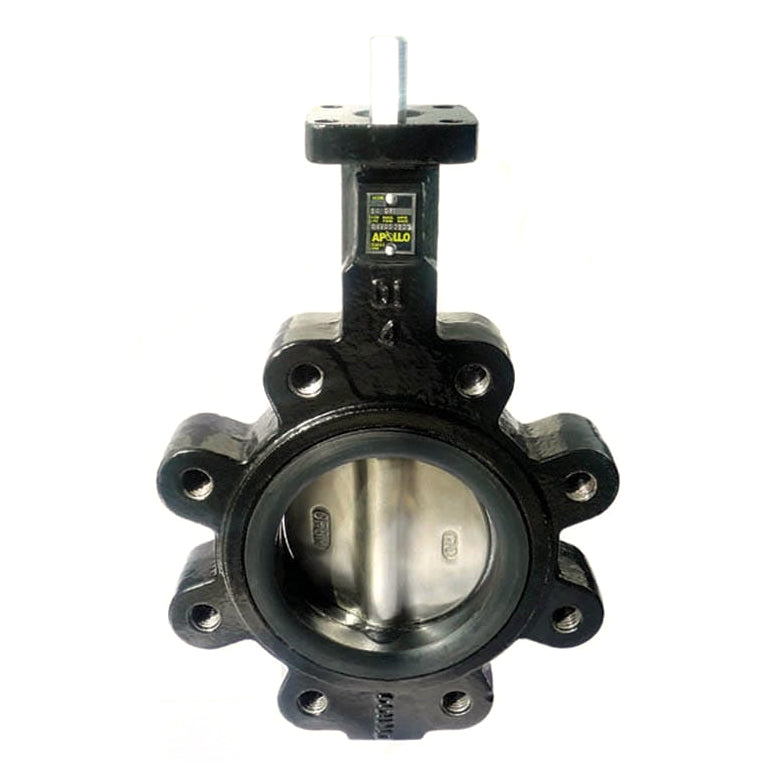

Apollo Valves LD141-25-BE-11A - 2-1/2" Ductile Iron Lug Body, Aluminum Bronze Disc, Black EPDM Seat Butterfly Valve

The Apollo LD141 Series Ductile Iron Butterfly Valves are ideal for use in Industrial and Commercial/HVAC/Mechanical applications. The LD141 Series is a companion lug style, available in sizes 2” - 24”.

Features

• Compatible with ANSI 125# & 150# Flanges
• ISO 5211 Top Plate Allows Choice of Apollo Pneumatic Actuators and Gear Operators
• Conforms to MSS SP-67 & API 609
• LD141 Series Suitable for End of Line Service (Bidirectional Dead End Service) to Rated Pressure (2”-24”)
• 3” - 24” meet performance requirements of AWWA C-504

Performance Rating

• Pressure Rating:
  • 2” to 12”: 200 psi
  • 14” to 24”: 150 psi

Approvals

• NSF/ANSI 372 - Lead Free
• NSF/ANSI 61 - Water Quality
• CRN: OC/2102CL
• MSS SP67-2002a

Body

• Ductile Iron ASTM A536, (65-45-12)

Disc Material

• Aluminum Bronze

Seat Material

• Black EPDM: -20°F to 250°F Intermittent

Operator

• 10 Position Handle

PVZ1500005
