47-25349-13 - Limit Switch - Normally Closed - 170F Close - 190F Open - Auto Reset - 120 / 230V

In stock
SKU: 47-25349-13
$22.96

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

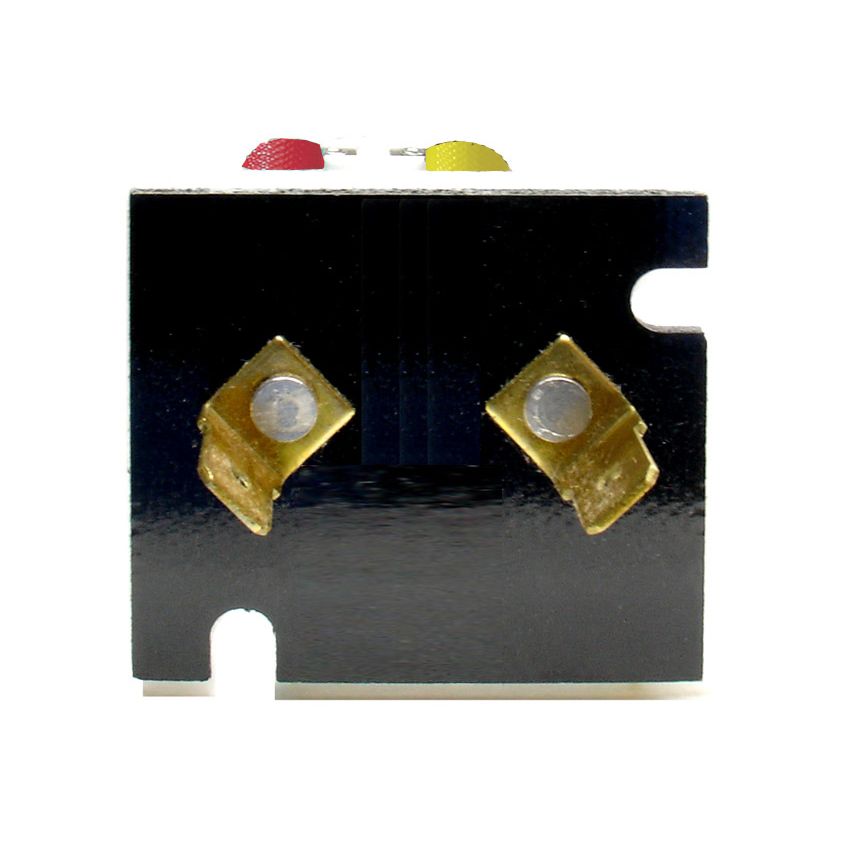

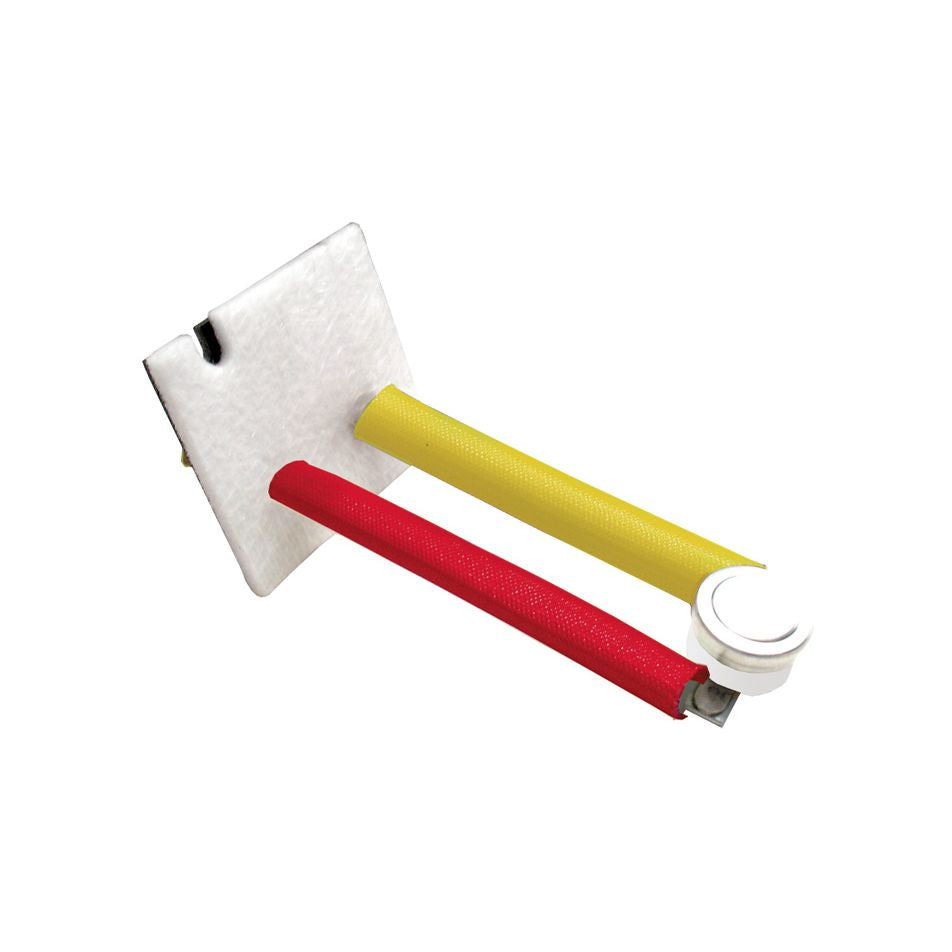

Rheem 47-25349-13 - Limit Switch - Normally Closed - 170F Close - 190F Open - Auto Reset - 120 / 230V

Technical Data

  • TOD Switch Series: 36T
  • Category: General Purpose
  • Reset Mode: Auto
  • No. of Poles: 1
  • Switch Type: SPST
  • Contact Orientation: Normally Closed
  • Maximum Voltage Rating (VAC): 120 / 230
  • Maximum Current Rating (A): 15 / 10
  • Open Temperature (F): 190
  • Tolerance Open Temperature (F): +/-5
  • Close Temperature (F): 170
  • Tolerance Close Temperature (F): +/-7
  • Nominal Temperature Difference (F): 20
  • Color Code: Yellow/Red
  • Disc Face: Enclosed
  • Mounting: Board Mount - 90 degree strap angle
  • Mounting Board Dimensions (in.): 1-5/8 x 1-7/16
  • Mounting Insertion Depth - Maximum (in.): 3
  • Connections: 1/4 in. Quick Connects

Where Used

  • R801C-ZSA_ZXA
  • R801T-DZ
  • R801T-W801T-ZSA
  • R801V-DZ
  • R802P-ZSA
  • R802V-ZSA
  • RGLE
  • RGLK
  • RGLQ
  • RGLR
  • RGLT
