Home » View All Plumbing » View All Plumbing » Pumps » 53-0001 - M53 Series Automatic Cast Iron Sump Pump, 115V, 1/3 HP
Zoeller

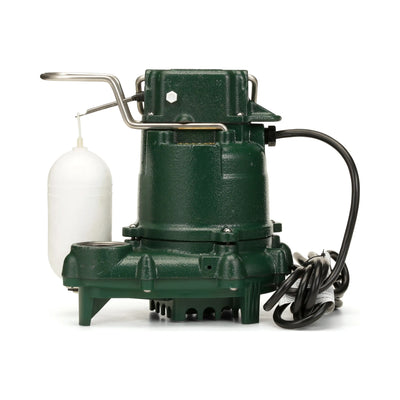

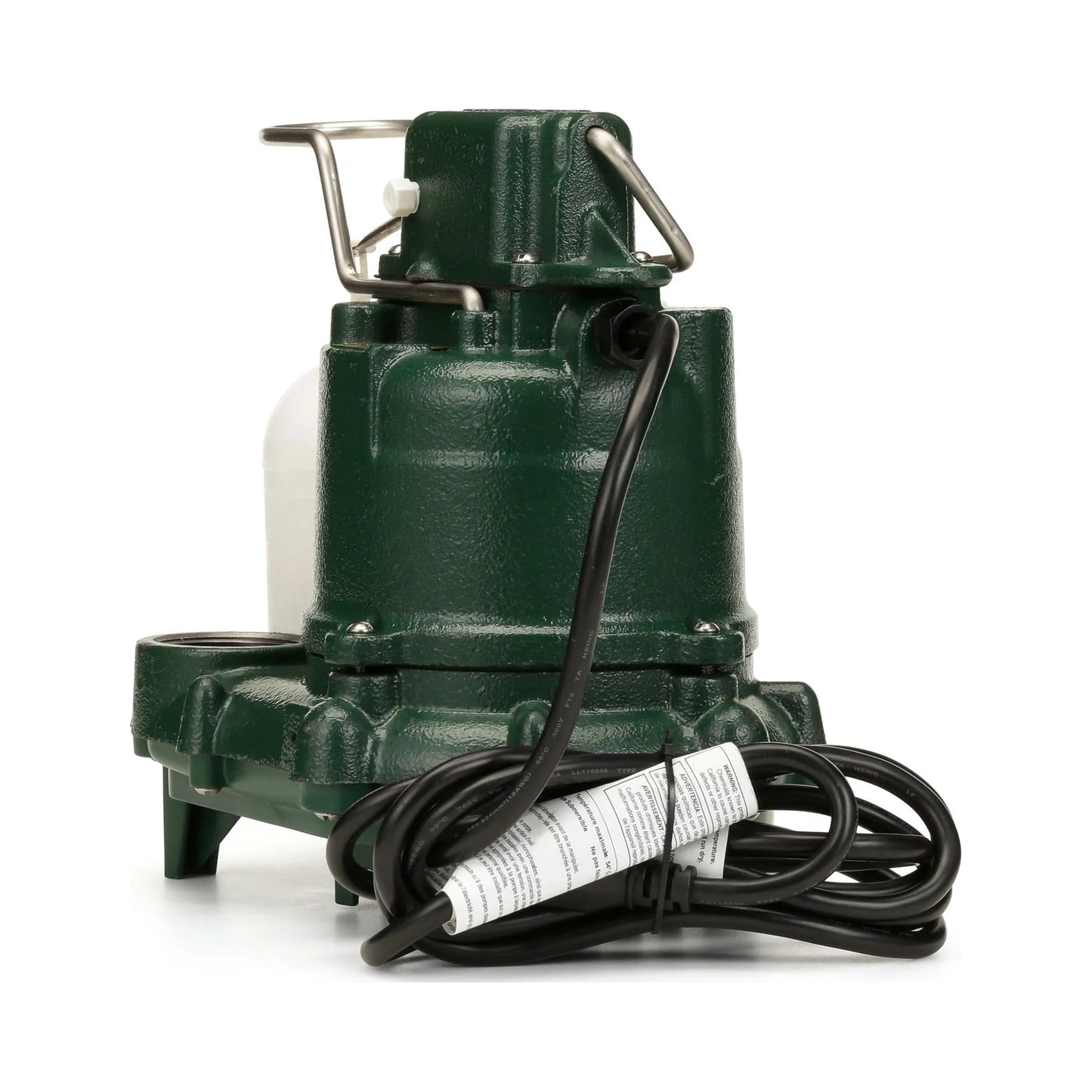

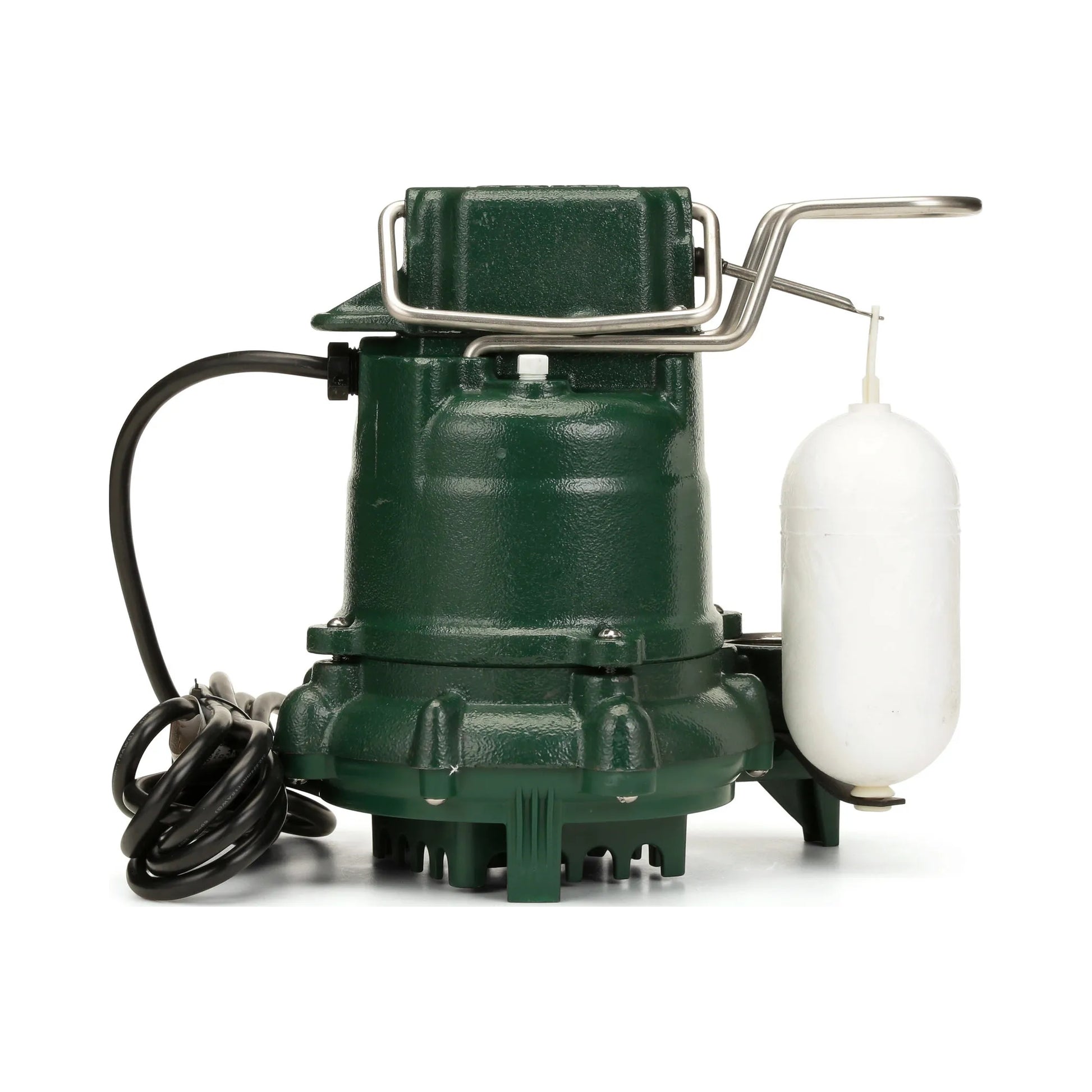

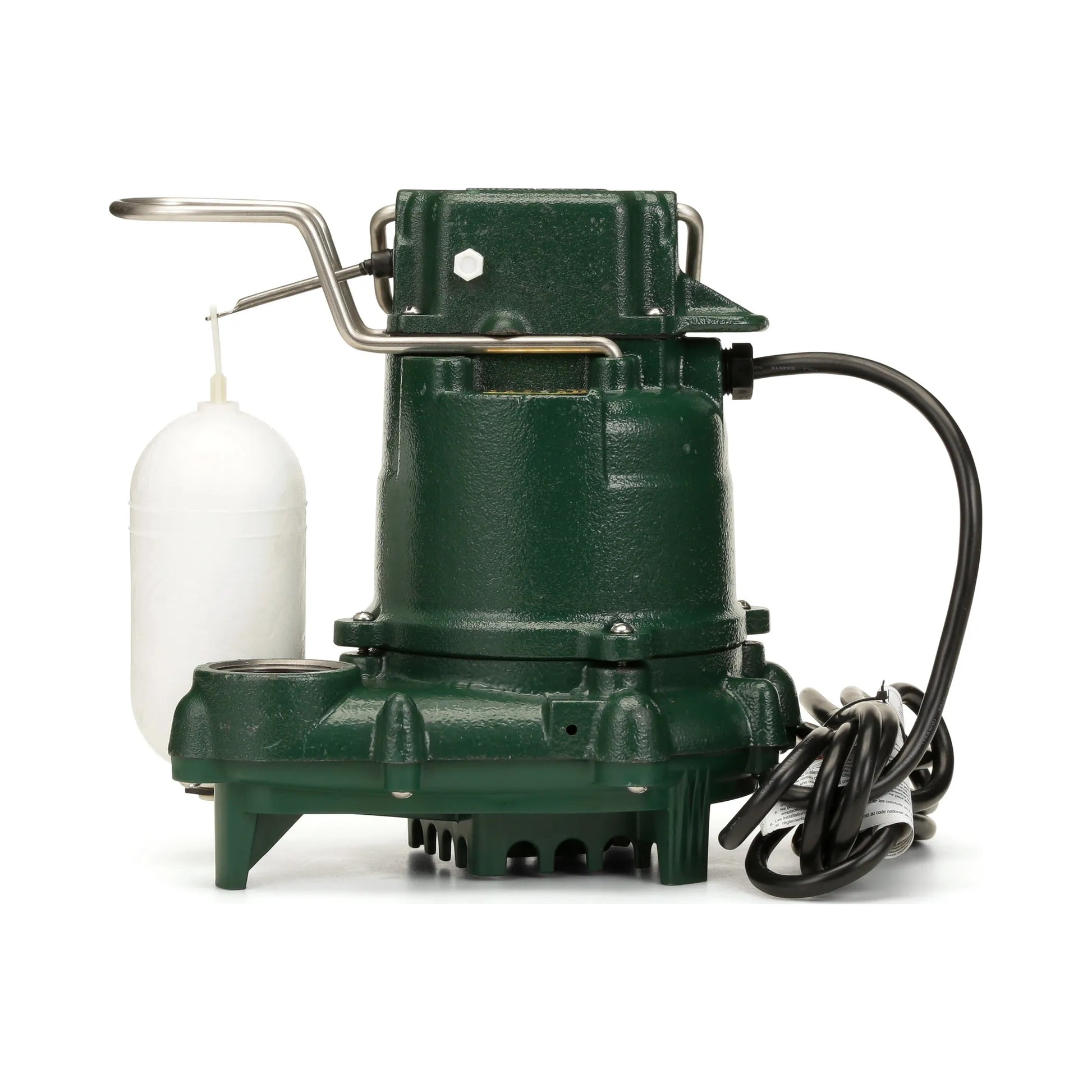

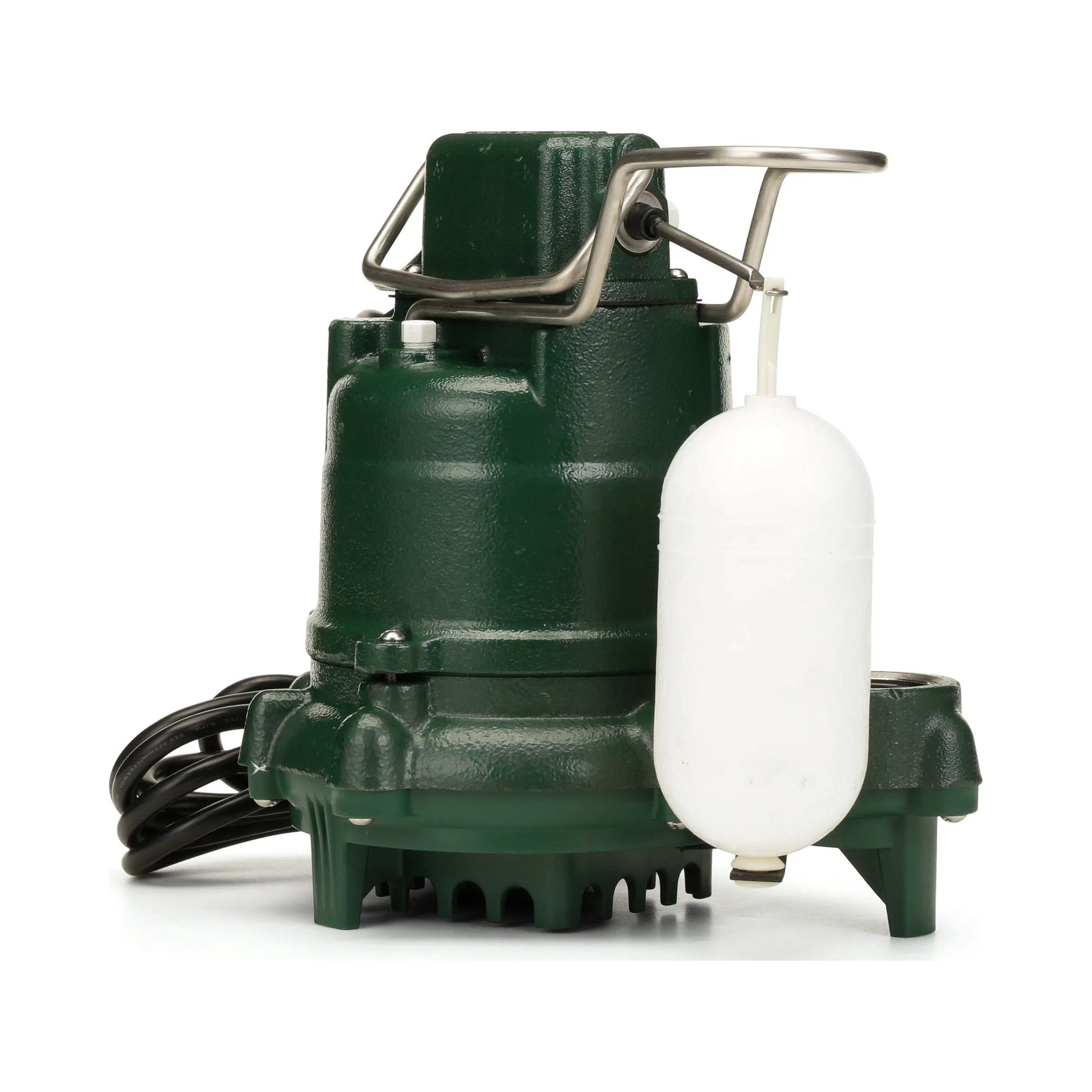

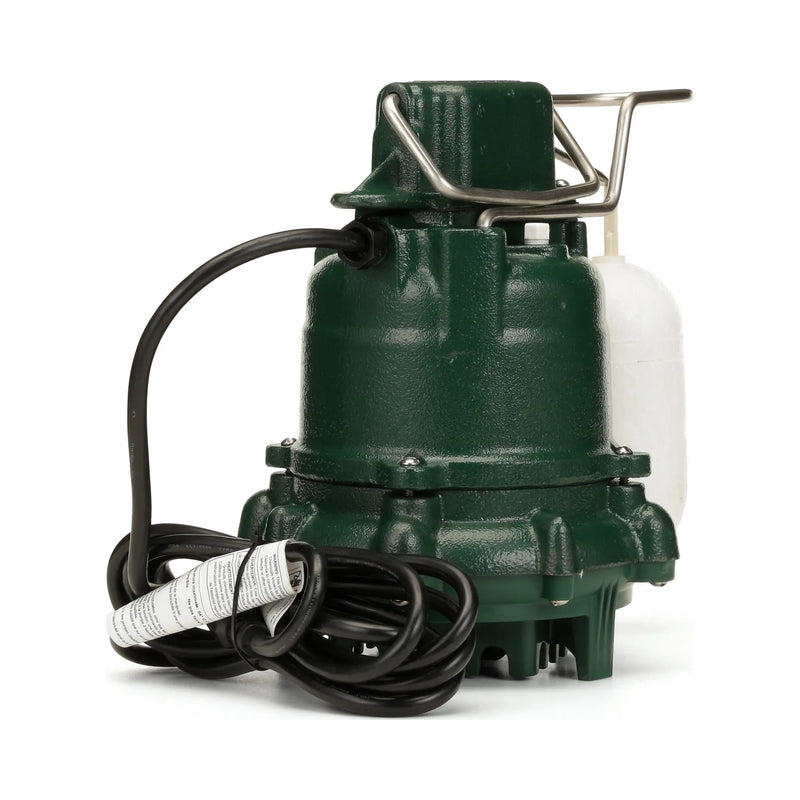

53-0001 - M53 Series Automatic Cast Iron Sump Pump, 115V, 1/3 HP

In stock
SKU: 53-0001
$221.25

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
E
Eloy Z. (Mount Vernon, US)

The best sump pump out there, i had one lasted 20 years i shit! you not.
That's why I had to buy an other one the same.

M53 Series Sump Pumps

  • Float-operated, submersible, 2-pole mechanical switch and variable level, long-cycle systems available
  • Corrosion-resistant, powder-coated epoxy finish
  • No sheet metal parts to rust or corrode
  • Stainless steel screws, switch arm, guard, and handle
  • No screens to clog
  • Watertight, neoprene square ring between motor and pump housing
  • Solid, buoyant, polypropylene float
  • Oil-filled, hermetically-sealed, automatic reset thermal overload protected motor
  • Upper and lower sleeve bearings running in bath of oil
  • Entire unit pressure-tested after assembly
  • Carbon and ceramic shaft seal
  • Major width: 10-3/32" (26.2 cm)
  • Major height: 10-1/16" (25.6 cm)
  • Watertight and dust-tight

Model 53 Specific Features

  • Cast iron switch case, motor and pump housing
  • Engineered thermoplastic base
  • Engineered, glass-filled, plastic impeller with metal insert
  • Stainless steel guard and handle
  • Cast iron sleeve bearings

Specifications

  • Motor: 3/10 HP
  • Voltage: 115 or 230 V
  • Phase: 1 Ph
  • Hertz: 60 Hz
  • RPM: 1550 RPM
  • Type: Shaded pole
  • Insulation: Class B
  • Amps: 4.8 – 9.7 Amps
  • Operation: Automatic or nonautomatic
  • Auto On / Off Points: 7-1/4″ / 3″ (18.4 cm / 7.6 cm)
  • Discharge Size: 1-1/2″ NPT
  • Solids Handling: 1/2″ (12 mm) spherical solids
  • Cord Length: 9′ (3 m) auto, 15′ (5 m) nonauto
  • Cord Type: UL listed, 3-wire cord and plug
  • Max Head: 19.25′ (5.9 m)
  • Max Flow Rate: 43 GPM (163 LPM)
  • Max Operating Temperature: 130 °F (54 °C)
  • Cooling: Oil filled
  • Motor Protection: Auto reset thermal overload
  • Cap: Cast iron or bronze
  • Motor Housing: Cast iron or bronze
  • Pump Housing: Cast iron or bronze
  • Base: Cast iron, bronze or engineered thermoplastic
  • Upper Bearing: Sleeve bearing
  • Lower Bearing: Sleeve bearing
  • Mechanical Seals: Carbon and ceramic

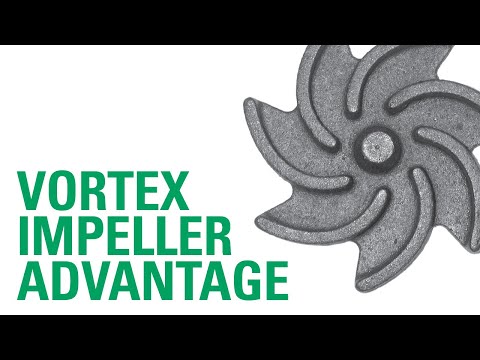

  • Impeller Type: Non-clogging vortex
  • Impeller: Plastic, cast iron or bronze
  • Hardware: Stainless steel
  • Motor Shaft: AISI 1215 cold roll steel
  • Gasket: Neoprene

Notes
The sizing of effluent systems normally requires variable level float(s) controls and properly sized basins to achieve required pumping cycles or dosing timers with non automatic pumps.

Reserve Powered Design.
For unusual conditions a reserve safety factor is engineered into the design of every Zoeller pump.



PEZSK20100
