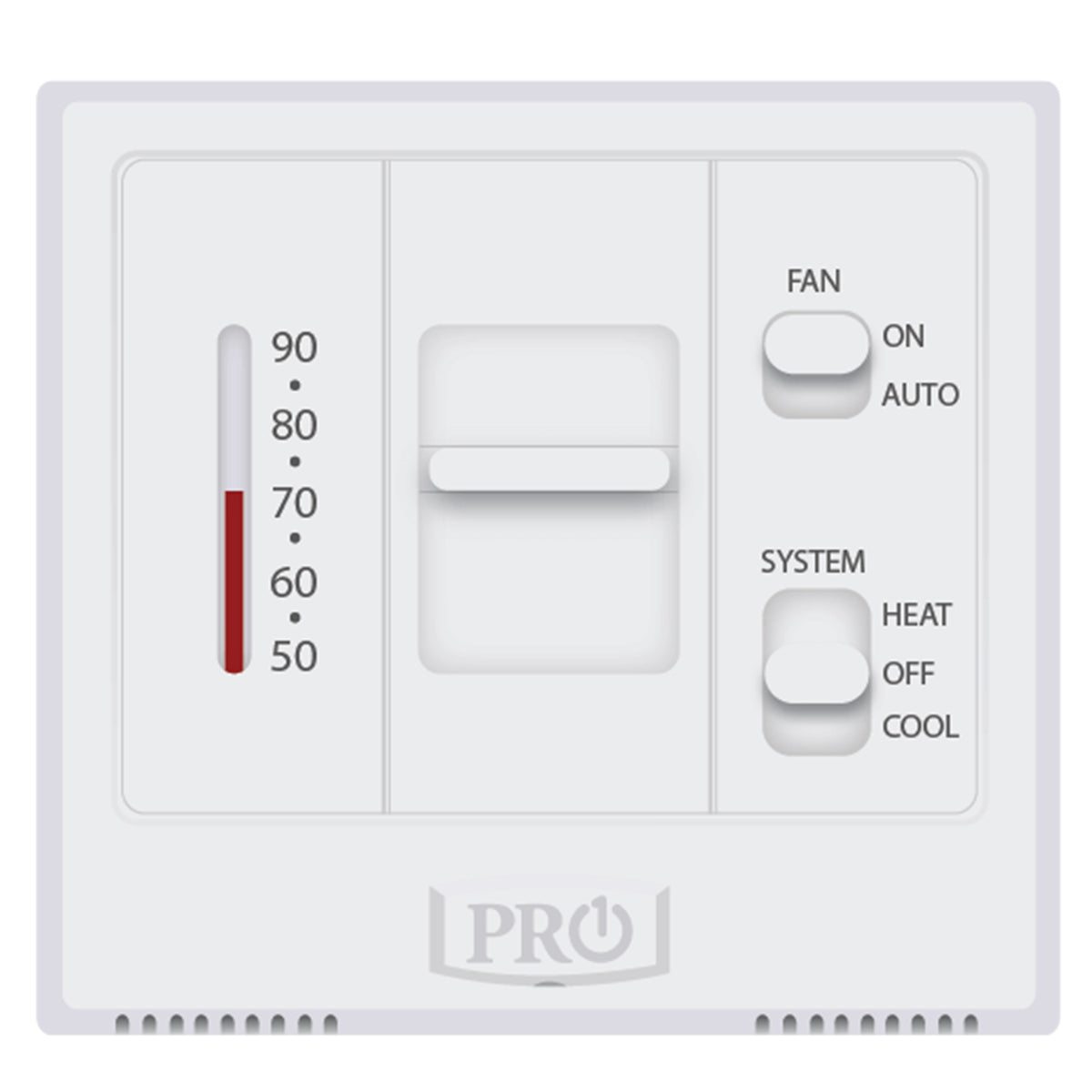

Rheem T501M - Mechanical Non-Programmable Thermostat

Pro1 specializes in the design and manufacturing of professional grade products that improve the comfort of a home and simplify the installation. All of our products are designed to accommodate the performance and reliability demands of professional heating and cooling technicians. Heating and cooling accounts for almost half of our annual home energy consumption. Utilizing the Pro-1 Thermostat can reduce nearly 2,000 pounds of carbon emissions annually with a few simple adjustments.

Features

• Single stage, 24 volt mechanical.
• Simple private label badge system
• Three thermostat in one: Heat - Off - Cool, Heat only with fan, Heat only without fan
• Removable fan switch
• Universal sub-base
• Mounts on wall or junction box
• Mechanical 24V power
• 2 year warranty

Specifications

• Brand: Pro1
• Programming: None
• Display: Slider
• Stages Heat/Cool (Conventional): 1H/1C
• Stages Heat/Cool (Heat Pump): 1H/1C
• Autochangeover: No
• Programmable Fan: No
• System Switches: Cool-Heat-Off
• Fan Switch: On-Auto
• Connections: Rc,Rh,B,O,G,W,Y
• Millivolt [mV] Heating: Yes
• Size W x H x D (in.): 4-3/4 x 4-7/16 x 1-1/4
• Wall Plate: PD411073
