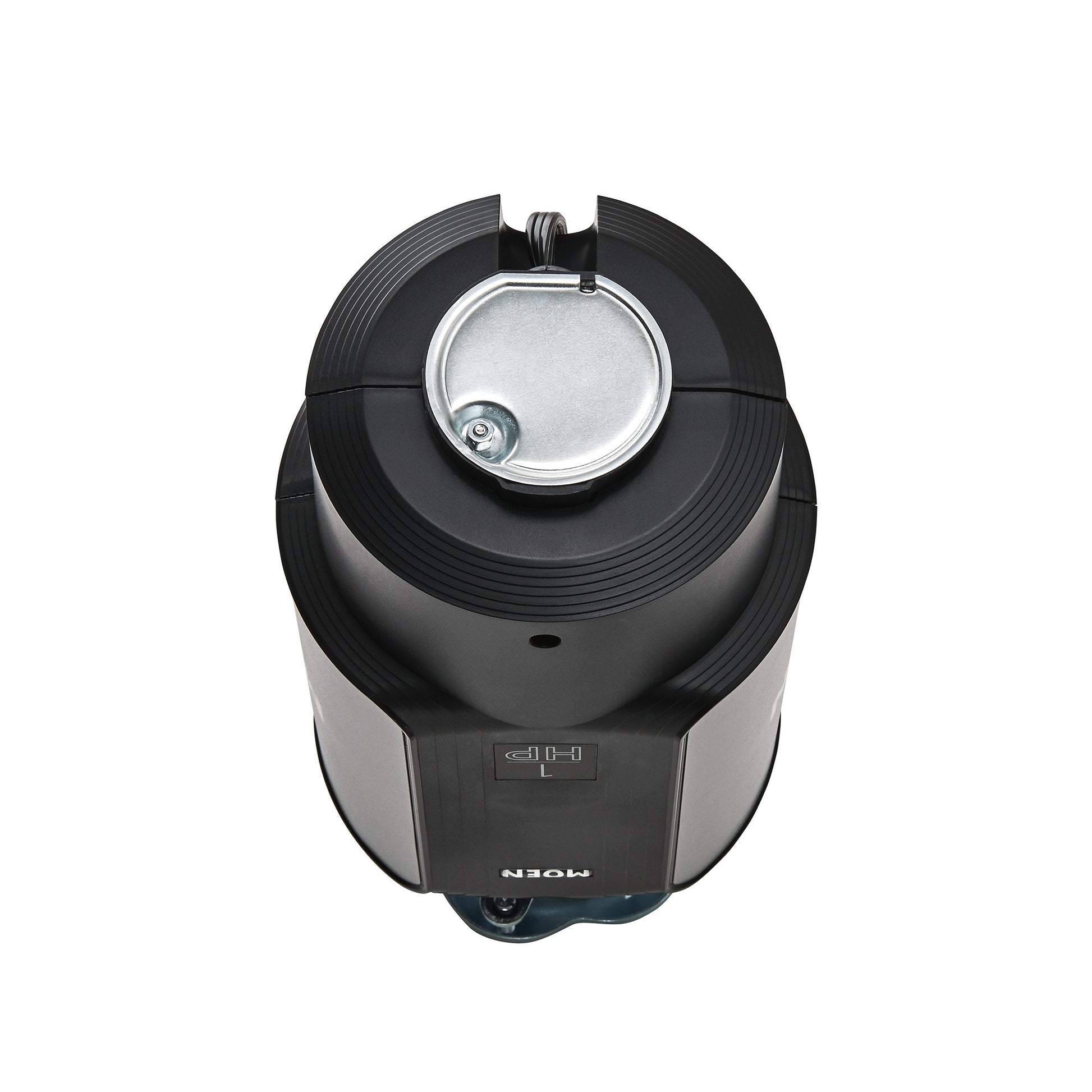

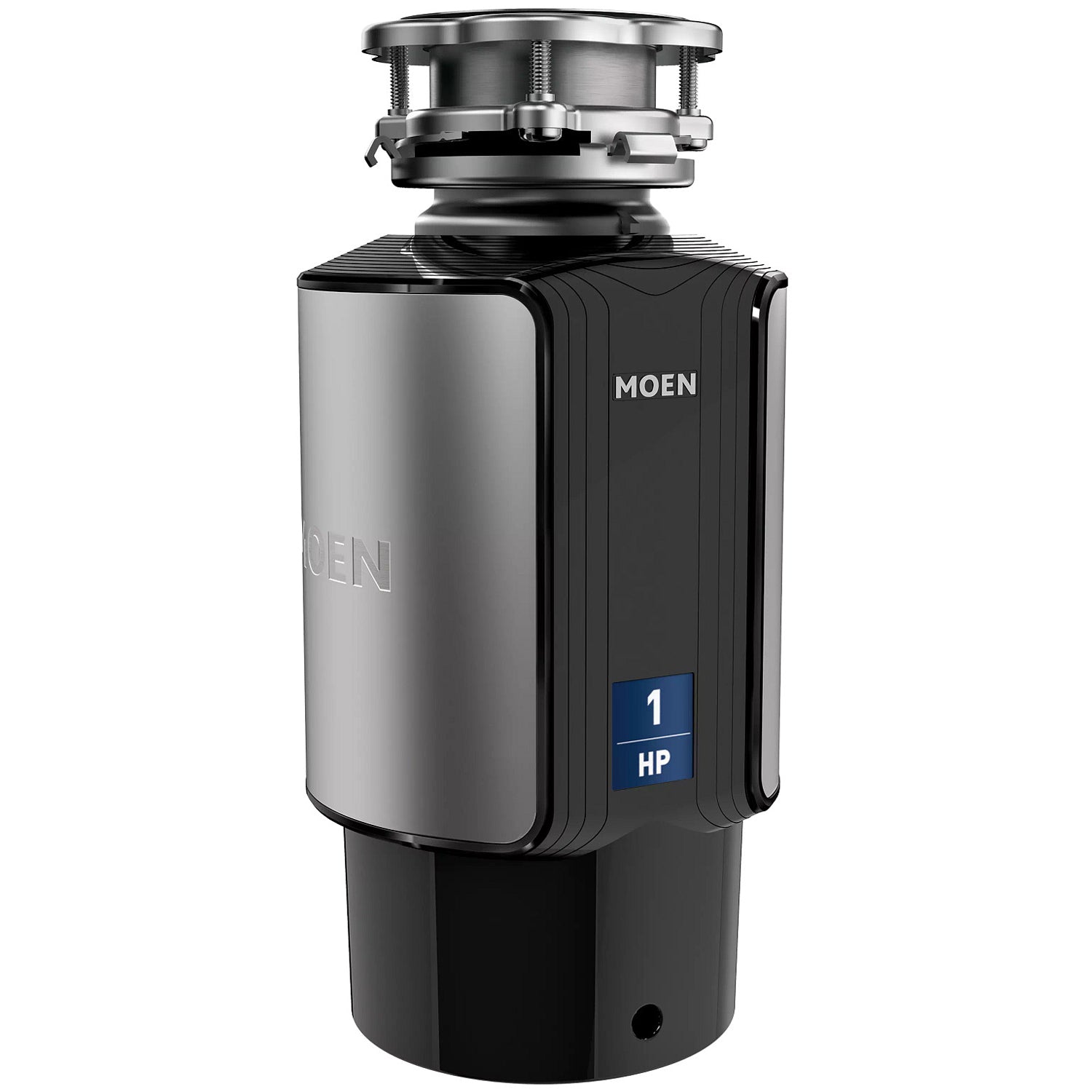

Moen GX100C - 1 Horsepower GX Series Chef Garbage Disposal

Moen created The Chef Series of garbage disposals for homeowners who frequently cook from scratch and want quick cleanup of even the toughest food scraps. Built with a streamlined design and our most powerful, high-speed motor, The Chef GX100C cleans up foods like raw and cooked meat, corncobs, chicken bones and large fruit pits. Featuring integrated, motion-activated lighting, The Chef GX100C installs easily on most existing 3-bolt assemblies and is backed by a 10-year limited warranty with in-home servi

Features

• Part of The Chef Series designed for those who love to get creative in their kitchen and need the strongest cleanup possible
• 1 Horsepower VORTEX motor has professional grade grinding power to tackle the toughest kitchen scraps
• 10åÊyear limited warranty with in-home service guarantees help is there when you need it

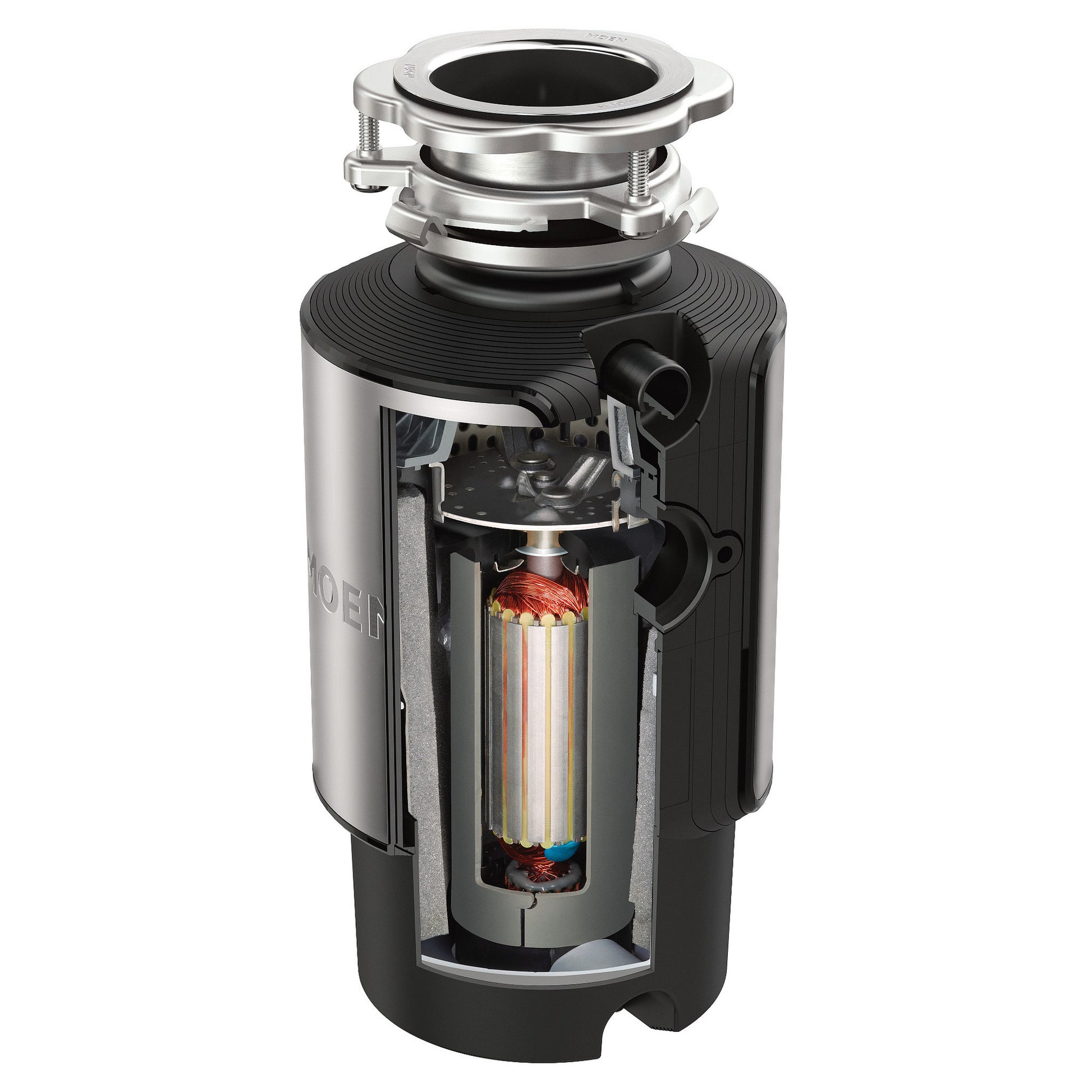

• High speed 2800 RPM VORTEX permanent magnet motor designed to reduce jamming
• SoundSHIELD designed to provide sound deadening insulation

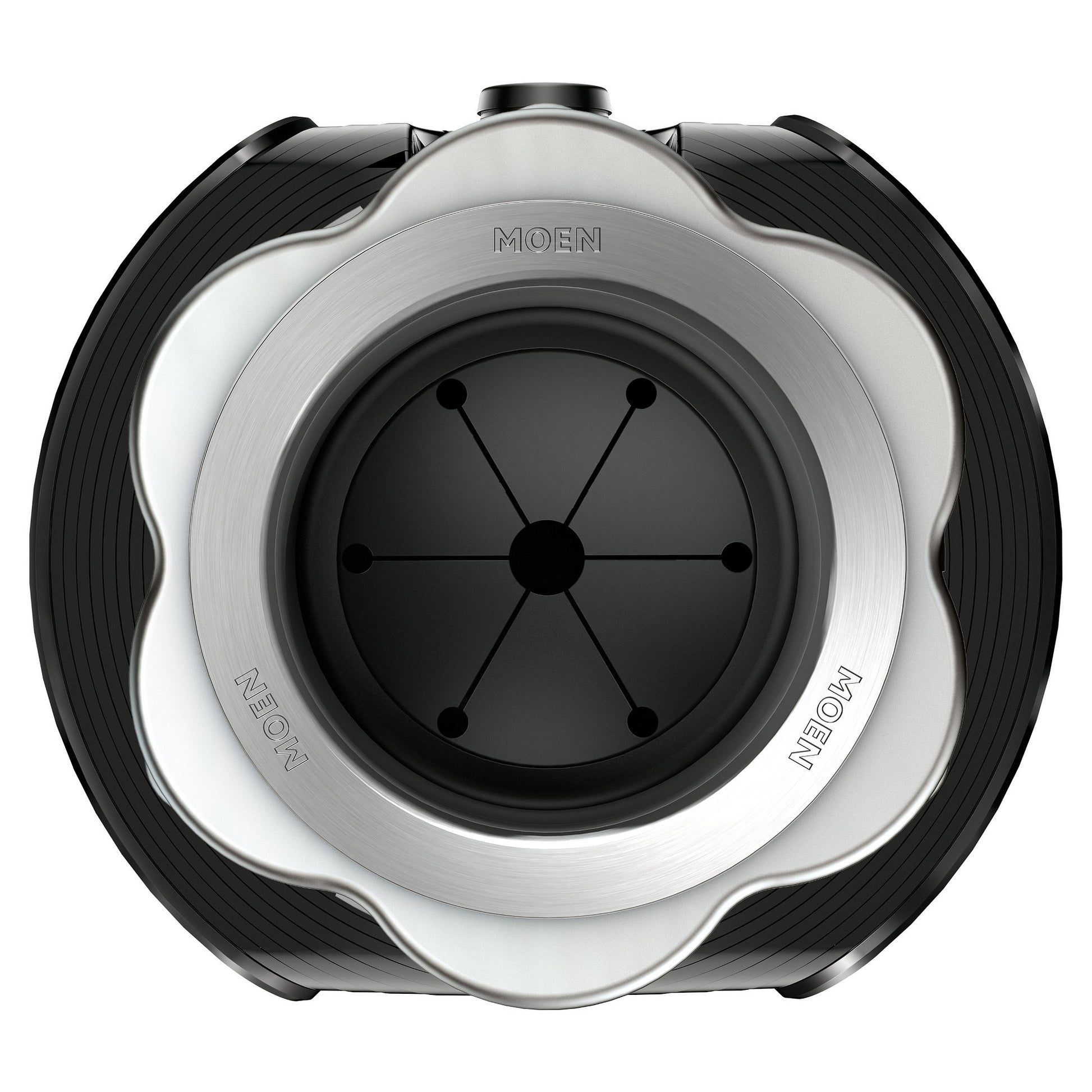

• Universal Xpress Mount fits Moen and most existing 3-bolt mounting assemblies, including InSinkErator brand
• Power cord pre-installed, saving installation steps and money over other models where cord must be purchased separately; cord removes easily for optional hardwiring.
• Compact design is lighter weight for easier installation and frees up valuable space under the sink
• Continuous feed technology with galvanized steel grind components
• Garbage disposals reduce waste sent to landfills making it an eco-friendly option for your home
• Compatible with properly sized septic tanks

åÊSpecifications

• RPM:åÊ2,800
• Amps:åÊ7
• Drain Connection Size: 1-1/2"
• Feed: Continuous Feed
• Grind Chamber Material: Corrosion Proof Polymer
• Grind Component Material: Galvanized Steel
• Height: 16"
• Max Width: 7-1/2"
• Hertz: 60
• Horsepower:åÊ1 Horsepower
• Includes: Drain ElbowåÊand Mounting Assembly; Sink Flange; Power Cord; Splash Guard; Drain Stopper
• Motor: Permanent Magnet Motor
• On/Off Controls: Wall Switch
• Sink Drain Flange Finish: Polished Stainless Steel
• Volts: Standard 115 Voltage
• Weight:åÊ13 lbs
