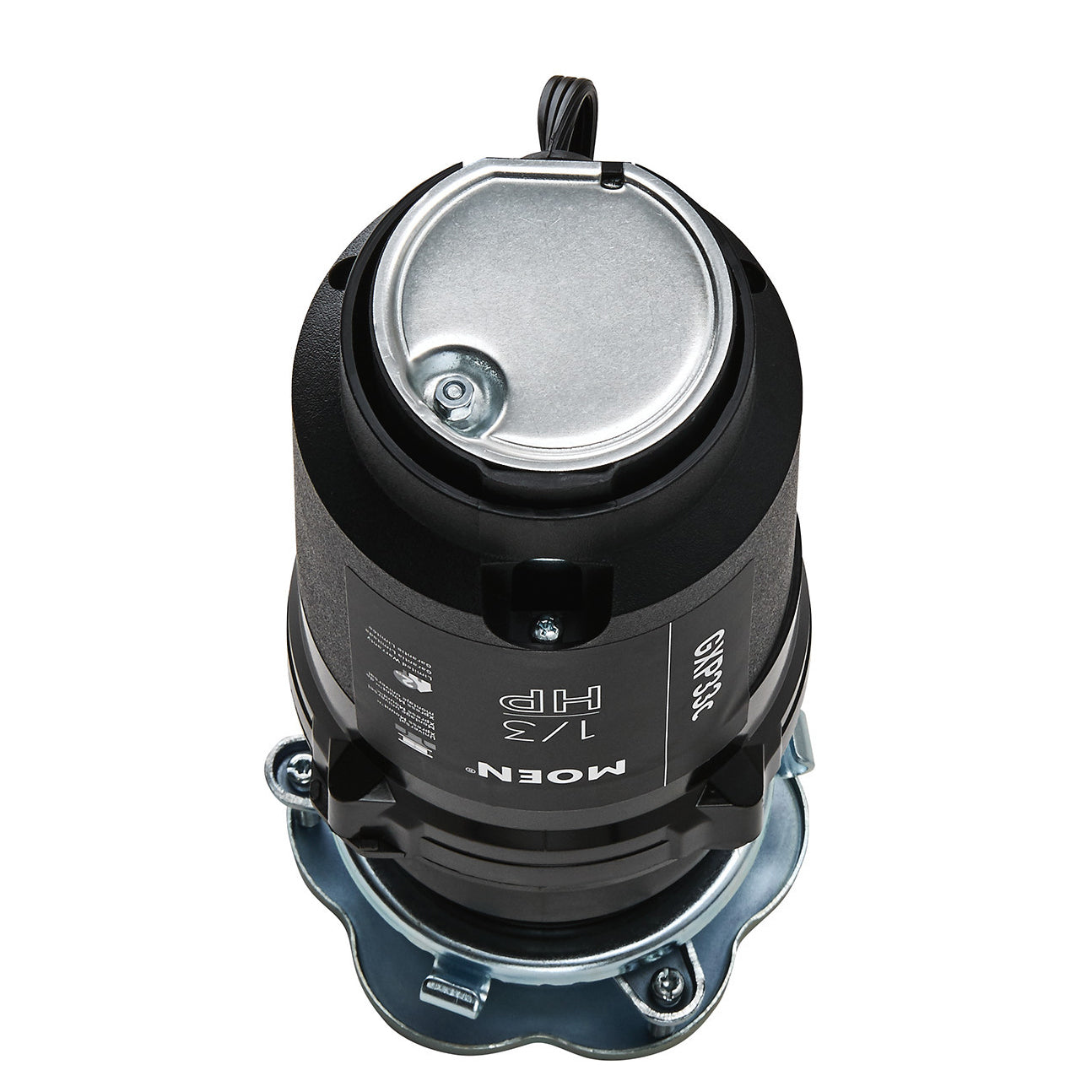

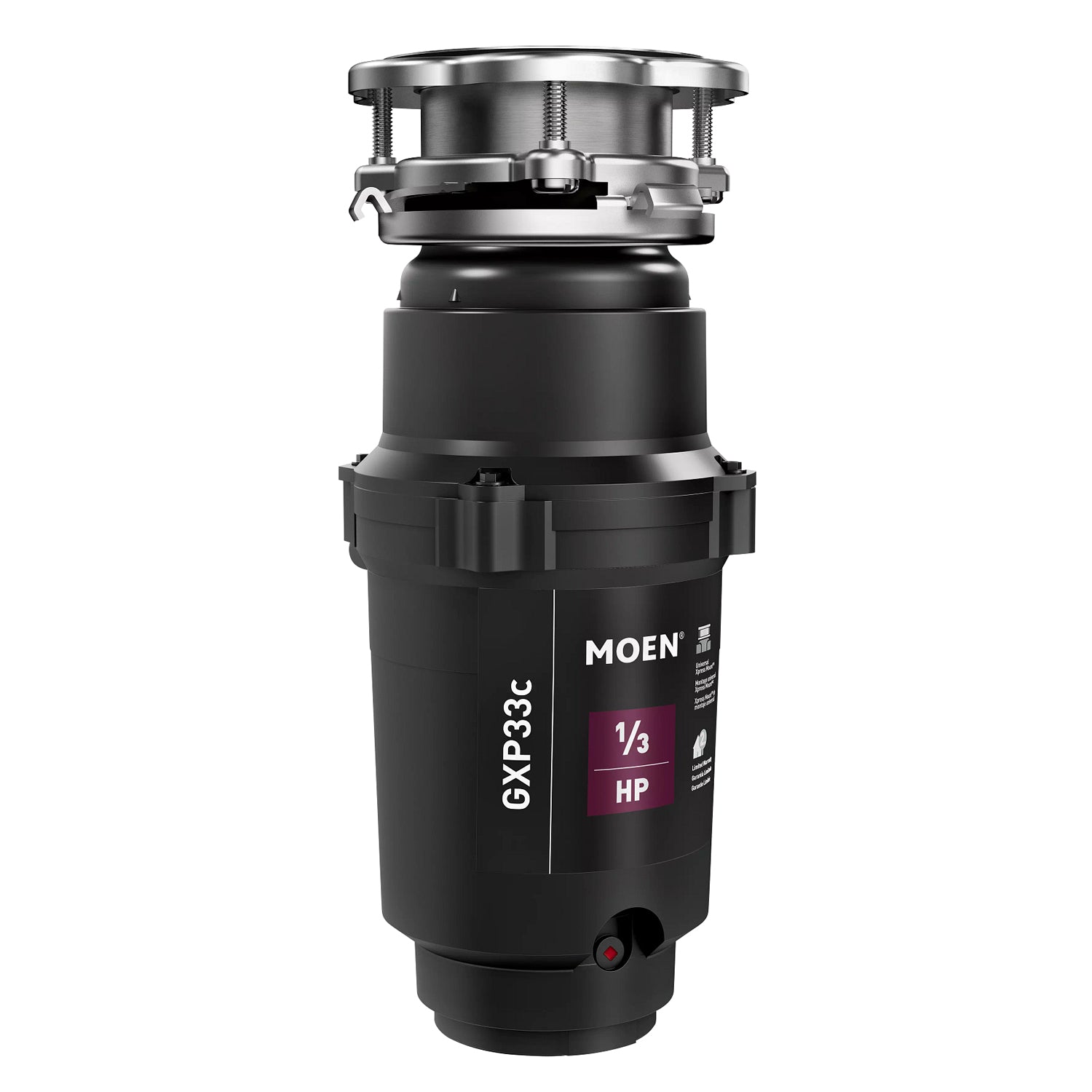

Moen GXP33C - 1/3 Horsepower GX PRO Series Lite Garbage Disposal

Moen created The Lite Series of garbage disposals for homeowners who do just a little cooking and want cleanup to be as quick and easy as possible. Built with a compact design and a powerful, high-speed motor, the Lite GXP33c cleans up light food scraps like fruit skins, cereal and other soft foods. The Lite GXP33c PRO installs easily on most existing 3-bolt assemblies and is backed by a 5-year limited warranty with in-home service.

Features

• Part of The Lite Series designed for those who rarely cook from scratch and just want clean up to be simple
• 1/3 horsepower
• 5 year limited warranty with in-home service guarantees help is there when you need it

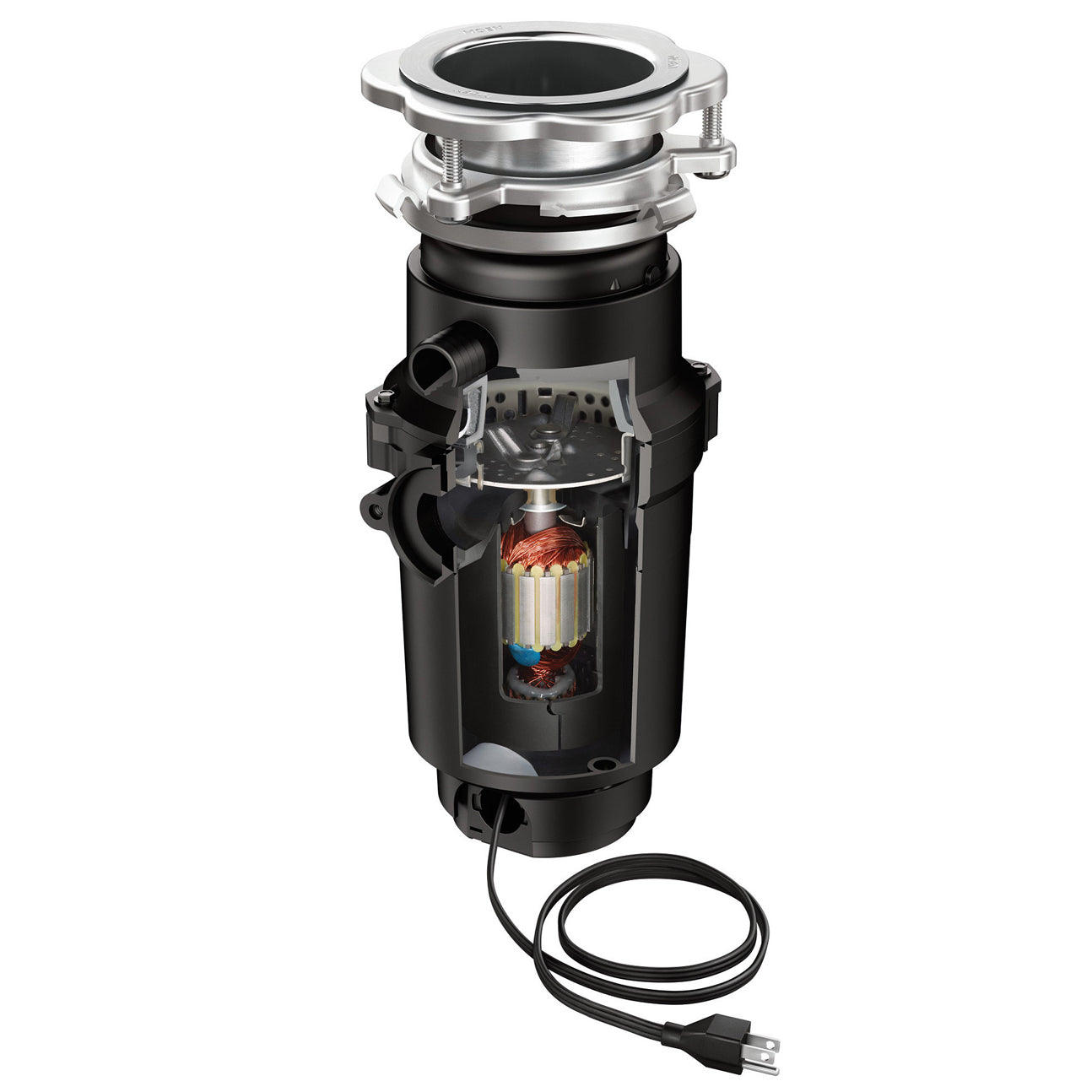

• High speed 1900 RPM VORTEX‰ã¢ permanent magnet motor designed to reduce jamming
• Universal Xpress Mount fits Moen and most existing 3-bolt mounting assemblies, including InSinkEratorå¨ brand*
• Power cord pre-installed, saving installation steps and money over other models where cord must be purchased separately; cord removes easily for optional hardwiring.
• Compact design is lighter weight for easier installation and frees up valuable space under the sink
• Continuous feed technology with galvanized steel grind components
• Garbage disposals reduce waste sent to landfills making it an eco-friendly option for your home
• Compatible with properly sized septic tanks

åÊSpecifications

• RPM: 1,900
• Amps: 4.5
• Drain Connection Size: 1-1/2"
• Feed: Continuous Feed
• Grind Chamber Material: Corrosion Proof Polymer
• Grind Component Material: Galvanized Steel

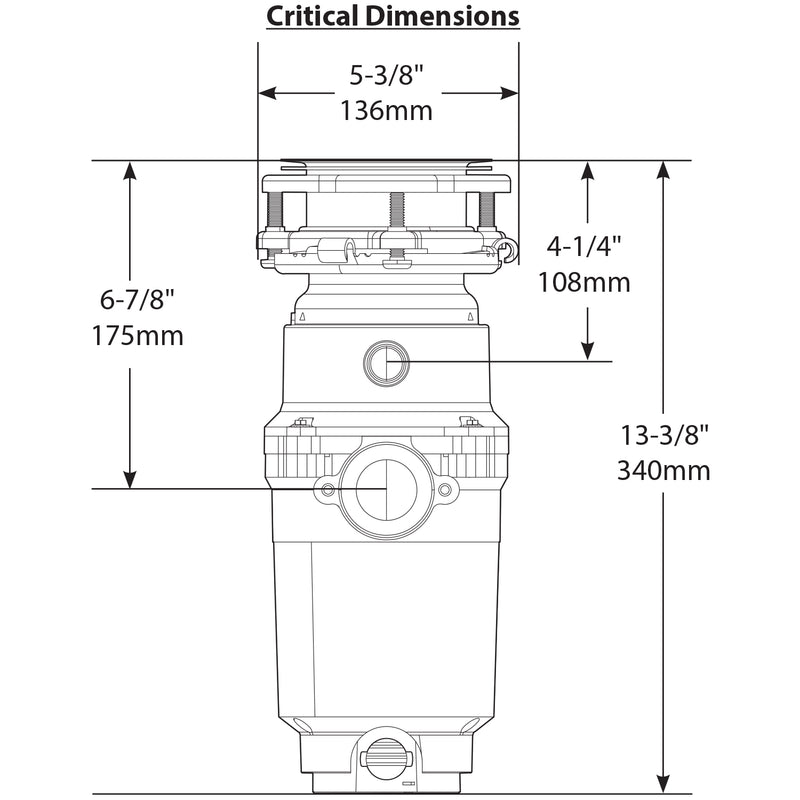

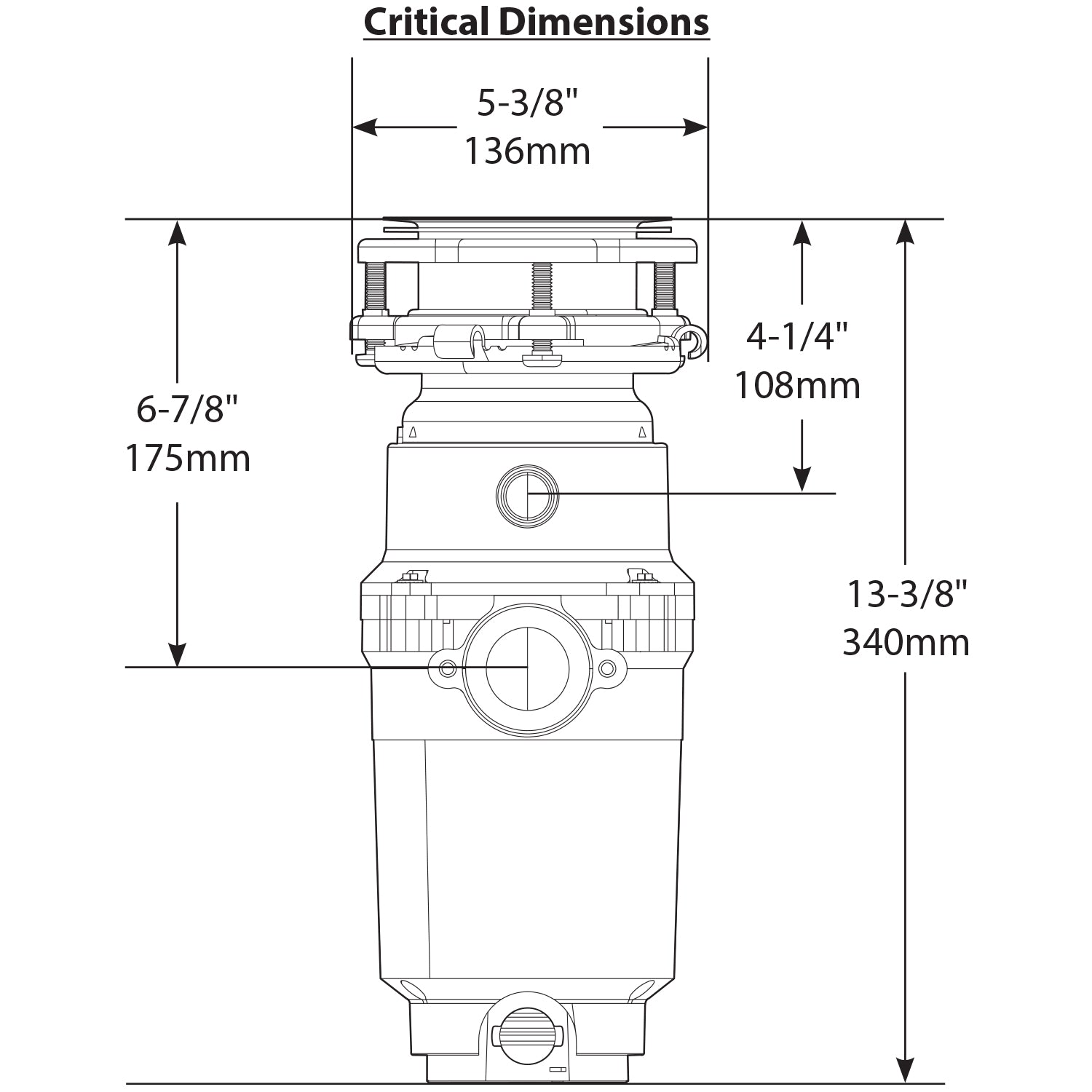

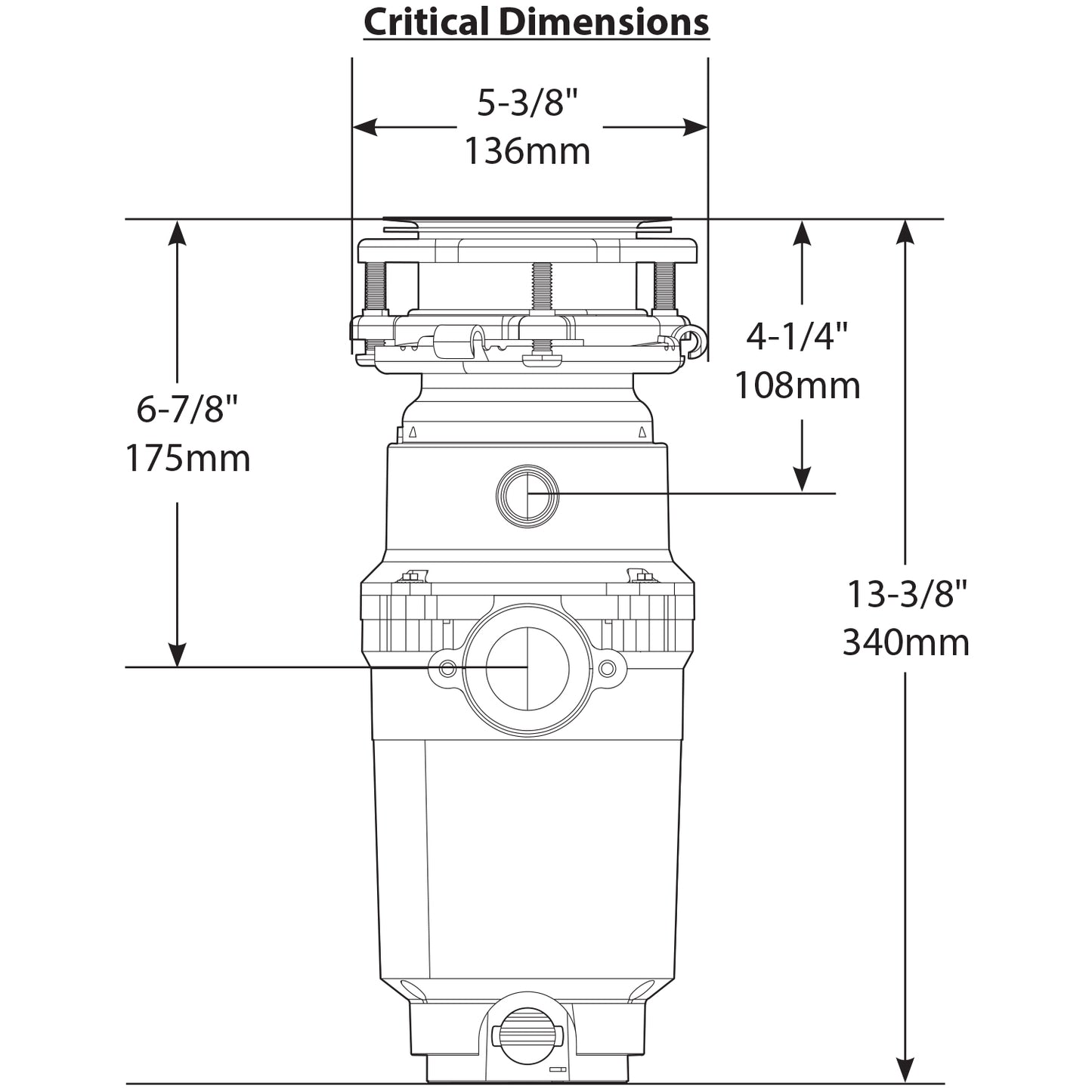

• Height: 13-3/8"
• Hertz: 60
• Horsepower: 1/3 Horsepower
• Includes: Drain Elbow &Mounting Assembly; Sink Flange; Power Cord; Splash Guard; Drain Stopper
• Motor: Permanent Magnet Motor
• On/Off Controls: Wall Switch

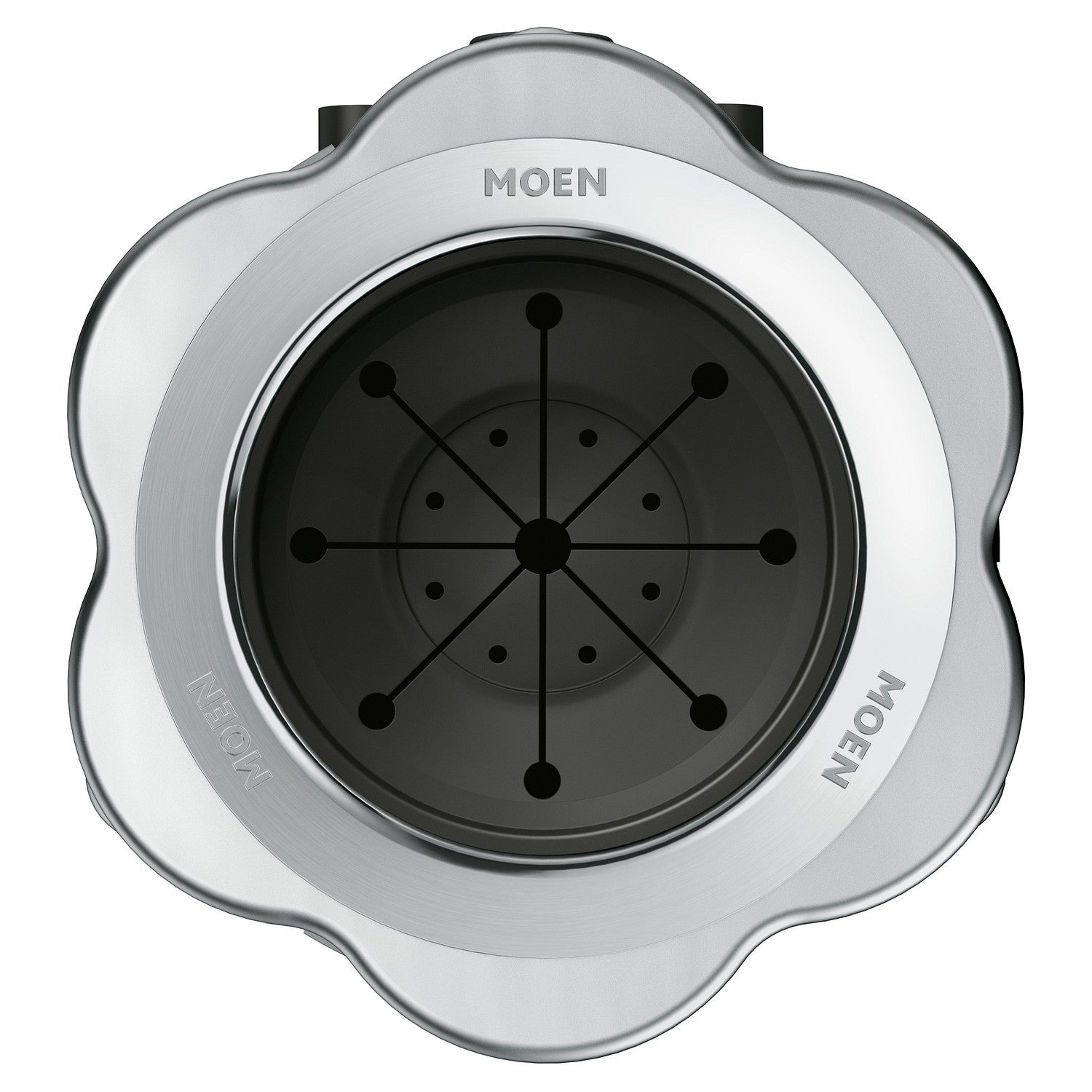

• Sink Drain Flange Finish: Polished Stainless Steel
• Volts: Standard 115 Voltage
• Weight: 7.75 lbs
