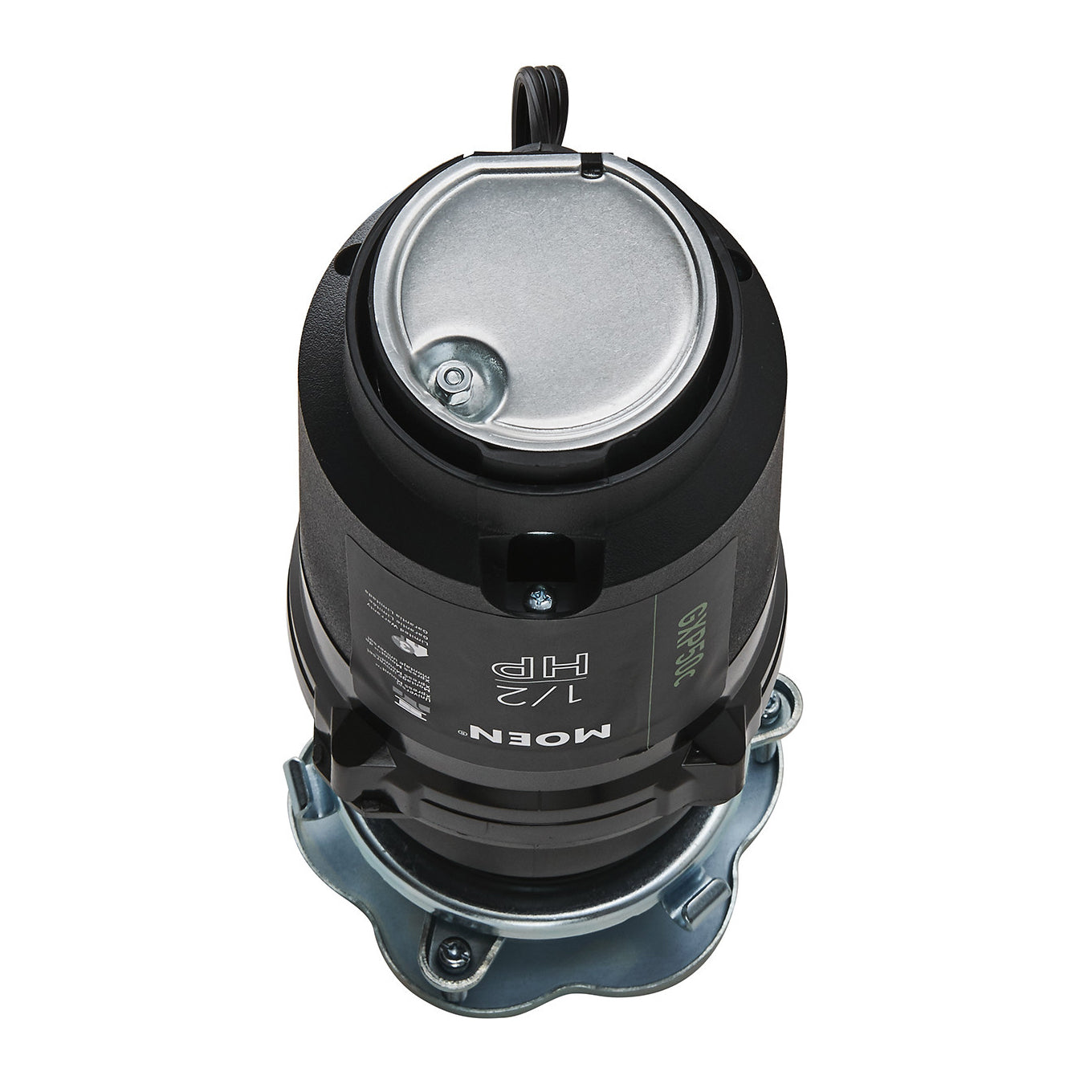

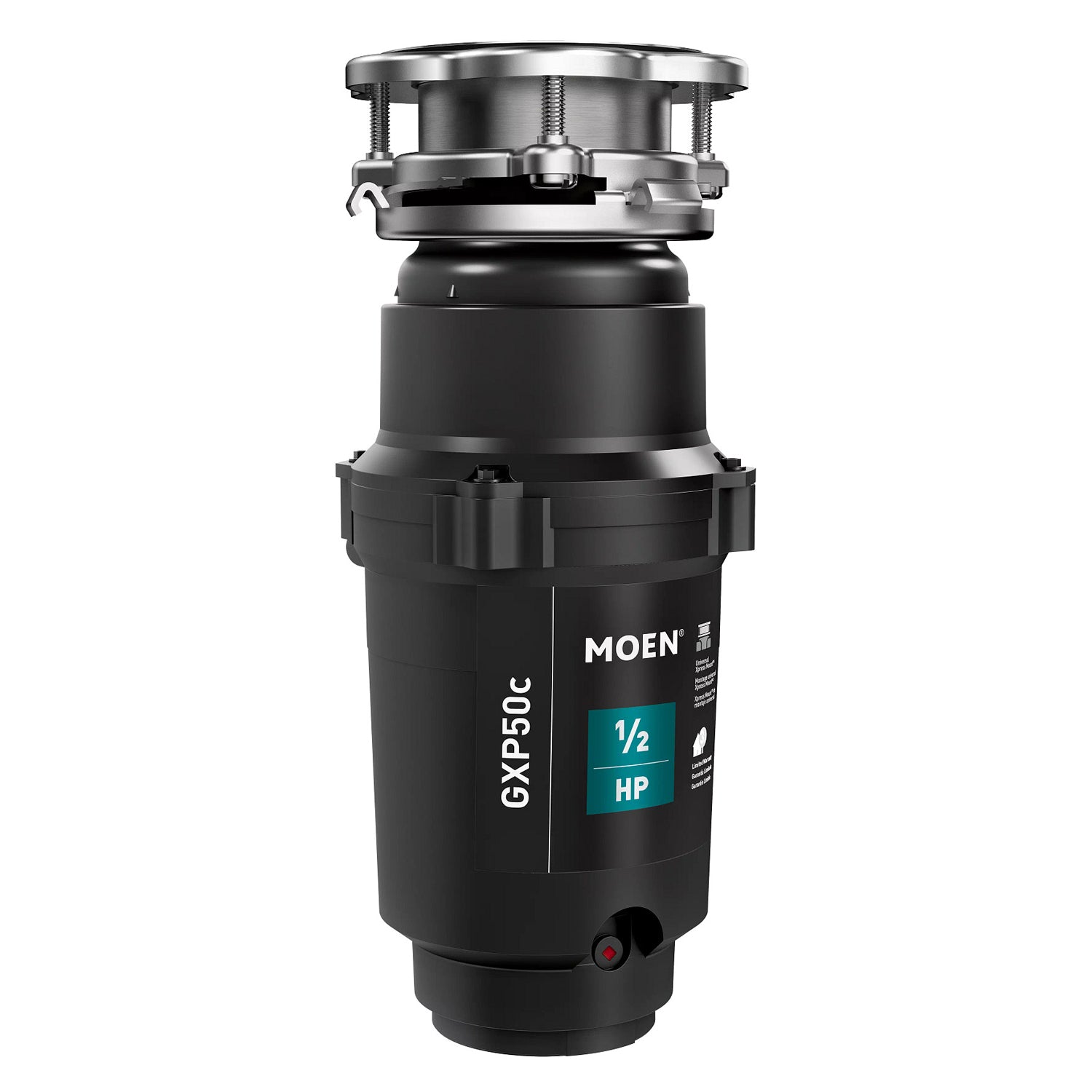

Moen GXP50C - 1/2 Horsepower GX PRO Series Prep Garbage Disposal

GX Pro is part of the Moen Disposal Pre䋢 Series: designed for basic meal prep and cleanup. Packs all the standard features and reliable performance in a more compact form.

Features

• Part of The Prep Series designed for those who slice, dice and peel as part of basic meal prep, and need a little more help with clean up
• 1/2 horsepower
• 5 year limited warranty with in-home service guarantees help is there when you need it

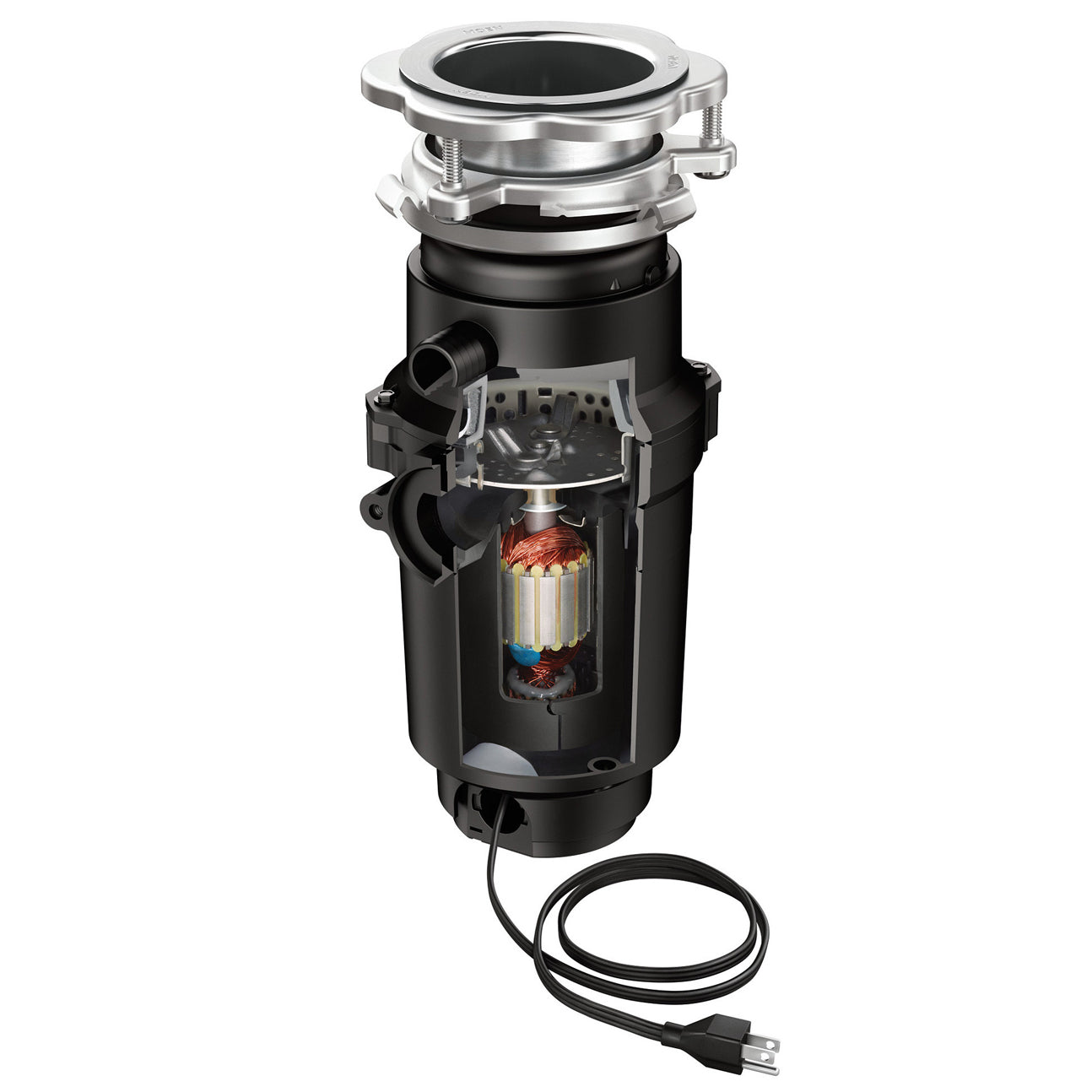

• High speed 2600 RPM VORTEX permanent magnet motor designed to reduce jamming
• Universal Xpress Mount fits Moen and most existing 3-bolt mounting assemblies, including InSinkErator brand
• Power cord pre-installed, saving installation steps and money over other models where cord must be purchased separately; cord removes easily for optional hardwiring.
• Compact design is lighter weight for easier installation and frees up valuable space under the sink
• Continuous feed technology with galvanized steel grind components
• Garbage disposals reduce waste sent to landfills making it an eco-friendly option for your home
• Compatible with properly sized septic tanks

åÊSpecifications

• RPM:åÊ2,600
• Amps: 4.5
• Drain Connection Size: 1-1/2"
• Feed: Continuous Feed
• Grind Chamber Material: Corrosion Proof Polymer
• Grind Component Material: Galvanized Steel
• Height: 13-3/8"
• Hertz: 60
• Horsepower: 1/2 Horsepower
• Includes: Drain ElbowåÊand Mounting Assembly; Sink Flange; Power Cord; Splash Guard; Drain Stopper
• Motor: Permanent Magnet Motor
• On/Off Controls: Wall Switch
• Sink Drain Flange Finish: Polished Stainless Steel
• Volts: Standard 115 Voltage
• Weight: 8.50åÊlbs
