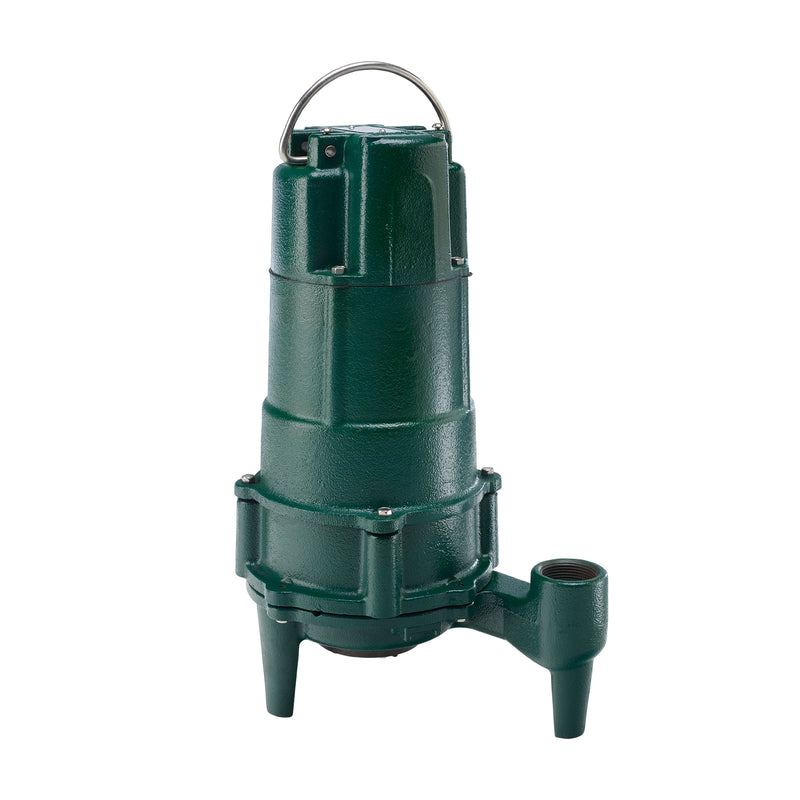

Zoeller 805-0002 - 805 Shark Series Non-Automatic Residential Grinder Pump, 115V, 3/4 HP

These fractional-horsepower grinder pumps can handle an entire household of flushable materials. This Shark product line consists of three high-performing grinder pumps for sewer use. Plumbing contractors can utilize this cast iron grinder series for demanding residential applications.

Features

• Handles entire household of “flushable” materials.
• Includes 15 ft cord and plug.
• Cast iron grinder series for difficult residential applications where ejectors struggle.
• Performance up to 55' (16.8 m): This strong grinder pump delivers reliable results over substantial distances, providing maximum user flexibility.
• 115/230 V grinders for residential use without commercial grinder costs: The low price point of this fractional horsepower grinder series ensures affordability and an excellent return on investment.
• Oil filled for optimal heat dissipation: This design minimizes concerns about the pump overheating or breaking down due to extreme heat generation during extended-use applications.
• Proven Tri-Slice cutter technology: Three independent cutting channels provide over 250,000 cuts per minute.

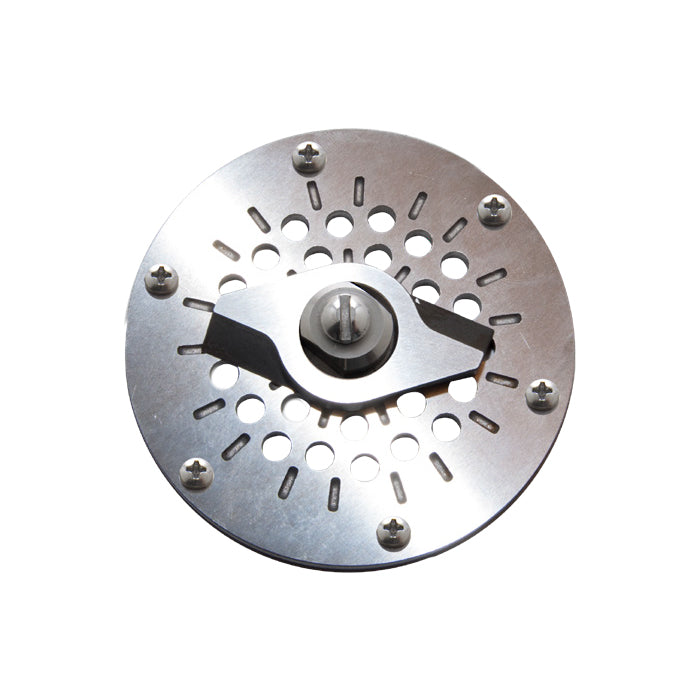

• Stainless steel cutter and plate: This feature enables the pump to cut through challenging materials while also providing excellent corrosion protection.
• 100% factory tested: Our factory-tested grinder pumps ensure reliable performance in challenging applications with fewer concerns about mechanical failures.
• Patent 8,562,287: The Shark grinder pump series features patented technology that is unavailable from competing products and delivers one-of-a-kind performance.
• 3-year limited warranty: This single-direction grinder pump series comes with warranty coverage from Zoeller Pump Company, giving you extra protection and more peace of mind.

Specifications

• Motor: 3/4 HP
• Voltage: 115 V
• Phase: 1 Ph
• Hertz: 60 Hz
• RPM: 3400 RPM
• Type: Capacitor start/capacitor run
• Insulation: Class B
• Amps: 7.0 – 11.0 Amps
• Operation: Non-automatic
• Auto On / Off Points: 13" (33 cm) / 5-3/4" (14.6 cm)
• Discharge Size: 1-1/4" NPT
• Cord Length: 15' (4.6 m)
• Cord Type: UL-listed, 3-wire plug
• Max Head: 55' (16.8 m)
• Cooling: Oil filled
• Motor Protection: Automatic thermal overload (1Ph)
• Cap: Cast iron
• Motor Housing: Cast iron
• Pump Housing: Cast iron
• Base: Cast iron
• Upper Bearing: Ball bearing
• Lower Bearing: Ball bearing
• Mechanical Seals: Carbon and ceramic
• Impeller Type: Non-clogging vortex
• Impeller: Engineered plastic/440C stainless steel cutter & plate
• Hardware: Stainless steel
• Motor Shaft: 1215 cold rolled steel
• Gasket: Neoprene
