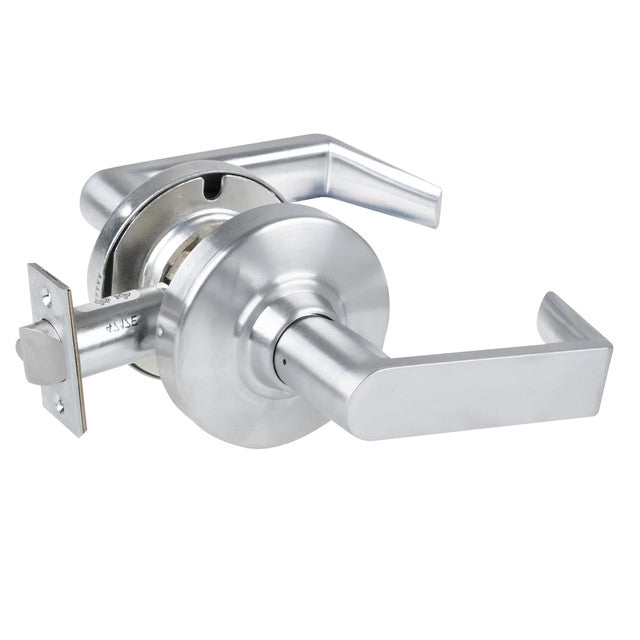

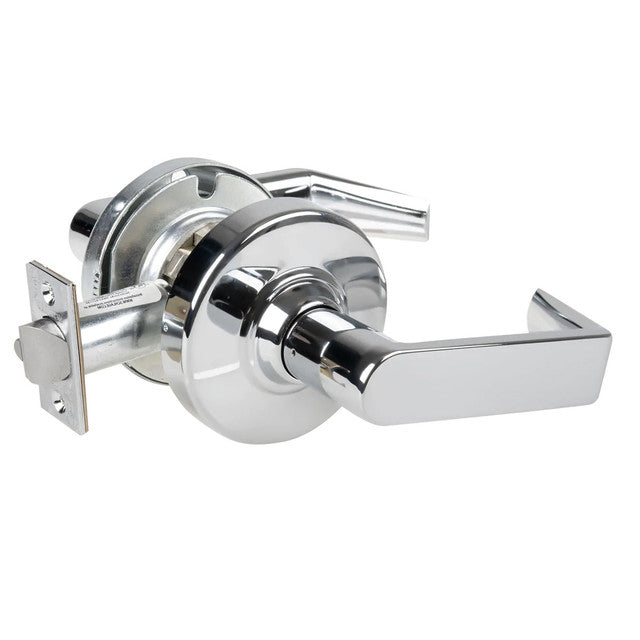

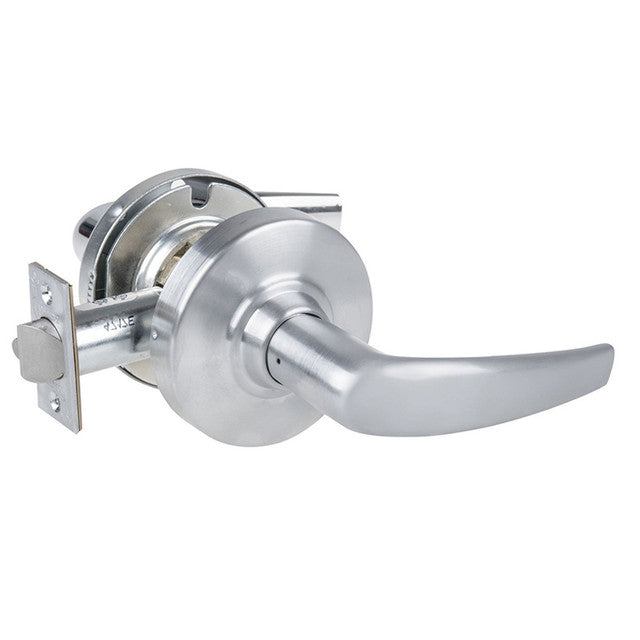

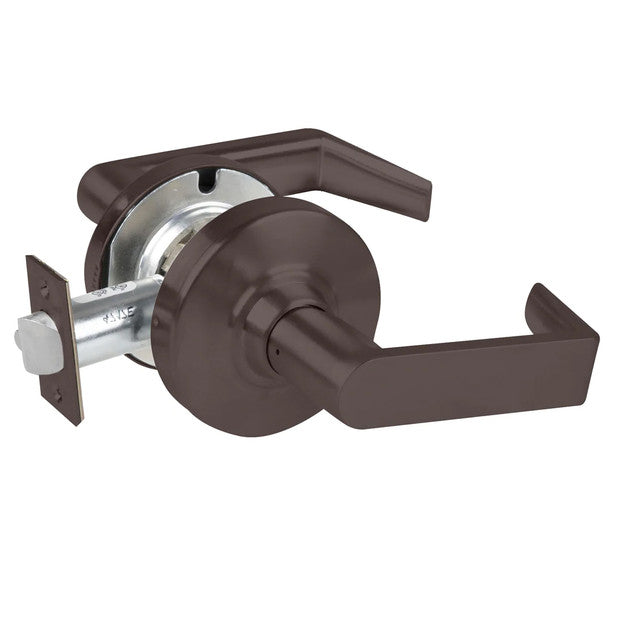

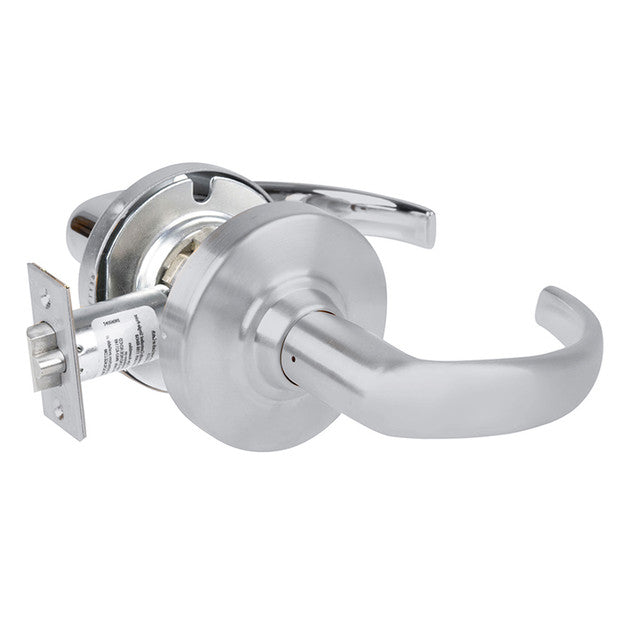

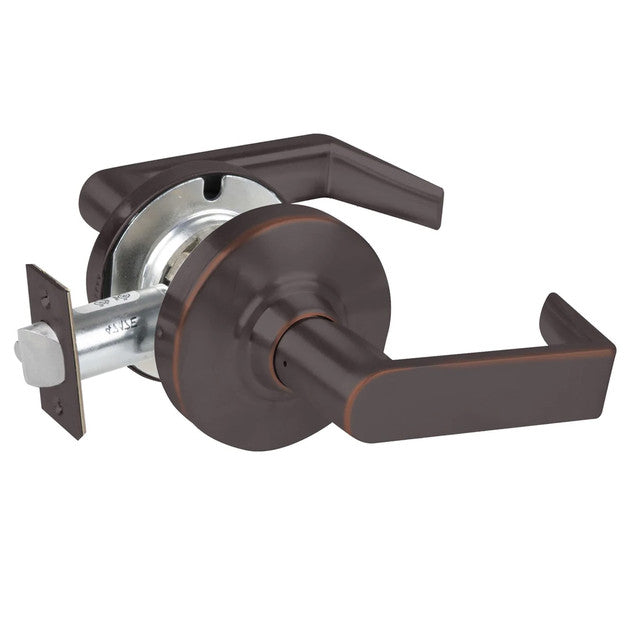

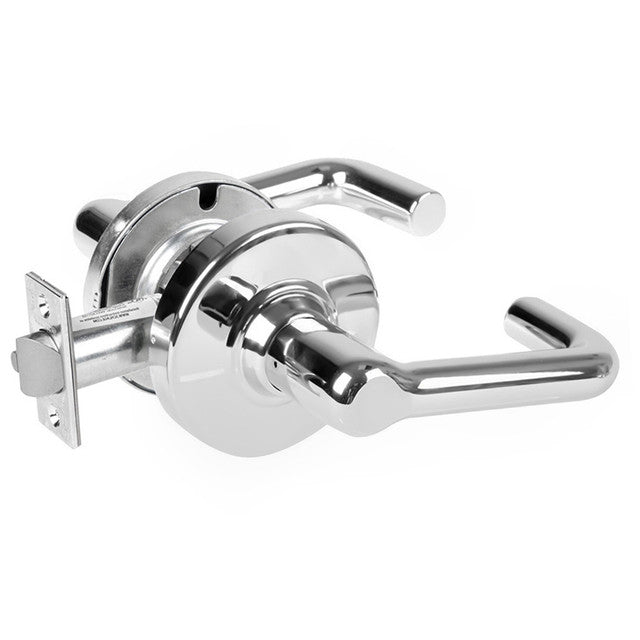

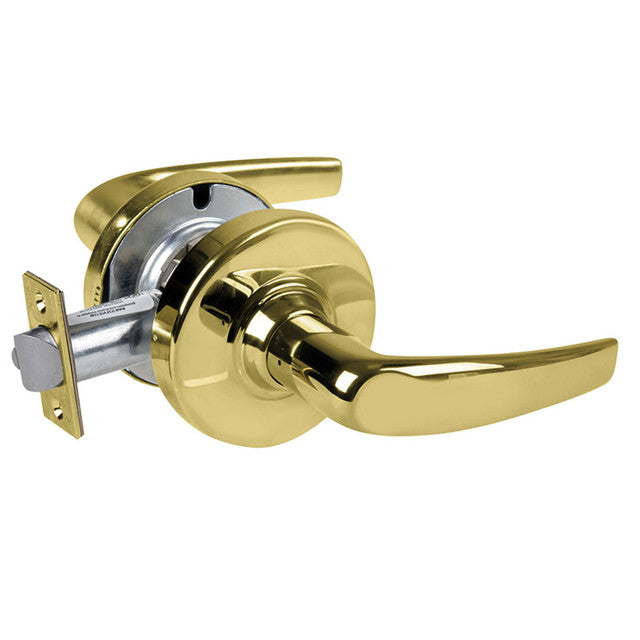

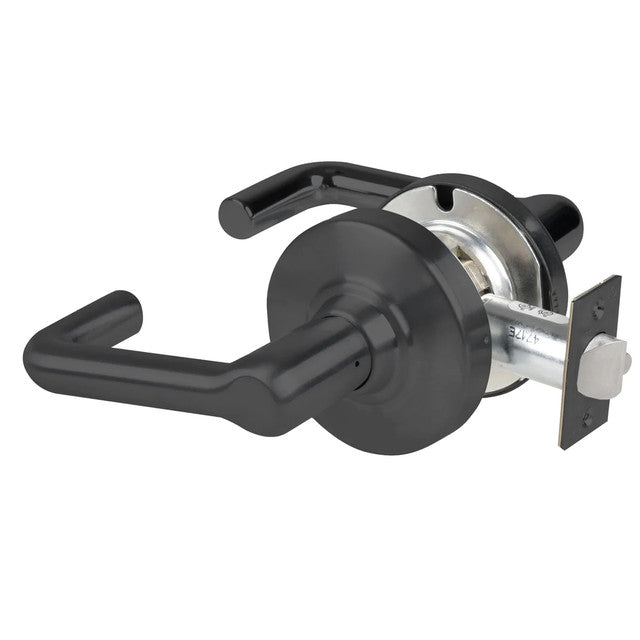

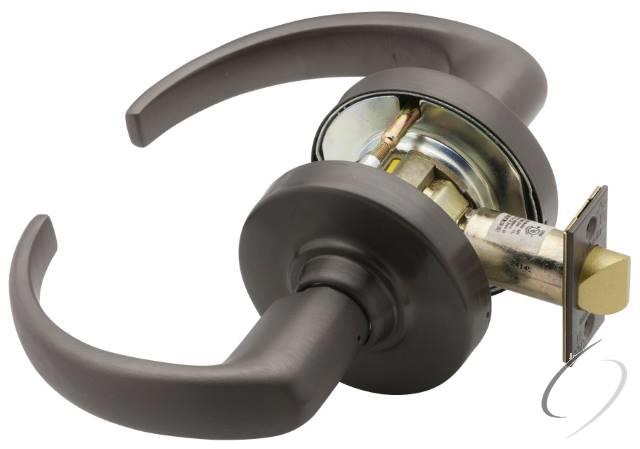

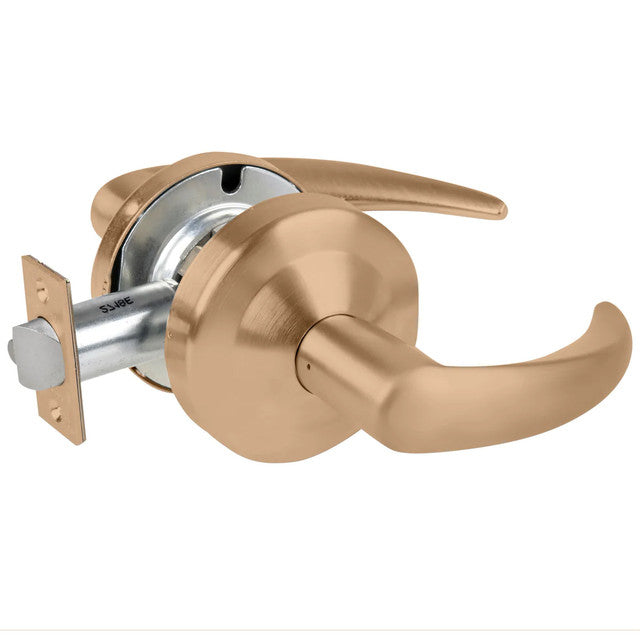

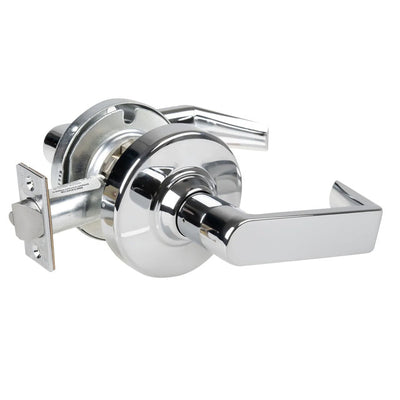

ND Series Commercial Grade Passage Door Lever

Special Order - Normally ships in 3-4 weeks
SKU: ND10ATH643E
Regular price $332.50
Finish
Lever Design

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

ND Series Catalog

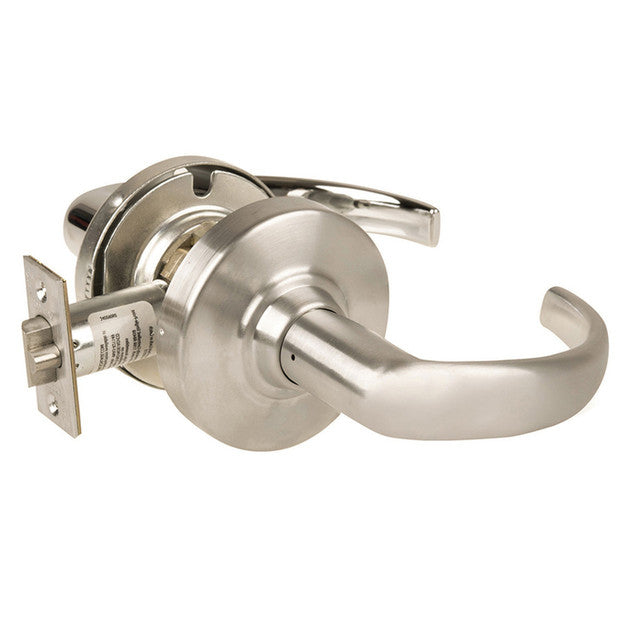

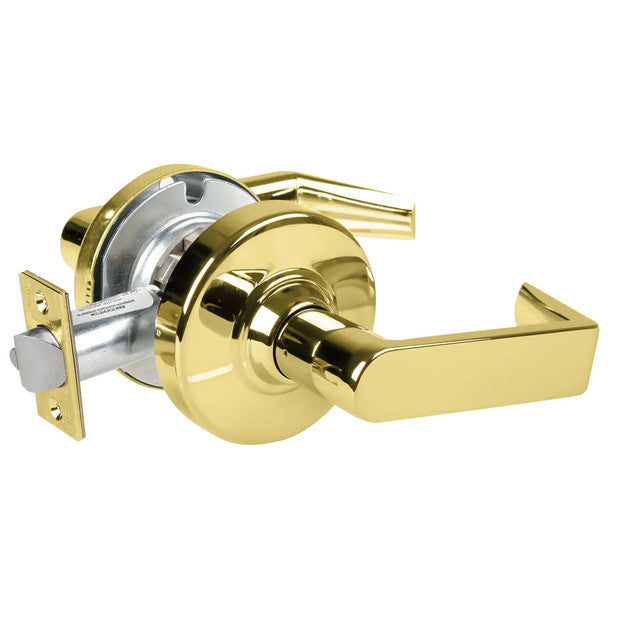

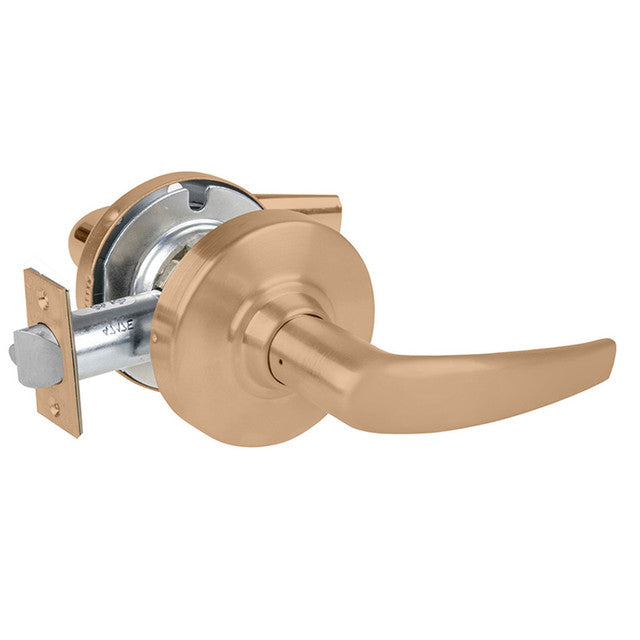

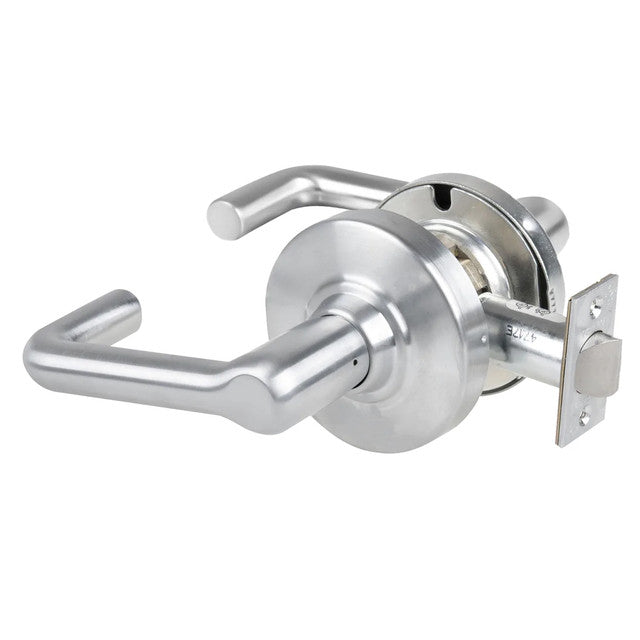

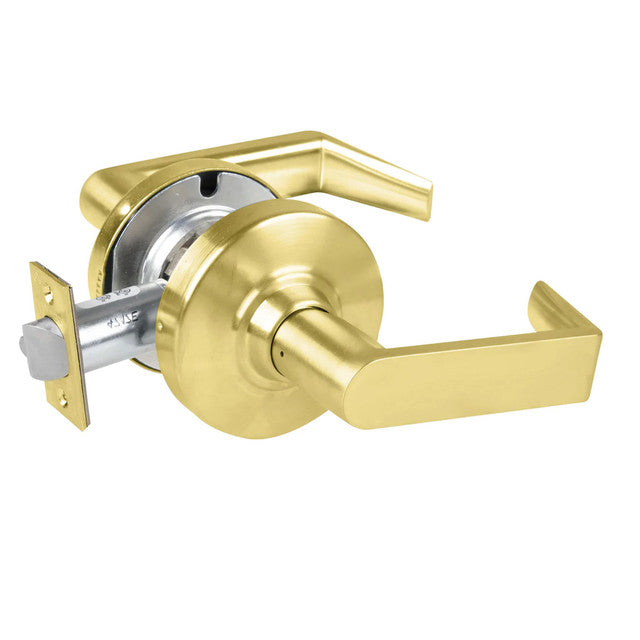

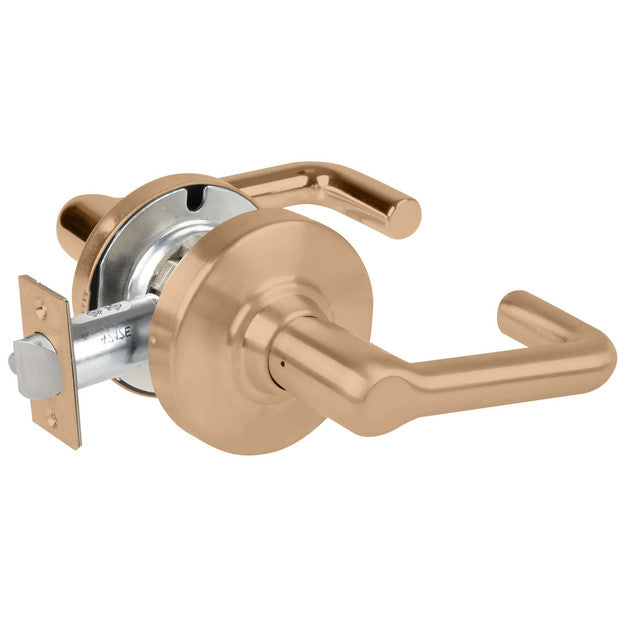

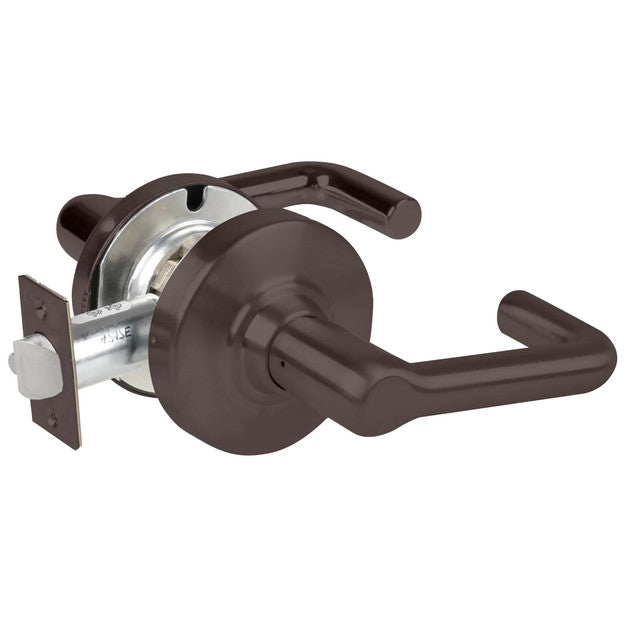

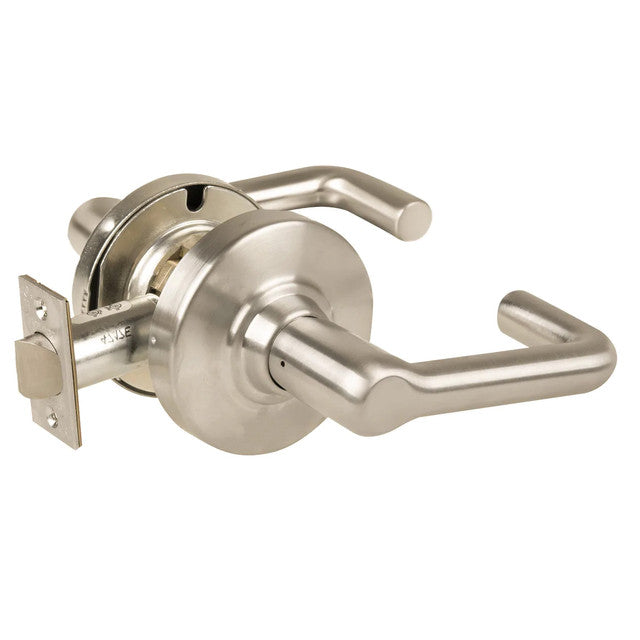

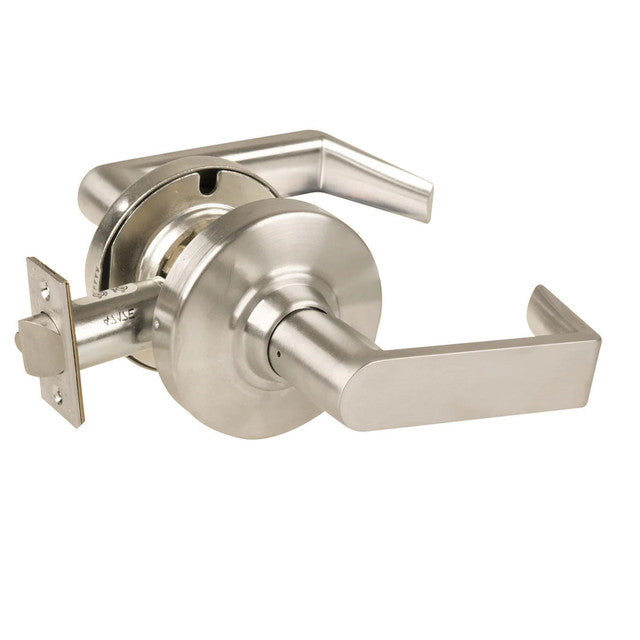

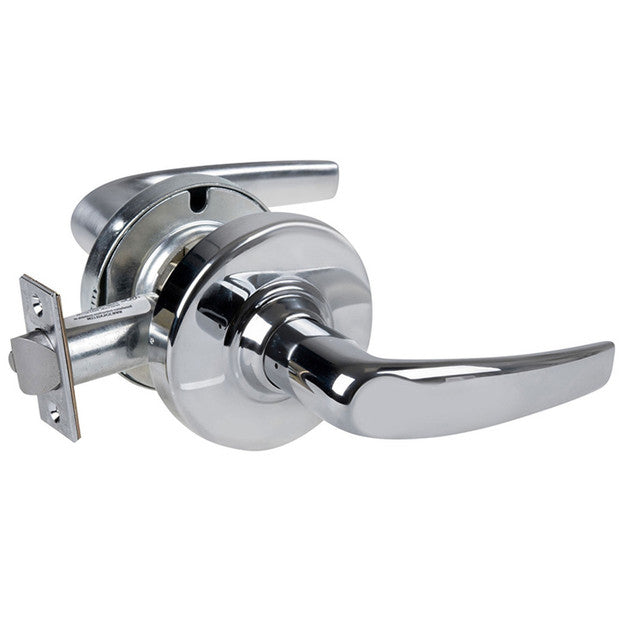

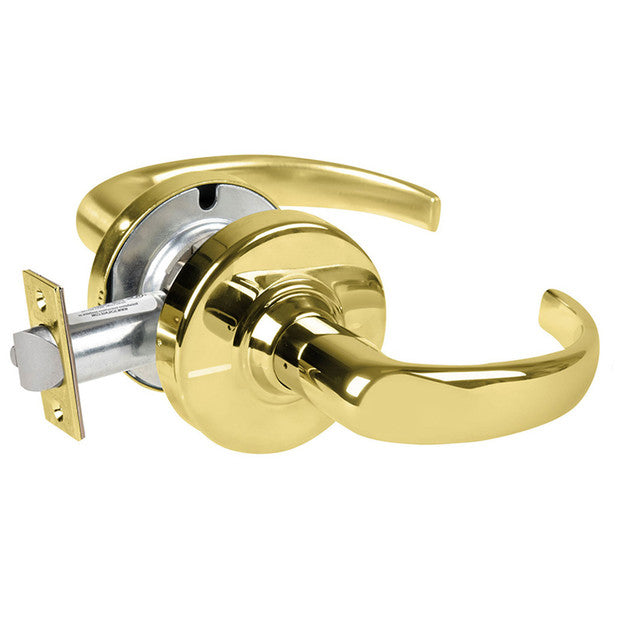

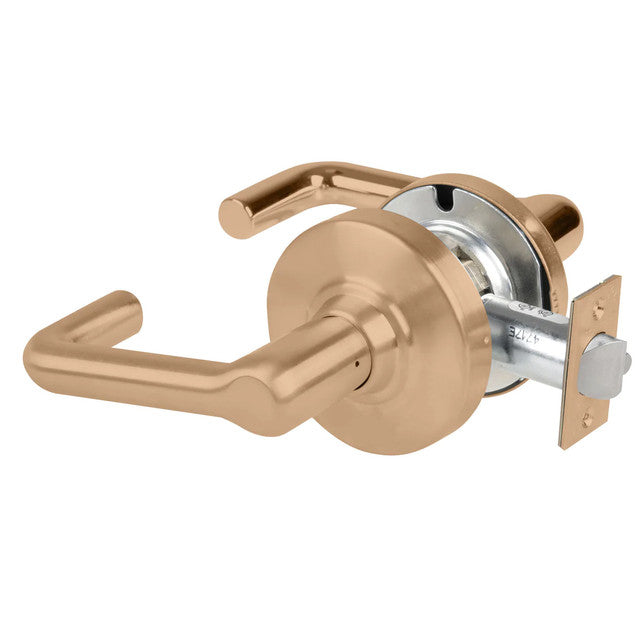

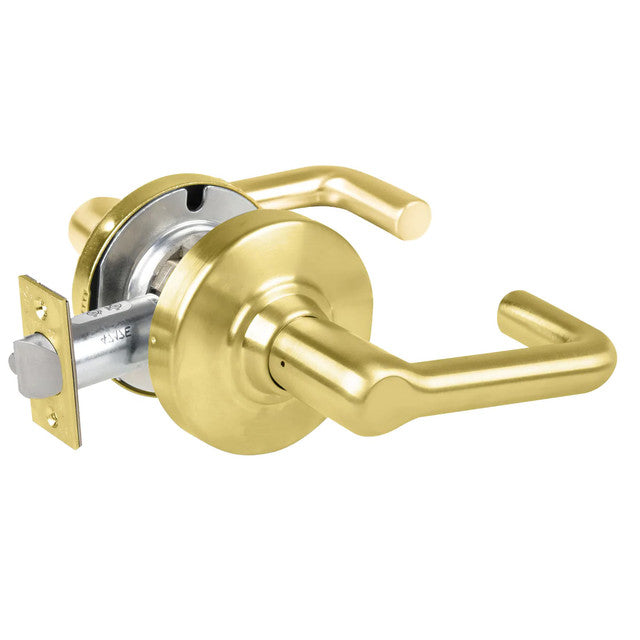

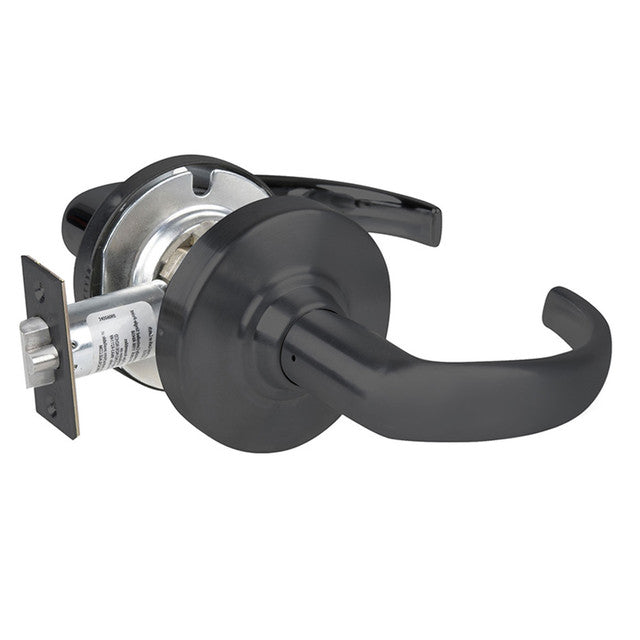

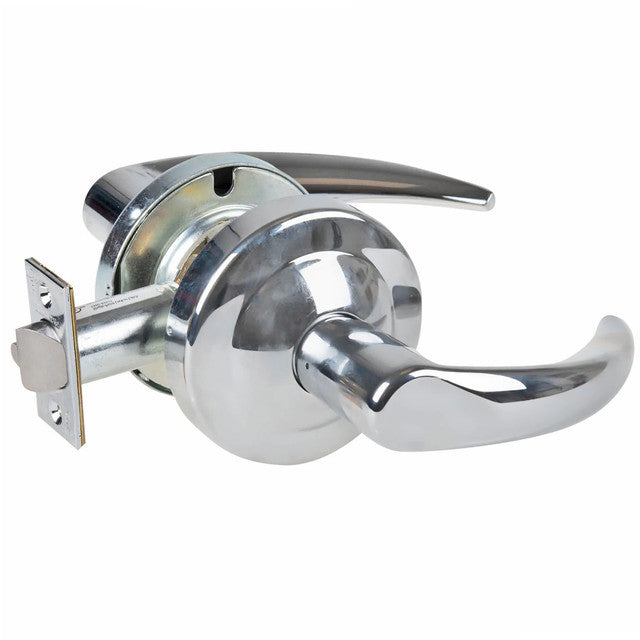

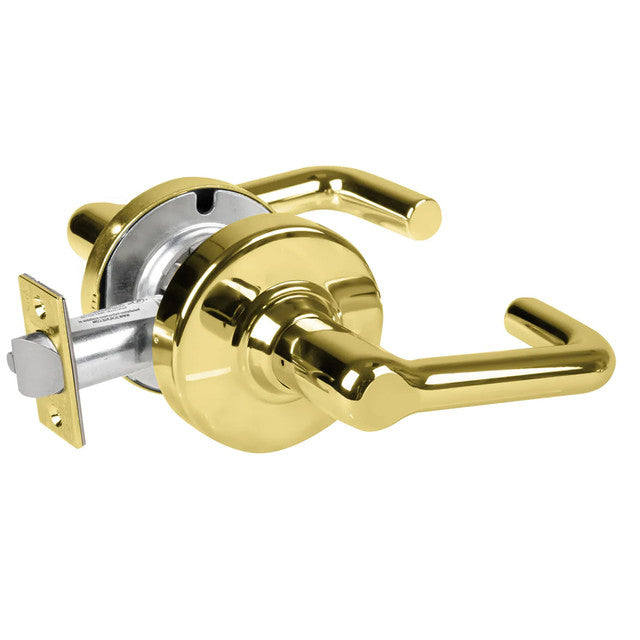

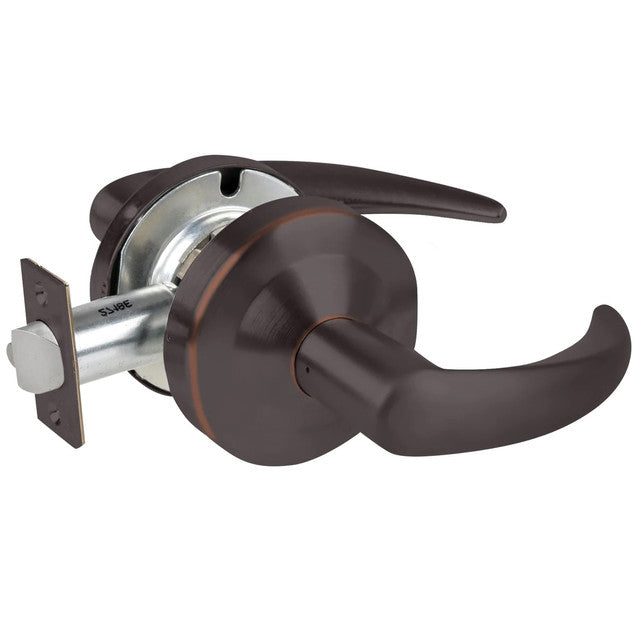

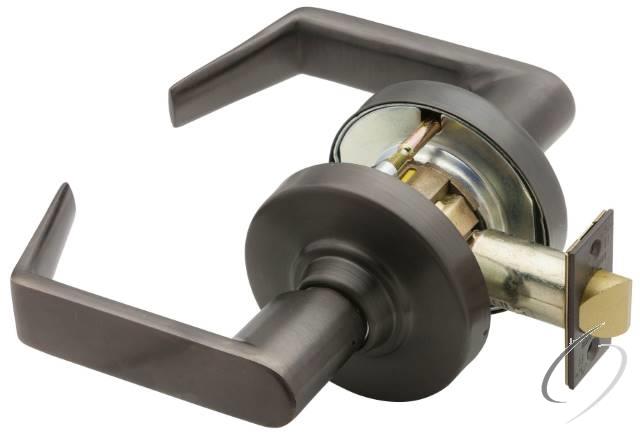

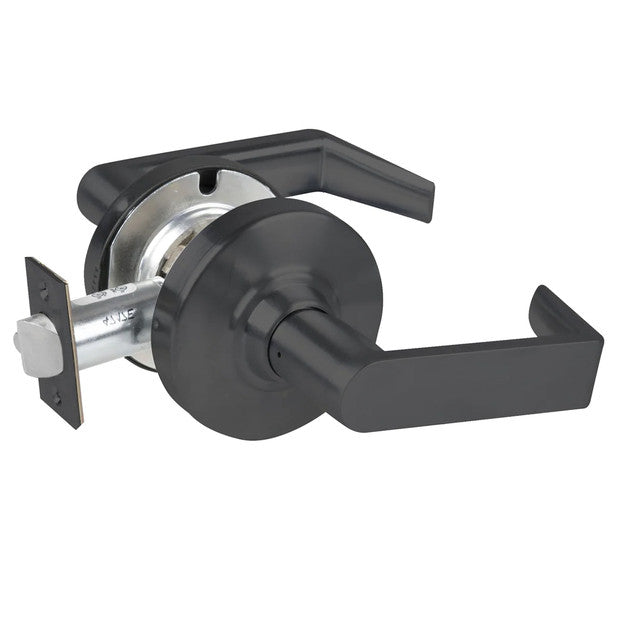

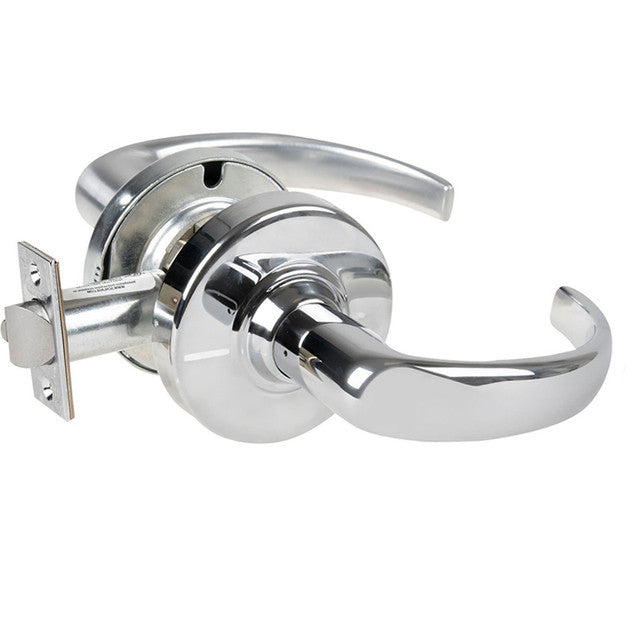

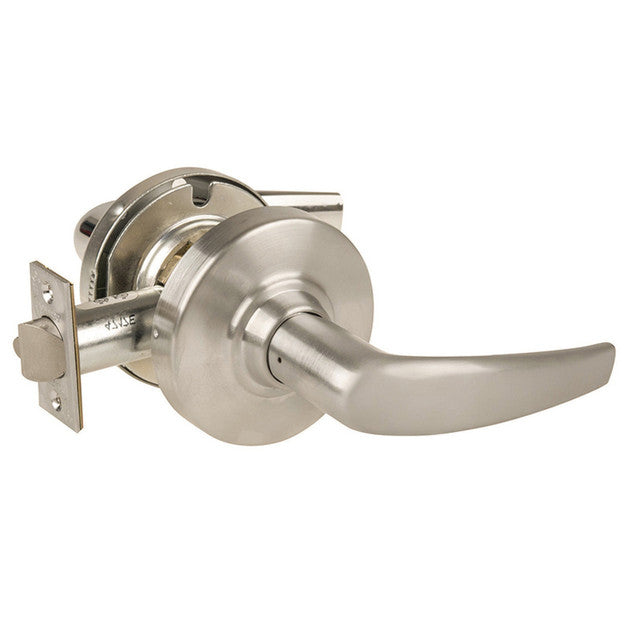

ND Series Commercial Grade Passage Door Lever

The ND mechanical lock, along with being Schlage’s best selling mechanical lock, is the foundation for both the wired electrified and NDE wireless electronic lock. Not only did Schlage invent the cylindrical lock, but they continue to make it better. The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

Features

  • Passage function - Both levers always unlocked
  • Unparalleled strength - the lock prevents access even when subjected to torque loads up to 3,100 in-lbs (2.6x BHMA1), withstands pry bar attacks of 1,600 lbs (8x BHMA requirements1), and withstands 100 hammer blows (20x BHMA requirements1, 2)
  • Exceptional durability - cycle tested to over 16M cycles (16x BHMA requirements1) with near zero droop or wobble - without the use of set screws or O-rings
  • Improved feel - improved strength and durability are more than numbers, you can actually feel it in the lock
  • Improved installation - installation is even easier than before (and withoutany set screws or O-rings)
  • All this is in addition to what you know and expect with the Schlage ND: 31 mechanical functions (plus wired electrified and wireless electronic) to meet the needs of any application; nine lever designs that suite with other
  • Schlage locks and Von Duprin exit devices; renowned sales, customer and technical support.

Specifications

  • Category: Mechanical Commercial Locksets
  • Handing: Reversible
  • Function: Passage
  • Series: ND
  • Latch Included: 13-248 - 2-3/4" Backset
  • Strike Included: 10-025 - ANSI Strike - 4-7/8" with 1-1/4" Lip
