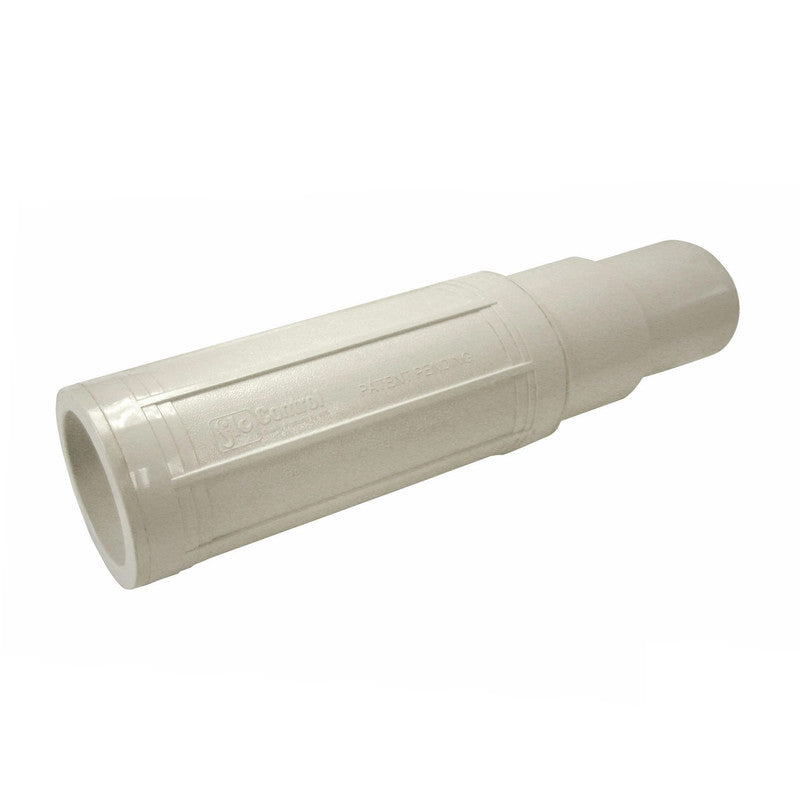

NDS 118 Pro-Span Expansion Repair Coupling, Socket x Spigot
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
I used this to repair a leak in my PVC main water line feed for my irrigation system. After digging out the area where the leak was, it took only 15 minutes to do the repair !!! If you want to see how this thing works, do a search on YouTube and it will show you how to do it.
Specification SheetNDS 118 - Pro-Span Socket x Spigot Expansion Repair Coupling
Flow Management by NDS Pro-Span Coupling compression fittings are dependable, versatile, economical, and corrosion free. They include CTS couplings, tees, and adapters. May be selected in a wide range of sizes and materials in including CPVC. Save time and money by eliminating precise cutting and threading galvanized or steel pipe Tap into existing lines and connect do different materials such as steel, plastic, copper, or brass Corrosion free above or below ground For repair of a broken pipe, our Pro-Span expansion repair couplings have a patented locking feature that makes the repair process easier. Additional product benefits include a dual-seal design to prevent leaking and a glue-well to prevent excess glue from sticking the repair coupling together.
Features
- Pro-Span expansion repair coupling, formerly known as Flo-Control
- Rated @200 PSI static pressure @ 72 degrees F
- Molded in china
- Made of PVC Type I material
- Grip-lock: patented internal rotational lock of spigot to body easy grip body handle

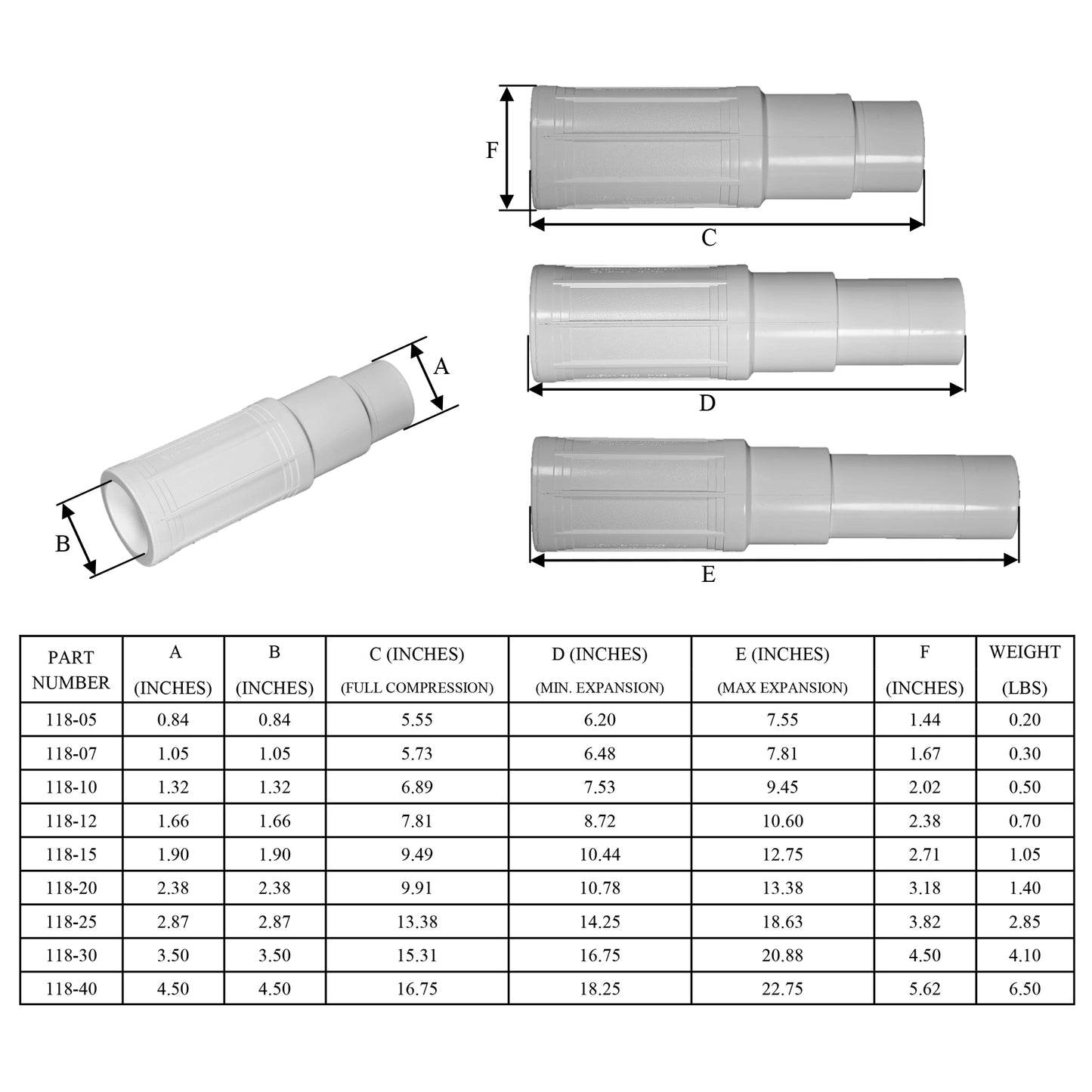

- Model Numbers:
- NDS 118-05 - 1/2"
- NDS 118-07 - 3/4"
- NDS 118-10 - 1"
- NDS 118-12 - 1-1/4"
- NDS 118-15 - 1-1/2"
- NDS 118-20 - 2"
- NDS 118-25 - 2-1/2"
- NDS 118-30 - 3"
- NDS 118-40 - 4"
Related Video: How to Install the NDS Pro-Span Expansion Repair Coupling
