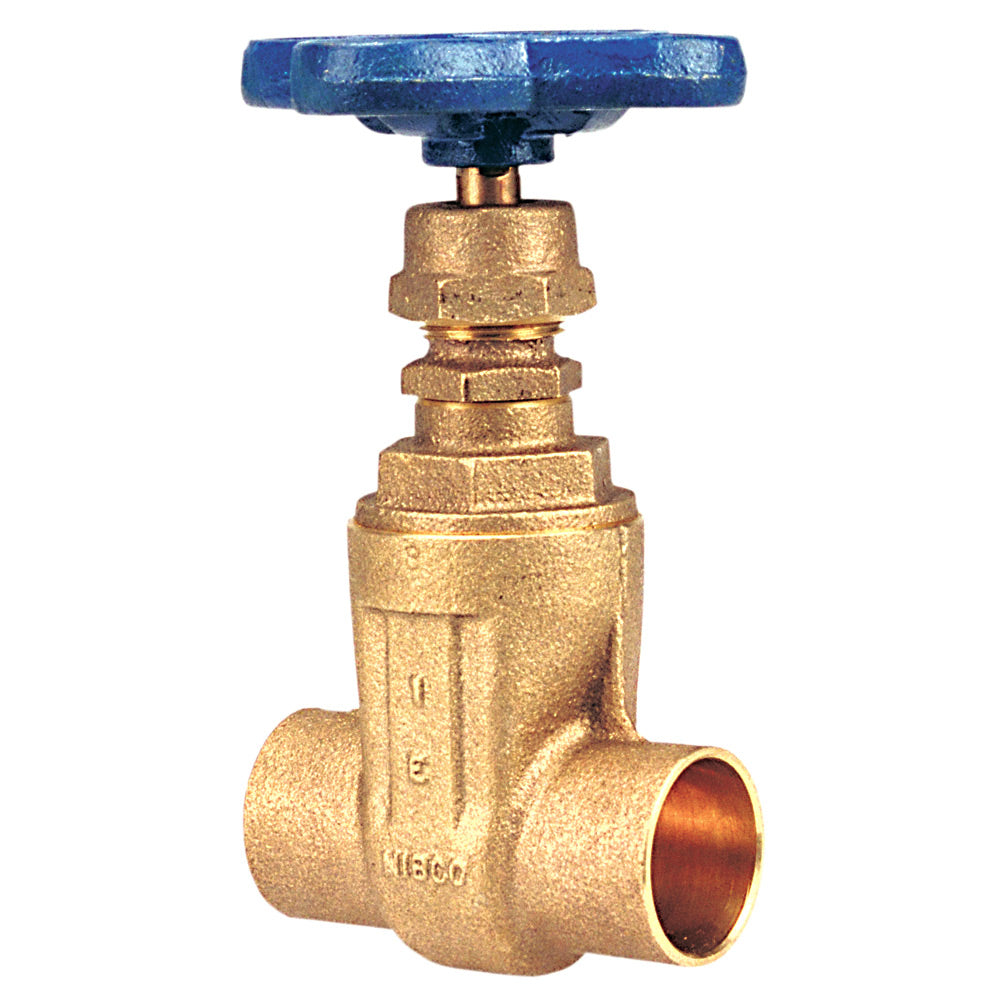

The NIBCO bronze gate valve may be used in commercial and industrial applications, including hot and cold water, HVAC, steam, compressed air, gas and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO gate valves are backed by the NIBCO 5-year 125% limited warranty.

• 125 psi/8.6 bar saturated steam to 353 degree F/178 degree C
• 200 psi/13.8 bar non-shock cold working pressure
• Non-rising stem
• Solid wedge
• Screw-in bonnet
• Class 125 solder end connections
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Dezincification resistant
• Conforms to MSS SP-80
• Potable Water Code: Not LL Comp not intend potable
• Classification: Bronze Gate Valves
• All Basic Material: Bronze
• Type of Valve: Gate Valve
• Nominal Size: 1 in.
• Seat Seal Material: Bronze
• Valve End Connection Type: S -- Female Solder Cup
• Valve Gate Stem Design: Non-Rising Stem
• Valve Multi Turn Operator: Standard Handwheel
• Valve Multi Turn Bonnet Design: Screw-in Bonnet
• Valve Trim Package: Bronze Wedge
• Valve Pressure Rating (CWP): 200 PSI / 13.8 Bar CWP
• Valve Pressure Rating (SWP): 125 PSI / 8.6 Bar SWP
• Turns Operations: Multi-Turn

PVZ1K00660
