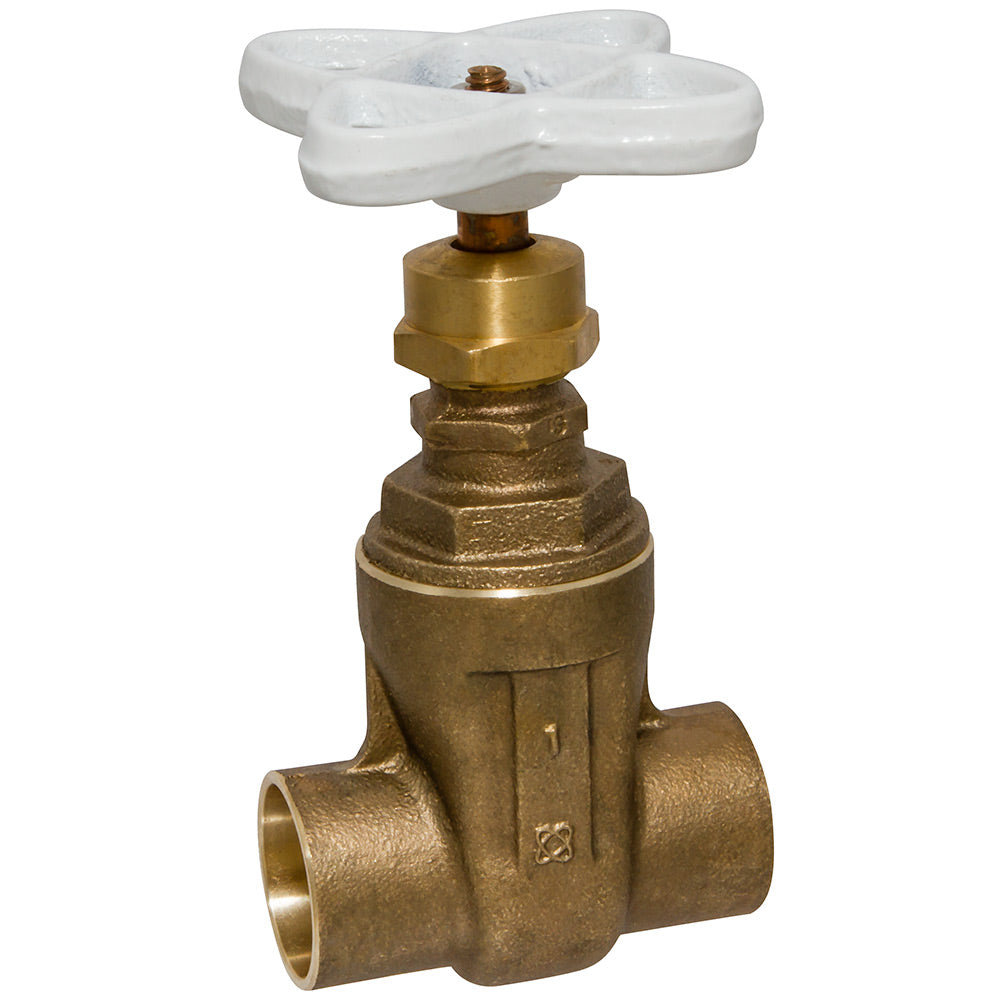

Nibco Lead-Free Bronze Gate Valve Specifications

The solid wedge, integral seats and bi-directional service make the gate valve a good choice for a broad range of services. Non-rising stem gate valves are used when positive shutoff is required and a space saving is necessary. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO valves are backed by the NIBCO INC. 5-year 125% limited warranty.

• Valve pressure rating 300 psi/20.6 bar non-shock cold working pressure
• Non-rising stem
• Solid wedge
• Screw-in bonnet
• White handle for easy lead-free* identification
• NIBCO double-oval lead-free body marking
• Class 125 solder end connections
• Dezincification resistant
• Lead-free*
• Dimensions and workmanship conform to MSS SP-80
• NSF/ANSI 61 and NSF/ANSI 372
• Potable Water Code: LL Compliant NSF/ANSI 372
• Classification: PVC Sch 40 Ball Valves [Alias]
• All Basic Material: Lead-Free Bronze
• Type of Valve: Gate Valve
• Nominal Size 1: 1/2 in.
• Seat Seal Material: Bronze
• Valve End Connection Type: S -- Female Solder Cup
• Valve Gate Stem Design: Non-Rising Stem
• Valve Multi Turn Operator: Standard Handwheel
• Valve Multi Turn Bonnet Design: Screw-in Bonnet
• Valve Trim Package: Bronze Seats
• Valve Pressure Rating (CWP): 200 PSI / 13.8 Bar CWP
• Valve Pressure Rating (SWP): 125 PSI / 8.6 Bar SWP
• Turns Operations: Multi-Turn

PVZ1KCA000
