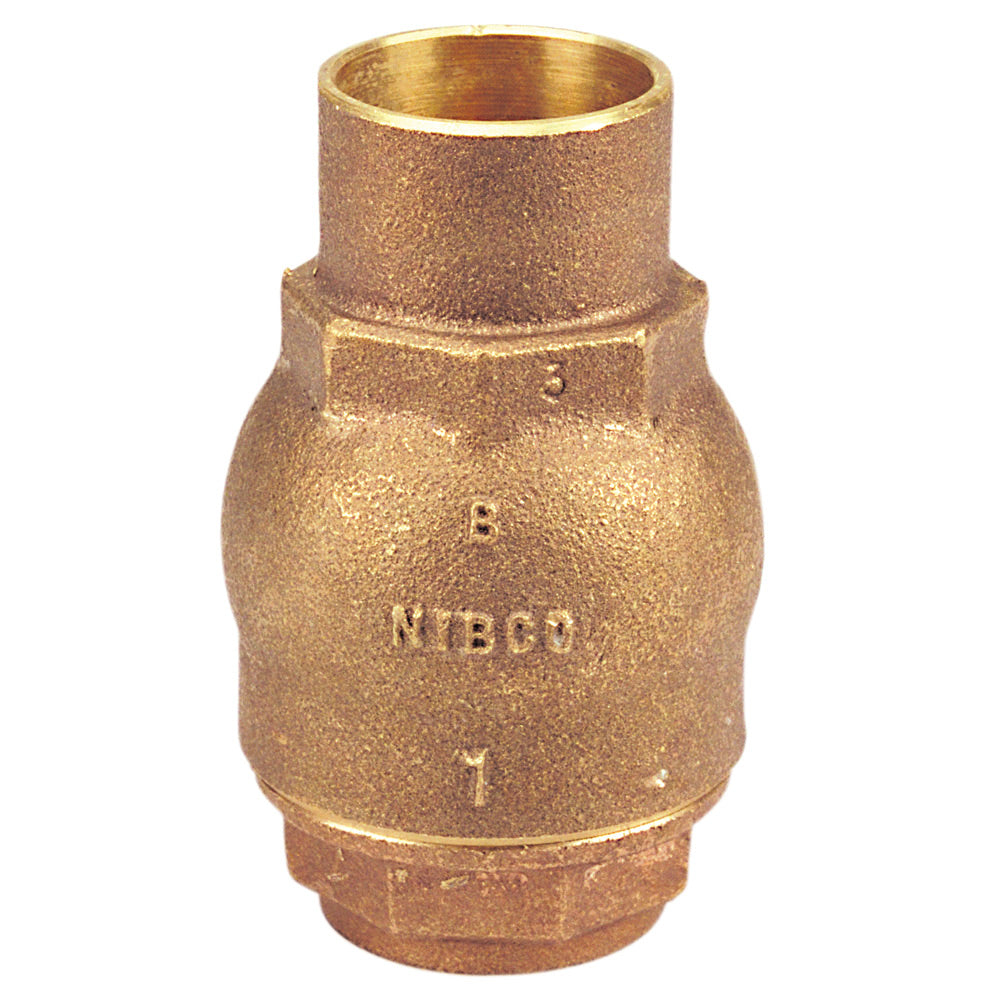

Nibco S-480 - Bronze Ring Check Valve - Sweat

This check valve may be installed in horizontal positions or vertical with flow moving up. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO specialty valves are backed by a NIBCO INC. 2-year limited warranty.

Features

• Valve pressure rating 200 psi/14 bar non-shock cold working pressure
• Maximum temperature 180 degree F/82.2 degree C
• In-line lift-type
• Spring actuated
• Buna-N resilient seat disc
• Dezincification resistant
• Solder end connections
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Potable Water Code: Not LL Comp not intend potable
• All Basic Material: Bronze
• Type of Check Valve: Inline
• Type of Valve: Check Valve
• Seat Seal Material: Buna-N Nitrile Rubber
• Valve End Connection Type: S -- Female Solder Cup
• Valve Multi Turn Bonnet Design: Screw-in Bonnet
• Valve Trim Package: Buna Disc
• Valve Pressure Rating (CWP): 200 PSI / 13.8 Bar CWP
• Turns Operations: Non-Manual
