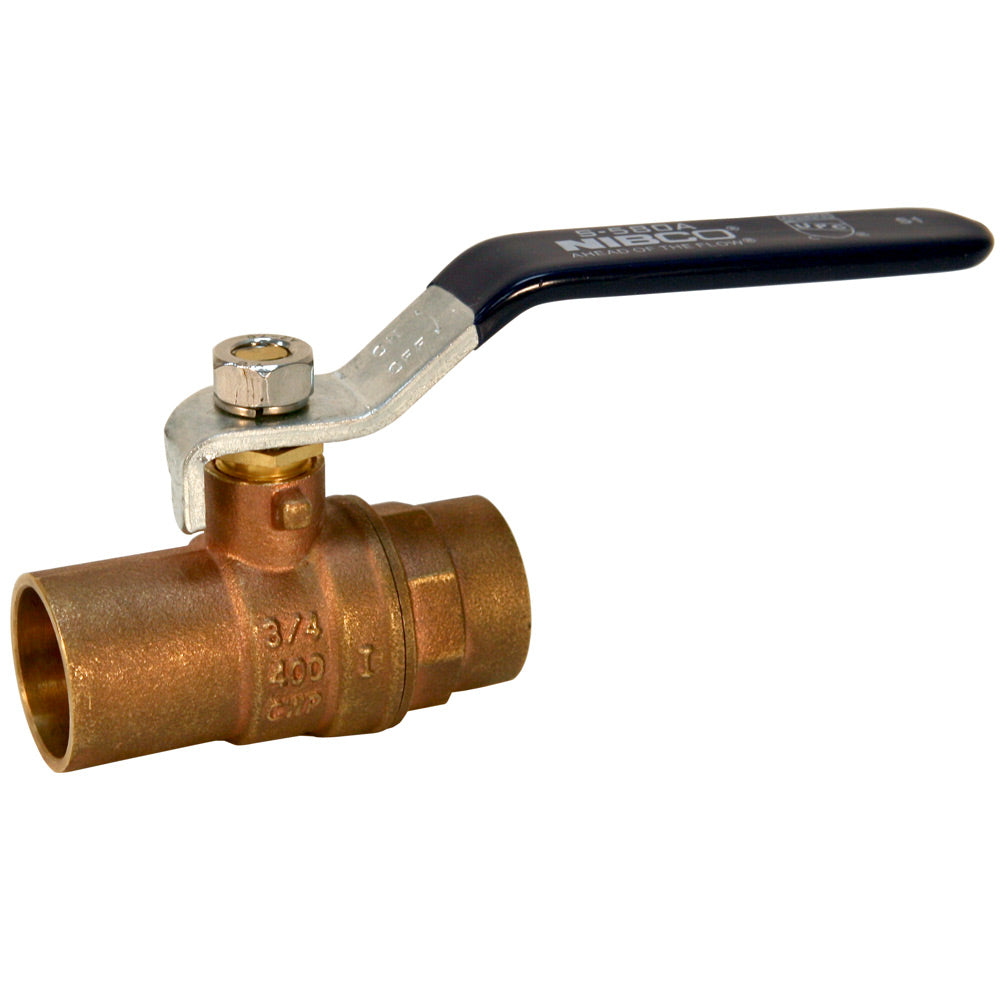

The NIBCO brass ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features solder end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO specialty valves are backed by a NIBCO INC. 2-year limited warranty.

• Valve pressure rating 400 psi/28 bar non-shock cold working pressure
• Standard port
• Chrome-plated brass ball and brass stem
• Blowout-proof stem
• Standard lever handle
• Solder end connections
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Potable Water Code: Not LL Comp not intend potable
• Classification: Brass Ball Valves
• All Basic Material: Brass
• Type of Valve: Ball Valve
• Nominal Size 1: 1-1/4 in.
• Seat Seal Material: PTFE
• Valve Ball Body Type: Two-Piece
• Valve Ball Operator: CS Standard Lever Handle
• Valve Ball Port Style: Conventional Port
• Valve Ball Stem Material: BRS - Brass Ball and Stem
• Valve End Connection Type: S -- Female Solder Cup
• Valve Pressure Rating (CWP): 400 PSI / 27.6 Bar CWP
• Turns Operations: Quarter-Turn

PVZ1K00450
