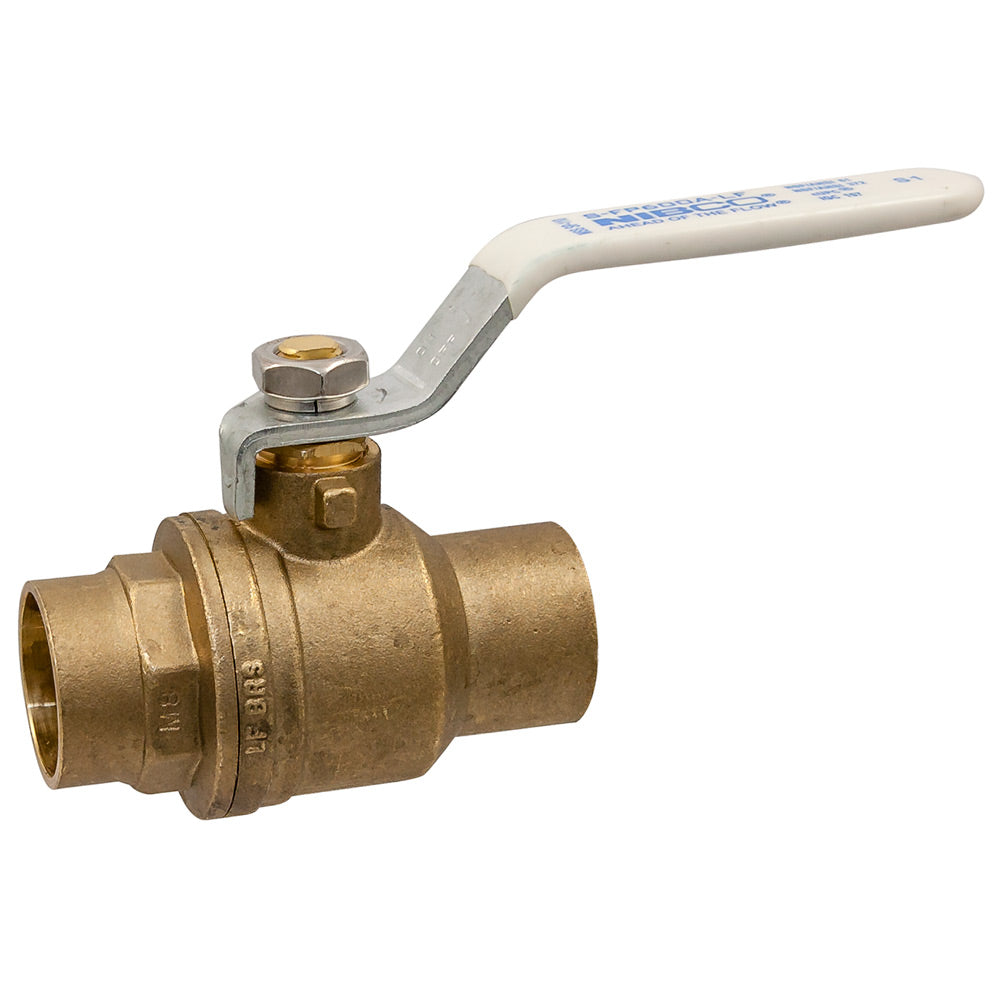

The NIBCO lead-free* brass ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features solder end connections for easy installation. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO specialty valves are backed by a NIBCO INC. 2-year limited warranty.

• Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure (3/8" to 2")
• Valve pressure rating 400 psi/27.6 bar non-shock cold working pressure (2-1/2" to 3")
• Full port
• Blowout-proof stem
• Standard lever handle
• Female solder cup end connections
• IAPMO listed to NSF/ANSI-61-8, NSF/ANSI-372 and UPC-IGC-157
• Potable Water Code: LL Compliant NSF/ANSI 372
• Classification: CPVC-CTS Ball Valves [Alias]
• All Basic Material: Lead-Free Brass
• Type of Valve: Ball Valve
• Nominal Size 1: 1-1/2 in.
• Valve Ball Body Type: Two-Piece
• Valve Ball Operator: CS Standard Lever Handle
• Valve Ball Port Style: Full Port
• Valve End Connection Type: S -- Female Solder Cup
• Valve Ball Material: Brass
• Valve Stem Material: Brass
• Turns Operations: Quarter-Turn

PVZ1024794
