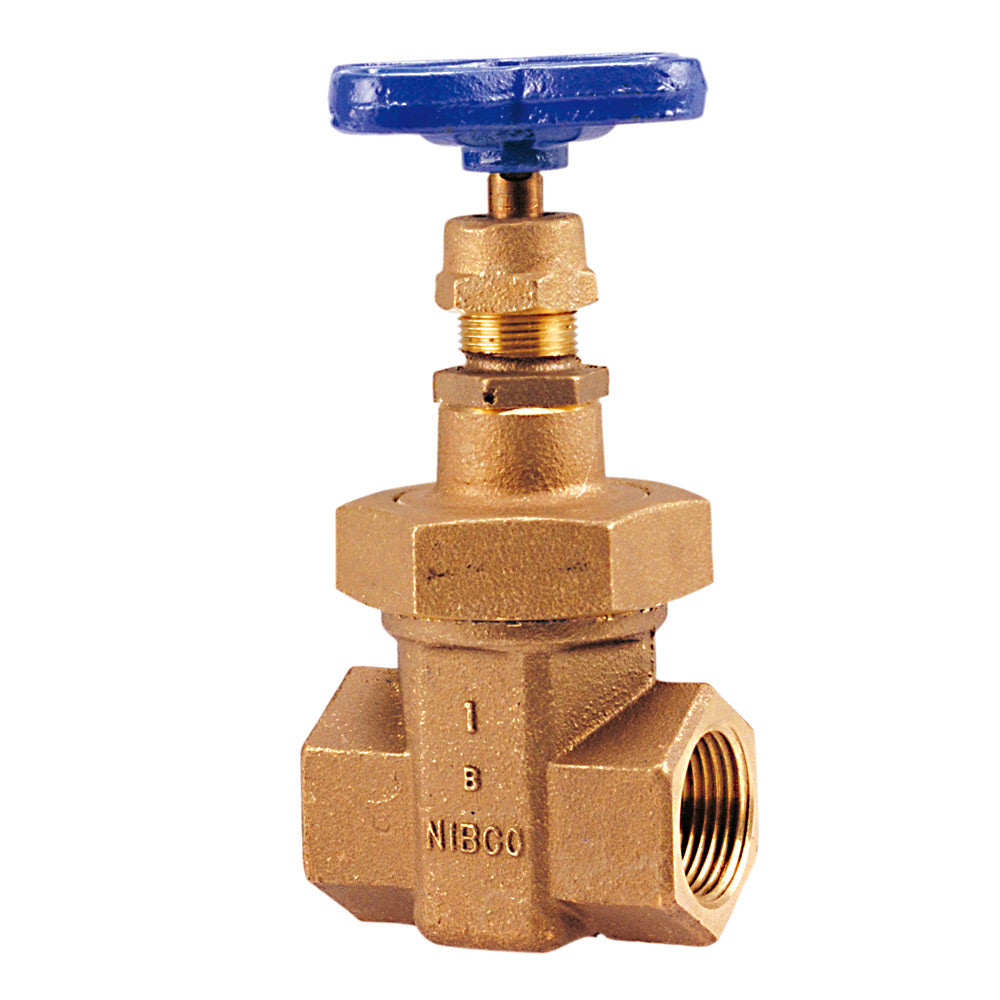

The NIBCO bronze gate valve may be used in commercial and industrial applications, HVAC, specifically for medium to high pressure steam, and other general utility services. Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO gate valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO gate valves are backed by the NIBCO 5-year 125% limited warranty.

• 300 psi/20.7 bar saturated steam to 421 degree F/216 degree C
• 600 psi/41.4 bar non-shock cold working pressure
• Non-rising stem
• Alloy solid wedge
• Union bonnet
• Class 300 threaded end connections
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Dezincification resistant
• Conforms to MSS SP-80
• Potable Water Code: Not LL Comp not intend potable
• Classification: Bronze Globe Valves
• All Basic Material: Bronze
• Type of Valve: Gate Valve
• Nominal Size: 1 in.
• Seat Seal Material: Bronze
• Valve End Connection Type:T -- Female NPT Thread (FIPT)
• Valve Gate Stem Design: Non-Rising Stem
• Valve Multi Turn Operator: Standard Handwheel
• Valve Multi Turn Bonnet Design: Union Bonnet
• Valve Trim Package: Bronze Wedge
• Valve Pressure Rating (CWP): 600 PSI / 41.4 Bar CWP
• Valve Pressure Rating (SWP): 300 PSI / 20.7 Bar SWP
• Turns Operations: Multi-Turn

PVZ1K01580
