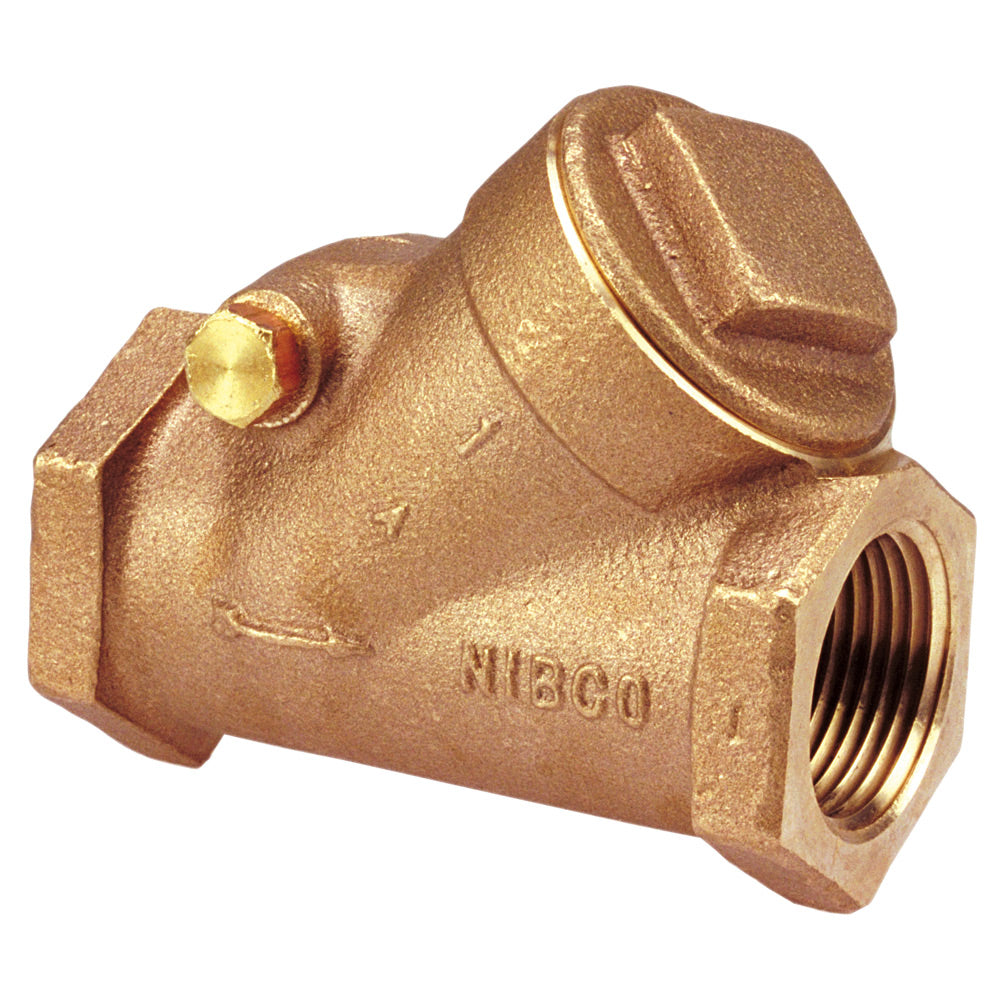

The NIBCO bronze check valve features threaded end connections for ease of installation. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO check valves are backed by the NIBCO 5-year 125% limited warranty.

• 150 psi/10.3 bar saturated steam to 366 degree F/185 degree C
• 300 psi/20.7 bar non-shock cold working pressure
• Y-pattern
• Renewable PTFE disc
• Regrindable seat
• Class 150 threaded end connections
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Conforms to MSS SP-80
• Potable Water Code: Not LL Comp not intend potable
• Classification: Quarter-Turn Sillcocks
• All Basic Material: Bronze
• Type of Check Valve: Swing
• Type of Valve: Check Valve
• Nominal Size 1: 1in
• Seat Seal Material: PTFE
• Valve End Connection Type:T -- Female NPT Thread (FIPT)
• Valve Multi Turn Operator: Screw-in Bonnet
• Valve Trim Package: PTFE Disc
• Valve Multi Turn Bonnet Design: Bolted Bonnet
• Valve Pressure Rating (CWP): 300 PSI / 20.7 Bar CWP
• Valve Pressure Rating (SWP): 150 PSI / 10.3 Bar SWP
• Turns Operations:Non-Manual

PVZ1K01840
