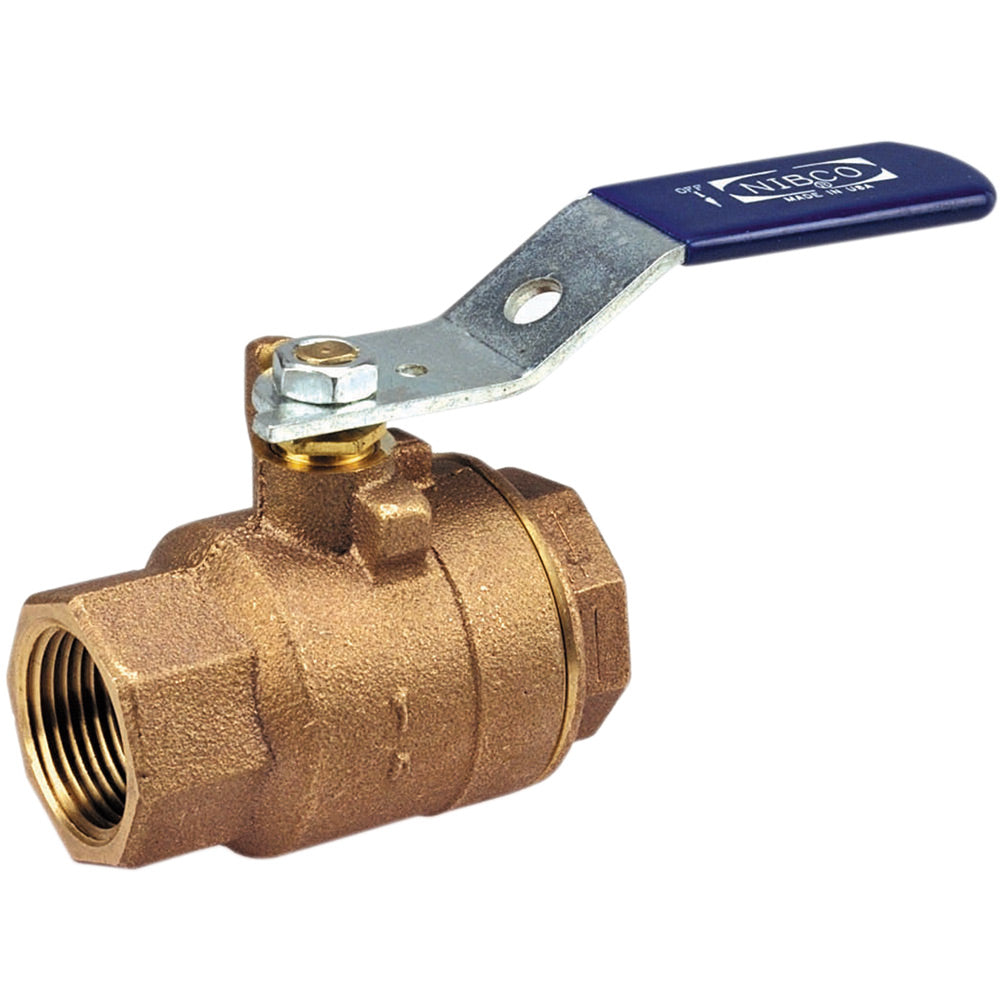

The NIBCO bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. The two-piece valve features thread ends for easy installation. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.

• Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure
• Maximum temperature rating 400 degree F
• Full port
• Chrome plated brass ball, silicon bronze stem
• Blowout-proof stem
• Standard lever handle, optional NIB-SEAL
• Threaded end connections
• Dezincification resistant
• Use in U.S. drinking water applications is prohibited after January 3, 2014
• Conforms to MSS SP-110
• Potable Water Code: Not LL Comp not intend potable
• Classification: Bronze Ball Valves
• All Basic Material: Bronze
• Type of Valve: Ball Valve
• Nominal Size 1: 2 in.
• Seat Seal Material: RPTFE (Reinforced)
• Valve Ball Body Type: Two-Piece
• Valve Ball Operator: CS Standard Lever Handle
• Valve Ball Port Style: Full Port
• Valve Ball Stem Material: BRZ - Bronze
• Valve End Connection Type: T -- Female NPT Thread (FIPT)
• Valve Ball Material: Brass with Hard Chrome Plate
• Valve Trim Package: Bronze Trim
• Valve Pressure Rating (CWP): 600 PSI / 41.4 Bar CWP
• Valve Pressure Rating (SWP): 150 PSI / 10.3 Bar SWP
• Valve Stem Material: Silicon Bronze
• Turns Operations: Quarter-Turn

PVZ1K01240
