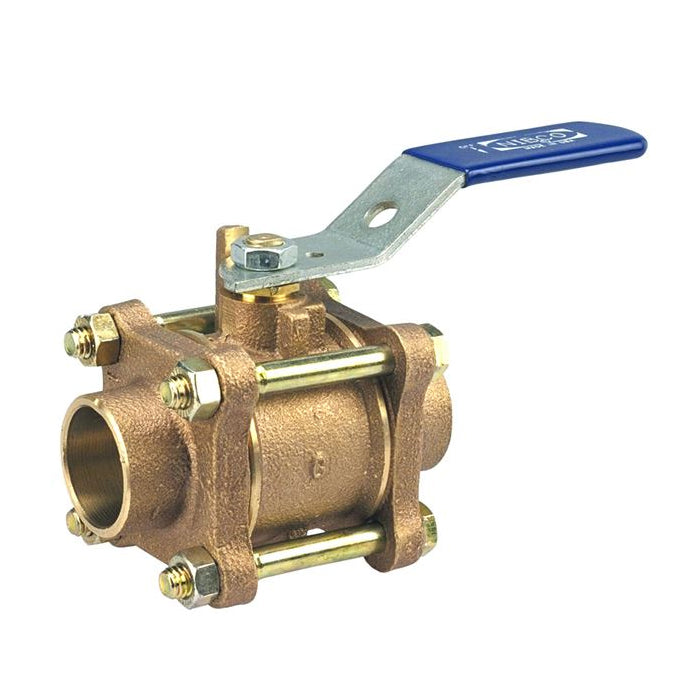

S-595-Y Cast Bronze Ball Valve, Three-Piece, Lever Handle, 3/4" Female Solder Cup
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Nibco S-595-Y Submittal DataThe NIBCO bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close, and bubble-tight shutoff at 600 PSI. The PTFE seat ring and brass hard chrome plated ball exhibits high chemical resistance properties and is recommended for many high pressure applications. Options include NIB-SEAL insulated handle that eliminates condensate. Please refer to NIBCO technical data sheet, valve selection guide and catalog for engineering and installation information. Choose NIBCO ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO ball valves are backed by the NIBCO INC. 5-year 125% limited warranty
Specifications
- UPC Code: 039923686466
- Type: Ball Valve
- Connection Type: S -- Female Solder Cup
- Valve Size: 3/4"
- Seal Material: PTFE
- Seat Material: PTFE
- Stem Material: Silicon Bronze
- Body Material: Bronze
- Valve Operator: CS Standard Lever Handle
- Description: S595Y 3/4 CXC 600# FP BV 3-PC
- eClass Classification: Bronze Ball Valves
- Turns/Operation: Quarter-Turn
- Weight: 1.565 lb
PVZ1K00604
