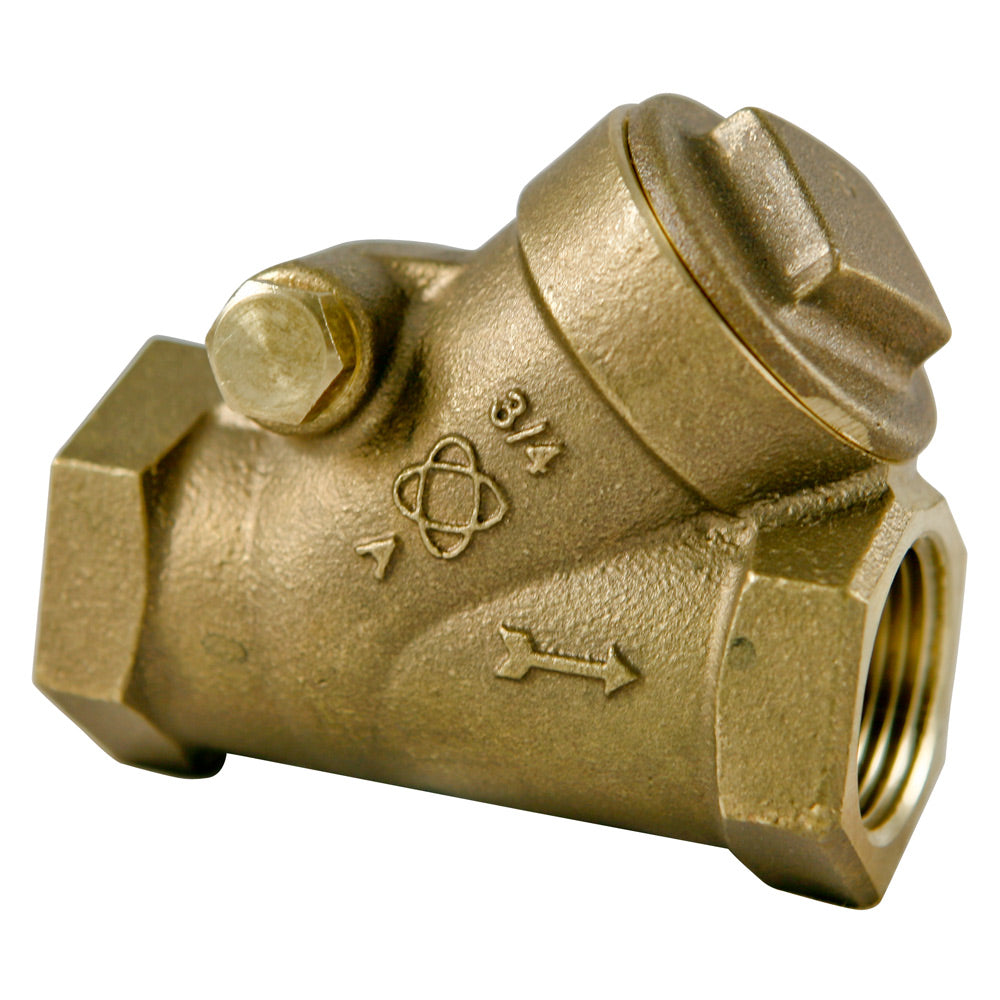

Nibco T-413-Y-LF - Lead Free Bronze Swing Y-Check Valve - PTFE Seat - Threaded
The NIBCO check valve features a screw-in bonnet for accessibility to repair or replace parts. Swing check valves may be installed in horizontal positions (or vertical with flow moving up). Please refer to NIBCO technical data sheets, chemical resistance guides and catalogs for engineering and installation information. Choose NIBCO valves for the most specified, versatile and economical valve option in commercial and residential applications. NIBCO valves are backed by the NIBCO INC. 5-year 125% limited warranty.
Features
- Valve pressure rating 200 psi/13.8 bar non-shock cold working pressure
- Y-pattern
- Renewable seat and disc
- Regrinding type
- NIBCO double-oval lead-free body marking
- Class 125 threaded end connections
- Lead-free

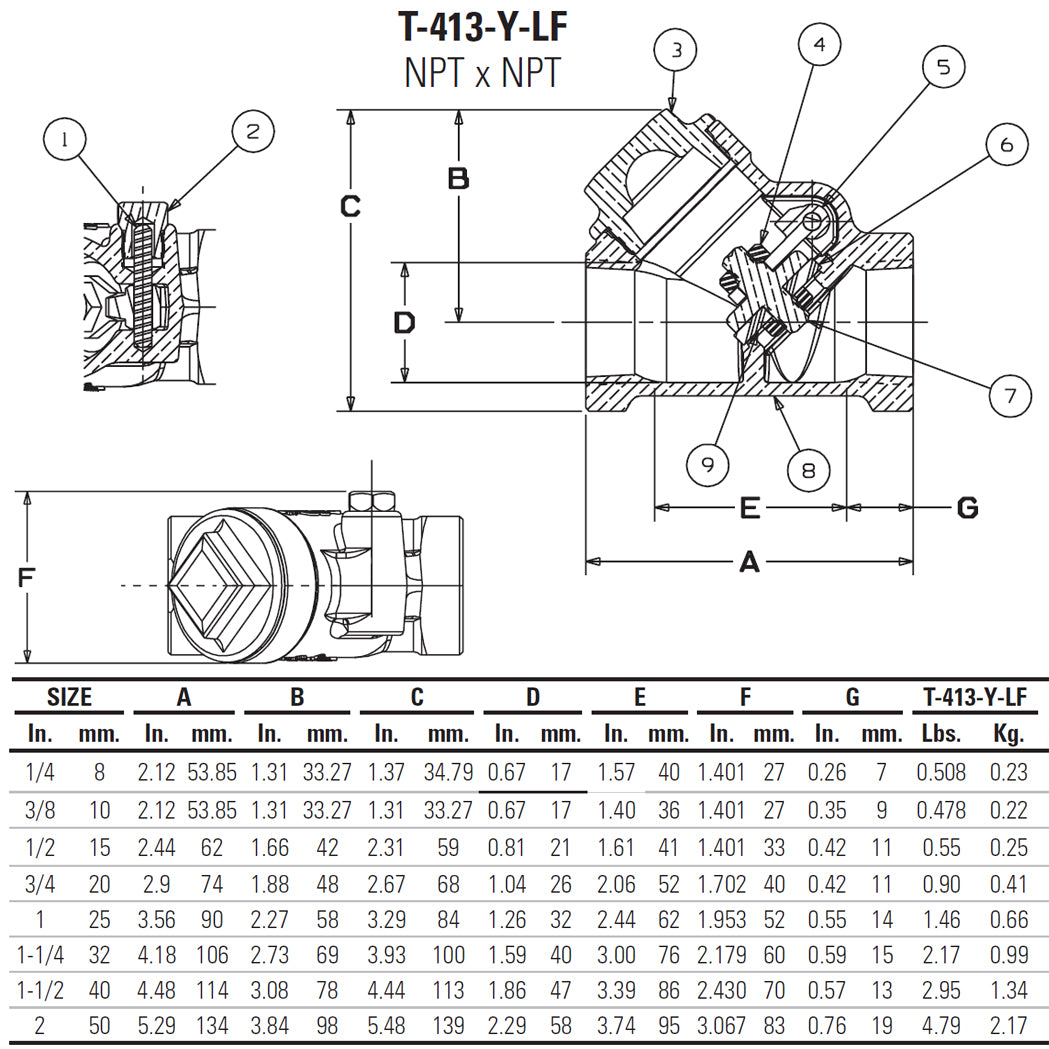

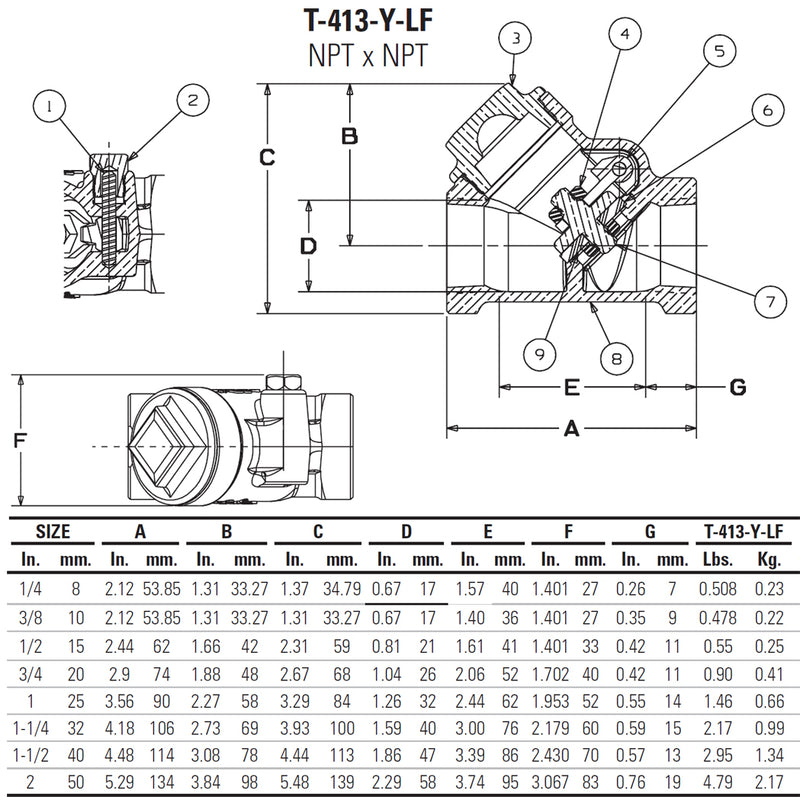

- Dimensions and workmanship conform to MSS SP-80
- NSF/ANSI 61 and NSF/ANSI 372
- Potable Water Code: LL Compliant NSF/ANSI 372
- Classification: Swing Cast Iron Check Valves
- All Basic Material: Lead-Free Bronze
- Type of Check Valve: Swing
- Type of Valve: Check Valve
- Seat Seal Material: PTFE
- Valve End Connection Type: T -- Female NPT Thread (FIPT)
- Valve Multi Turn Bonnet Design: Screw-in Bonnet
- Valve Trim Package: PTFE Disc
- Valve Pressure Rating (CWP): 200 PSI / 13.8 Bar CWP
- Turns Operations: Non-Manual
