OCR19B12DLX C - Toilet Kit 1/2" Nom Comp x 3/8" O.D. Comp Multi-Turn Angle Valve with 12
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Water Stops Installation Guide

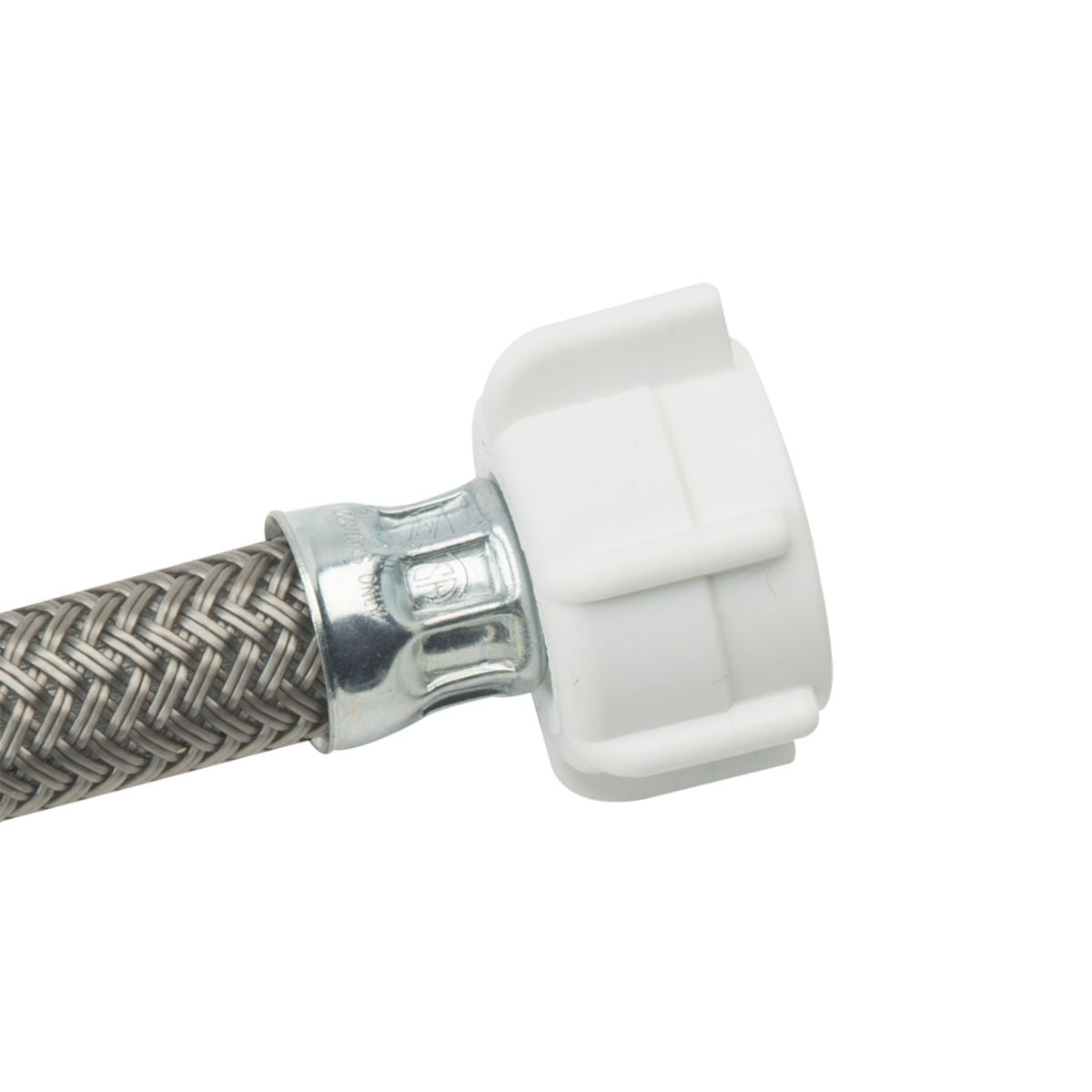

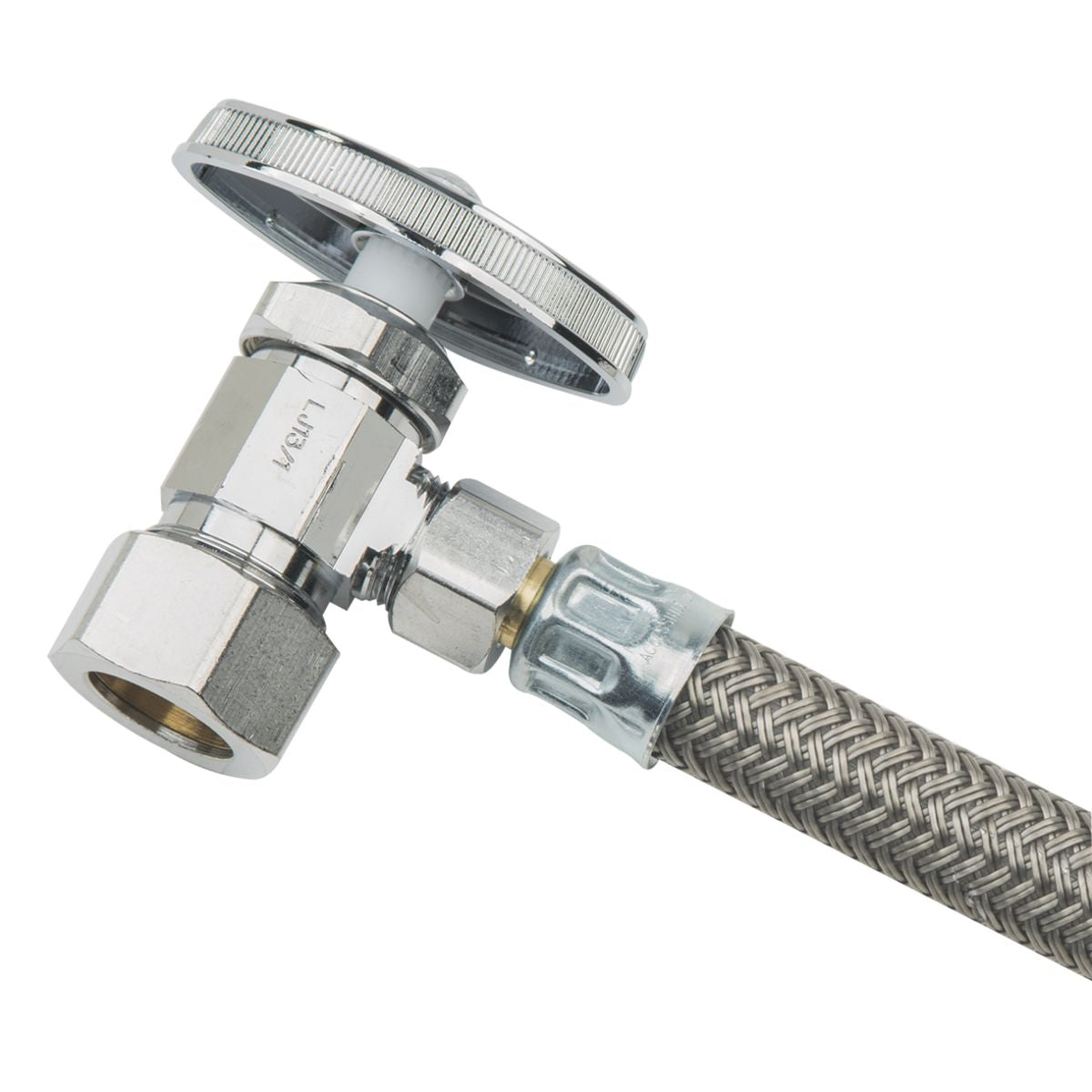

BrassCraft Toilet Supply Kit includes everything you need to connect your water supply to your toilet. Components include: (1) 1/2 in. Nominal Compression inlet x 3/8 in. O.D. Compression outlet multi-turn angle valve, (1) Speedi Plumb® PLUS 3/8 in. O.D. Compression inlet x 7/8 in. Ballcock outlet braided water connector and (1) shallow flange. The water shut-off valve has an angle body which is most often used to connect to a water pipe that enters the room from the wall. Multi-turn operation means water flow control with only a few turns of the handle. Allows you to maintain, repair or replace your fixture without shutting off the water to the entire home. The flexible braided polymer connector features a high tenacity, multi-filament yarn, protected by a special polymer coating for optimum corrosion resistance and durability. The braided polymer fibers are also designed to bend freely without kinking or crimping. This connector features BrassCraft’s tough PVC inner hose to resist attack by chlorine, chloramines and other corrosive elements.
Features:
- Braided polymer tube; brass valve; stainless steel flange
- 1/2 in. Nominal Compression x 3/8 in. O.D. Compression
- Valve compatible with copper and PEX pipe (PEX installs require a stainless steel tube insert)
- For use in potable water distribution systems in accessible locations only
- Multi-turn operation means water flow control with only a few turns of the handle
- Speedi Plumb® PLUS braided connector bends freely without kinking or crimping, installation is easier, especially in cramped quarters
- External corrosion resistance to most common household, tile and glass cleaners
- Easy-to-remove handle protects against accidental operation during rough-ins
- Kit includes: (1) 1/2 in. Nominal Compression inlet x 3/8 in. O.D. Compression outlet multi-turn angle valve, (1) Speedi Plumb® PLUS 3/8 in. O.D. Compression inlet x 7/8 in. Ballcock (metal nut) outlet braided water connector and (1) shallow flange.
- Tough PVC inner hose resists attack by chlorine, chloramines and other corrosive elements
- For indoor use
- Temperature rating: 40° to 160° F, intermittent to 180° F
- Pressure rating: 125 PSI maximum
- No-lead certified
- IAPMO listed to ASME A112.18.1
- Designed, machined and assembled in the USA
