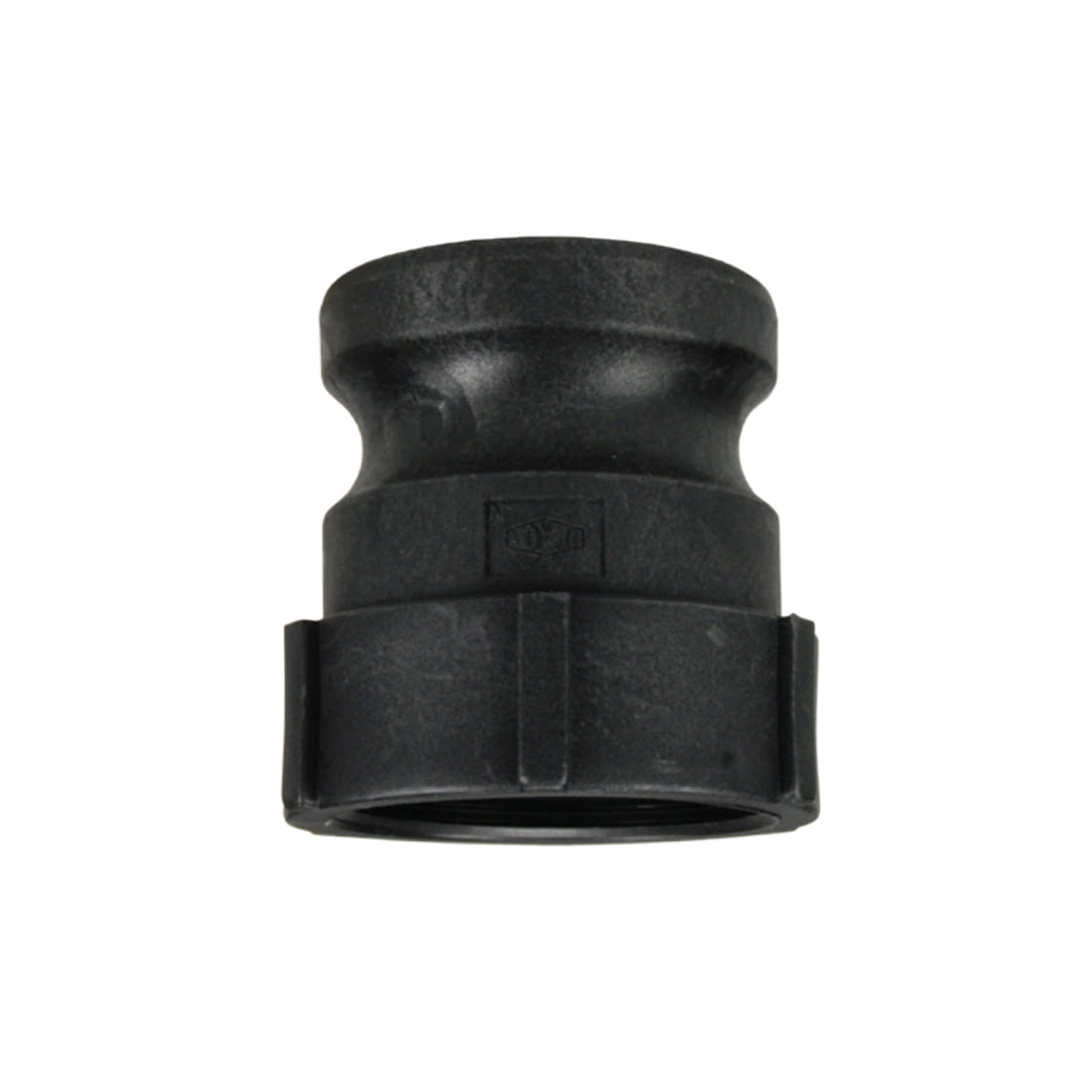

Dixon Valve PPA200 - 2" Glass-Filled Polypropylene Type A Adapter x Female NPT

Features

• Cam & Groove Type A Adapter
• Adapter x Female NPT
• Designed for use with liquids, consult Dixon for specific recommendations
• To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
• Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
• Under no circumstances should cam and groove couplings be used for compressed air or steam service!
• Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 degrees F with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
• Designed to interchange with all products produced to A-A-59326D
• Maximum Operating Pressure: 100 PSI
• Weight: 0.28 lbs
• Size: 2"
• Material: Glass-Filled Polypropylene

EZZSPA0200
