Mr Steam 104198 - 1/2" Pressure Reducing Valve
No reviews
In stock
Regular price
$197.93
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Specification SheetPressure reducing valve with balanced piston design has an internal thermal expansion by-pass, corrosion resistant sealed bronze body and bonnet, and an integral SS strainer.
Features:
- Corrosion Resistant Sealed Body and Bonnet
- 100% Factory Tested
- Integral SS Strainer
- Balanced Piston Design
- Internal Thermal Expansion By-Pass
- 100% Manufactured in USA

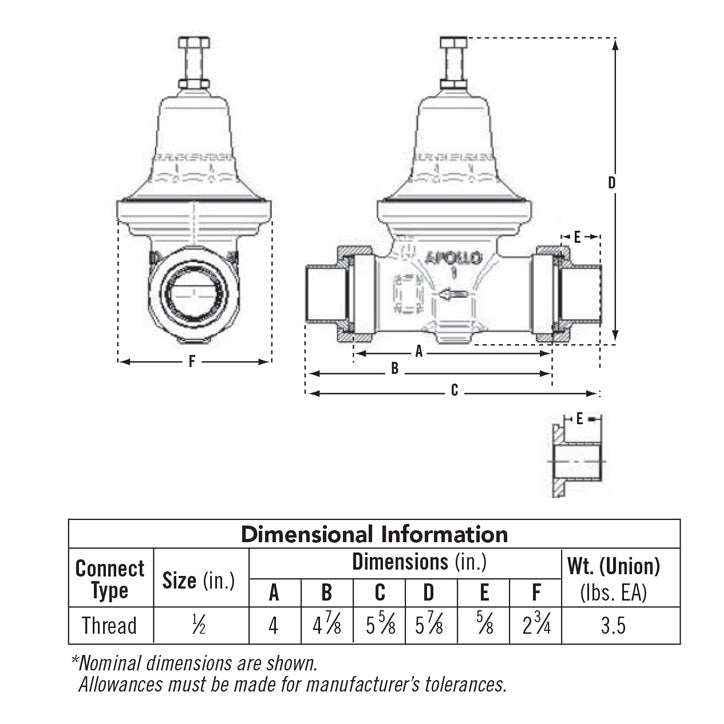

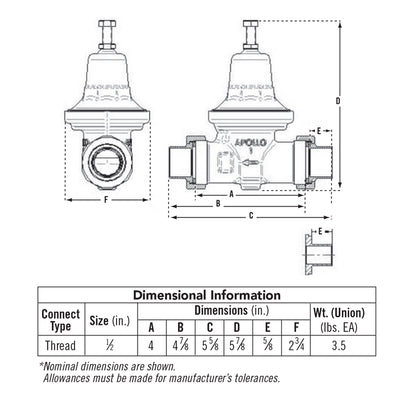

Specifications:
- Size: 1/2" NPT
- Length: 5-5/8"
- Height: 5-7/8"
- Width: 2-3/4"
- Weight: 3-1/2 lbs
- Body Material: Bronze, ASTM B584
- Temperature Range: 33˚ F – 180˚ F
