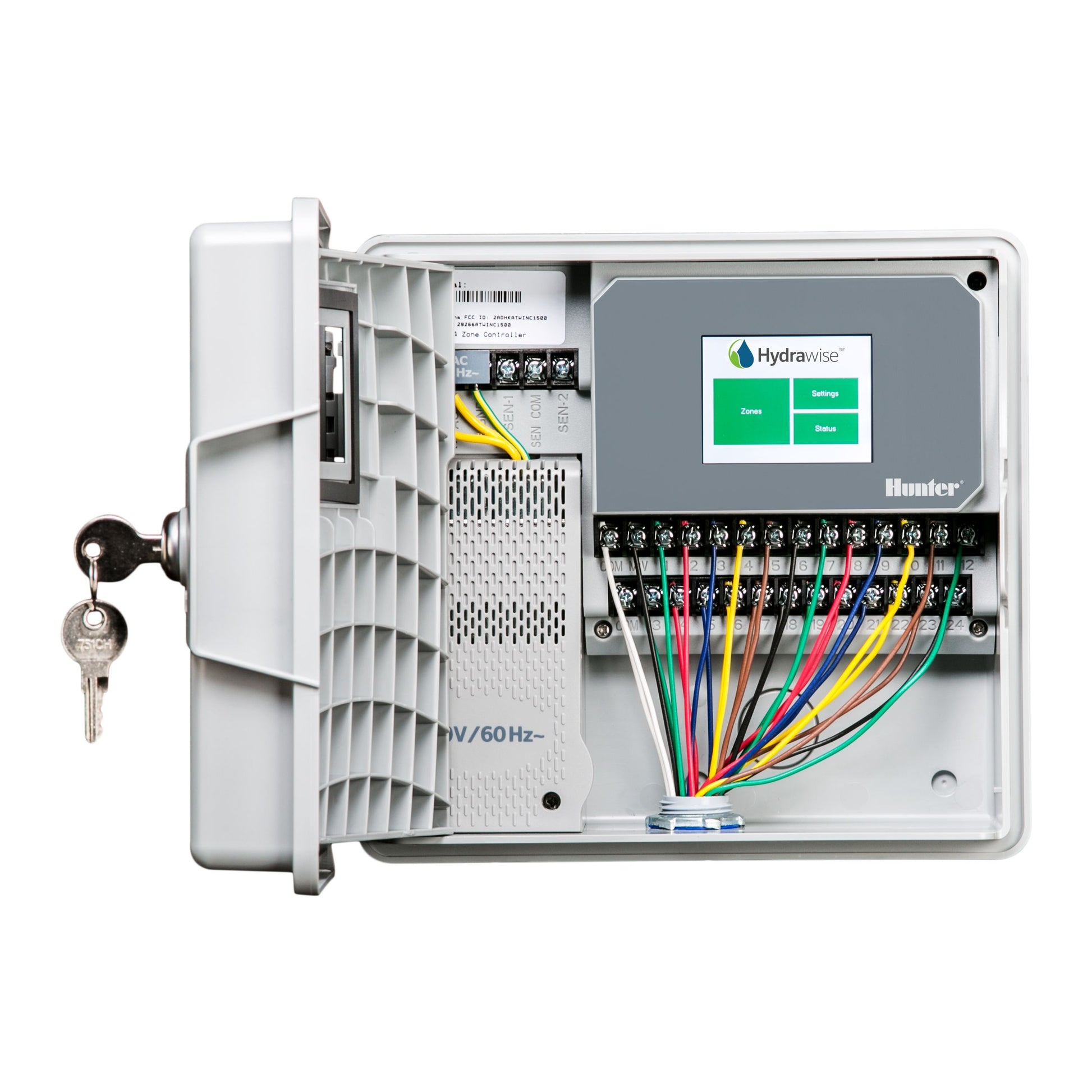

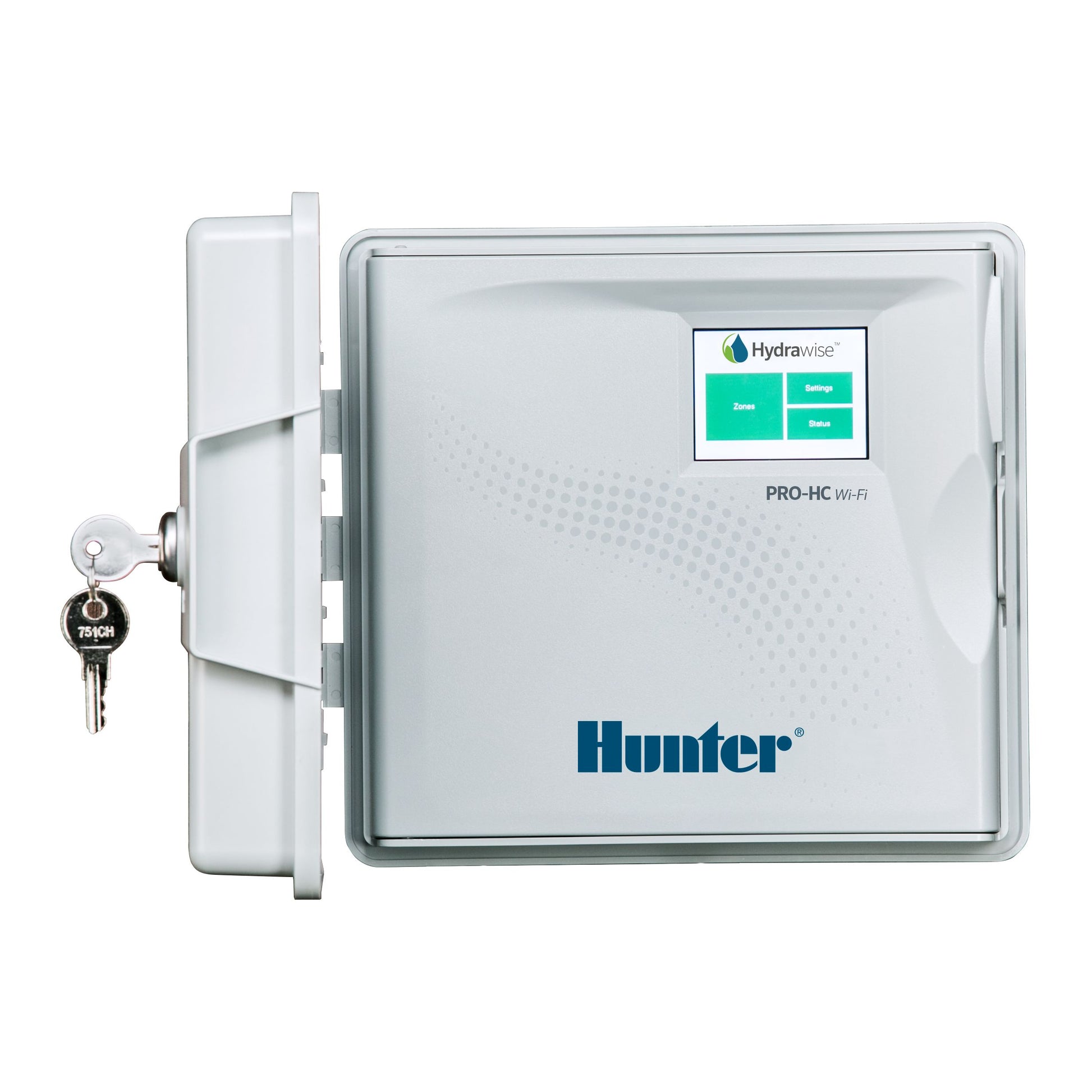

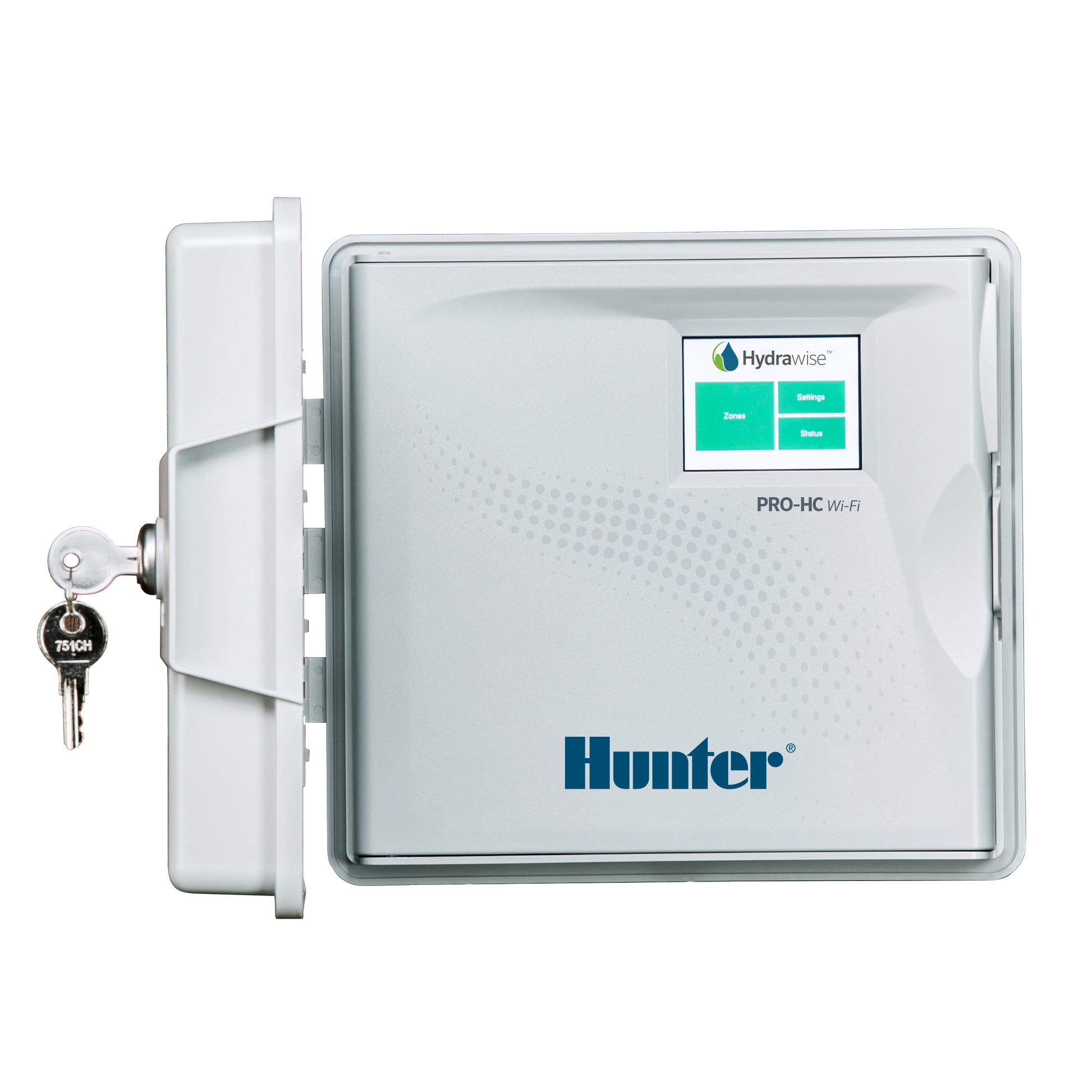

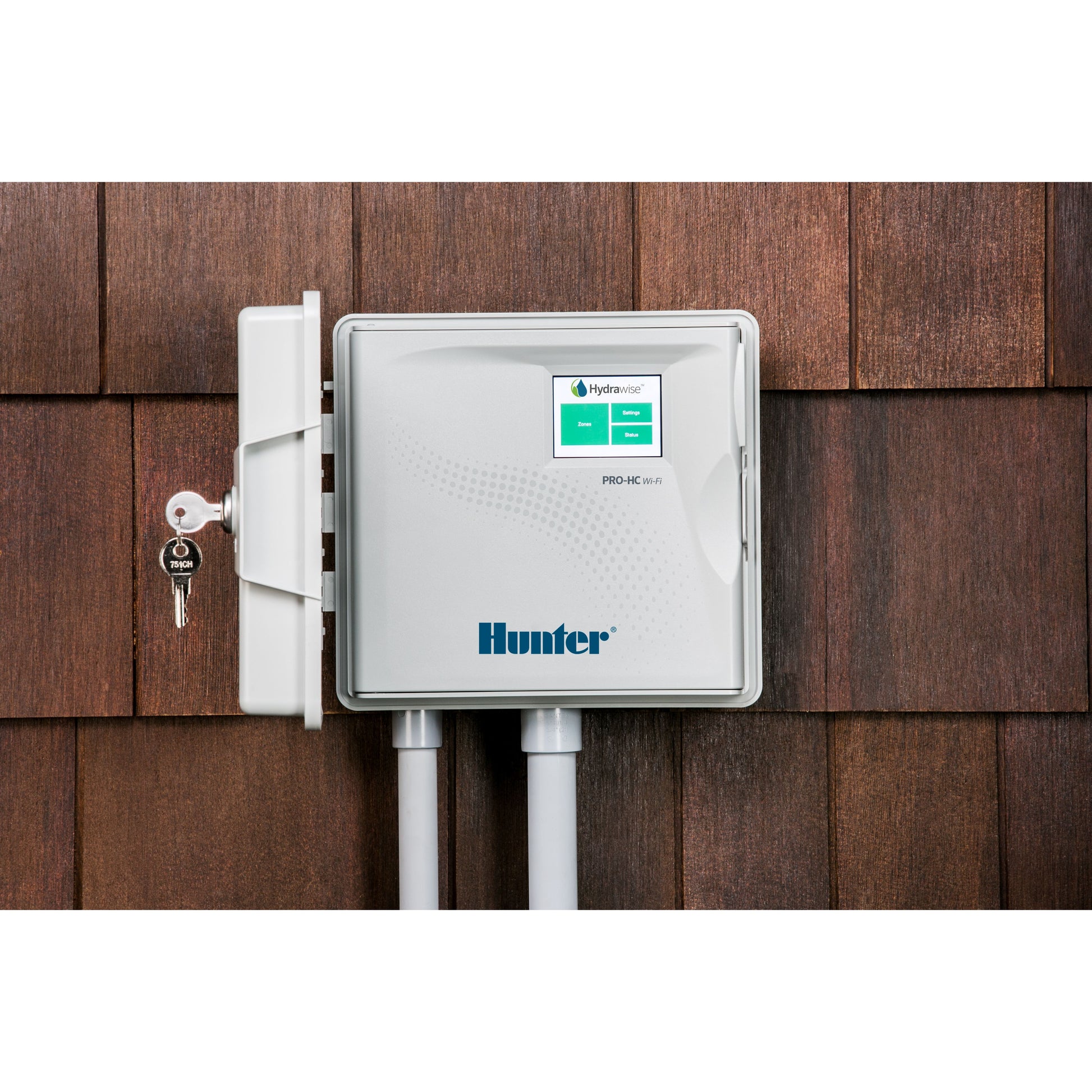

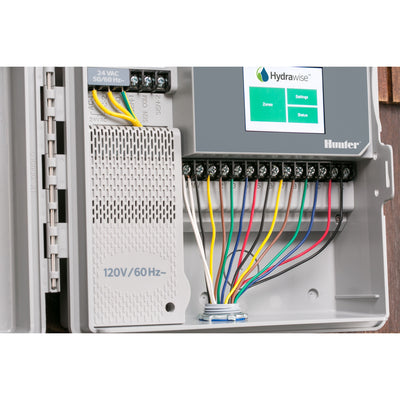

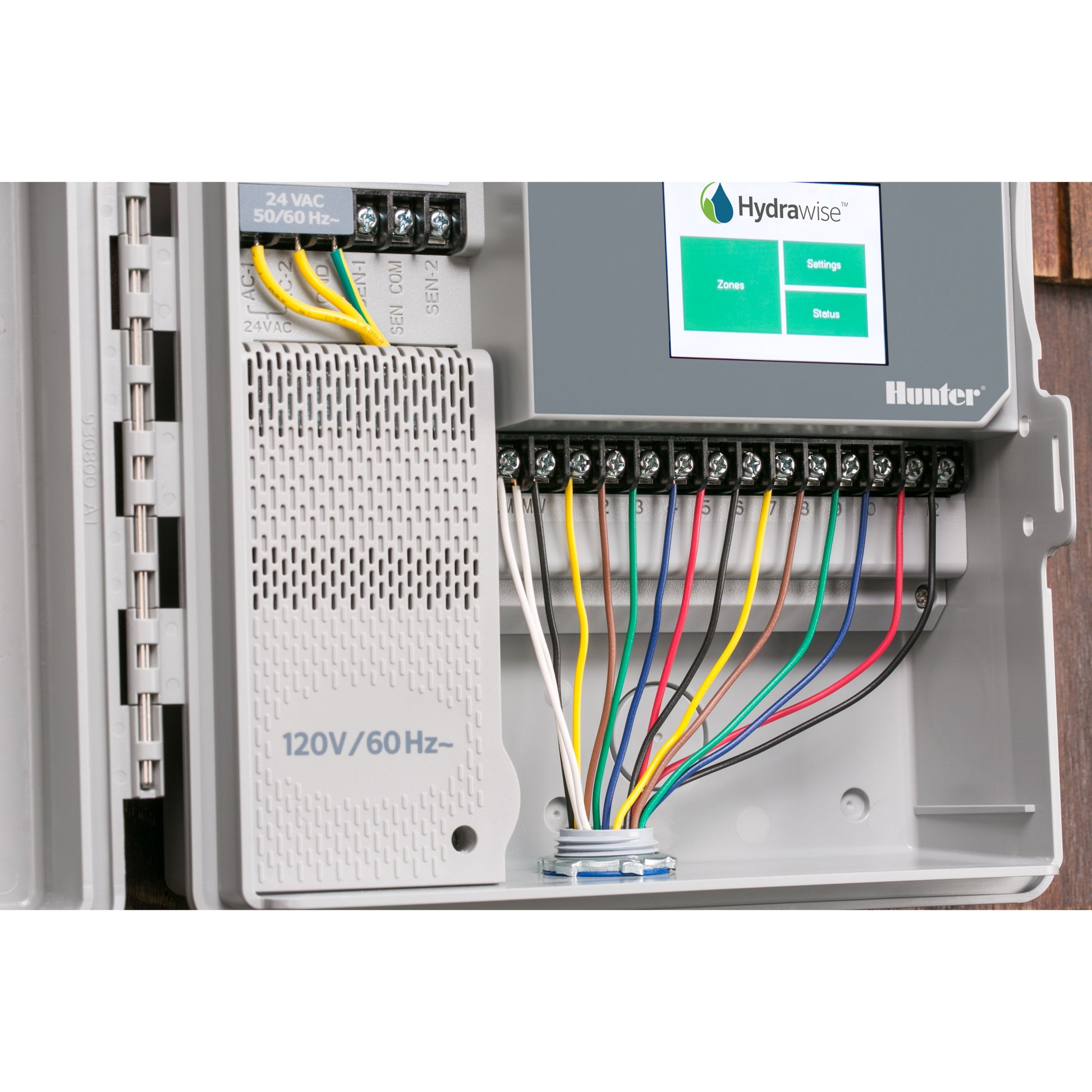

Hunter PHC-600 - Pro-HC 6 Station Outdoor Hydrawise Wi-Fi Irrigation Controller, 120 VAC

Manage this durable outdoor irrigation controller with Hydrawise web-based software from anywhere worldwide using your smart device or web browser. Predictive watering adjusts schedules based on temperature forecast, rainfall probability, wind and humidity to provide maximum water savings while keeping your clients’ landscape healthy and beautiful. Add a simple-to-install flow meter and set up automatic notifications to alert you of broken pipes or sprinklers.

Features

• Number of stations: 6
• Standard programming option allows for 6 independent irrigation programs and 6 start times per program
• 2 sensor inputs available for use with any Clik sensor and HC Flow Meter
• 1 P/MV output for pump start relay and master valve activation
• Wi-Fi enabled for quick connection to Hydrawise Software
• 2-3/4" full-color touchscreen display for Wi-Fi setup, zone testing, and offline programming at the control panel
• Built-in milliamp sensor for wire fault detection and alerts

Specifications

• Transformer input: 120 VAC
• Transformer output (24 VAC): 1 A
• Controller maximum current draw: 0.8 A
• Station output (24 VAC): 0.56 A
• P/MV output (24 VAC): 0.28 A
• 2.4 GHz (only) Wi-Fi router compatible, 802.11 b/g/n 20 MHz
• Supported security protocols: WPA/WPA2 Personal (only) TLS, SSL
• Approvals: IP44 (outdoor), UL, cUL, FCC, CE, RCM, ISED
• Warranty period: 2 years
