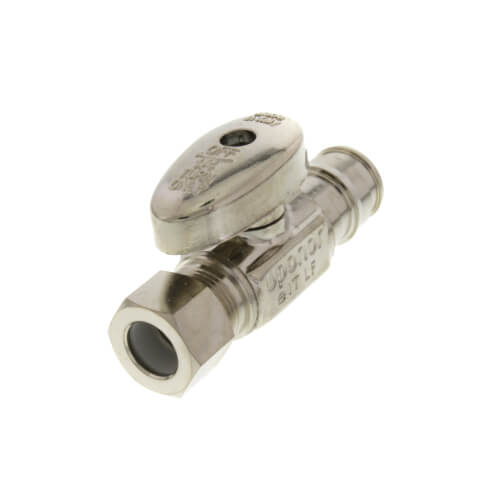

Straight Stop Valve is used for point-of-use shutoff at the fixture.

ProPEX^® Lead-free Full-port Brass Stop Valve is quarter-turn, chrome-plated and available in either angle or straight-stop configurations.This stop valve is used for point-of-use shut-off at the fixture. This stop valve connects 1/2" AquaPEX^® tubing to 3/8" O.D. risers.

Material: Acudel^® modified polyphenylsulfone; Ceramics
Maximum Temperature (no pressure): 320°F (160°C)
Maximum Working Temperature/Pressure: 210°F at 150 psi (99°C at 10.3 bar)

Installation: Install the stop valve according to your local building code. Do not dismantle. Refer to the AquaPEX Professional Plumbing Installation Handbook or Uponor Radiant Floor Installation Handbook for additional information.

Standards: CSA B137.5 and B125; ASTM F877; ASTM F1960; ASME A112.18.1

Codes: IPC; UPC; NSPC; NPC of Canada

Listings: ANSI/NSF 14- and 61-certified; U.P. Code, Annex G

Related Application: PEX-a Plumbing Systems Radiant Heating and Cooling Systems Snow and Ice Melting Systems Permafrost Protection Systems Turf Conditioning Systems
