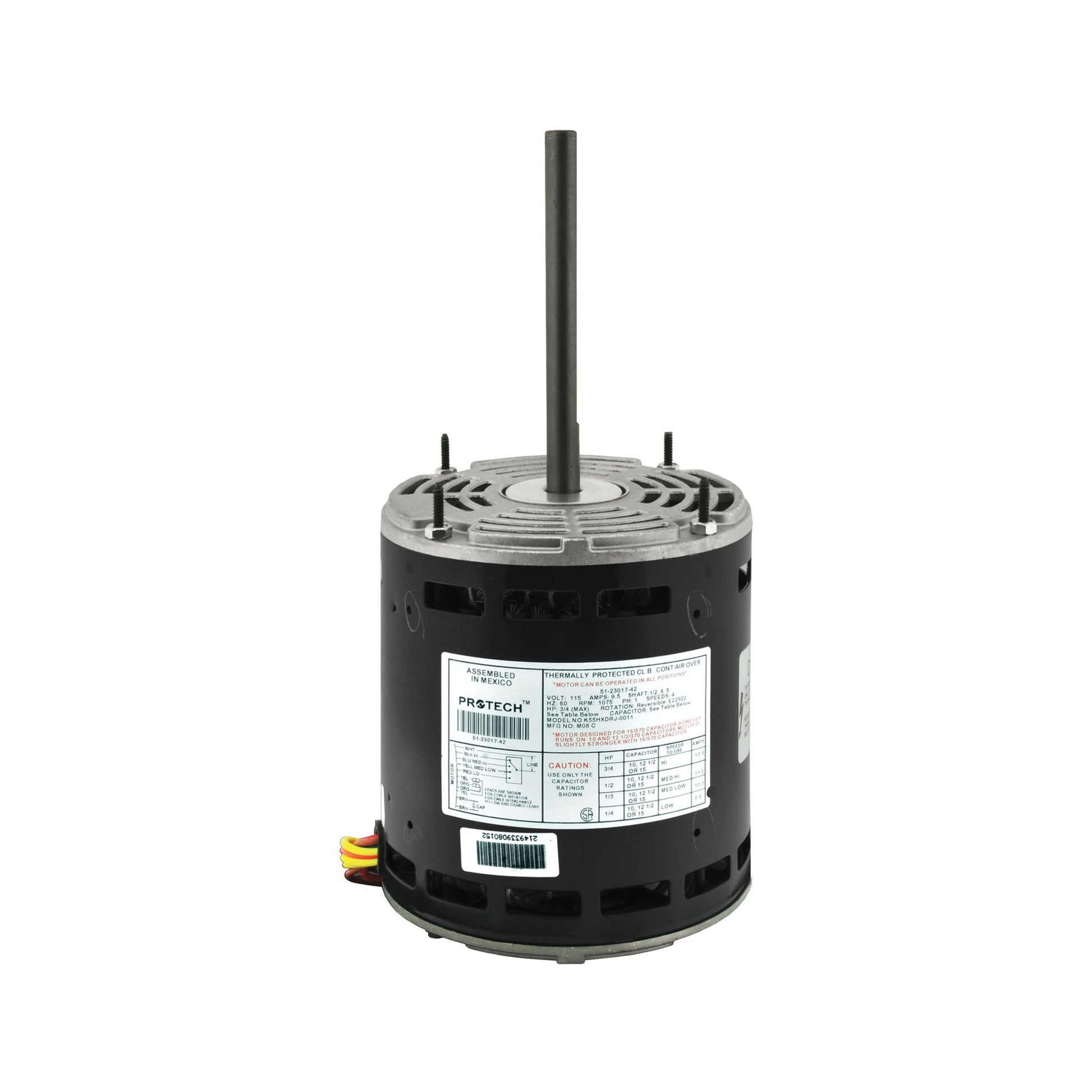

Rheem 51-23017-42 - 1/4 to 3/4 HP PROTECH Blower Motor - 1 Phase - 4 Speed - 1075 RPM - 120V

The PROTECH series of quality wholesale HVAC motors are designed to fit a variety of common aftermarket applications. Additionally, they are approved as OEM replacements for many Rheem and WeatherKing models; see unit parts lists for cross-reference.

Features

• HP: 1/4 to 3/4
• Number of Speeds: 4
• High Speed (RPM): 1075
• Input Voltage (V): 120
• Number of Phases: 1
• Frequency (Hz): 60
• Rotation Direction (OSE): Reversible
• Run Capacitor (uF/V): 10/370, 12.5/370, or 15/370
• FLA at 120V (A): 9.50
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 4
• Overall Shaft Length (in.): 5
• Motor Body Length (in.): 5-13/16
• Overall Motor Length (in.): 10-13/16
• Mounting: Shell-band
• Mounting: Shell-screw
• Frame Size: 48
• Bearing Type: Ball
• Application: Blower
• Drive Type: Direct Drive

Where Used

• RGJA
• RGED
• ROBD
• ROBF
• ROPD
• ROPF
• 80BD
• 80BF
• 80PF
• RGVG
• RGRC
• RGRL
• RGSA
• RGTC
• RGRJ
• RGTJ
• 90RJ
• 90RS
• 90RT
• 90TJ
• 90TS
• RGRS
• RGRT
• RGTS
• RGRA
• RGRB
• RGRK
• RGTA
• RGTK

Replaces

• 51-22687-01
• 51-24043-01
• 51-23017-41
• 51-21459-02
• 51-24146-01
• 51-19055-01
• 51-26192-01
• 51-22121-01
• 51-18716-11
• 51-20825-01
• 51-18716-01
• 51-20815-01
• 51-21459-01
• 8101-5639
• 20055001
• 51-18716-02
• 8101-5510
• 51-22700-01
• 51-20816-01
• 8101-5594
• 51-22121-02
• 51-19336-01
• 51-26150-01

HUZ2010420
