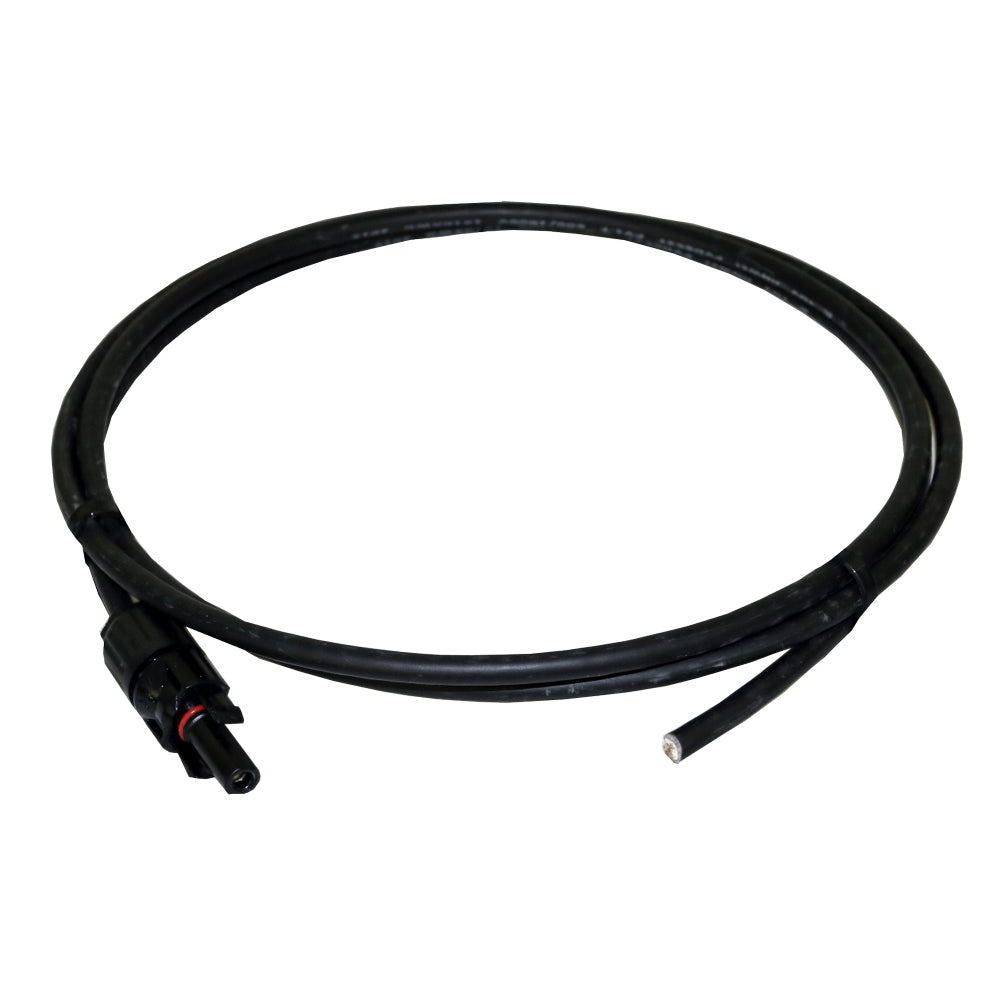

PV WIRE 10AWG WITH MC4 MALE (-) AND FEMALE (+) TO CUT END 100 FT SET

The UL List 10 AWG PV cable is designed for solar applications. We offer male (-) and female (+) ends, cut ends and lugged ends. Perfect for multiple solar panels or connecting solar panels to a charge controller. Weatherproof, high quality cables offered in lengths of 100′.

  • Voltage rating: 600 V
  • Tinned copper OD 2.59mm
  • Temperature rating:
  • 90 °C dry or wet
  • 194 °F dry or wet
  • Ambient temperature: > 25 years (TÜV)
    • – 40 °C up to + 90 °C
    • – 40 °F up to + 194 °F
  • Max short circuit temperature: 250 °C, +482 °F
  • Bending radius: ≥ 5 × outer diameter
  • Structure:  75/0.30 TC
  • Conductor:  ID    3mm
  • XLPE Thickness:  .72 mm
  • Jacket:  OD   6.4 mm
  • Weight: 100ft  5.6 lbs
  • Allow: Current  49.6A
  • Conductor Resistance Ω/km:  3.59
  • UL4703
