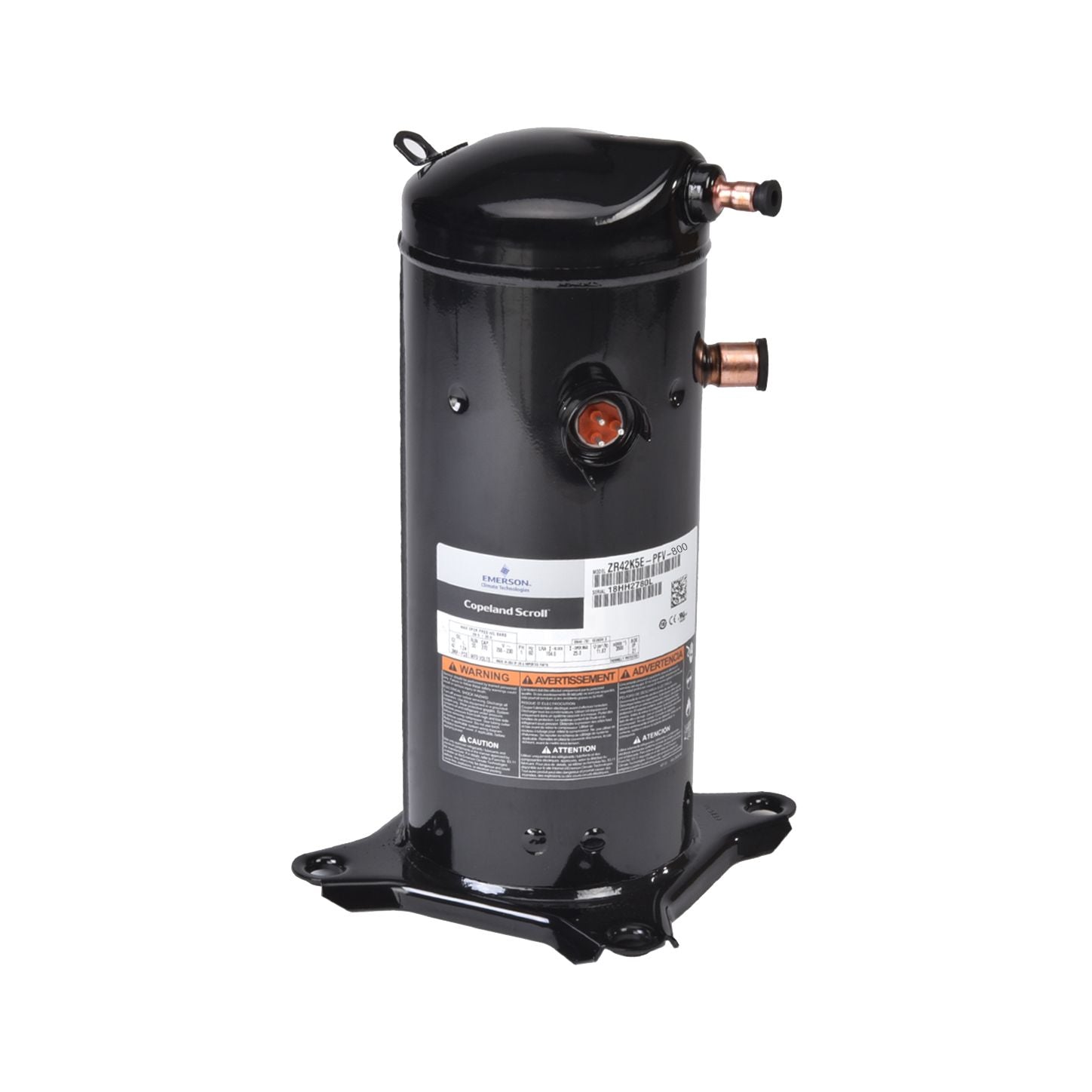

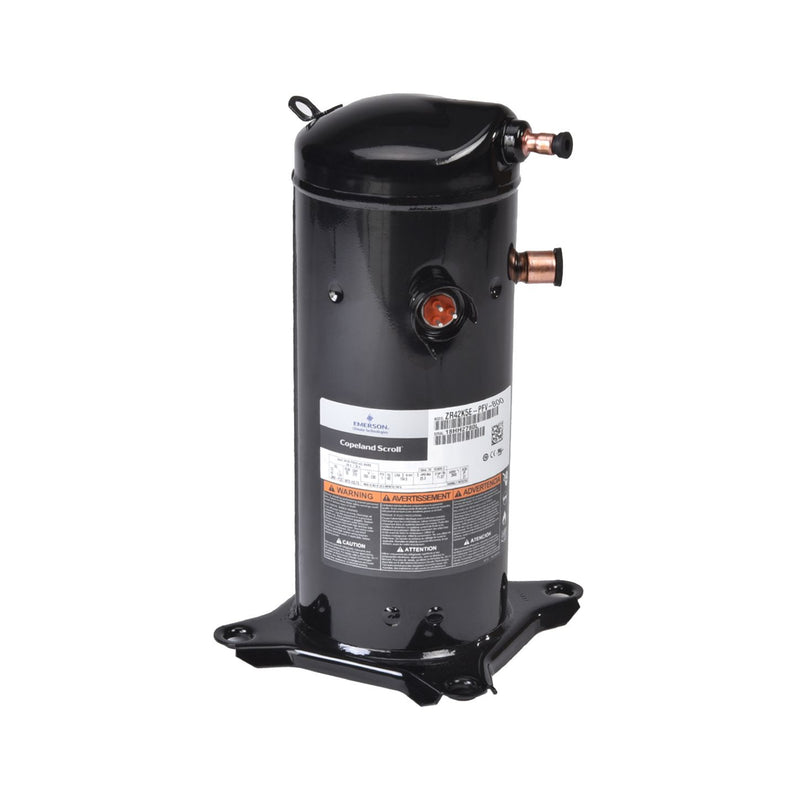

Rheem ZR42K5E-PFV-800 - Copeland Scroll Compressor - 42,200 BTU - 1 Phase - R22 - 230V
The Copeland Scroll ZRK5 compressor is designed for both residential and light commercial markets. It’s also been optimized for post-2010 R-22 service and continued OEM system production for exports. Molded plug wiring harness 45-100834-80 is required in order to make the electrical connections on this compressor. This compressor includes a molded plug wiring harness in the box. It does not need to be ordered separately.
The compressor rating label for model ZR42K5E-PFV-800 may read ZR42K5E-PFV-7M3. The difference in the suffix number is a result of internal handling procedures, and the compressors are identical in all aspects.
Features
- Optimized scroll and seal design
- Improved temperature protection
- New shutdown solution
- High-efficiency motor
- Quiet operation
- Internal pressure protection
Technical Data
- Capacity (BTU/HR): 42200
- Type: Scroll
- Refrigerant: R-22
- Input Voltage (V): 208
- Input Voltage (V): 230
- No. of Phases: 1
- Freq. (Hz.): 60
- Run Capacitor (uF/V): 55/370
- Start Kit: SK-A1
- Kick Start: 42-KS1
- Start Relay P/N: 42-25105-01
- Start Capacitor (uF/V): 88-106/330
- Start Capacitor Part Number: 43-17075-04
- Rated Load Current (A): 22.1
- Max. Continuous Current (A): 31.0
- Locked Rotor Current (A): 104.0
- Crankcase Heater Included?: No
- Crankcase Heater Part Number: 44-17402-45
- Soundwrap (Brinmar): 68-25217-10
- Refrigerant Oil: POE (85-32CST)
- Suction Line Location: 2
- Suction Line Height (in.): 11-3/16
- Suction Line Configuration: Stub Out
- Suction Line Size (in.): 7/8
- Discharge Line Location: 3
- Discharge Line Height (in.): 15-7/16
- Discharge Line Configuration: Stub Out
- Discharge Line Size (in.): 1/2
- Overall Compressor Height (in.): 16-7/16
- Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
- Shipping Weight: 75.0 lbs
Where Used
- 10PJB
- 13AJA
- 13PJA
- 13QJ
- 13SJ
- 14AJA
- FAFF
- RAJB
- RAKA
- RAKB
- RALC
- RAMA
- RAMB
- RAMC
- RANC
- RAND
- RAPA
- RAPB
- RAPC
- RJKA
- RJMA
- RJNA
- RKKA
- RKMA
- RKNA
- RLKA
- RLMA
- RLNA
- RPKA
- RPKB
- RPLA
- RPLB
- RPMB
- RPMC
- RPMD
- RPNE
- RPNK
- RPPB
- RPPC
- RQKA
- RQKJ
- RQLA
- RQMJ
- RQNA-B
- RQNJ
- RRKA-A
- RRMA-A
- RRNA-B
- RRNA-C
- RSKA
- RSKJ
- RSMA
- RSMJ
- RSNA-C
- RSNJ
- SAKA
- SAKB
- SLKA
- SPKB
Replaces
- 55-100835-04
- 55-100835-04S
- 55-100835-11
- 55-100835-11S
- 55-100835-27
- 55-100835-27S
- 55-100835-53
- 55-100835-53S
- 55-102045-64
- 55-102045-64S
- 55-102045-72
- 55-102045-72S
- 55-105043-05
- 55-21737-06
- 55-21737-06S
- 55-21737-41
- 55-21737-62
- 55-23139-41
- 55-23139-41S
- 55-23139-62
- 55-23139-62S
- 55-23140-27
- 55-23140-31
- 55-23140-31S
- 55-23141-31
- 55-ZR42K5-PFV-800
- 8000-764
- ZR42K5E-PFV-7M3
- ZR42K5-PFV-7M3
- ZR42K5-PFV-800
