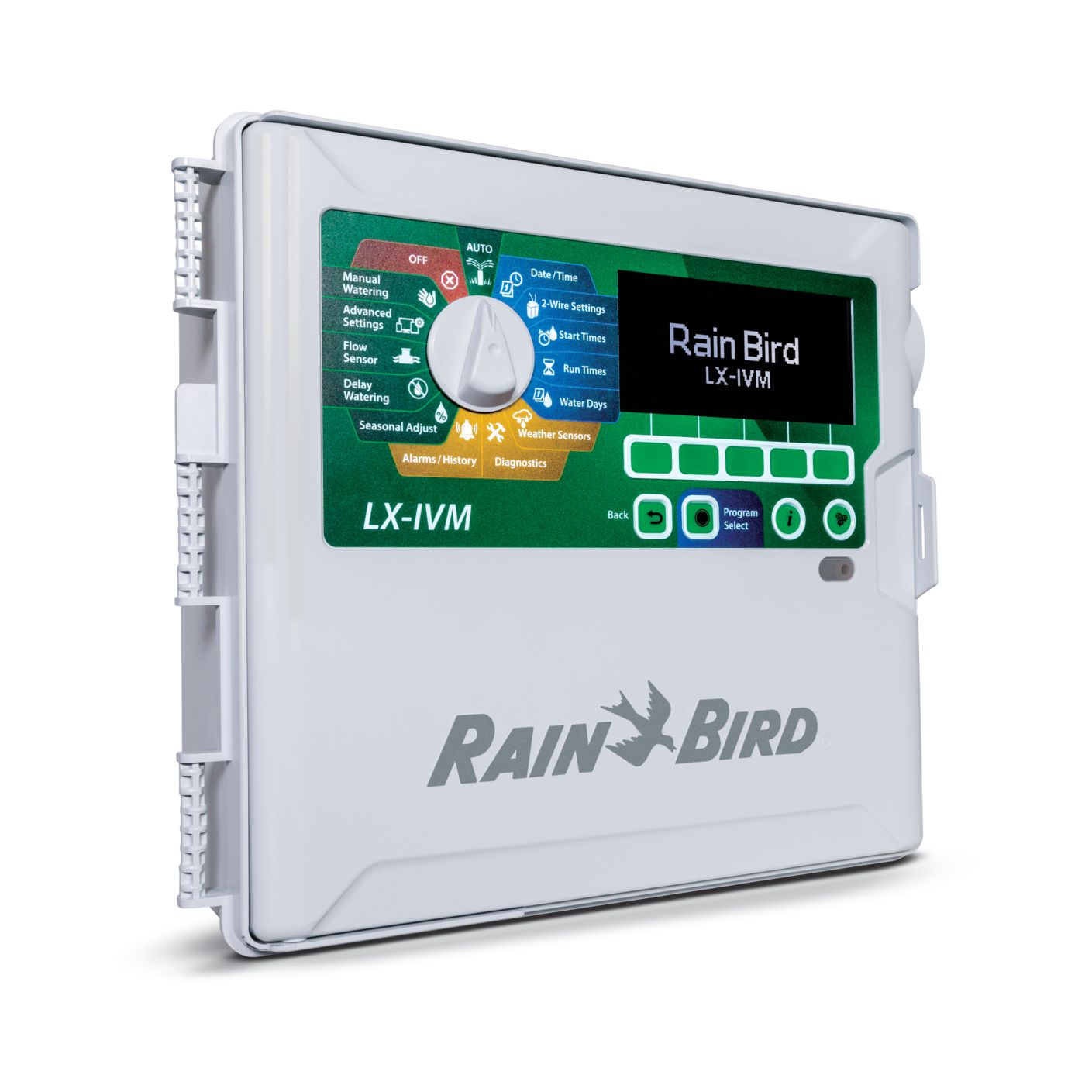

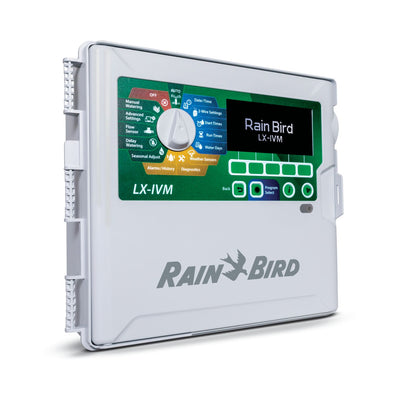

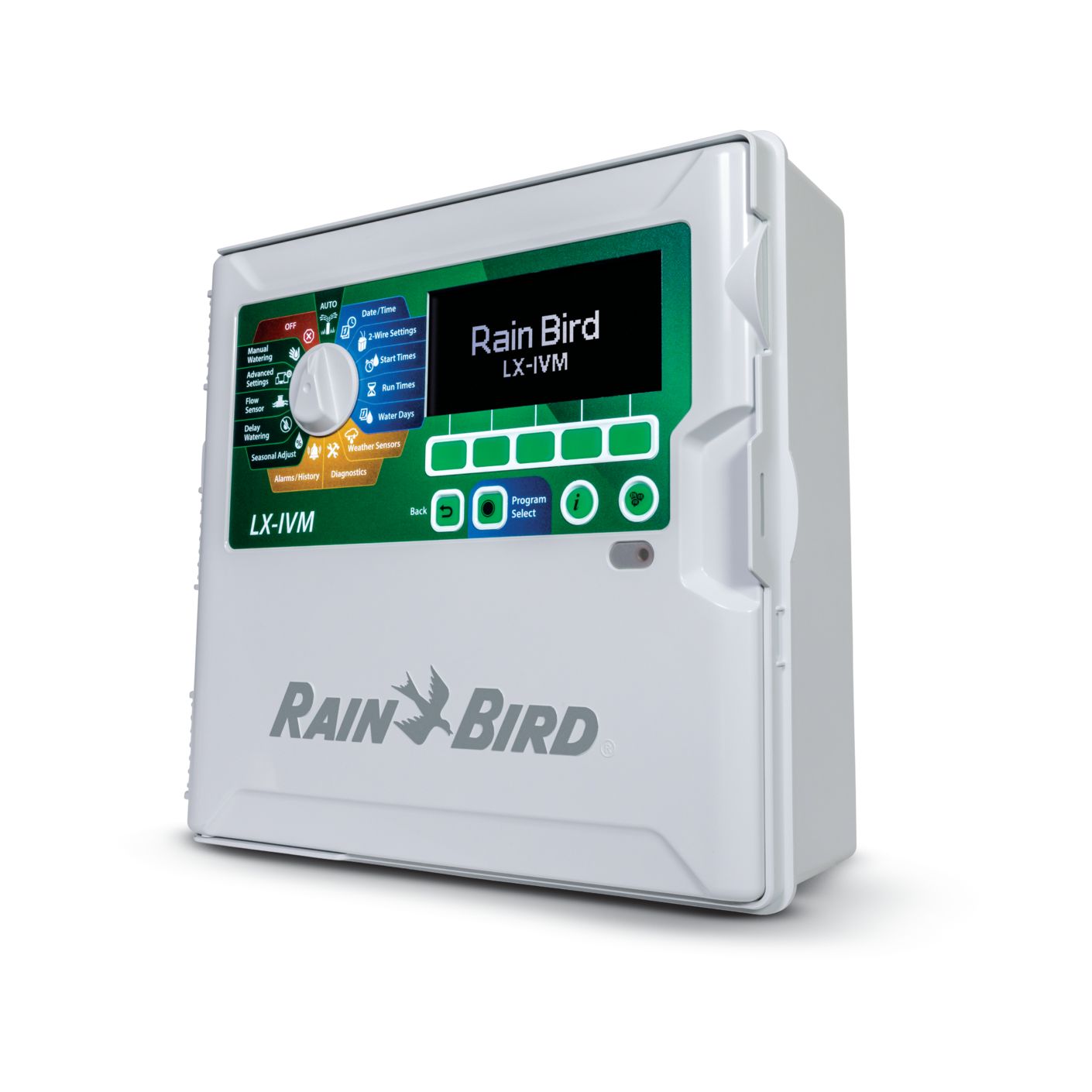

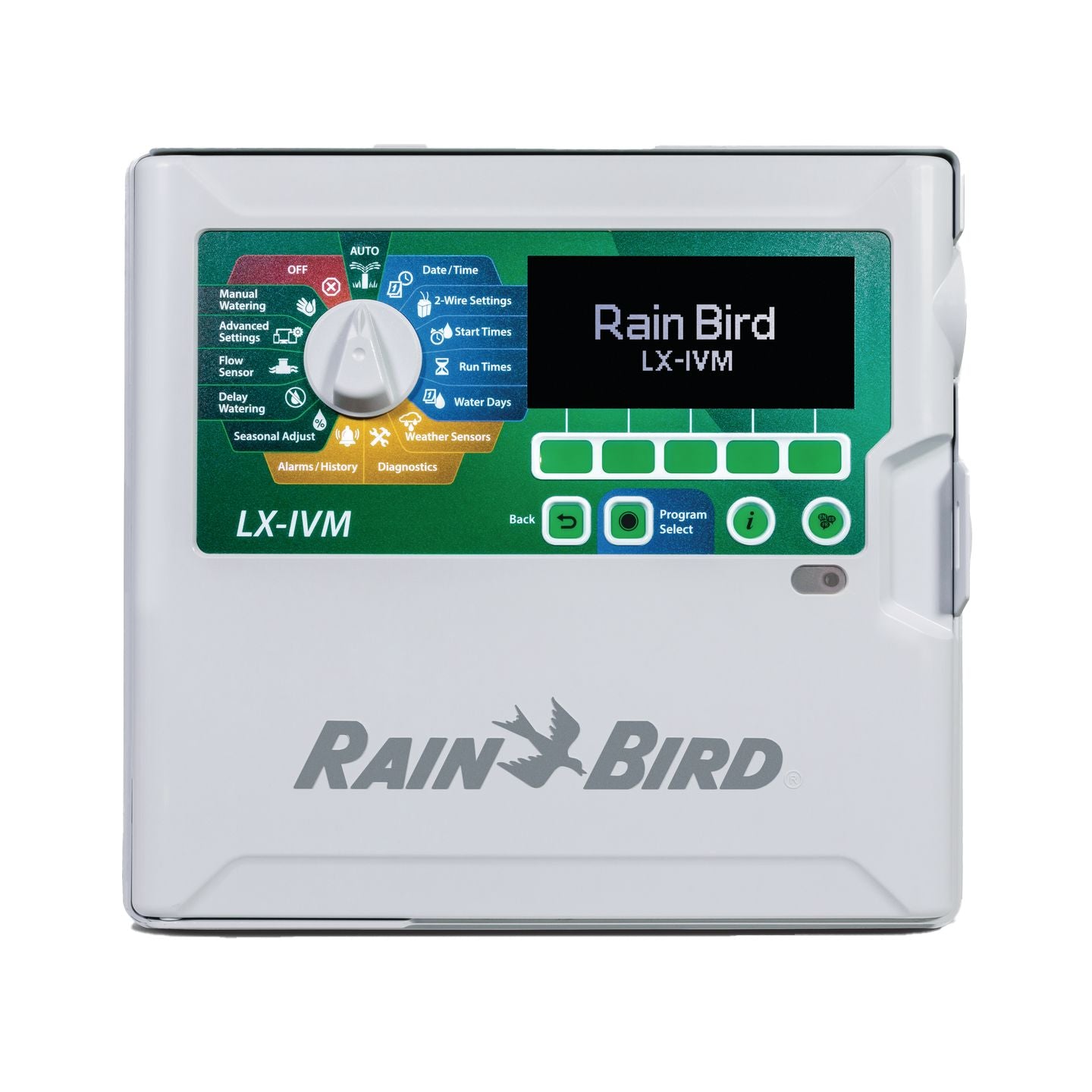

Rain Bird ESP-LXIVM - 2-Wire Commercial Controller with Smart Valve Technology - 60 Station

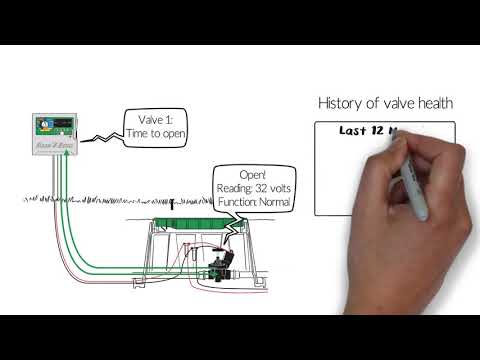

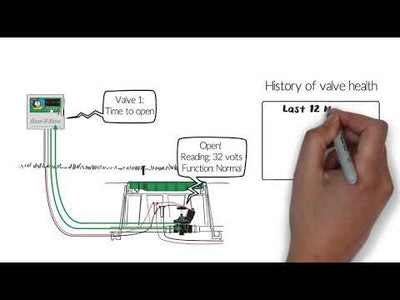

Rain Bird's new ESP-LXIVM 2-Wire System has many powerful and flexible features, starting with the revolutionary new Integrated Valve Module (IVM). This "smart solenoid" stays in constant communication with the controller, providing efficient irrigation and advanced diagnostics. Only half the number of wire splices are needed, improving installation costs and reliability. A simple-to-use interface and advanced diagnostics make ESP-LXIVM the best controller on the market. Two models are available, the ESP-LXIVM for medium size installations and LX-IVM Pro for large scale commercial installations.

Features

• 60-station capability standard expandable to 240 stations with LXIVM Pro Panel
• Four available sensor inputs (one wired plus up to three on 2-Wire path) with override switch. Eight (Seven plus 1) for LX-IVM Pro
• Five flow sensors supported (LX-IVM), Ten for LX-IVM Pro

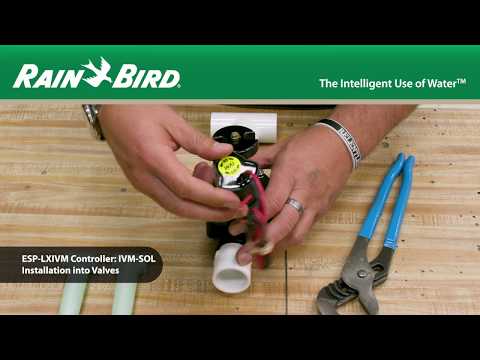

• Supported Field devices: IVM-SOL, IVM-OUT and IVM Smart Valves
• Supports IVM-SEN sensor devices (flow sensing and weather sensor support) and IVM-SD surge devices (one per 500 feet of two-wire path or every 15 devices required)
• Central Control capable with Rain Bird IQ Communications Cartridges and software
• Six user-selectable languages
• 10 independent programs (LX-IVM) or 40 Programs (LX-IVM Pro)
• Removable front panel is programmable under battery power
• Compatible with Rain Bird Landscape Irrigation and Maintenance and Third Party Remotes
• Plastic, locking, UV resistant, wall-mount case, Optional Metal and Stainless Steel Case & Pedestal

Water Management Features

• Learn Flow utility and flow usage totalizer help optimize water usage*
• FloWatch protection for high and low flow conditions set by the user FloManager manages hydraulic demand, make full use of available water to turn on as many stations as possible without exceeding water supply and reducing the total time to complete irrigation cycles
• SimulStations allows stations to operate at the same time; up to 8 with LX-IVM and 16 with LXIVM Pro
• Cycle+Soak by station
• Rain Delay up to 30 days
• 365-Day Calendar Day Off (up to 5 days)
• Station Delay by program

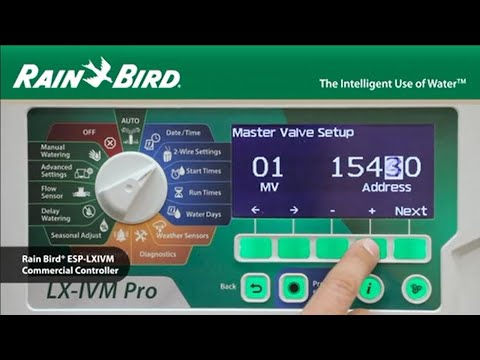

• Normally Open or Normally Closed Master Valves programmable by station; up to 5 with LX-IVM and 10 with LX-IVM Pro
• Optional Weather Sensors are programmable by station to prevent or pause watering; up to 4 with LX-IVM and 8 with LX-IVM Pro
• Seasonal Adjust by Program or by Month

Specifications

• Station timing: 0 min to 96 hrs
• Program level and global Monthly Seasonal Adjust; 0% to 300% (96 hrs maximum station run time)
• 8 start times per program
• Program Day Cycles include Custom days of the week, Odd, Odd no 31st, Even, and Cyclical dates
• Manual station, program, test program
• Width: 14.32"
• Height: 12.69"
• Depth: 5.50"

IEZR101995
