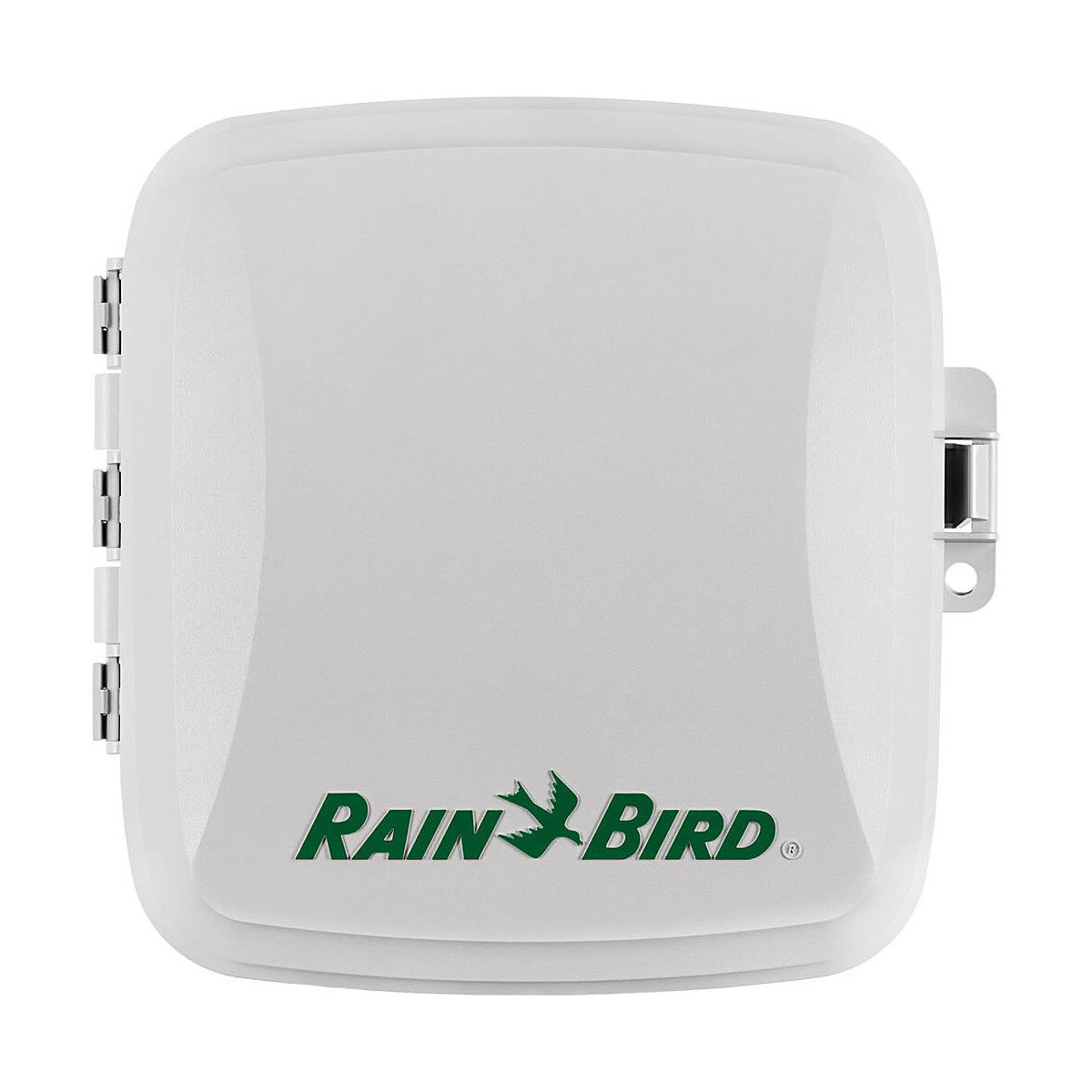

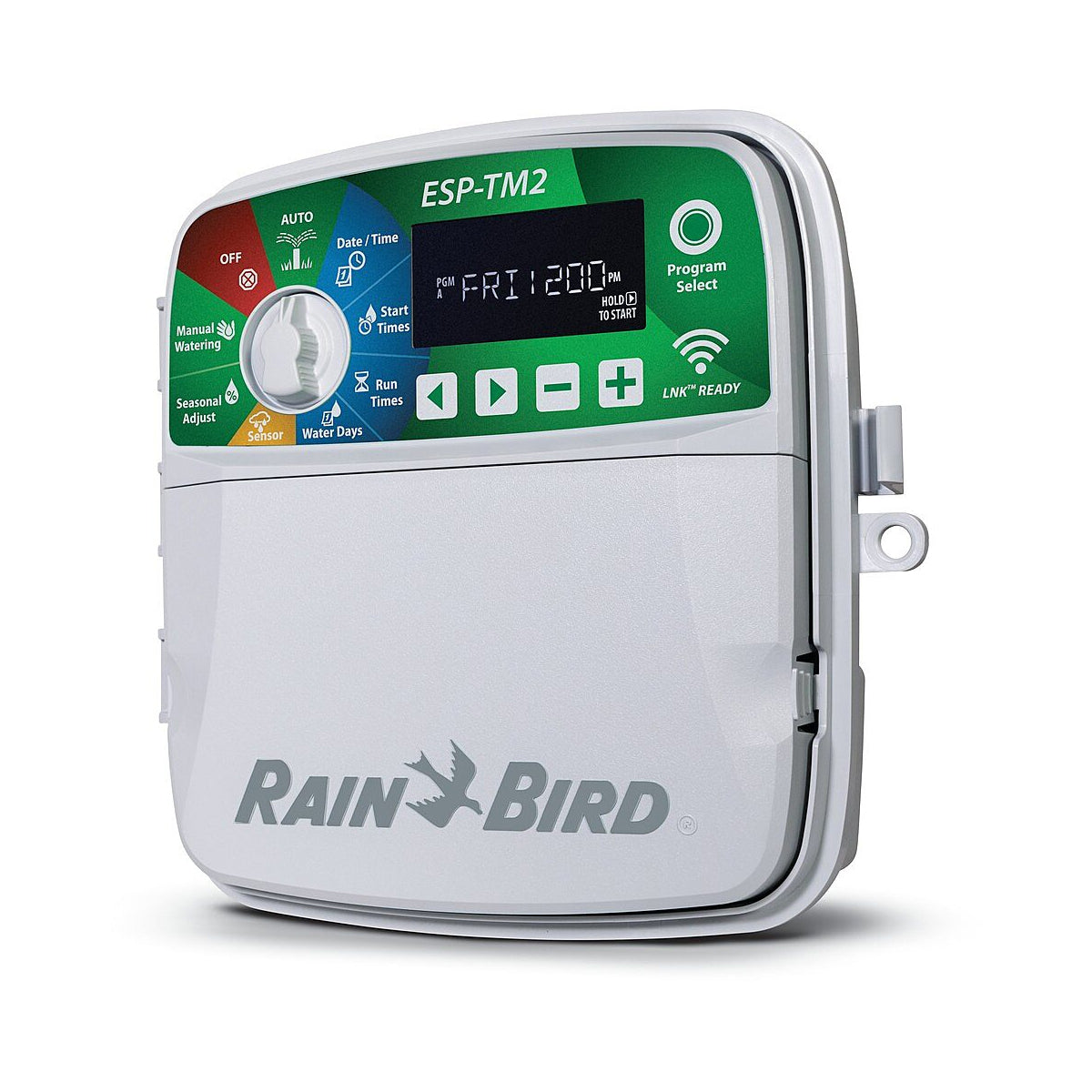

Rain Bird ESP-TM2 Series 4, 6, 8 or 12 Station Indoor/Outdoor 120V Irrigation Controller (LNK WiFi-compatible)

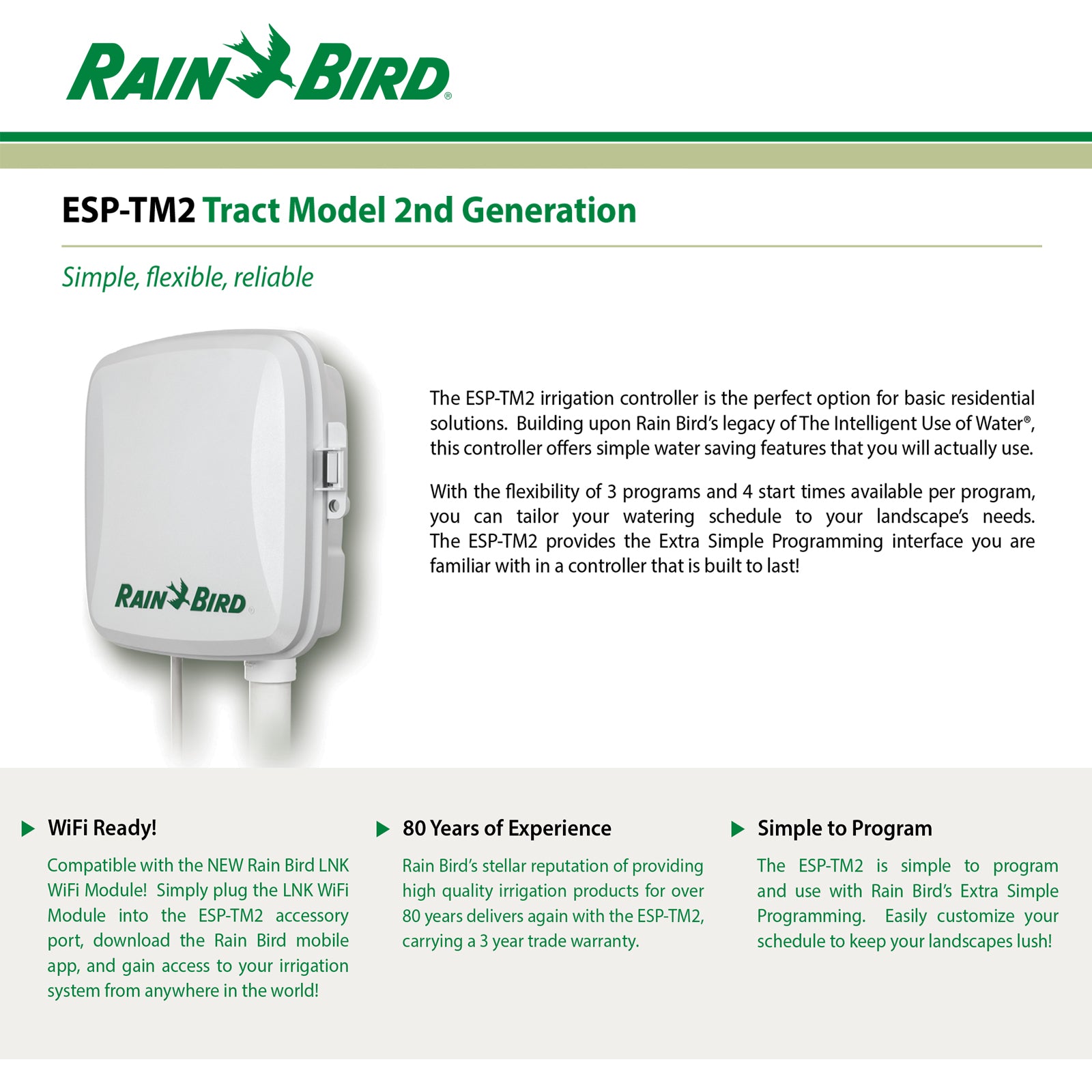

The ESP-TM2 irrigation controller is the perfect option for basic residential solutions. Building upon Rain Bird’s legacy of The Intelligent Use of Water®, this controller offers simple water saving features that you will actually use. With the flexibility of 3 programs and 4 start times available per program, you can tailor your watering schedule to your landscape’s needs. The ESP-TM2 provides the Extra Simple Programming interface you are familiar with in a controller that is built to last! Best of all, you can upgrade the ESP-TM2 into a WiFi-enabled controller by simply installing a new LNK WiFi Module (sold separately), without having to replace the entire unit.

Features

• Upgradeable for WiFi-based remote monitoring and control via iOS and Android mobile devices (with LNK2 WiFi Module sold separately)
• Internet-based weather information can be used to make daily adjustments to the irrigation schedule, saving up to 30% in water (with LNK2 WiFi Module sold separately)
• 4, 6, 8, and 12 station models to meet small or large residential irrigation needs
• Set Permanent Days Off per program to ensure watering never occurs on days when maintenance crews are on site (for Odd/Even/ Cyclic schedules)
• Easy to install indoors or outdoors with pre-installed power cord
• Quick programming in just 3 steps for ease of setup
• 3 available programs with up to 4 start times for each program to meet the needs of varied landscapes
• One-touch manual watering capability for ease of use

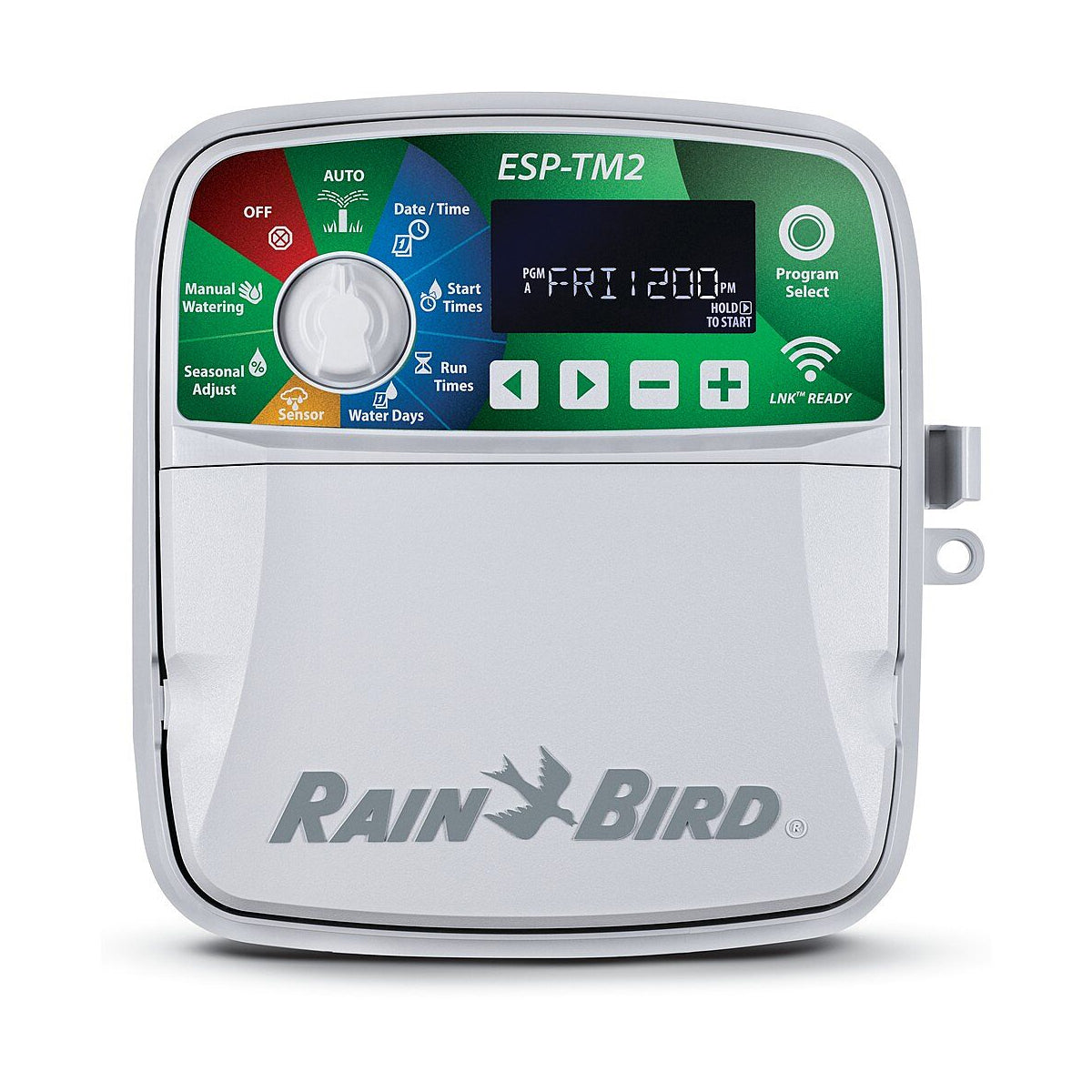

• Large back-lit LCD display for improved visibility in low-light and direct sun conditions
• Contractor Default allows you to easily save and restore your custom schedule
• Delay Watering up to 14 days and automatically resume watering after the set delay has elapsed
• Bypass Rain Sensor for any station gives you the ability to customize which stations react to a rain sensor
• Seasonal Adjust by program allows you to easily reduce or increase watering by program.

Specifications

• Operating Temperature: Up to 149 degrees F
• Storage Temperature: -40 degrees F
• Operating Humidity: 95% max @ 50 degrees F to 120 degrees F non-condensing environment
• Input required: 120V∿, 60Hz, 0.3A (International models: 230V∿, 50Hz, 0.136A)
• Output: 24V∿, 60Hz, 1.0A (International models: 24V∿, 50-60Hz, 1.0A)
• Master Valve/Pump Start Relay
• External battery back-up not required. Nonvolatile memory permanently saves the current programming and a 10 year life lithium battery maintains the controllers time and date during power outages
• Certifications: cULus [US and Canada], FCC Part 15b [US], CAN ICES-3(B)/NMB-3(B) [Canada], NOM-001-SCFI-2018 [Mexico]
• How To Specify ESP-TM2 Models
  • TM2-4-120V
  • TM2-6-120V
  • TM2-8-120V
  • TM2-12-120V
•  Dimensions:
  • Width: 7.92" (20.1 cm)
  • Height: 7.86" (20.0 cm)
  • Depth: 3.51" (9.0 cm)
