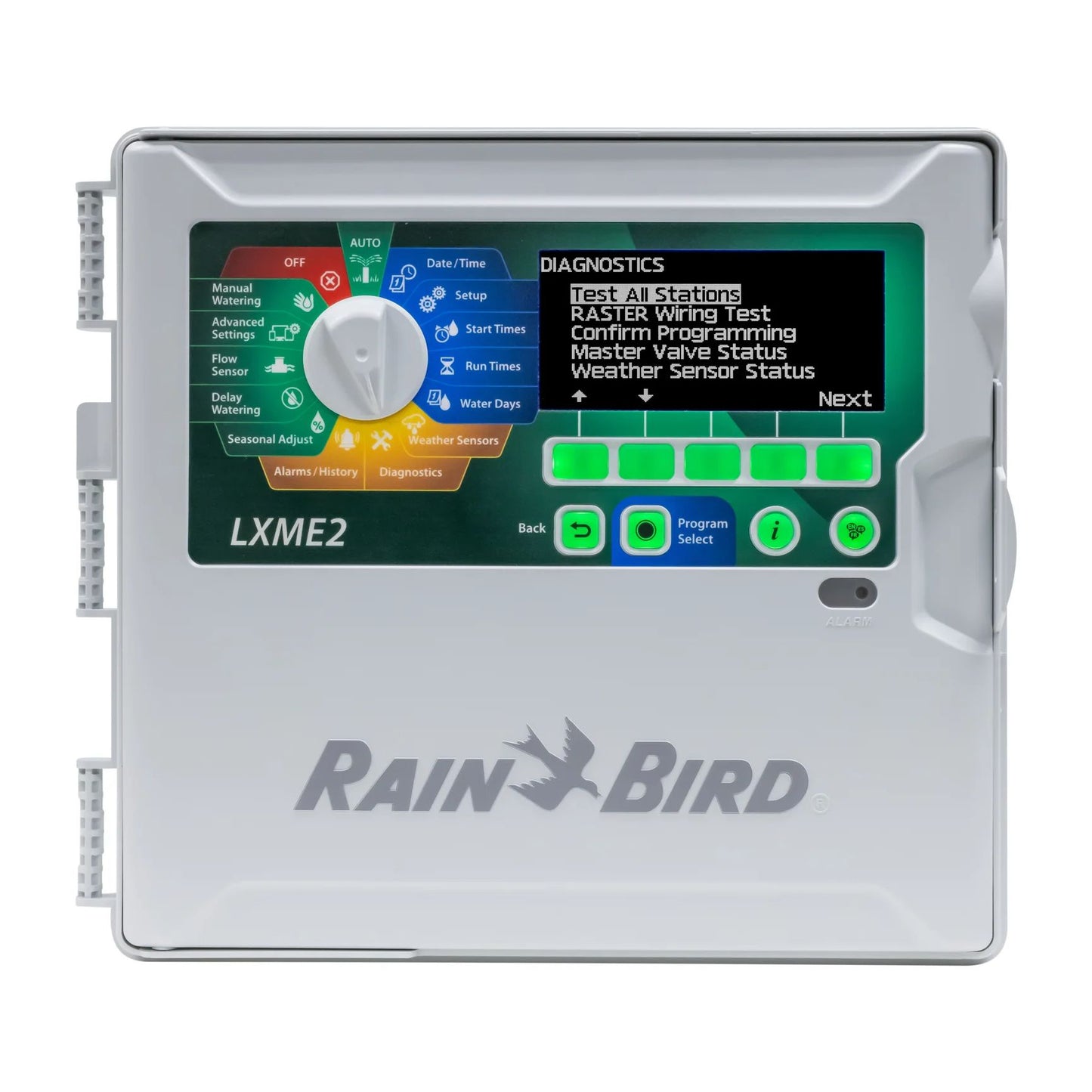

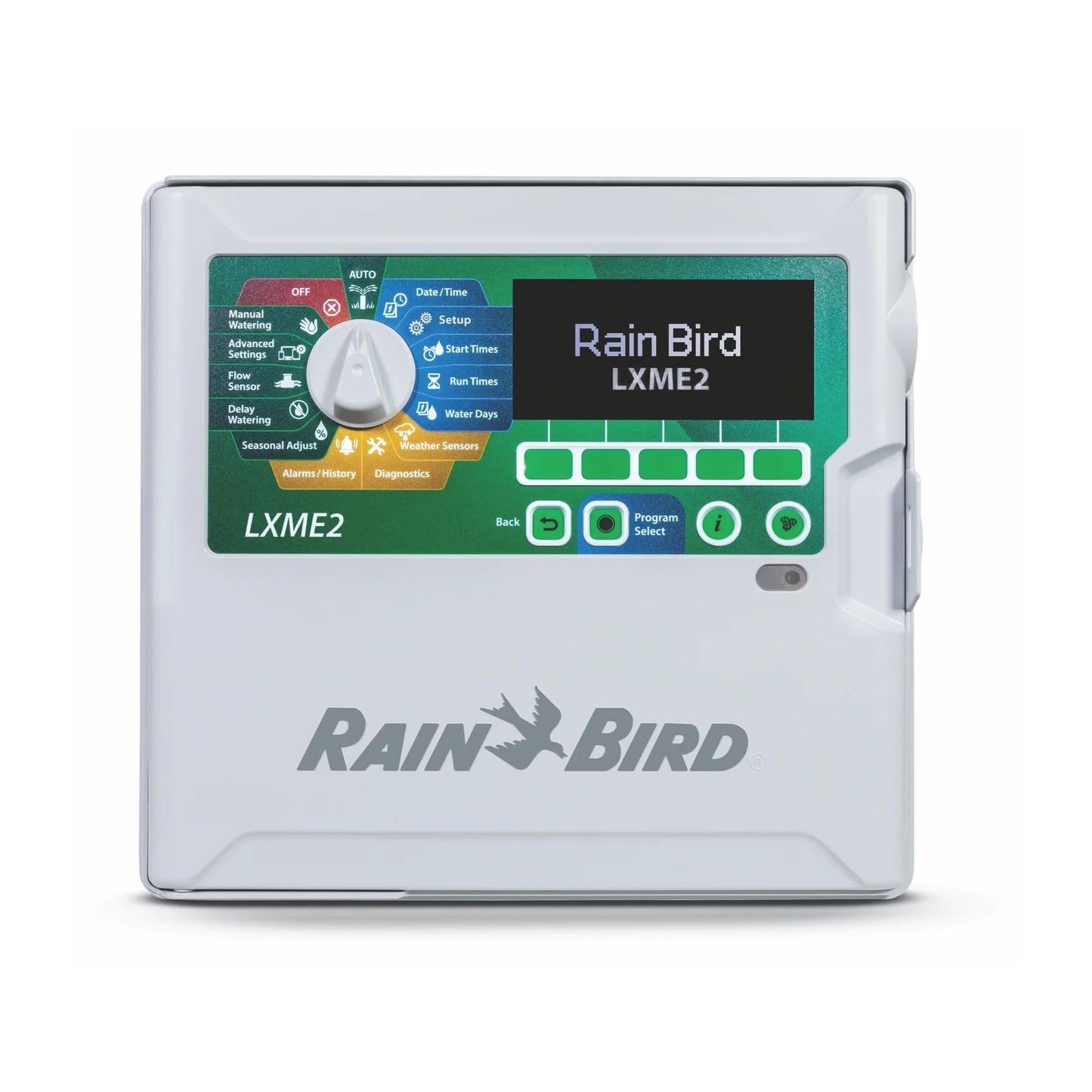

Rain Bird ESPLXME2 12 Station Commercial Sprinkler Controller - Expandable to 48 Station

The popular Rain Bird LXME Series commercial controllers have been upgraded now offering 40 programs, a large backlit LCD screen, and simplified programming. The LXME2 is a fully modular controller allowing the user to customize station capacity from 12 to 48 stations.

Features

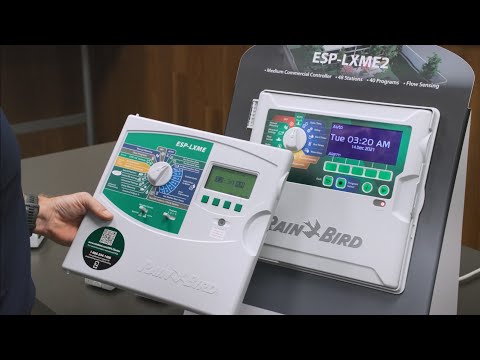

• Easy upgrade from LXME to LXME2 by swapping the front panel (LXME2 controllers only accept 12 station modules)

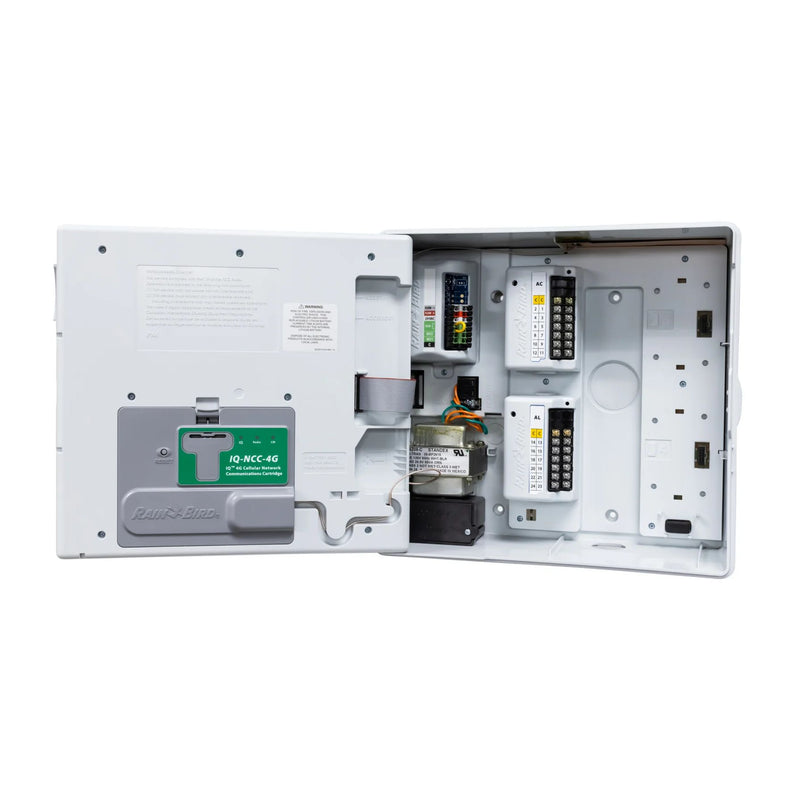

• 12-station base unit expandable to 48 stations with (4) 12-station modules
• Access a flow sensor and a second MV2/P booster pump start circuit or normally closed master valve by upgrading to the LXME2 PRO. To upgrade, purchase the LXME2
• 40 programs allow for ultimate flexibility in irrigation scheduling
• Large backlit LCD display with easy to navigate softkey user interace
• Copy and paste functions for easy programming of multiple stations
• FloManager manages hydraulic demand, making full use of available water to shorten total watering time
• SimulStations are programmable to allow up to 5 stations to operate at the same time (Max 2 SimulStations per station module)

Controller Features

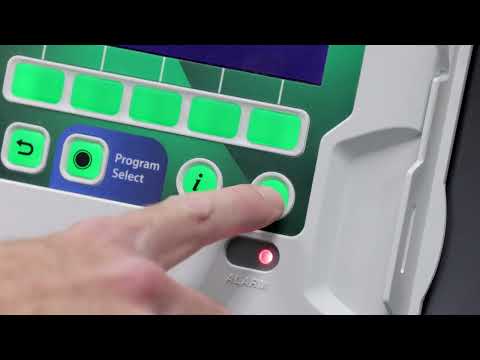

• Large backlit LCD display with easy to navigate softkey user interface
• Hot-swappable modules, no need to power down the controller to add/remove modules
• MV1 – Normally closed or Normally open Master valve/pump start circuit
• Master valve delay and inter-station delay
• 6 user-selectable languages
• Non-Volatile (100- year) program memory
• Standard 10kV surge protection
• The front panel is removable and programmable under battery power

Water Management Features

• FloManager manages hydraulic demand, making full use of available water to shorten total watering time
• SimulStations are programmable to allow up to 5 stations to operate at the same time
• Water Windows by program plus Manual MV Water Window
• Cycle+Soak by station
• Rain Delay
• 365-Day Calendar Day Off
• Programmable Station Delay by program
• Weather Sensor programmable by station to prevent or pause watering
• Program or Global Monthly Seasonal Adjust

Diagnostic Features

• Alarm light with external case lens
• External alarm port (0.1A max)
• Program summary and review
• RASTER station wiring test

Operating Specifications

• Station run timing: up to 96 hrs continuous runtime
• Seasonal Adjust: 0% to 300% (16 hrs maximum station run time)
• 40 independent programs (programs can overlap)
• 10 start times per program
• Program Day Cycles include: custom days of the week, odd, odd no 31st, even, and cyclical dates
• Manual station start, manual program start, test all Stations
• Width: 14.32"
• Height: 12.69"
• Depth: 5.5"
