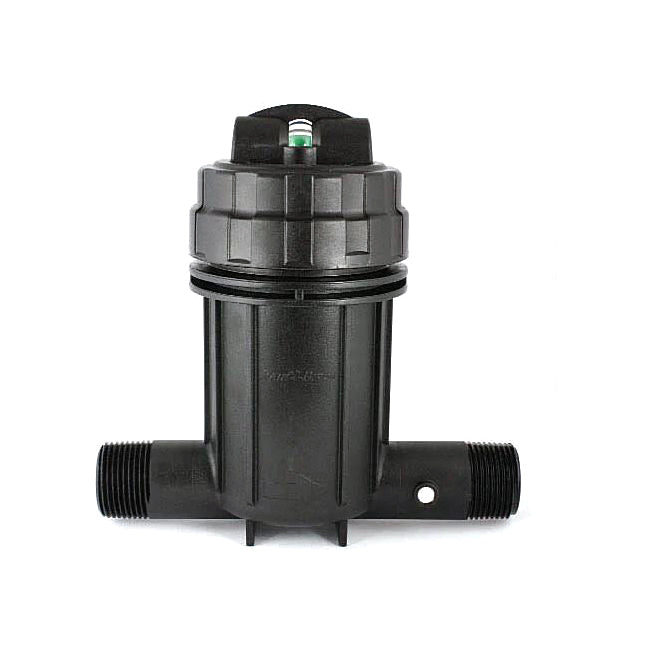

Rain Bird PRB-100 - 1" Pressure Regulating Basket Filter

Made of durable, glass filled nylon, the Rain Bird PRB-100 combines a commercial-grade filter with a built-in pressure regulator to ensure clean, even water in low-volume irrigation zones. The unique basket filter design allows the element to be accessed vertically which makes maintenance fast and easy, while ensuring that dirt does not fall back into the filter during cleanup operations. The PRB-100 comes pre-assembled with a 200 Mesh Stainless Steel filter screen. Replacement stainless screens are also available separately in 100 mesh (QKCHK100M), 120 mesh (QKCHK120M) and 200 mesh (QKCHK200M).

Features

• Provides increased reliability – "No-spill" feature ensures dirt does not fall back into the filter during cleanup operation
• Simplifies installation and maintenance – threaded top with O-ring makes it easy to remove and clean the stainless steel filter screen
• Efficient design – combines filtration and pressure regulation in one compact unit with fewer connections
• Comes pre-assembled with 200 mesh (75 micron) stainless steel screen (100 mesh and 120 mesh available)

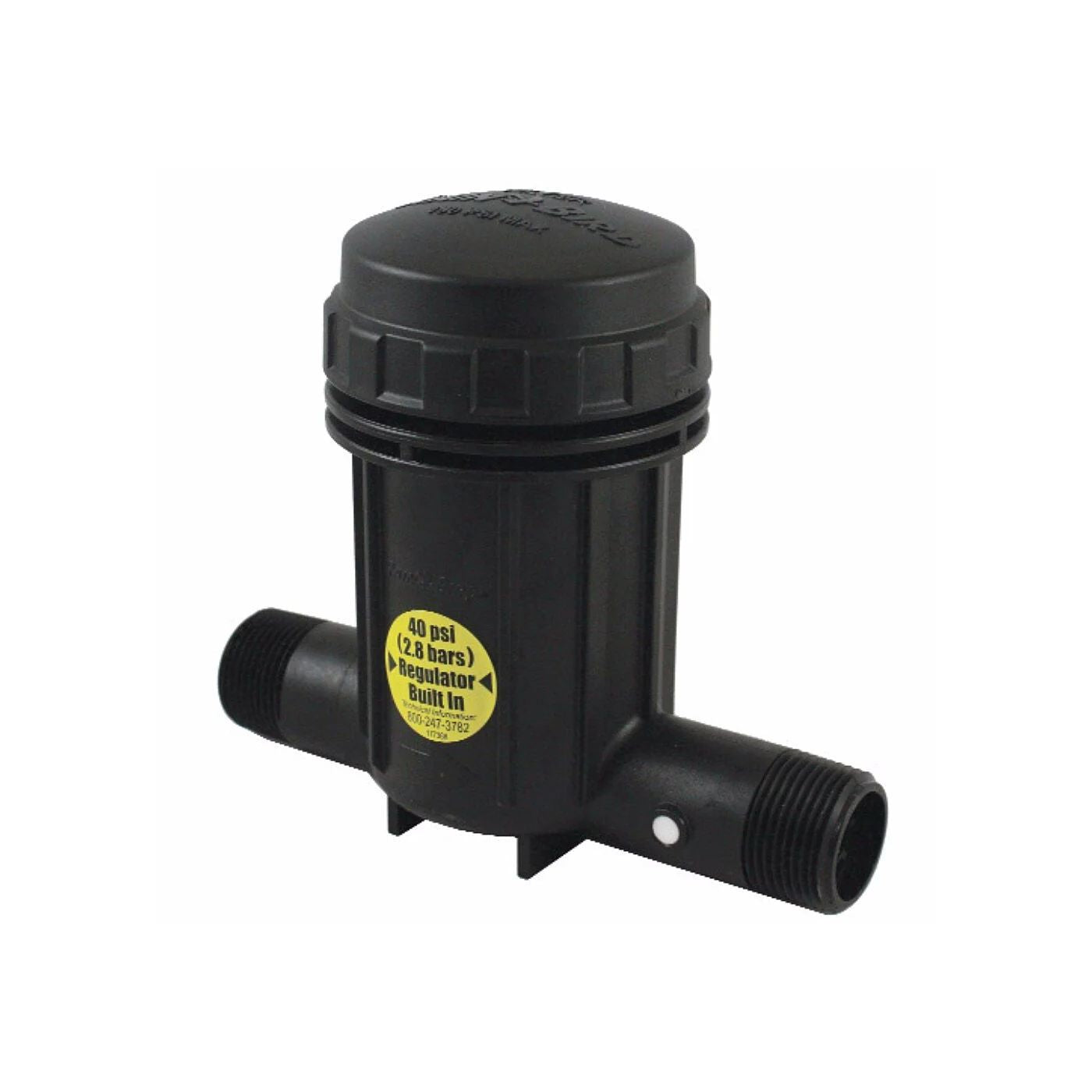

• Built-in 40 psi (2,7 bar) pressure regulator

Specifications

• Operating Flow: 0.3 to 20 gpm (1.13 - 75.7 l/min)
• Diagnostic Flow: 3.0 to 20 gpm (11.3 - 75.7 l/min)
• Inlet Pressure: 15 to 150 psi (1,0 to 10,3 bar)
• Regulating Pressure: 40 psi (2,7 bar)
• Filtration: 150 mesh (100 micron) stainless steel
• Note: When installing with the emission points more than 5 feet above the pressure regulating filter, a check valve should be installed after the regulator.
