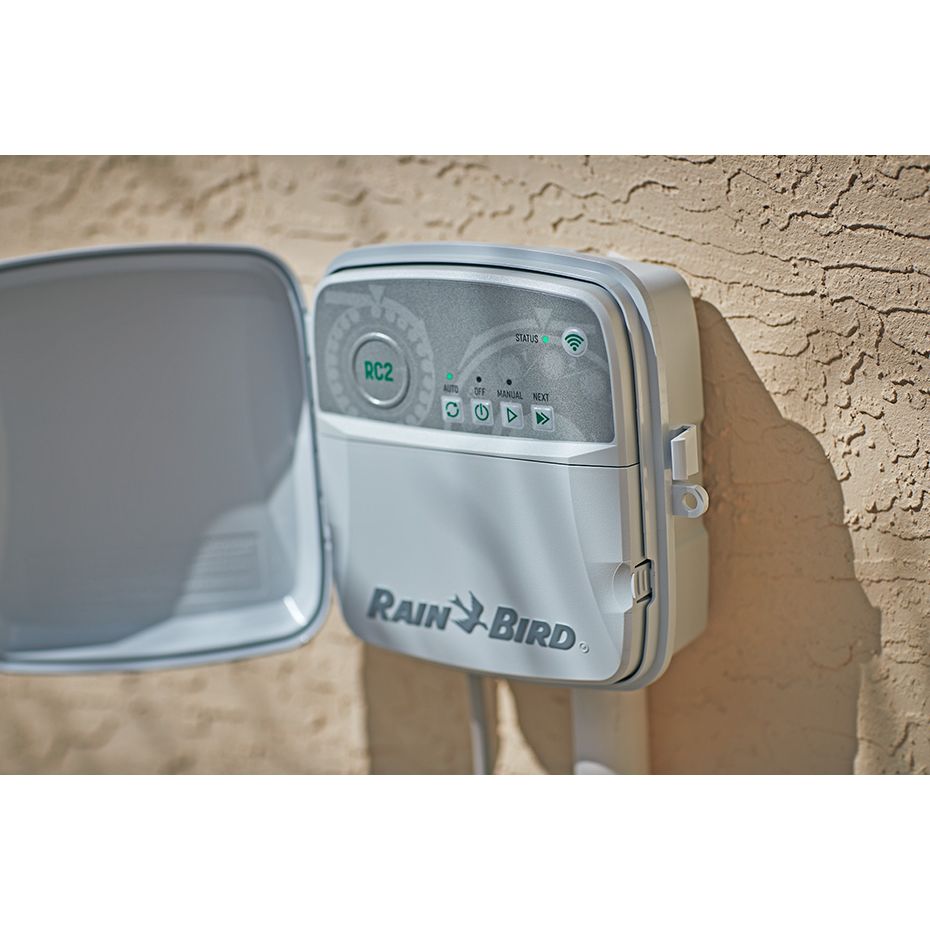

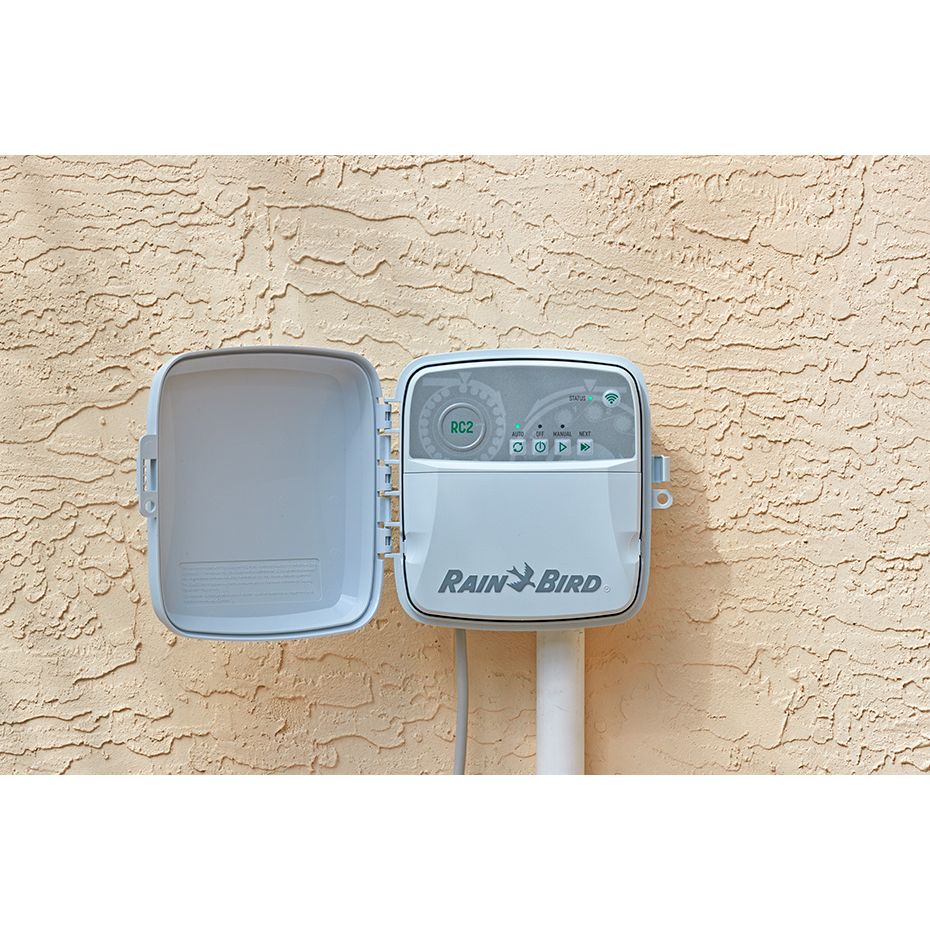

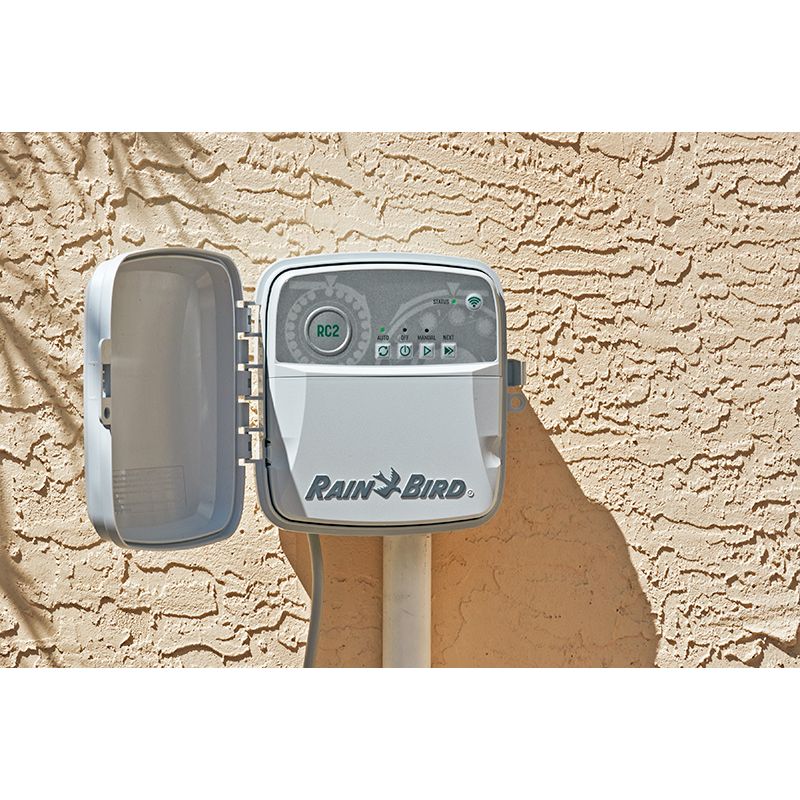

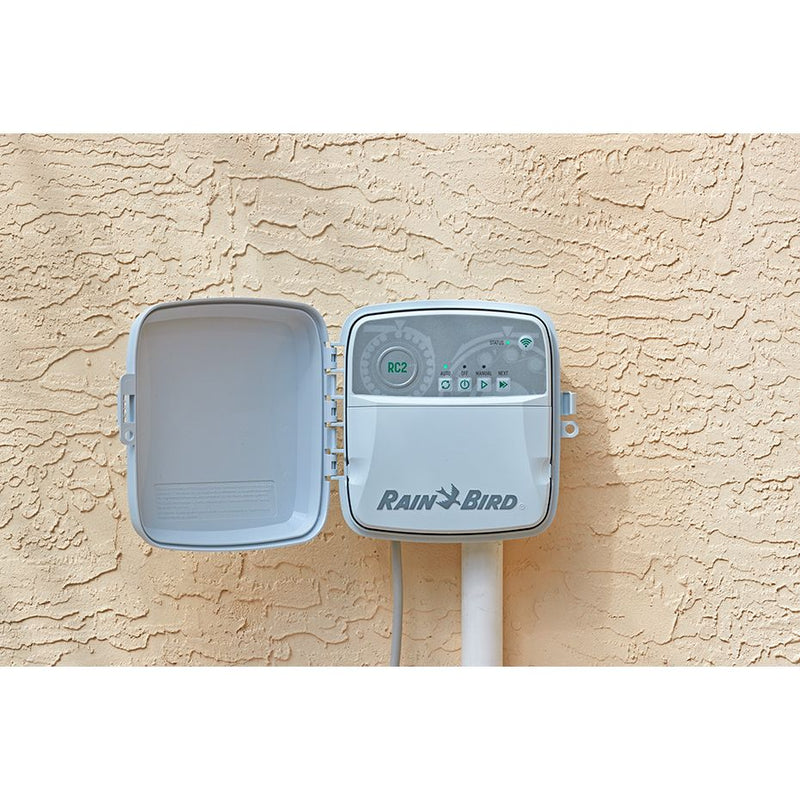

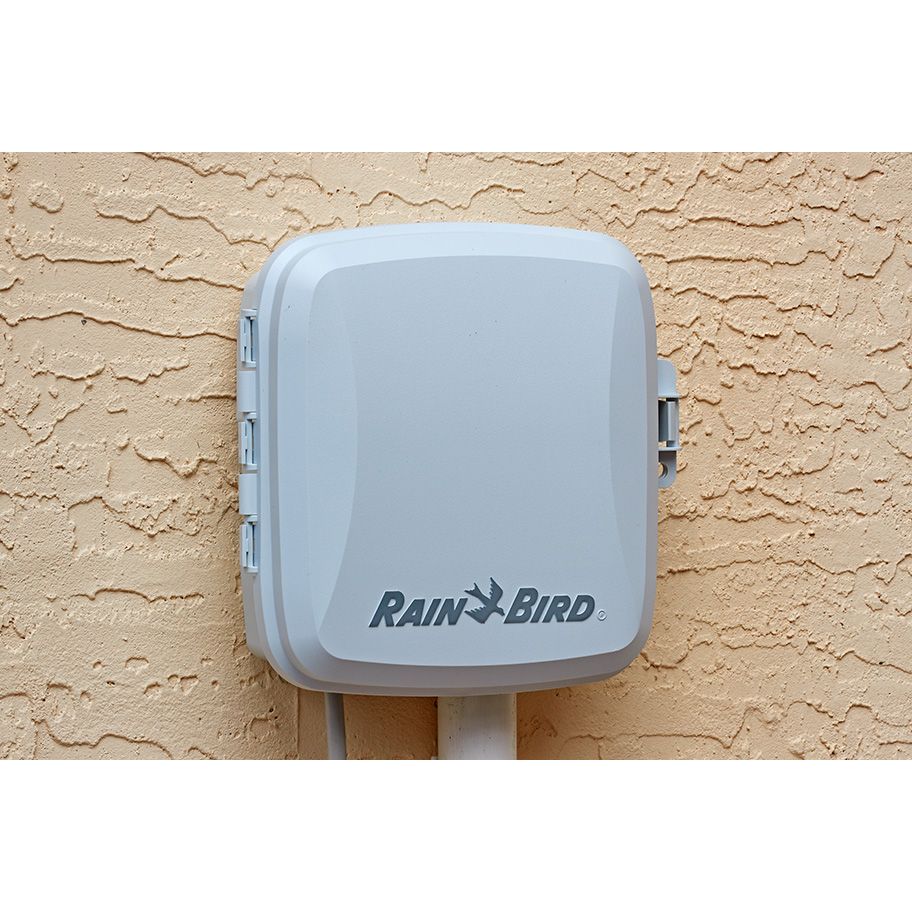

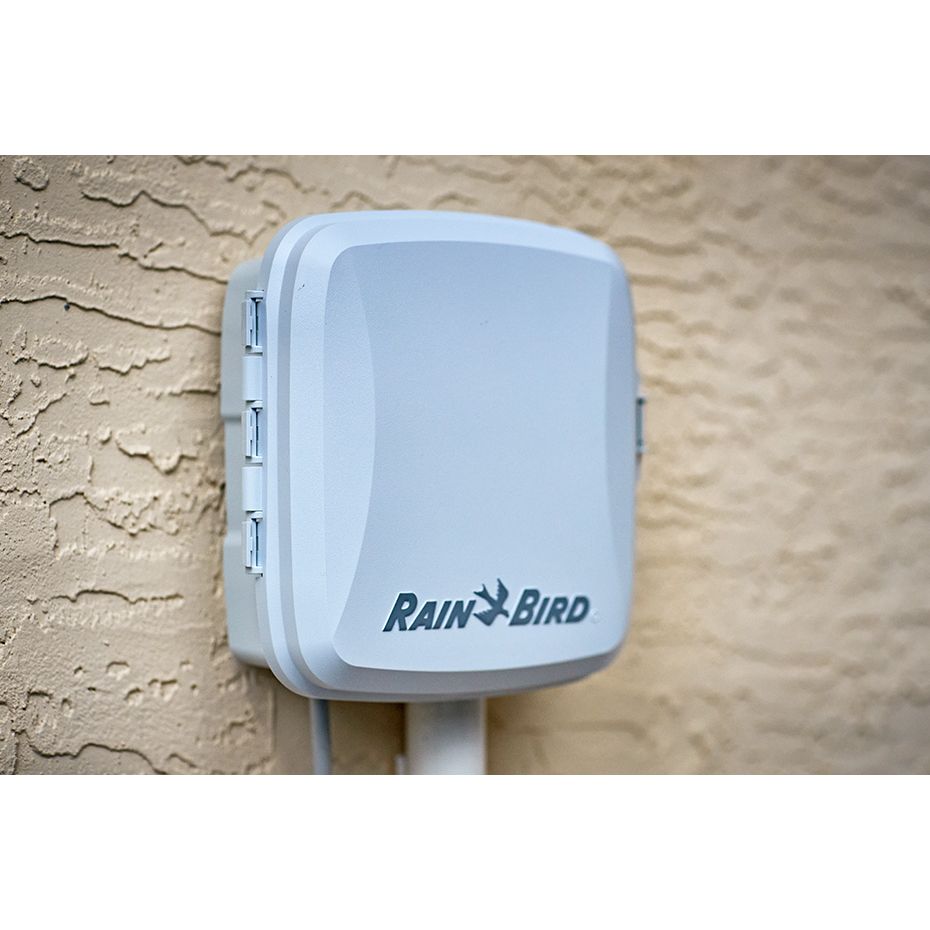

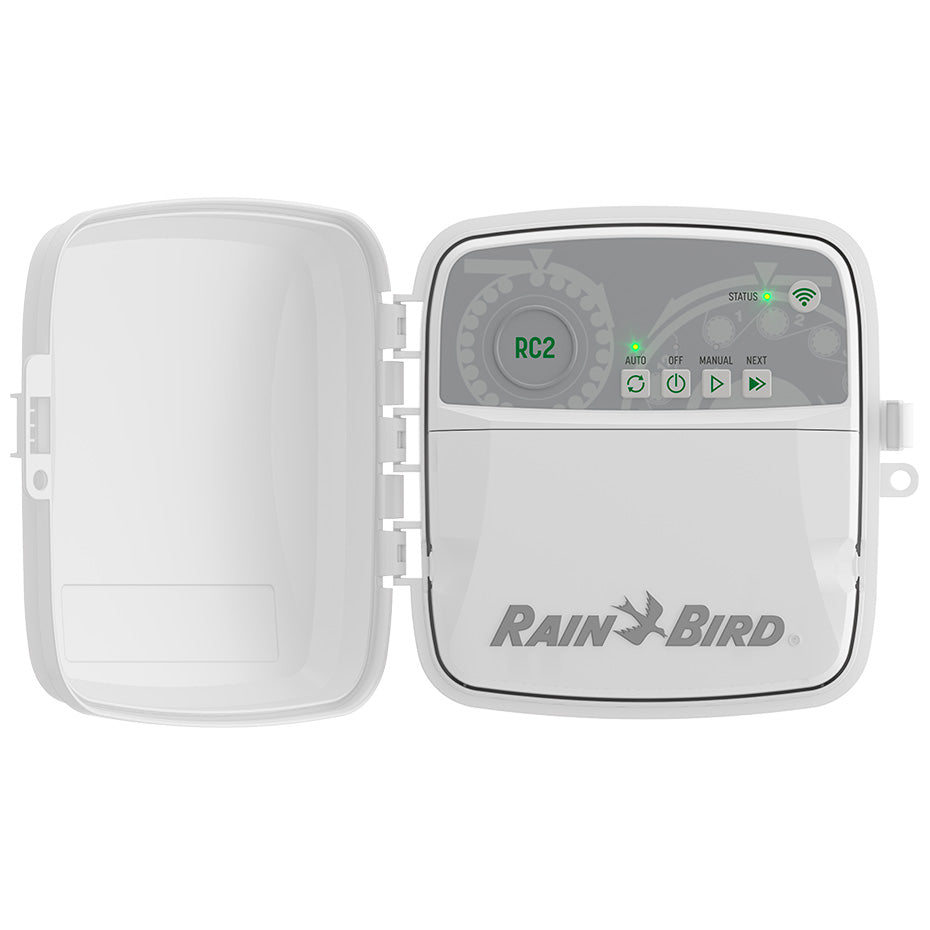

Rain Bird RC2 Controller

With the NEW Rain Bird RC2 Smart Irrigation Control Solution you can confidently manage your system from anywhere.

• NEW Quick Pair Technology for seamless set-up
• WiFi access for real-time alerts and automatic weather adjustments that can save water and money
• Controller access through the Rain Bird mobile app with or without WiFi

Features

Worry-Free System Install

• Schedule templates for easy configurations
• Quick pair technology
• Wireless access point for complete system access without WiFi
• Multi-Lingual to set-up in native language

Seamless Remote Management and Control

• WiFi connected for remote site management.

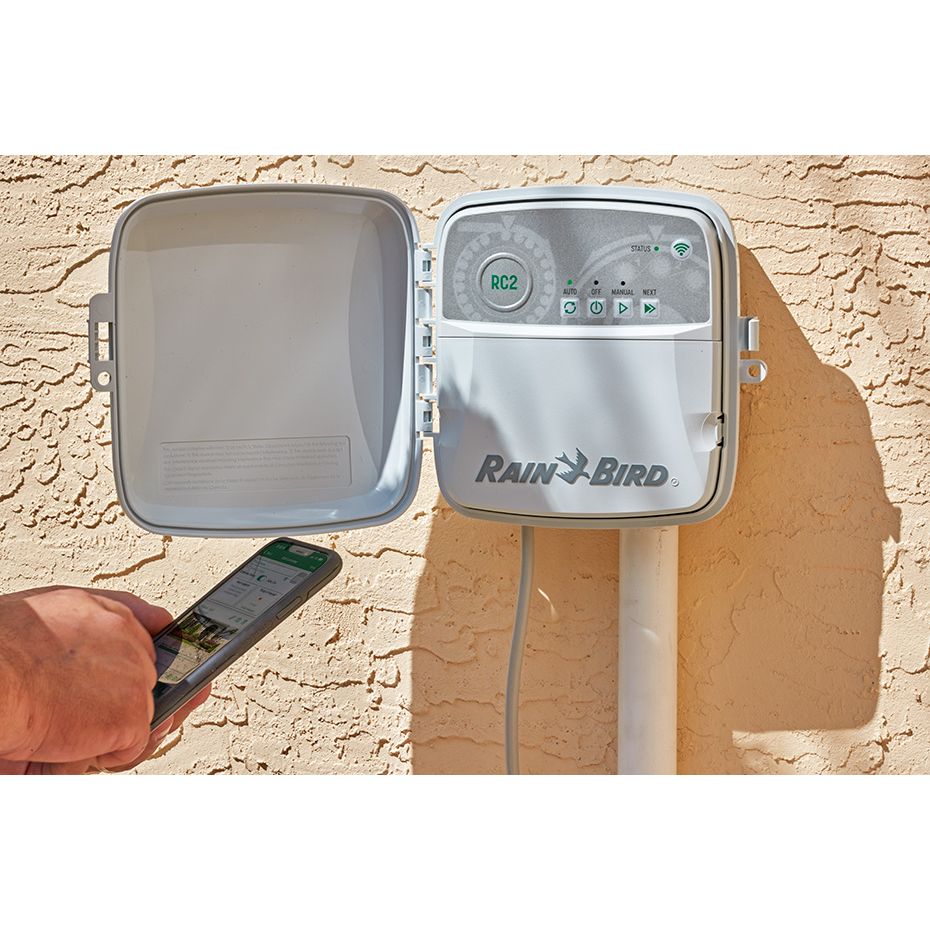

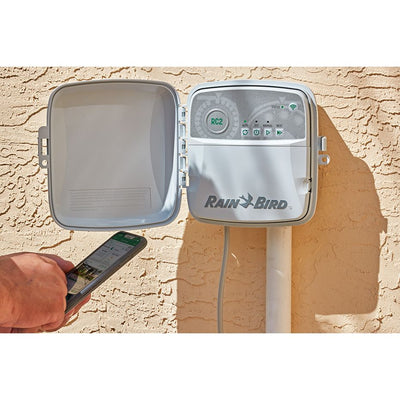

• With our free professional app you can use your phone like a wireless remote to water a single zone, all zones, or set a custom schedule.
• Manage and monitor all irrigation events and warnings real-time.

Smart and Responsible

• Weather data from local weather sources automatically adjust system run times on a daily basis. Your yard receives only the water it needs while saving up to 50% in water.
• WaterSense certified with superior programming capabilities designed to meet the most stringent water restrictions.

Specifications

Operating Specifications

• 2.4 GHz (only) WiFi router compatible with WEP and WPA security settings
• Compatible with iOS 8.0 and Android 6 (Marshmallow) or later mobile devices
• Operating Temperature: 14 to 149 degrees F
• Storage Temperature: -40 to 150 degrees F
• Operating Humidity: 95% max at 40 to 120 degrees F non-condensing environment
• Master Valve Control
• Pre-Installed Power Cord
• 8-Station Capacity
• 3 Programs, 4 Start times/program

Electrical Specifications

• Input required: 120V∿, 60Hz,0.23A(International models:230V∿, 50-60Hz, 0.14A)
• Output: 24V~, 60Hz, 1.0A Maximum (International models: 24V~, 50-60Hz, 1.0A Maximum)

Regulatory Compliance

• 120V Models: UL, FCC, ISED
• 230V Models: CE, UKCA, ACMA RCM

Dimensions

• Width: 7.92"
• Height: 7.86"
• Depth: 3.51"
