RBY100MPTX - 1" Inline RBY Filter with 200 Mesh Screen

In stock
SKU: RBY100MPTX
Regular price $17.71

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Specification Sheet

Drip Conversion Guide

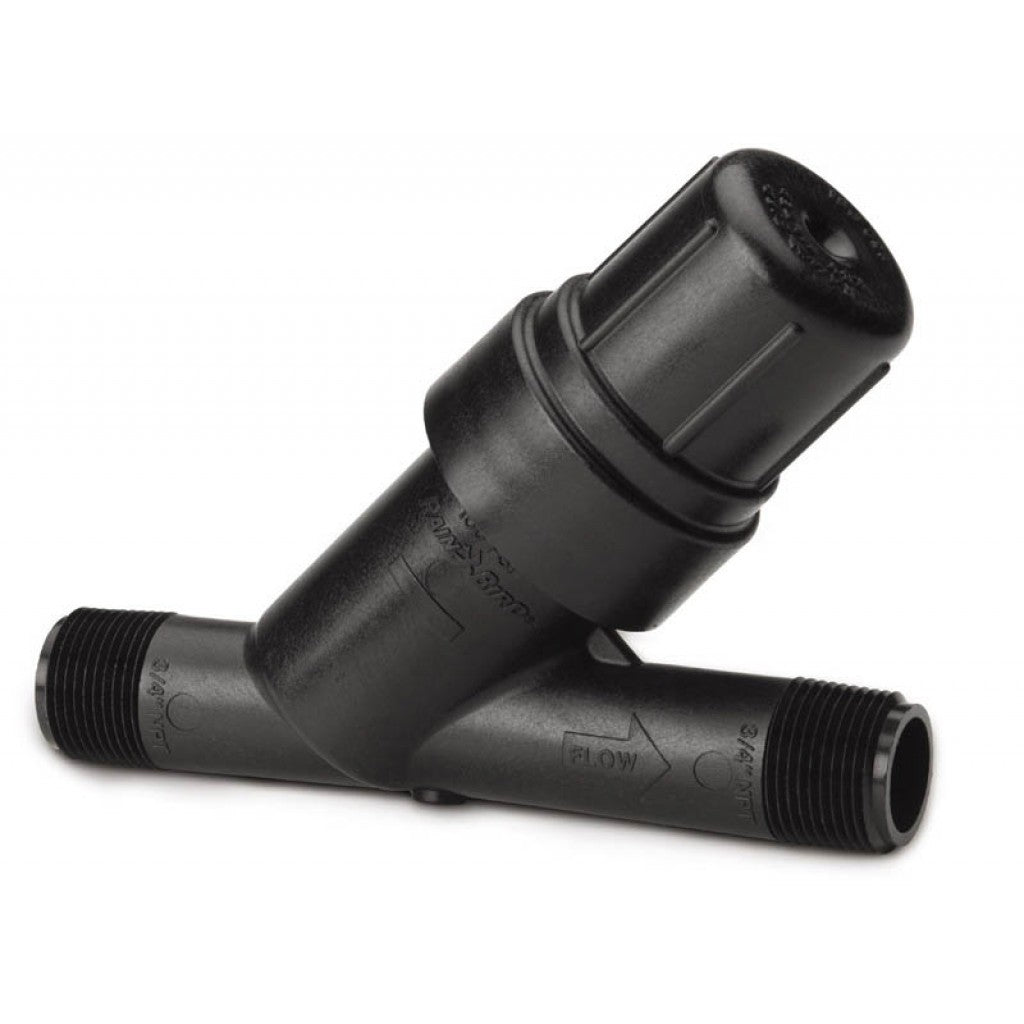

Rain Bird RBY100MPTX 1" Inline RBY Filter with 200 Mesh Screen

Static filter helps prevent plugging in a drip irrigation system. Simply connect the RBY Pressure-Regulating Filter into the water line and use Easy Fit Fittings or a female adapter to connect to drip tubing

Features

  • A simple and reliable filter for low-volume irrigation systems

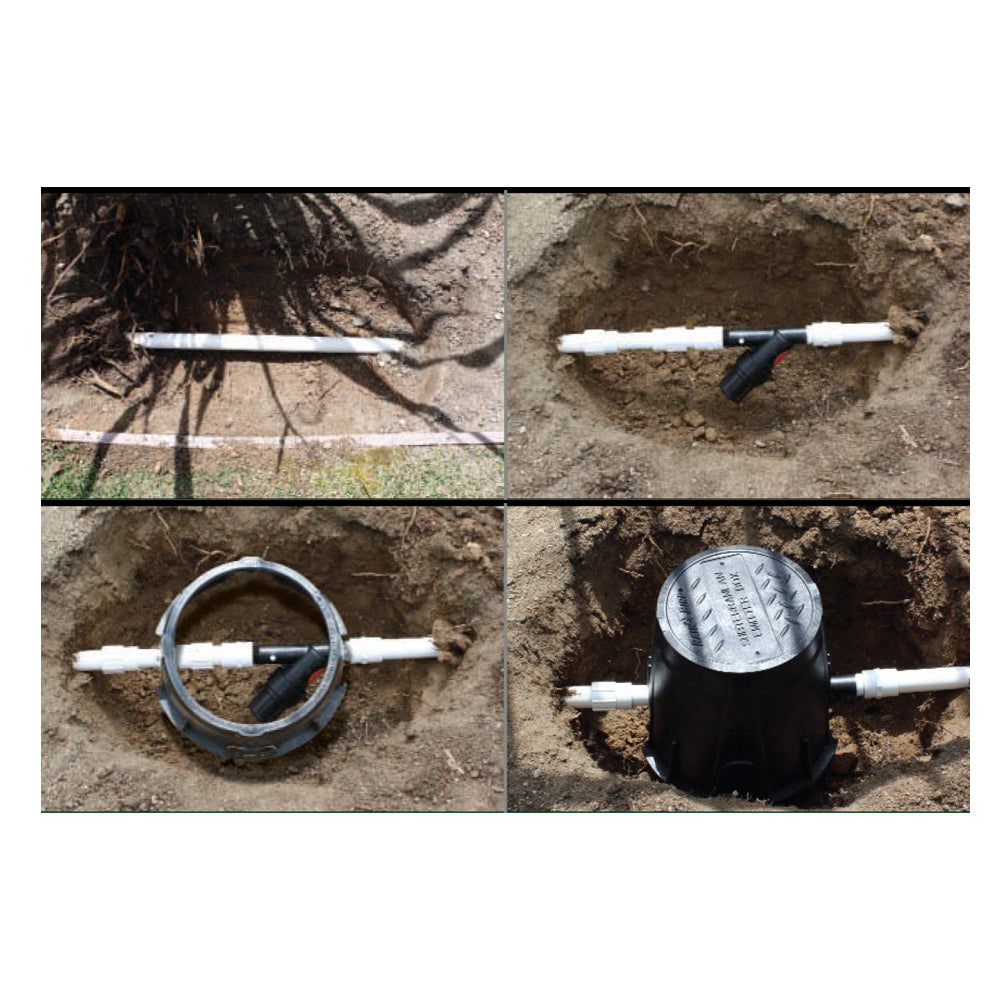

  • Can be installed above or below grade
  • Simple to clean, as cap has a sealing O-ring and unthreads to provide access to the stainless steel filter element
  • Strong and reliable due to its robust design and glass-filled polypropylene construction
  • Male x Male threaded connections for direct connection to valves and pressure regulators
  • Replacement stainless steel elements are available in 200 mesh (75 micron)
  • Flow: 0.20 to 18.0 gpm (0.8 to 68.1 l/m)
  • Pressure: 20 to 150 psi (1.4 to 10.3 bar)
  • Filtration: 200 mesh (75 micron)
  • Replacement screen: RBY200SSMX
  • Note: Filter must be installed downstream of a control valve and not under constant pressure.








IEZR202265
