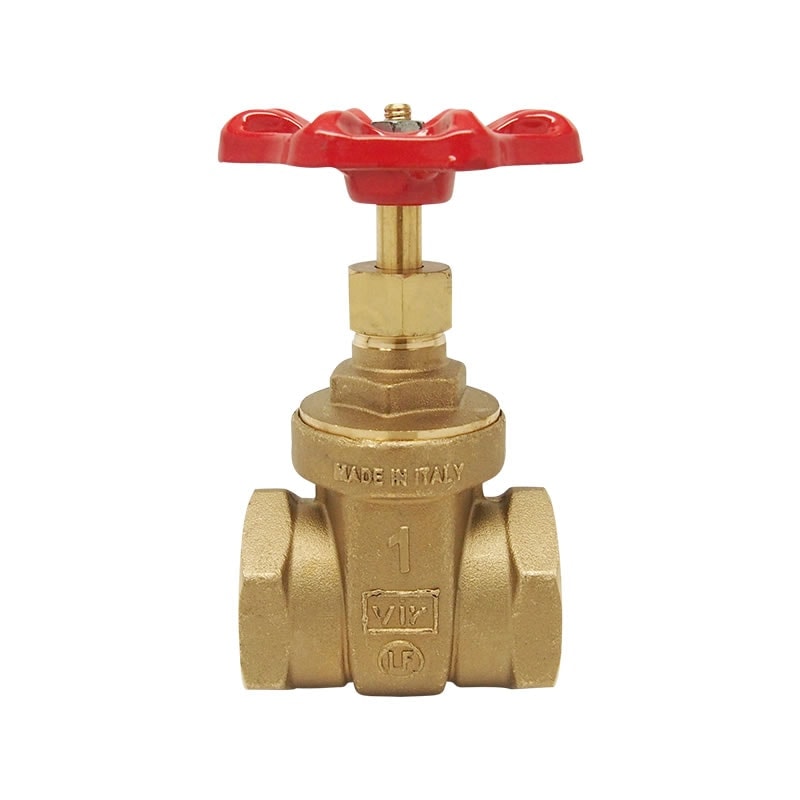

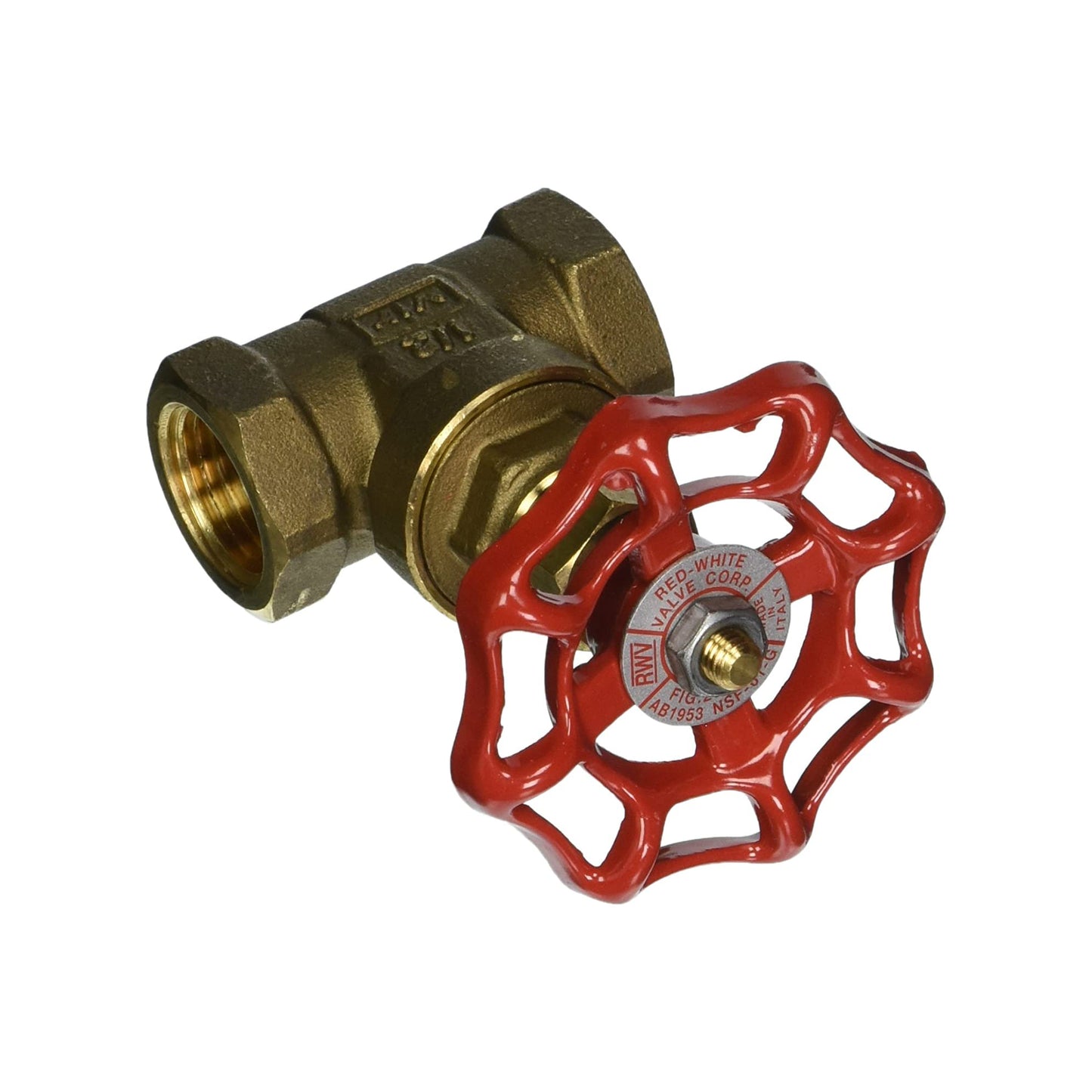

Red-White Valve 206AB - Lead Free Brass Gate Valve Threaded, FNPT x FNPT, 1-1/4"
Red-White Valve 206AB - Lead Free Brass Gate Valve Threaded, FNPT x FNPT, 1-1/4"
No reviews
Only 1 left
Regular price
$42.50
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Installation, Operation and Maintenance
Red-White Valve - 206AB Lead Free Brass Gate Valve
Features:
- Lead free brass body
- FNPT x FNPT
- Threaded Ends (ASME B1.20.1-NPT)
- Handwheel Handle
- Screw in Bonnet
- Non-Rising Stem
- Solid Wedge Disc
- AB1953, NSF/ANSI 61 & 372
Use and Maintenance
- Valves need to be operated on a regular basis (at least 6 times a year) with a complete open/close cycle. Beyond routine periodic cycling no additional maintenance is required. Valves must be replaced in case of leakages and/or damages.
- The valves have been designed and manufactured to be exclusively used as shut-off valves, therefore they shall be used in the fully open or fully closed position only. They must be operated only by acting on the handwheel provided by RWV without any other additional device.
