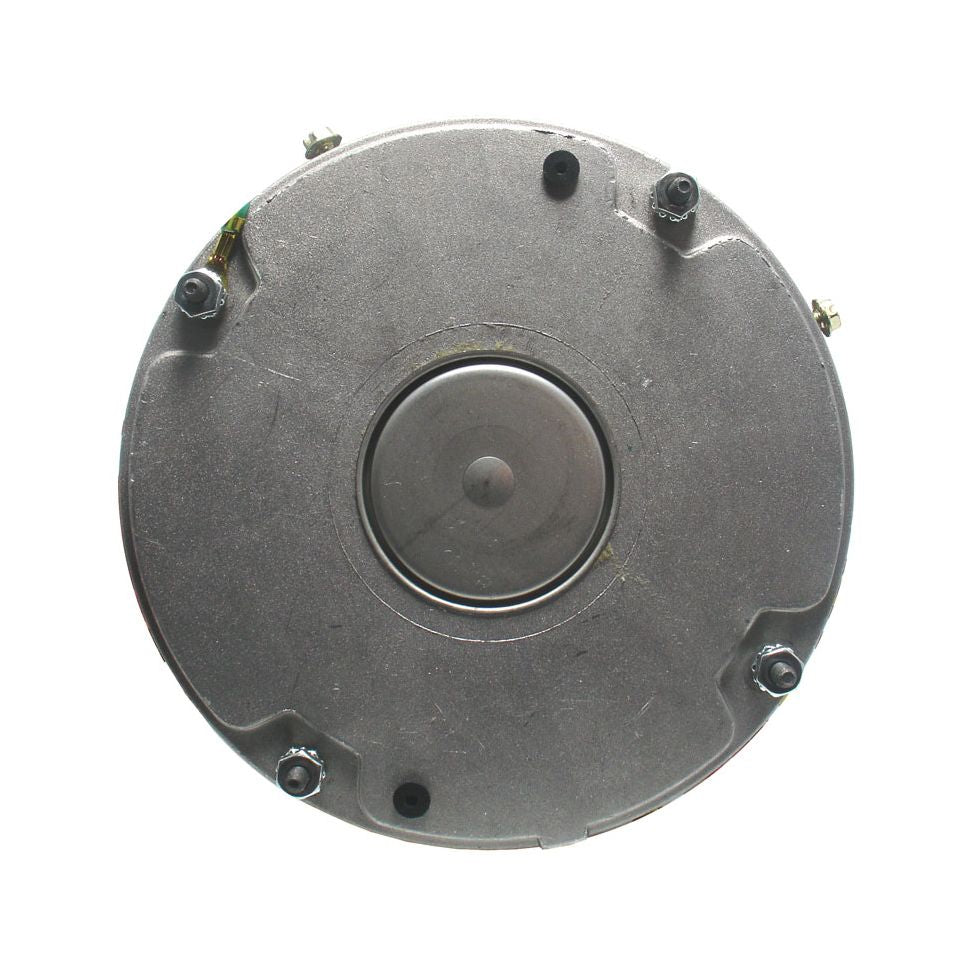

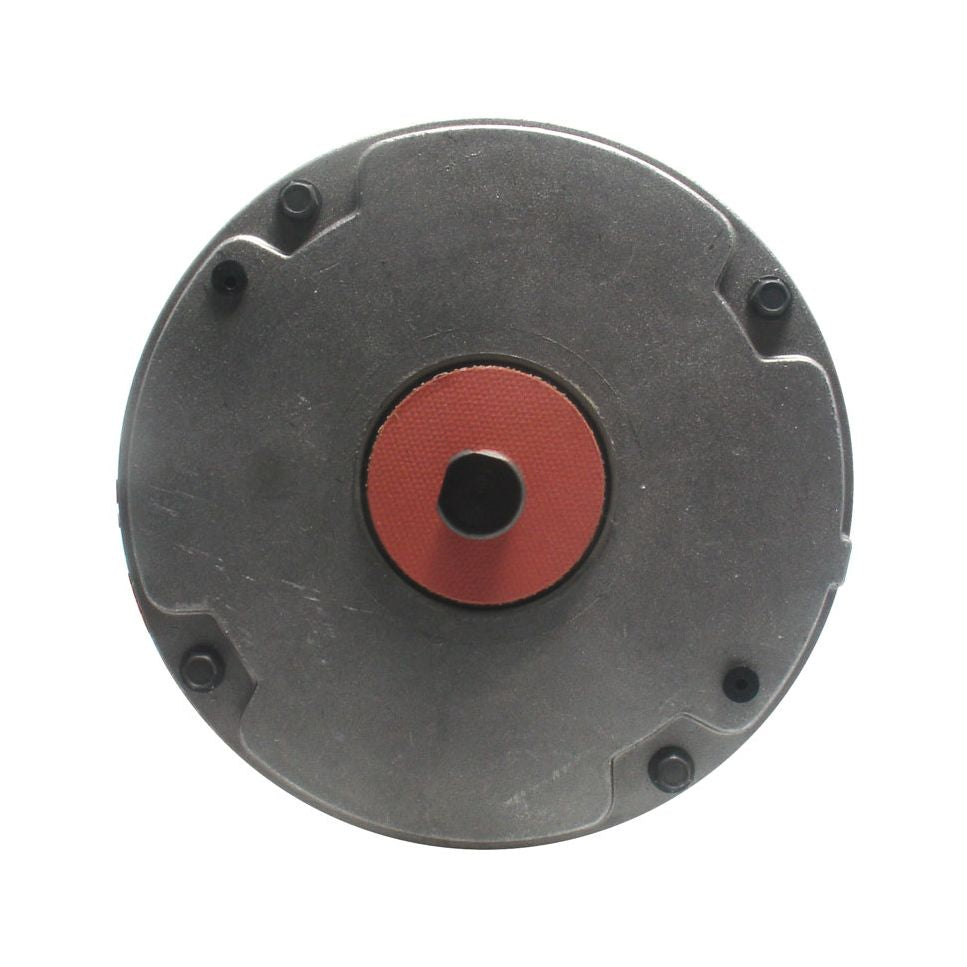

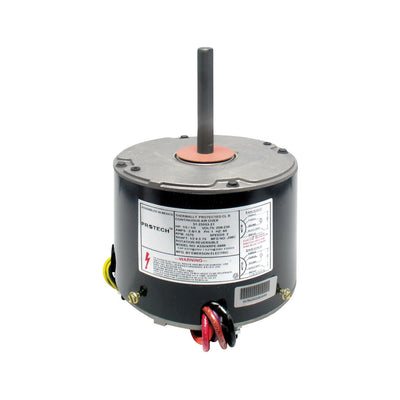

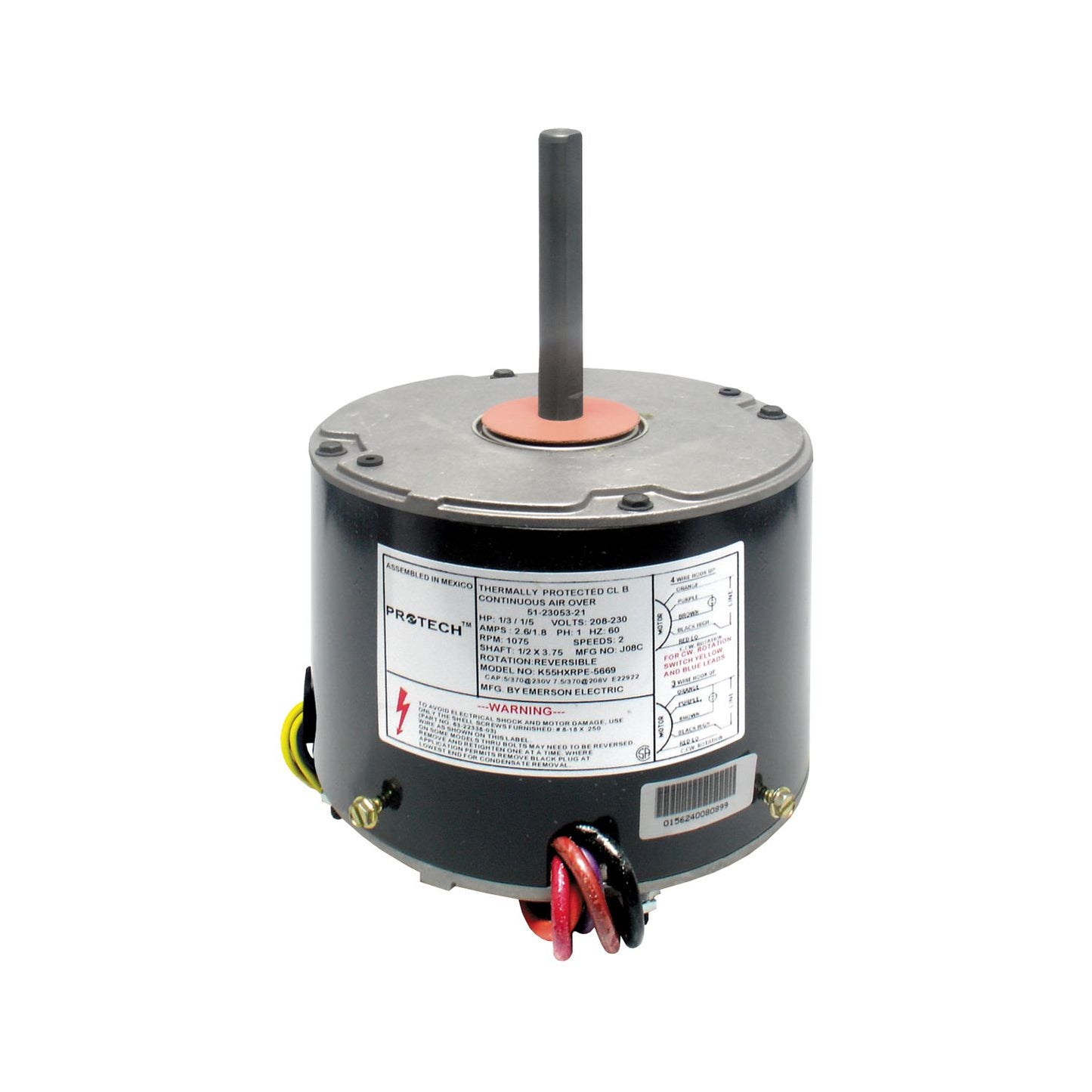

Rheem 51-23053-21 - 1/6 to 1/3 HP Condenser Motor - 1 Phase - 2 Speed - 1075 RPM - 230V

TRIPSAVER motors are designed with a high degree of versatility; they will cover the vast majority of service applications requiring a direct drive motor.

Features

• Replaces 208-230V motors from 1/3 to 1/5 horsepower
• 2 speed taps / Reversible rotation
• Operates in all positions

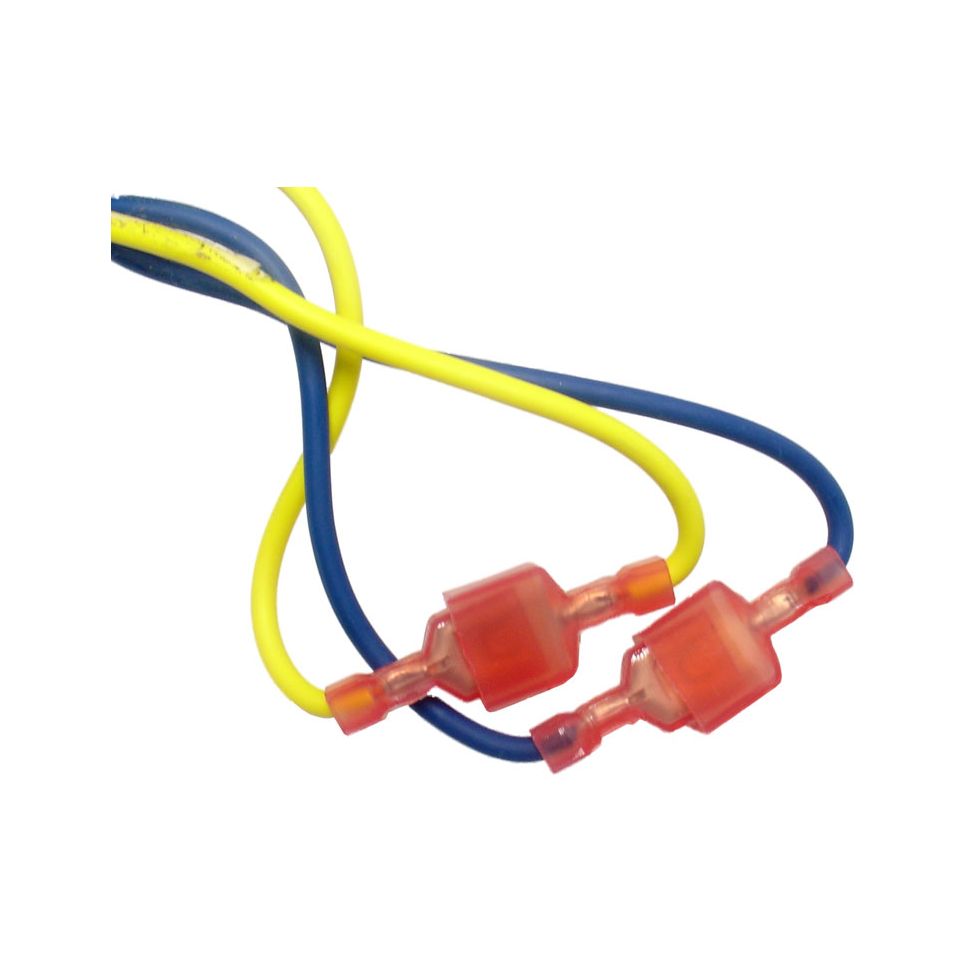

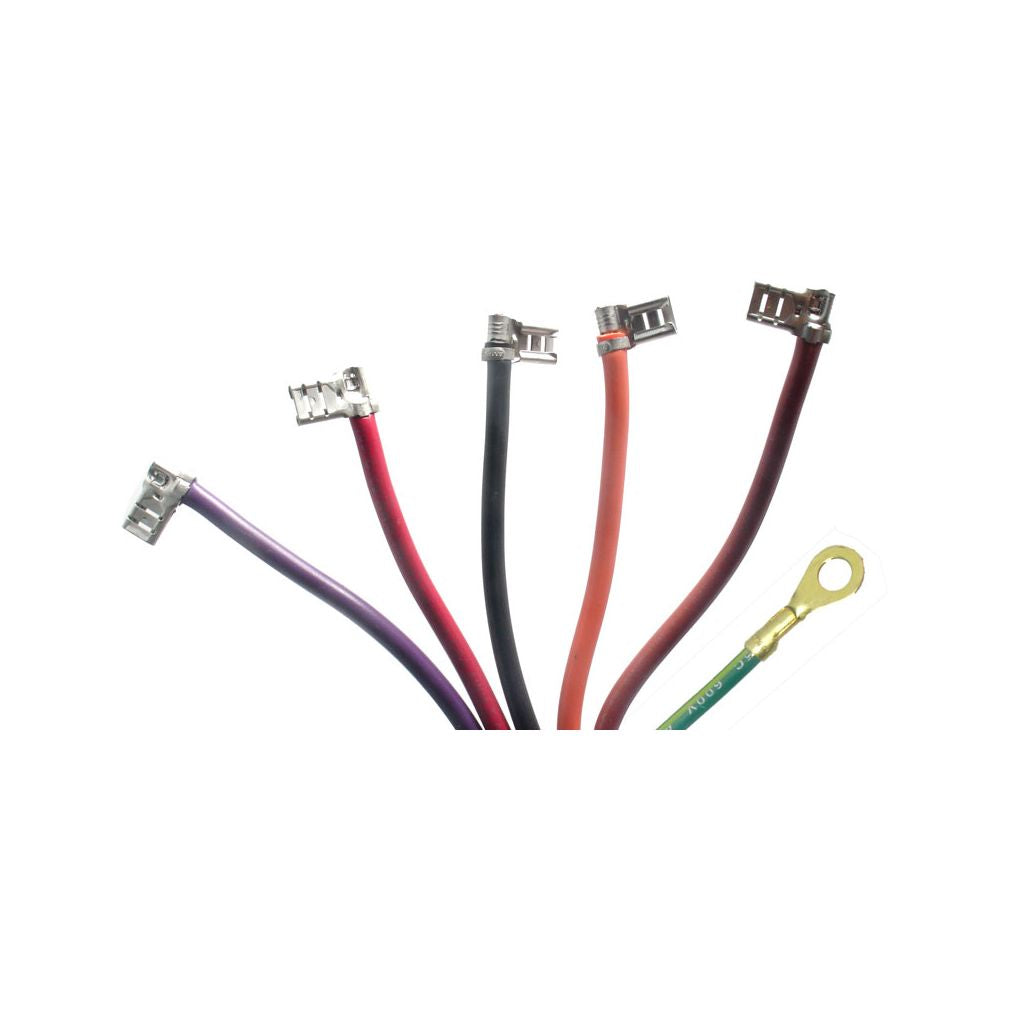

• 36 inch leads with easy to use quick-connect flag terminal

Technical Data

• HP: 1/6 to 1/3
• Number of Speeds: 2
• High Speed (RPM): 1075
• Low Speed (RPM): 900
• Input Voltage (V): 208
• Input Voltage (V): 230
• Number of Phases: 1
• Frequency (Hz): 60
• Rotation Direction (OSE): Reversible
• Run Capacitor (uF/V): 5/370 (230V), 7.5/370 (208V)
• FLA at 230V (A): 2.60
• Shaft Diameter (in.): 1/2
• Motor Body Diameter (in.): 5-5/8
• Keyed/Flat Shaft Length (in.): 3-1/4
• Overall Shaft Length (in.): 3-3/4
• Motor Body Length (in.): 4-5/8
• Overall Motor Length (in.): 8-3/8
• Mounting: Shell-band
• Mounting: Thru-bolt
• Mounting: Shell-screw
• Frame Size: 48
• Bearing Type: Sleeve
• Application: Condenser
• Drive Type: Direct Drive

Replaces

• 51-17141-01
• 51-19065-01
• 51-18904-01
