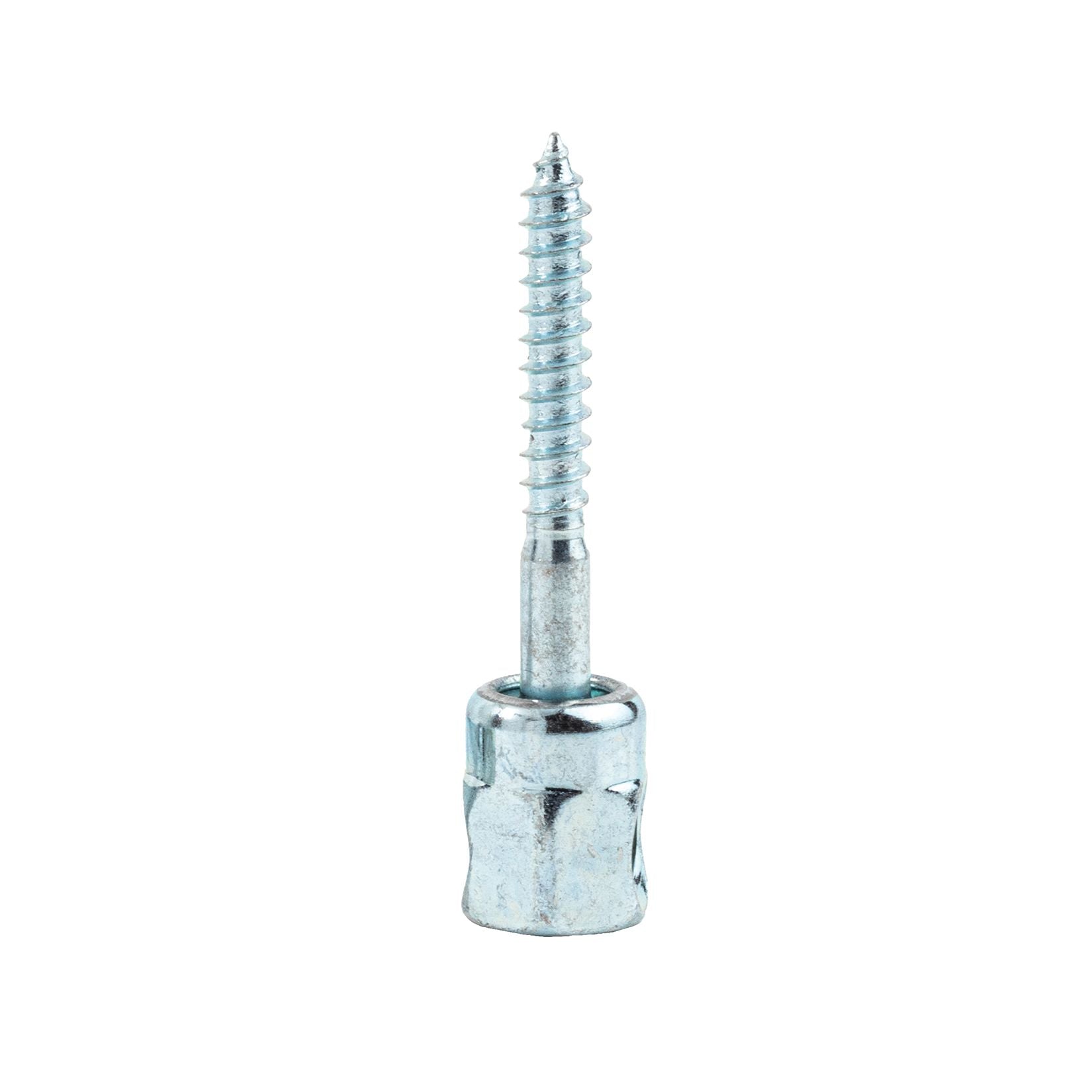

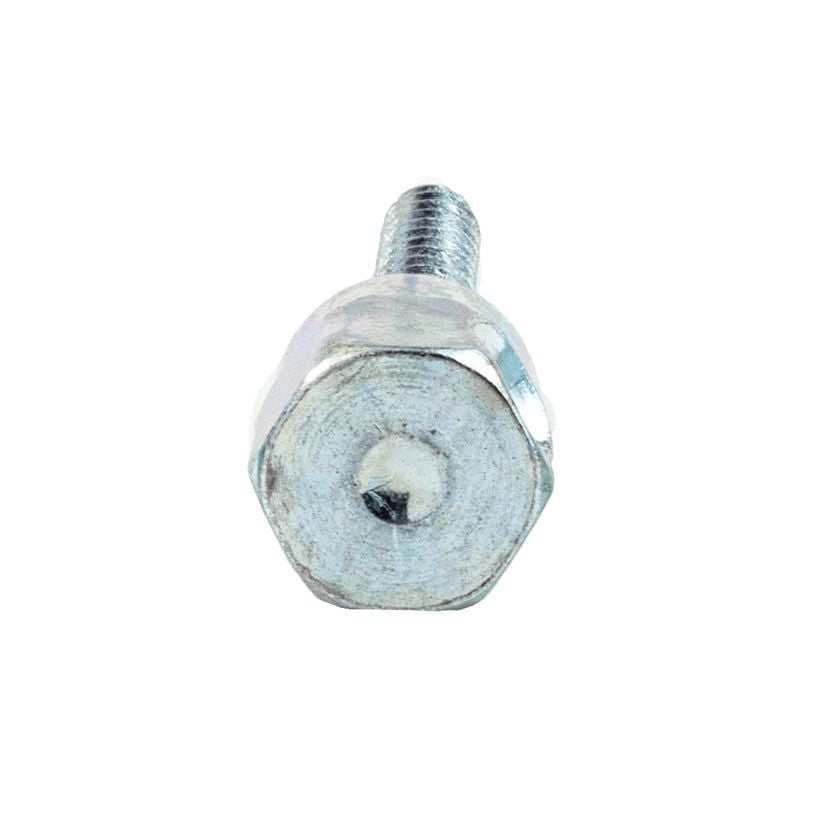

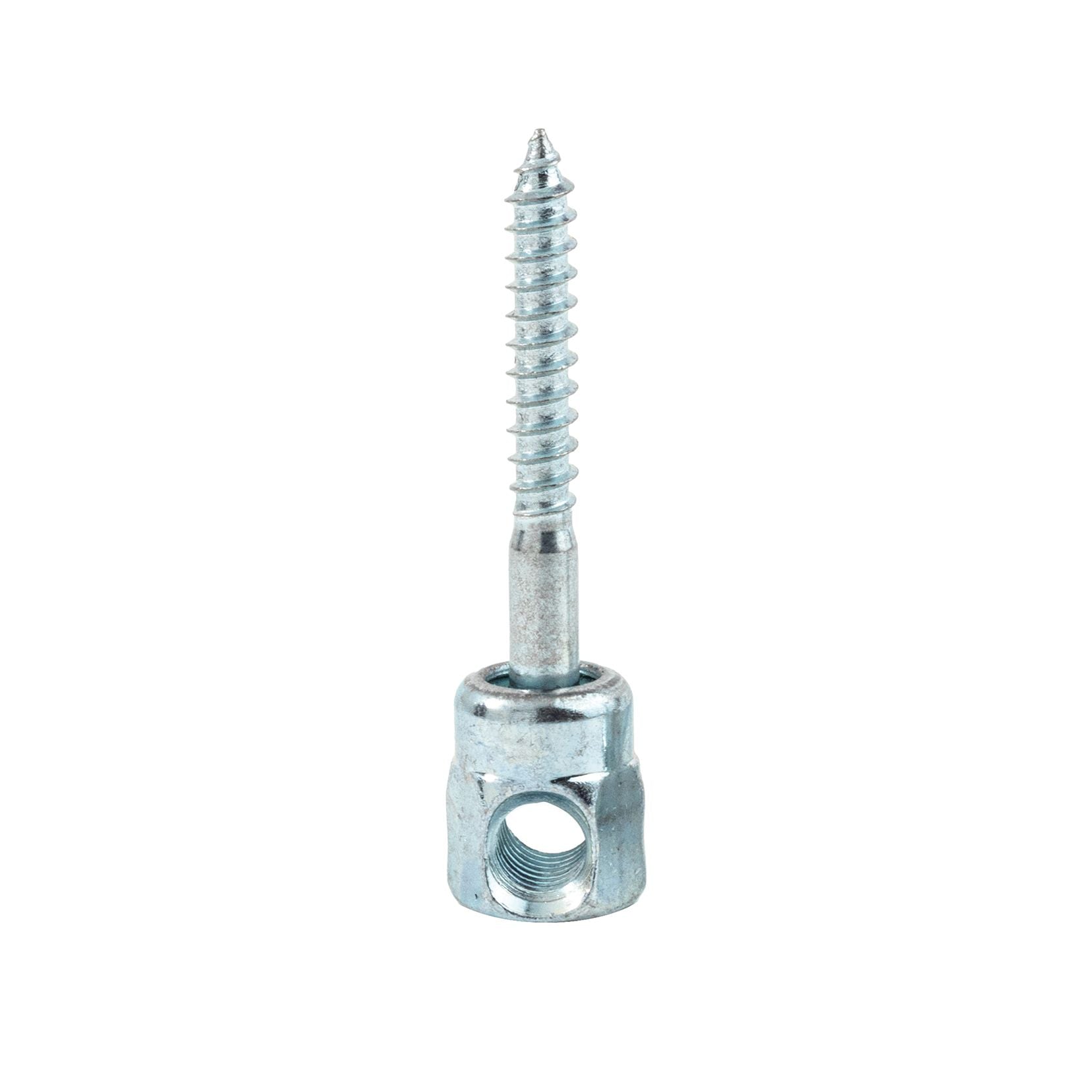

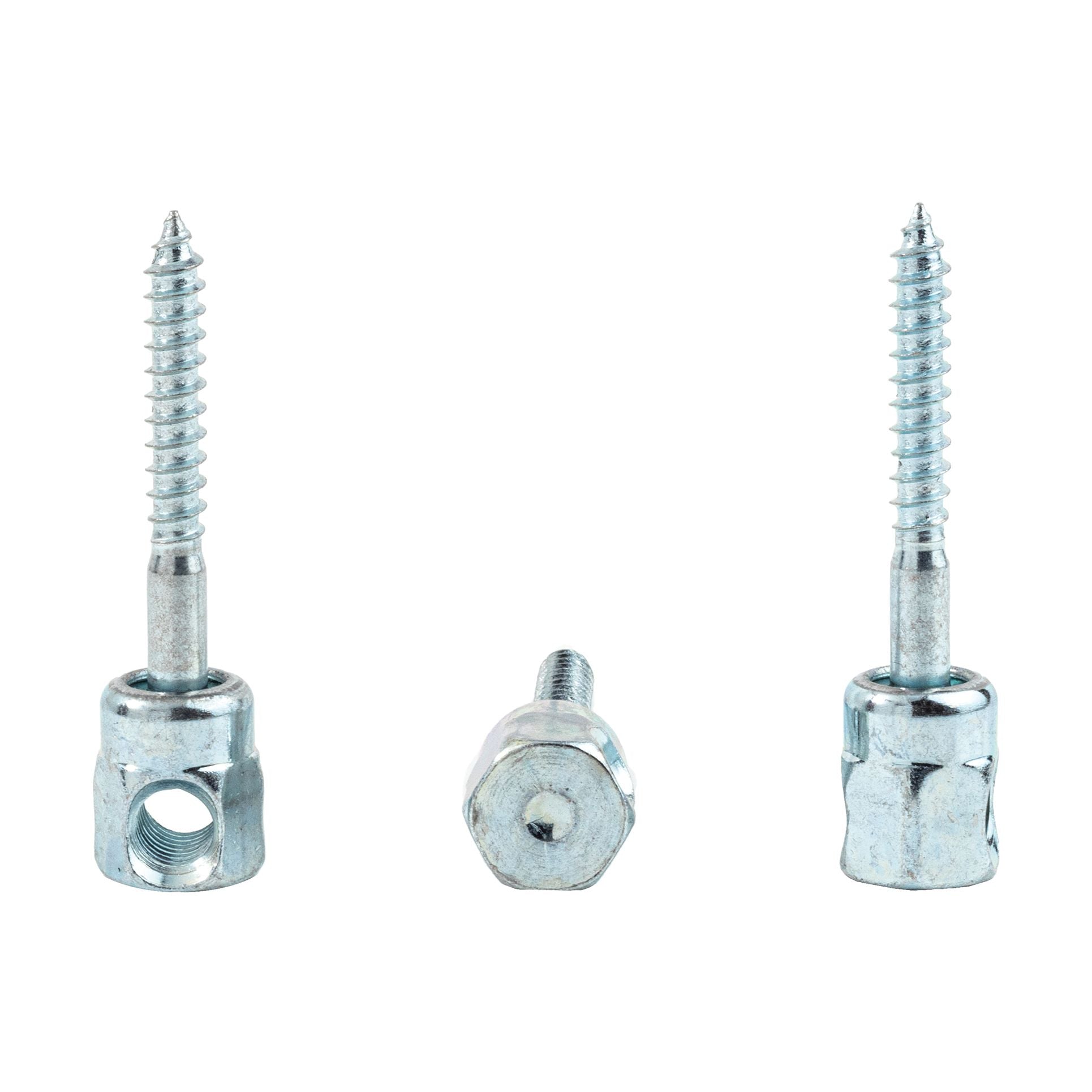

8021957 - GST 20 2" Sidewinder Horizontal Threaded Rod Anchor for Wood - 3/8" Rod

In stock
SKU: 8021957
$2.69

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Sammys 8021957 - GST 20 2" Sidewinder Horizontal Threaded Rod Anchor for Wood - 3/8" Rod

Sammys threaded rod anchors for wood are uniquely designed to save time and money in the installation process. With no pre-drilling required, you can complete the job on time! There are models to install vertically, horizontally, and at a swivel that accommodates up to 3-1/2 x 12 pitch roofs. All Sammys are assembled in the U.S.A.

Features

  • Sold individually
  • No pre-drilling required
  • Quick to install using the Sammy Nut Driver with an 18V cordless drill
  • Saves time from traditional methods
  • Reduces installation costs
  • Assembled in the U.S.A.
  • Part# 8021957
  • Model: SWG 20
  • Installation Tool: 14 SW Red Nut Driver - 8114910

Specifications

  • Product Length: 2"
  • Product Diameter: 1/4"
  • Material: Steel
  • Finish: Electro-Zinc
  • Material Grade: C1022 screw / C1010 cap
  • FM Approved: No
  • UL Approved: Yes
  • Mount Orientation: Horizontal
  • Substrate: Wood
  • Rod Size: 3/8"
  • UL Max Pipe Size: 2-1/2" - 3"
  • Screw Description: 1/4 x 2"
  • UL Test Load: 1050 lbs
  • Ultimate Shear: 1725 lbs (Fir)

Applications

  • Hanging pipe and fire sprinkler systems
  • Hanging electrical fixtures, conduit, lighting systems, and cable trays
  • Hanging HVAC ductwork
  • Installs horizontally into the side of wood structures for hanging threaded rod
