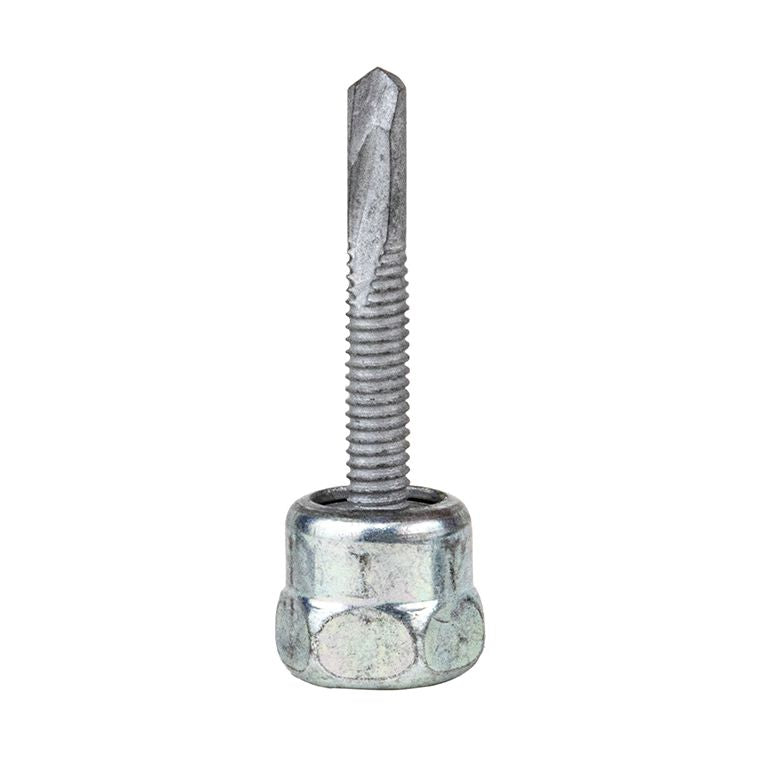

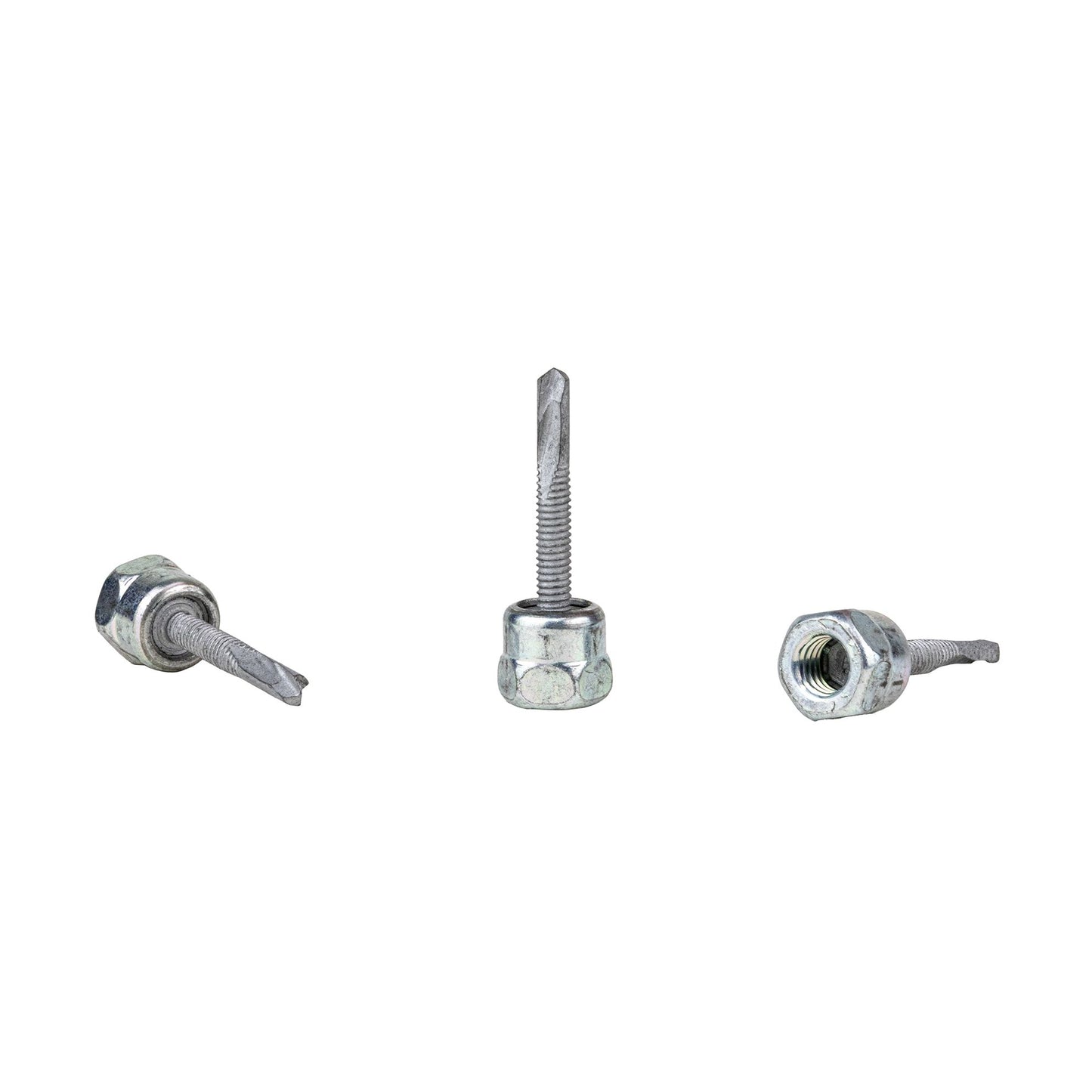

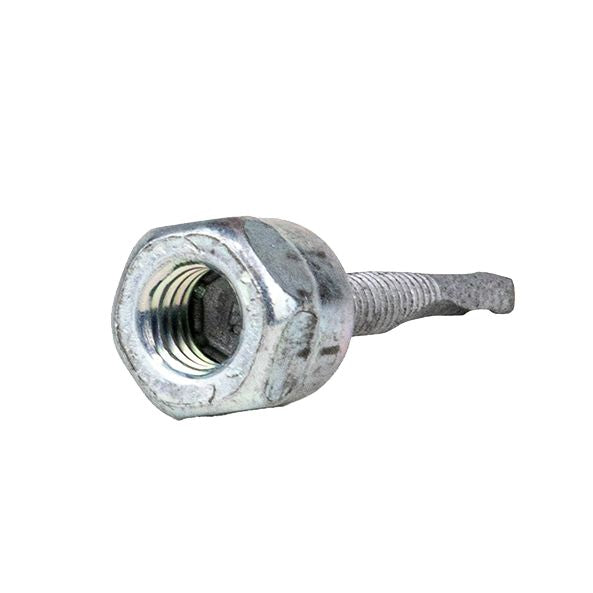

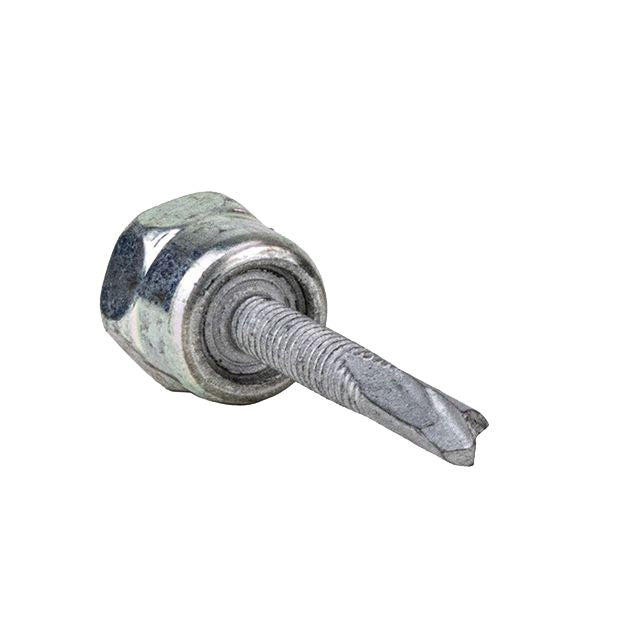

Sammys 8046957 - TEK 50 1-1/2" Sammys Vertical Threaded Rod Anchor for Steel - 3/8" Rod

Sammys threaded rod anchors for steel are uniquely designed to save time and money in the installation process. With no pre-drilling required, you can complete the job on time! Sammys for steel are designed using a Teks fastener allowing you to install into steel range from 20 gauge - 1/2" thick, no pre-drilling required! There are models to install vertically, horizontally, and at a swivel that accommodates up to 3-1/2 x 12 pitch roofs. All Sammys are assembled in the U.S.A.

Features

• Sold individually
• No pre-drilling required
• Quick to install using the Sammy Nut Driver with an 18V cordless drill
• Saves time from traditional methods
• Reduces installation costs
• Assembled in the U.S.A.
• Part# 8046957
• Model: TEK 50

Specifications

• Product Length (Inches): 1-1/2"
• Material: Steel
• Finish: Climaseal (fastener) / Electro-Zinc (cap)
• Material Grade: C1022 screw / C1010 cap
• FM Approved: Yes
• UL Approved: Yes
• Installation Tool: #14 Black Nut Driver - 8113910
• Mount Orientation: Vertical
• Substrate: Steel
• Rod Size: 3/8"
• UL Max Pipe Size: 4"
• FM Test Load: 1475 lbs
• FM Min Thickness: .188"
• Screw Description: 12-24 x 1-1/2" TEKS 5
• UL Test Load: 1500 lbs
• Ultimate Pullout: 3125 lbs (3/16")

Applications

• Hanging pipe and fire sprinkler systems
• Hanging electrical fixtures, conduit, lighting systems, and cable trays
• Hanging HVAC ductwork
• Installs vertically into the bottom of steel structures for hanging threaded rod.
