ZR16K5E-PFV-800 - Copeland Scroll Compressor - 15,500 BTU - 1 Phase - R22 - 230V

Out of stock
SKU: ZR16K5E-PFV-800
$1,015.00

Free Shipping on all orders over $89

Most orders ship same day!

Order by phone or Questions? (800) 468 5997

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

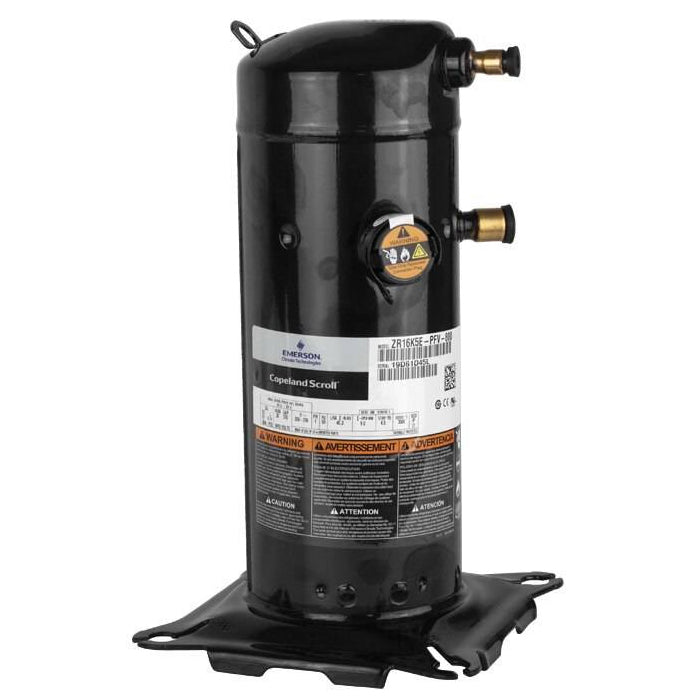

Rheem ZR16K5E-PFV-800 - Copeland Scroll Compressor - 15,500 BTU - 1 Phase - R22 - 230V

The Copeland Scroll ZRK5 compressor is designed for both residential and light commercial markets. It’s also been optimized for post-2010 R-22 service and continued OEM system production for exports. This compressor includes a molded plug wiring harness in the box. It does not need to be ordered separately.

The compressor rating label for model ZR16K5E-PFV-800 may read ZR16K5E-PFV-7M3. The difference in the suffix number is a result of internal handling procedures, and the compressors are identical in all aspects.

Features

  • Optimized scroll and seal design
  • Improved temperature protection
  • New shutdown solution
  • High-efficiency motor
  • Quiet operation
  • Internal pressure protection

Technical Data

  • Capacity (BTU/HR): 15500
  • Type: Scroll
  • Refrigerant: R-22
  • Input Voltage (V): 208
  • Input Voltage (V): 230
  • No. of Phases: 1
  • Freq. (Hz.): 60
  • Run Capacitor (uF/V): 30/370
  • Start Kit: SK-A1
  • Kick Start: 42-TO5
  • Start Relay P/N: 42-25105-01
  • Start Capacitor (uF/V): 88-106/330
  • Start Capacitor Part Number: 43-17075-04
  • Rated Load Current (A): 9.3
  • Max. Continuous Current (A): 13.0
  • Locked Rotor Current (A): 40.3
  • Crankcase Heater Included?: No
  • Crankcase Heater Part Number: 44-17402-44
  • Soundwrap (Brinmar): 68-25217-10
  • Refrigerant Oil: POE (85-32CST)
  • Suction Line Location: 2
  • Suction Line Height (in.): 10-1/16
  • Suction Line Configuration: Stub Out
  • Suction Line Size (in.): 3/4
  • Discharge Line Location: 3
  • Discharge Line Height (in.): 14-1/4
  • Discharge Line Configuration: Stub Out
  • Discharge Line Size (in.): 1/2
  • Overall Compressor Height (in.): 15-1/4
  • Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
  • Shipping Weight: 52.0 lbs

Where Used

  • 13AJA
  • 13PJA
  • 14AJA
  • RAMB
  • RAMC
  • RAND
  • RPNE
  • RPC

Replaces

  • 55-100835-30
  • 55-100835-30S
  • 55-100835-45
  • 55-100835-45S
  • 55-102045-59
  • 55-102045-59S
  • 55-102045-67
  • 55-102045-67S
  • 55-23155-01
  • 55-23155-01S
  • 55-ZR16K5-PFV-800
  • ZR16K5E-PFV-7M3
  • ZR16K5-PFV-7M3
  • ZR16K5-PFV-7M3
  • ZR16K5-PFV-800
