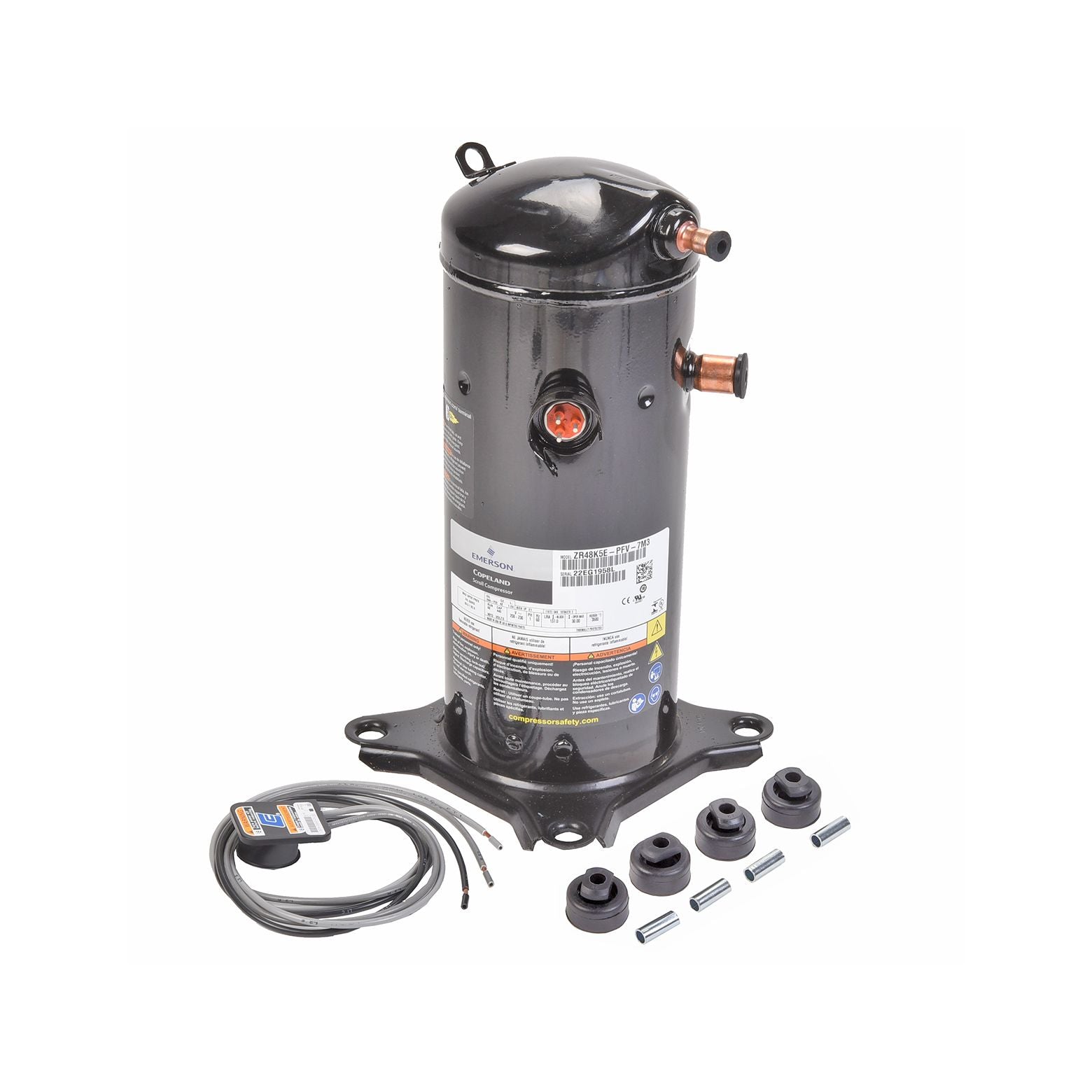

Rheem ZR48K5E-PFV-800 - Scroll Compressor - 48,200 BTUH - R22, 208-230V, Single Phase
This compressor includes a molded plug wiring harness in the box. It does not need to be ordered separately. The compressor rating label for model ZR48K5E-PFV-800 may read ZR48K5E-PFV-7M3. The difference in the suffix number is a result of internal handling procedures, and the compressors are identical in all aspects. Molded plug wiring harness 45-100834-80 is required in order to make the electrical connections on this compressor.
The Copeland Scroll ZRK5 compressor is designed for both residential and light commercial markets. It’s also been optimized for post-2010 R-22 service and continued OEM system production for exports. Molded plug wiring harness 45-100834-80 is required in order to make the electrical connections on this compressor.
Features
- Optimized scroll and seal design
- Improved temperature protection
- New shutdown solution
- High-efficiency motor
- Quiet operation
- Internal pressure protection
Technical Data
- Capacity (BTU/HR): 48200
- Type: Scroll
- Refrigerant: R-22
- Input Voltage (V): 208
- Input Voltage (V): 230
- No. of Phases: 1
- Freq. (Hz.): 60
- Run Capacitor (uF/V): 60/440
- Start Kit: SK-A1
- Kick Start: 42-KS1
- Start Relay P/N: 42-25105-01
- Start Capacitor (uF/V): 88-106/330
- Start Capacitor Part Number: 43-17075-04
- Rated Load Current (A): 24.3
- Max. Continuous Current (A): 34.0
- Locked Rotor Current (A): 137.0
- Crankcase Heater Included?: No
- Crankcase Heater Part Number: 44-17402-45
- Soundwrap (Brinmar): 68-25217-10
- Refrigerant Oil: POE (85-32CST)
- Suction Line Location: 2
- Suction Line Height (in.): 11-3/16
- Suction Line Configuration: Stub Out
- Suction Line Size (in.): 7/8
- Discharge Line Location: 3
- Discharge Line Height (in.): 15-7/16
- Discharge Line Configuration: Stub Out
- Discharge Line Size (in.): 1/2
- Overall Compressor Height (in.): 16-7/16
- Mounting Base Dimensions (in. x in.): 7-1/2 x 7-1/2
Where Used
- 10AJB
- 10PJB
- 12AJB
- 12PJB
- 13PJA
- 14AJA
- FAFF
- RADD
- RAJB
- RAKA
- RAKB
- RALC
- RAMA
- RAMB
- RAMC
- RANC
- RAPA
- RAPB
- RAPC
- RJKA
- RJMA
- RKKA
- RKMA
- RLKA
- RLMA
- RPKA
- RPKB
- RPLA
- RPLB
- RPMB
- RPMC
- RPMD
- RPNE
- RPNK
- RPPB
- RPPC
- RQKA
- RQKJ
- RQMJ
- RQNA-B
- RRKA-A
- RRMA-A
- RSKA
- RSMA
- SADE
- SAKA
- SAKB
- SLKA
- SPKB
Replaces
- 55-100835-05
- 55-100835-05S
- 55-100835-56
- 55-100835-56S
- 55-102045-65
- 55-102045-65S
- 55-21737-08
- 55-21737-08S
- 55-21737-11
- 55-21737-11S
- 55-21737-25
- 55-21737-25S
- 55-21737-37
- 55-21737-37S
- 55-23139-18
- 55-23139-18S
- 55-23139-25
- 55-23139-25S
- 55-23139-37
- 55-23139-37S
- 55-23140-39
- 55-23140-39S
- 55-23140-50
- 55-23140-77
- 55-23140-77S
- 55-23141-39
- 55-23141-50
- 55-23148-34
- 55-23148-34S
- 55-23159-01
- 55-23159-01S
- 55-ZR48K5-PFV-800
- ZR48K5E-PFV-7M3
- ZR48K5-PFV-7M3
- ZR48K5-PFV-800
