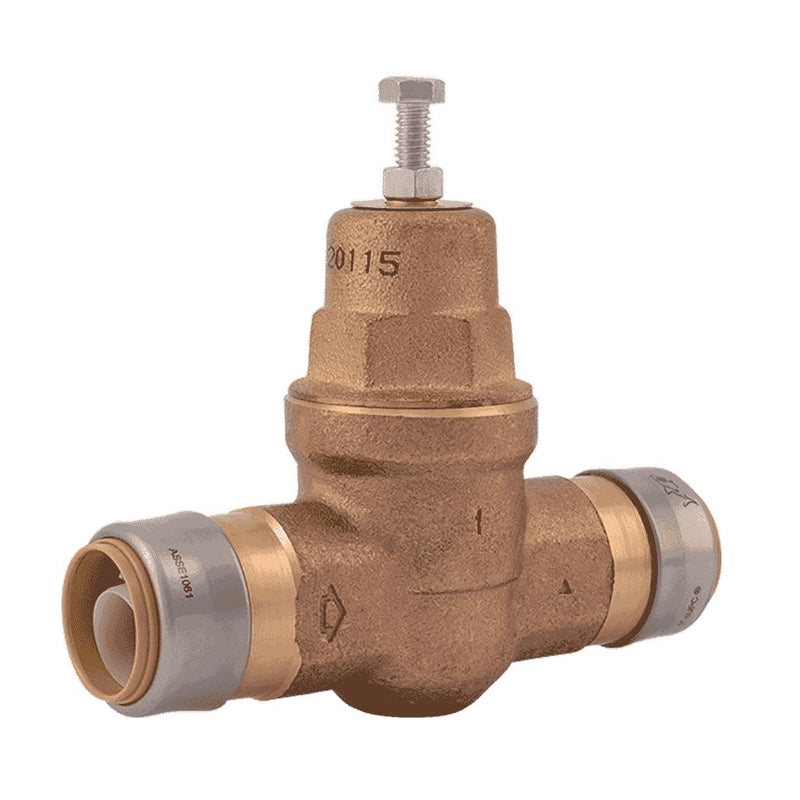

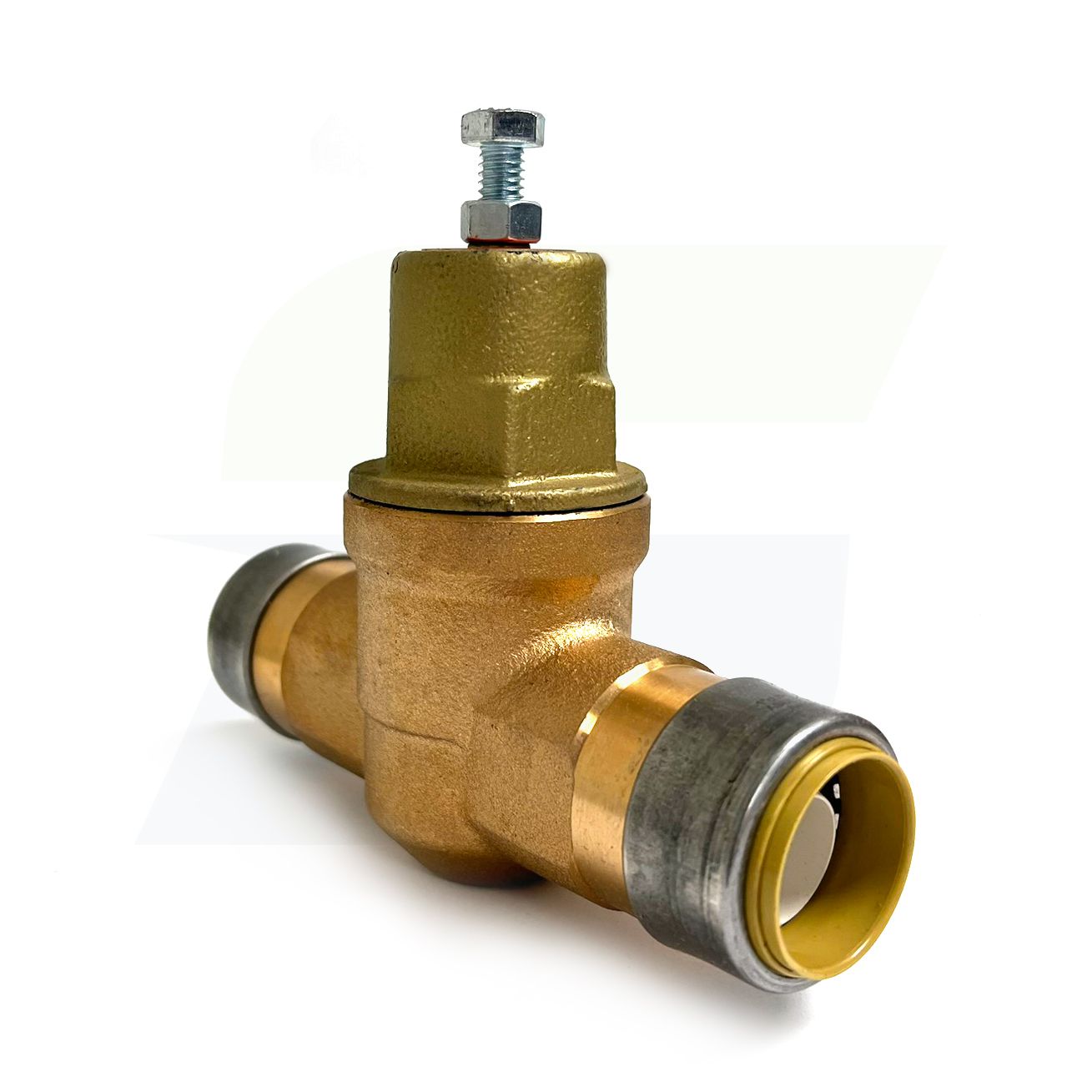

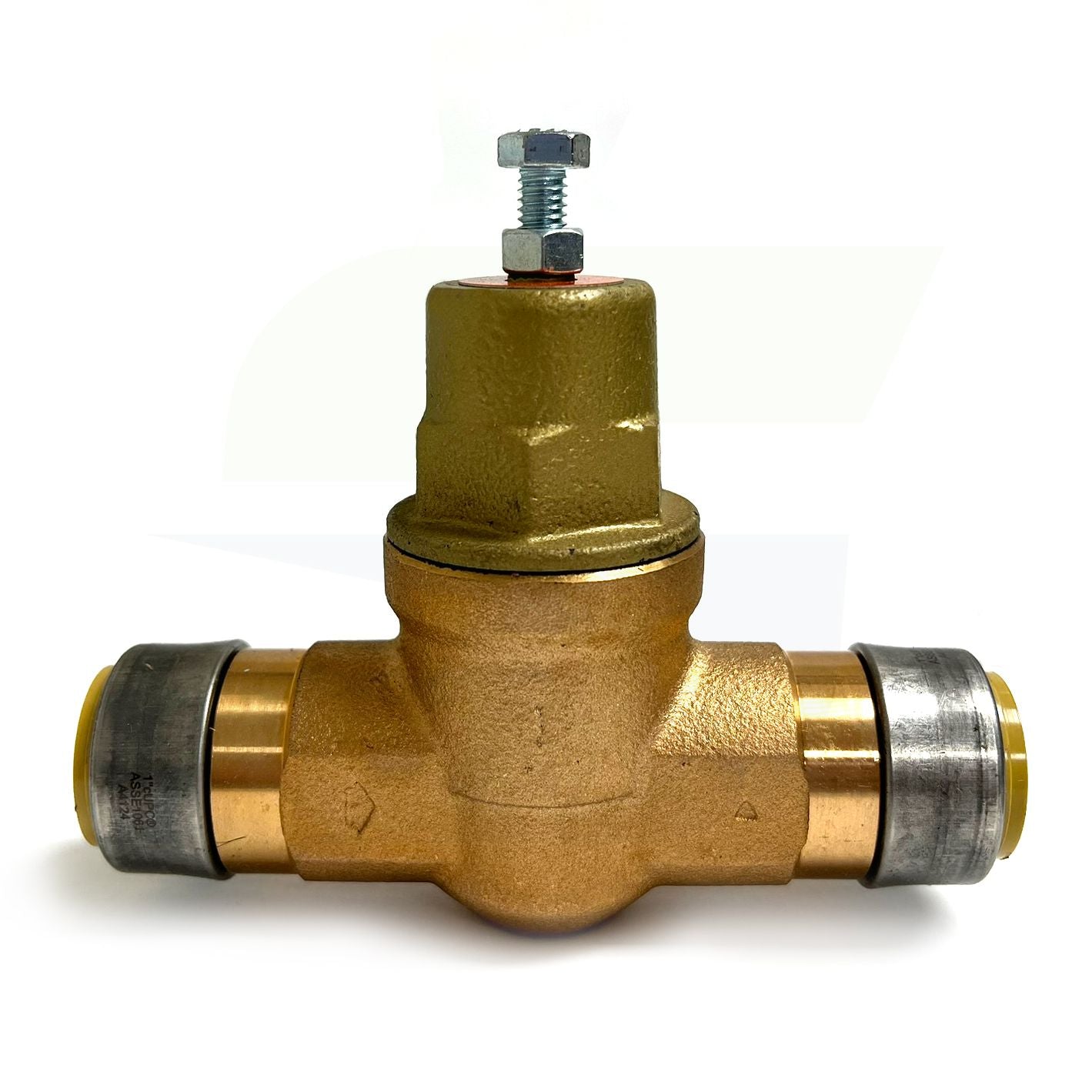

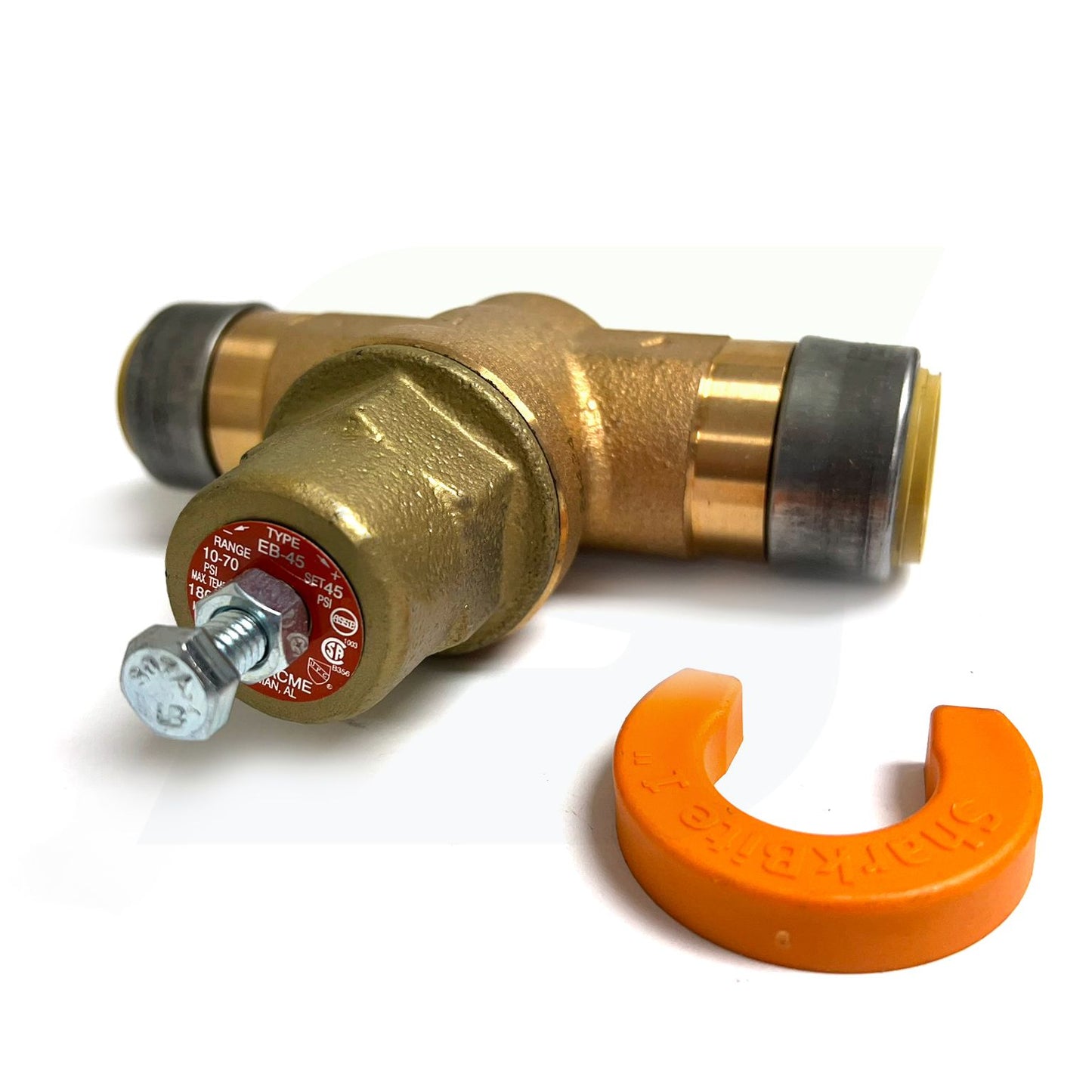

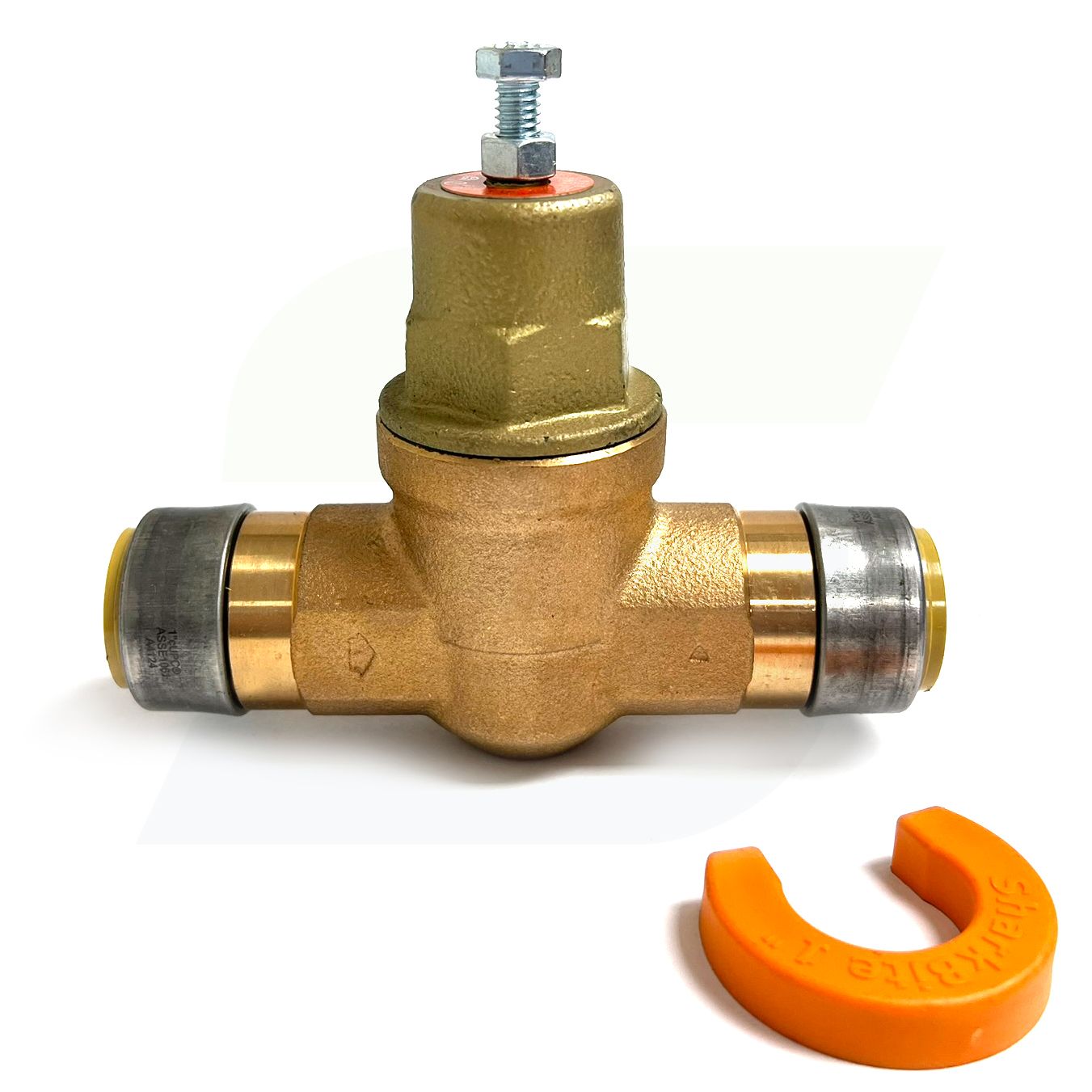

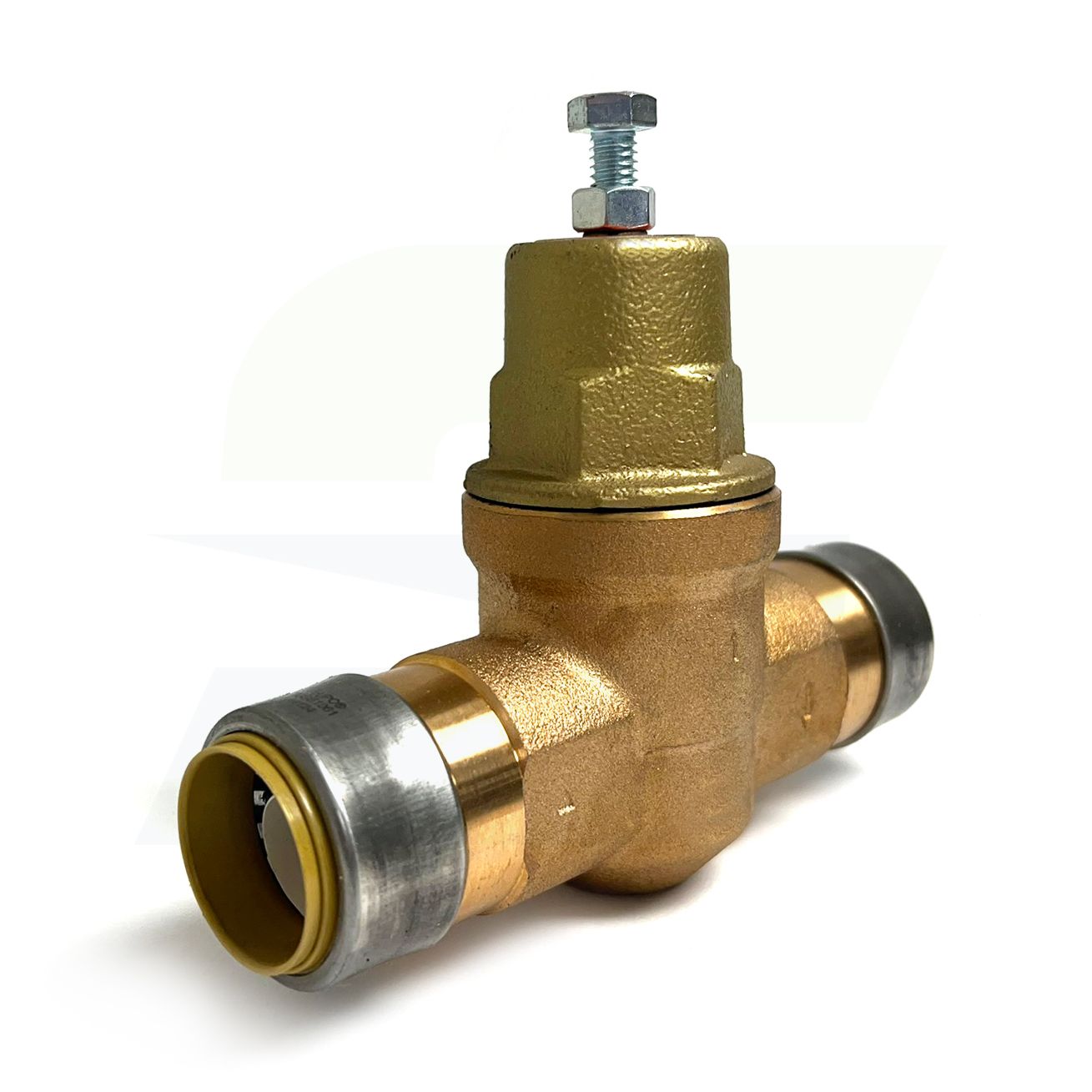

SharkBite EB45-DSB Pressure Reducing and Regulating Valve
Innovative push-to-connect design makes for quick and easy installation. This PRV features a half cartridge design that offers the performance of a high-end, cartridge-based valve at the price of a traditional regulator. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors.
- Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe.
- No special tools, crimping, glue or soldering is needed.
- Can be installed in wet lines.
- Factory set at 45 psi unless specified; easily adjustable between 10 - 70 psi.
- Manufacturer SKU: 22675-0045
Features:
- Compact pressure reducing and regulating valves:
- Designed for small and economic considerations.
- Certified by ASSE Standard 1003, Listed by IAPMO and ASSE:
- Inspector friendly, peace of mind.
- By-pass mechanism integral with the cartridge:
- No add-on or small parts, longer life and more reliable performance.
- Quick and Easy service:
- Back off pressure and remove spring chamber, pressure spring and button and replace cartridge and you have a new valve.
- Every valve is tested for performance prior to shipping:
- Specify and install with confidence.
- Instant push-fit connections for increase ease of use:
- No soldering, glue or tools required to make connection.
- Rugged bronze body:
- Superior reliability, improved user safety
Additional Information
The Cash Acme SharkBite EB45-DSB is a half-cartridge based pressure reducing and regulating valve with a bronze body. The valve resembles the traditional regulators with a spring chamber and an adjusting screw, but offers the performance of a cartridge based valve. The SharkBite EB45-DSB is assembled using modular construction methods and features SharkBite connections in 1/2" through 1" sizes. Connect the SharkBite pressure reducing and regulating valve to copper tubing, and CTS CPVC and PEX in seconds with ease. These valves are supplied by the factory with a standard delivery setting of 45 psi. The outlet pressure can be adjusted from 10-70 psi without changing the spring.
The EB45 is intended for use where supply line pressure does not exceed 200 psi. This regulator is suited for either cold or hot (to 180 degrees F) water service.
