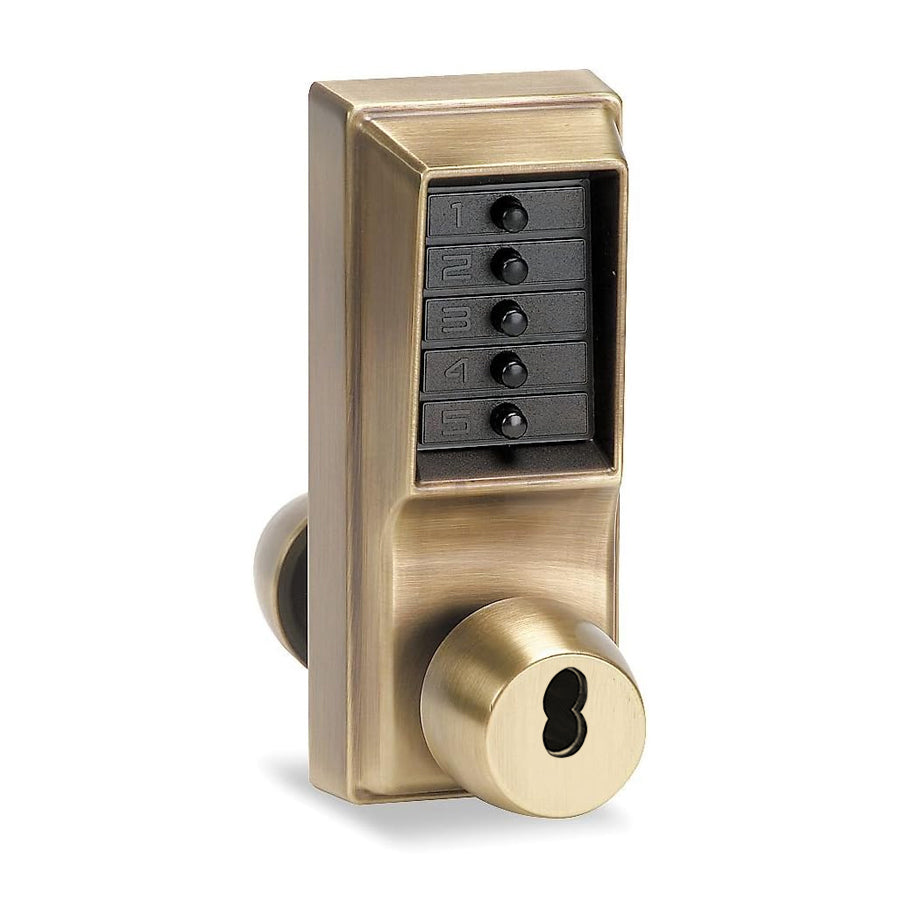

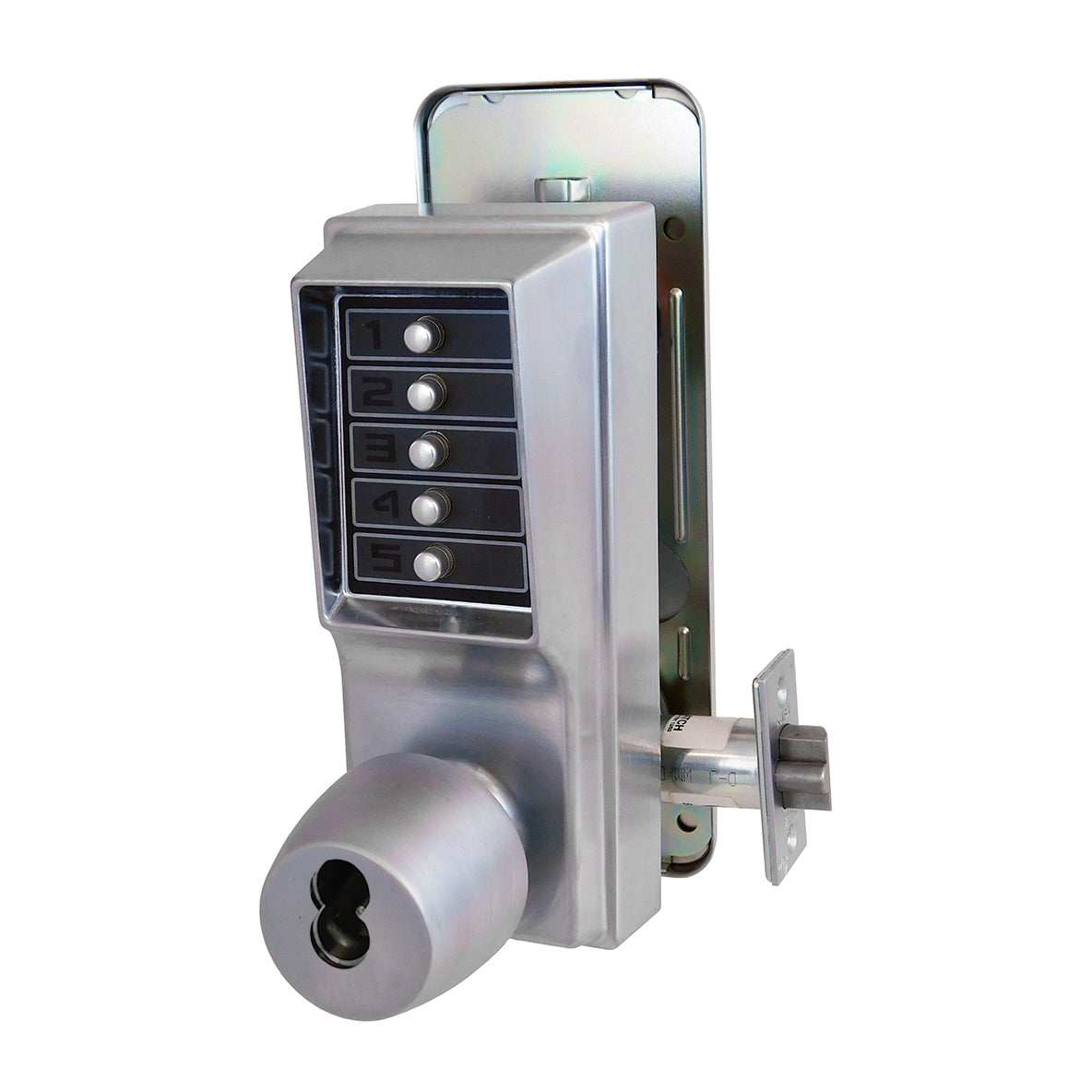

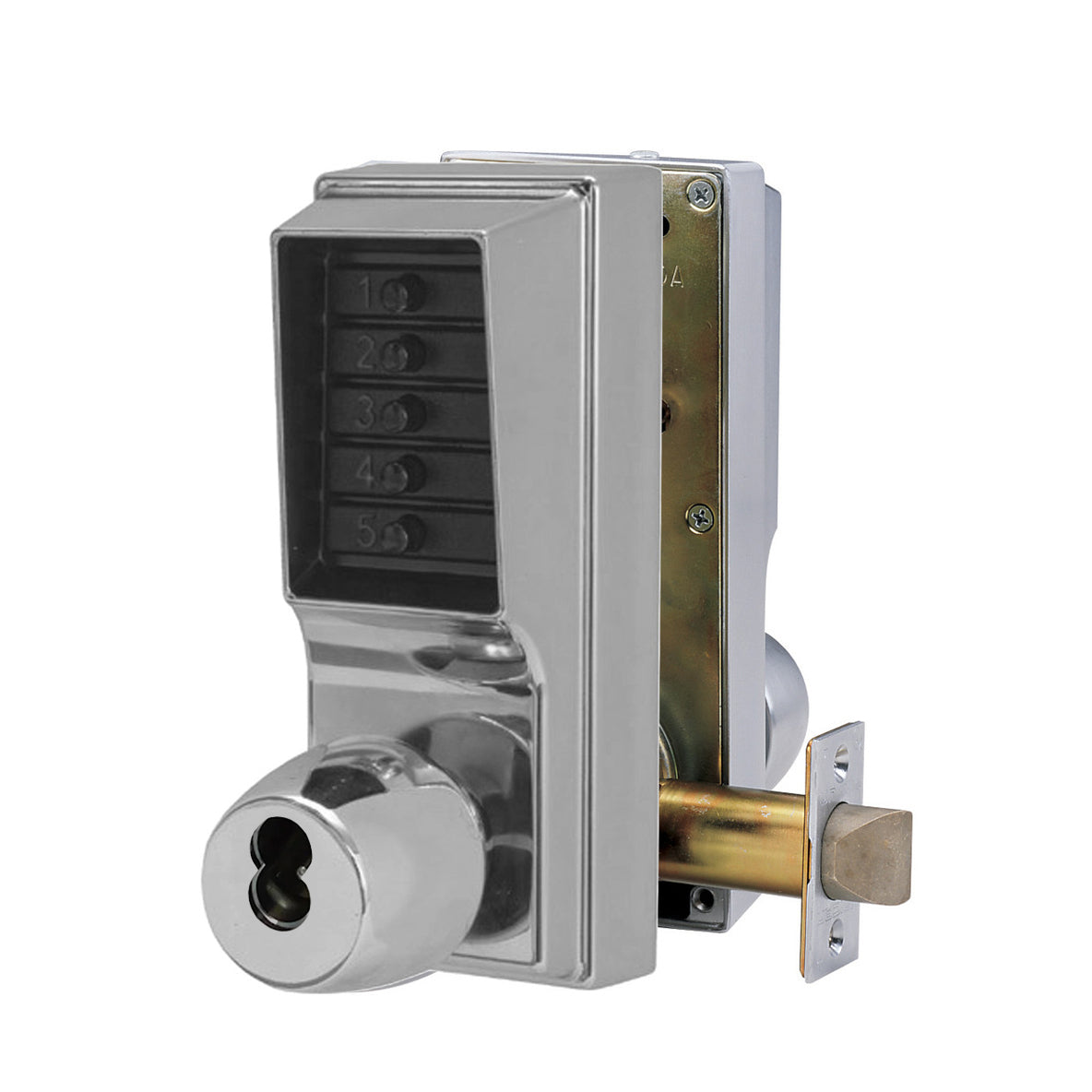

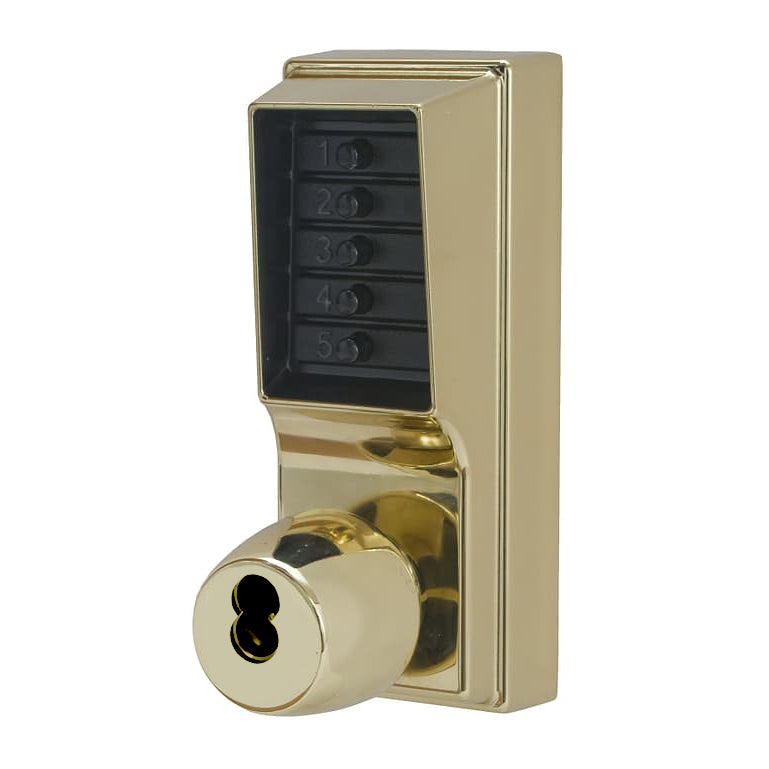

Simplex 1000 Mechanical Combination Knob with Key Override and Passage Function

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex 1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with knob option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features

• Specify cylinder prep, core not included
• Functions:
  • Combination Entry Only - Entry allowed only by combination
  • Combination or Passage - Entry allowed by combination or passage mode (activated by thumb turn on interior)
• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed for left-hand doors; easily field reversible

Specification

• Construction: Heavy-duty cylindrical lock housing with cast front housing; unified trim plate; cast knobs
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed for left-hand doors; easily field reversible
• Backset: 2-3/4" Standard (2-3/8" also available)
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
