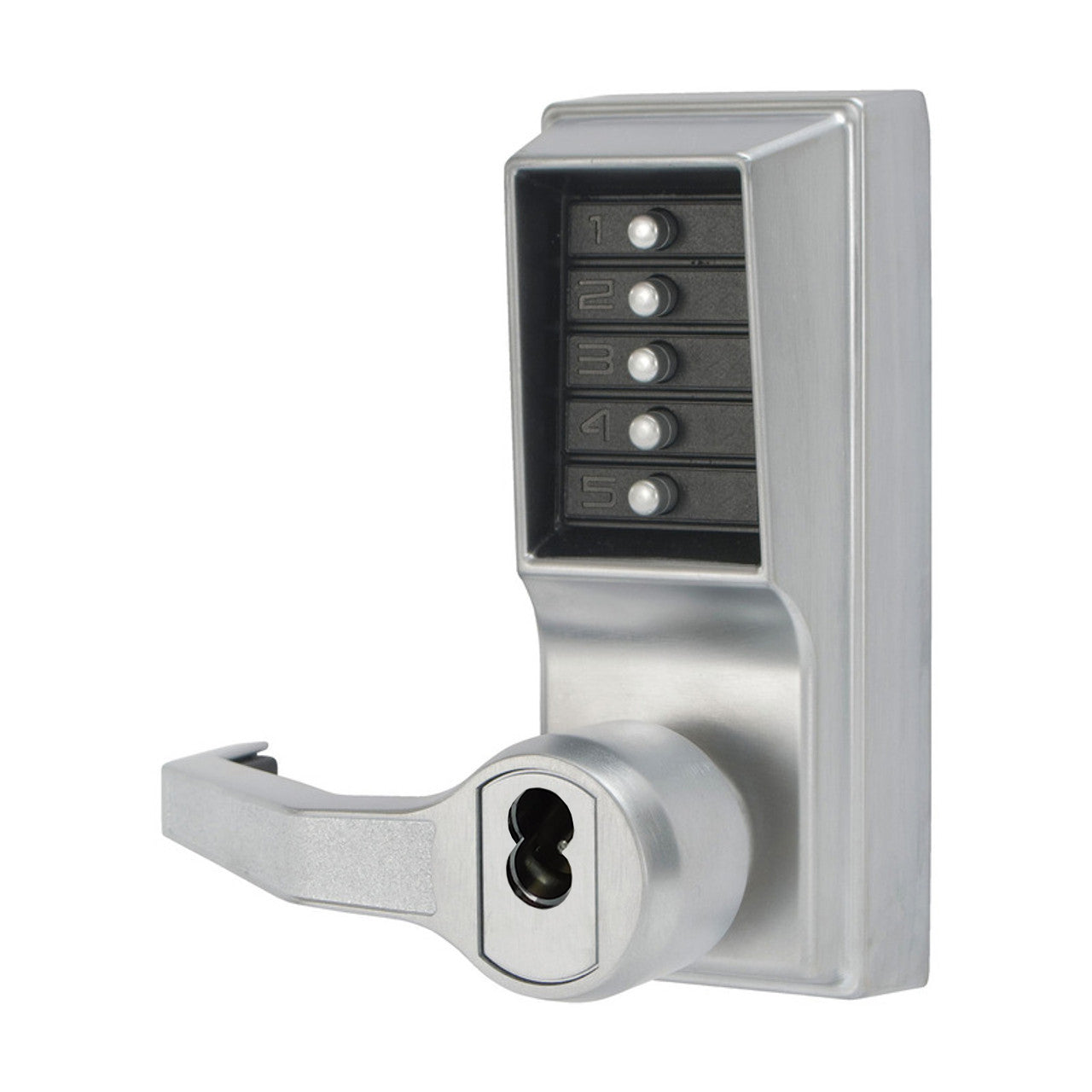

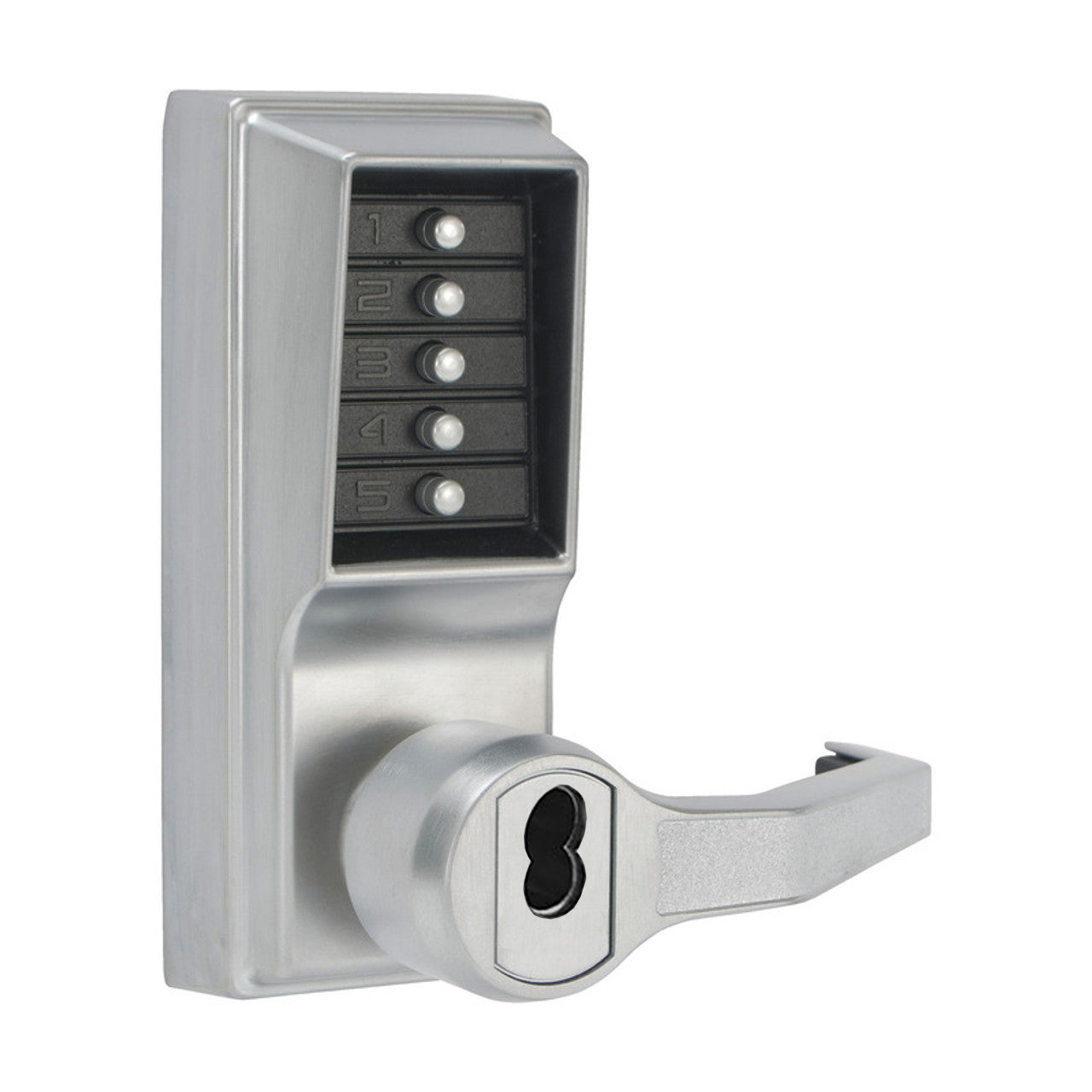

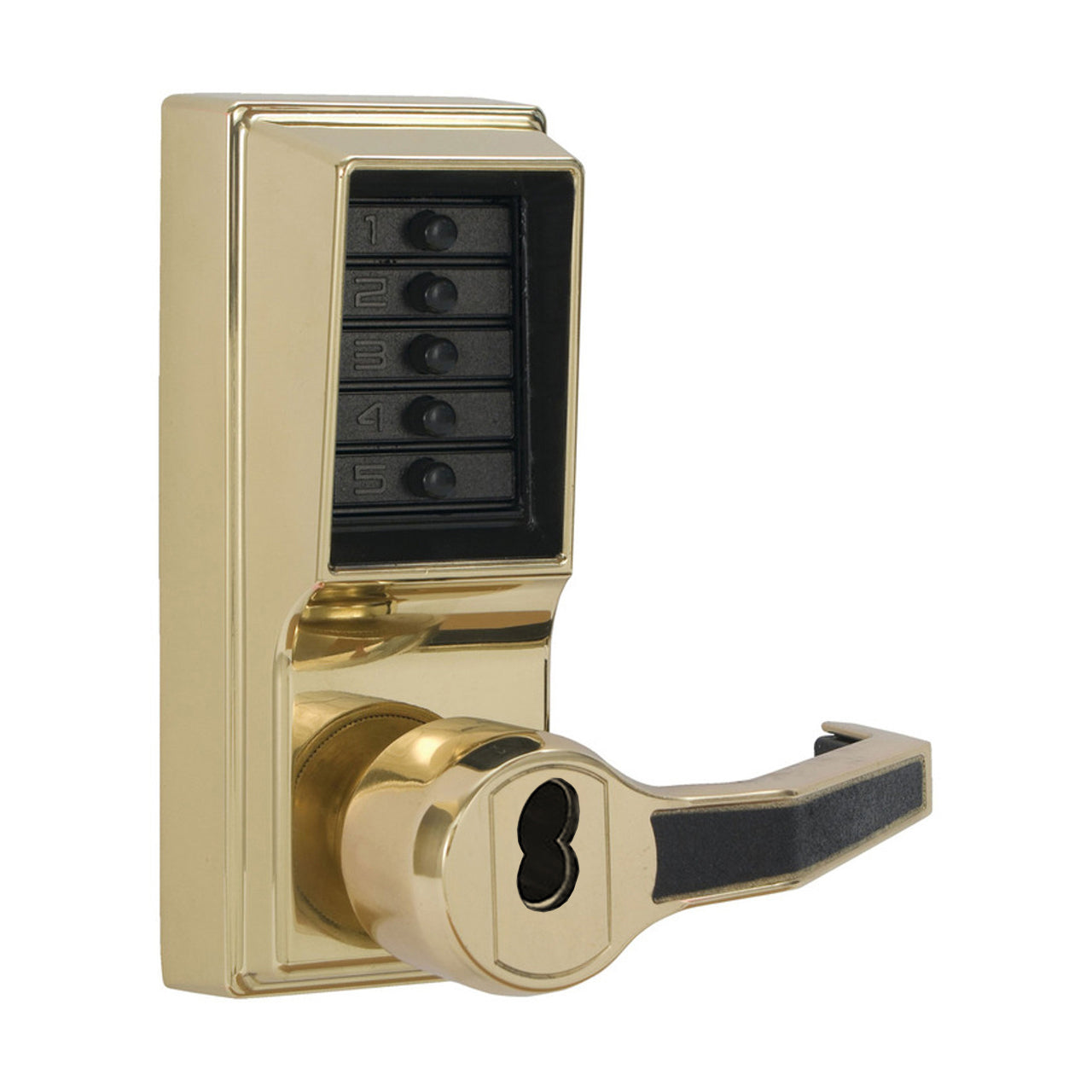

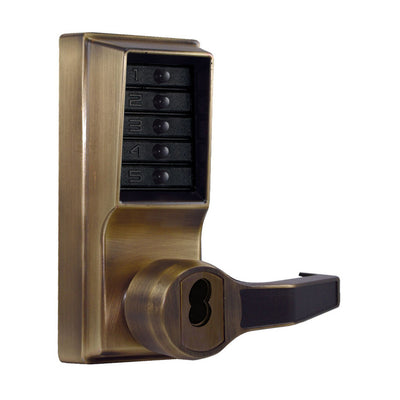

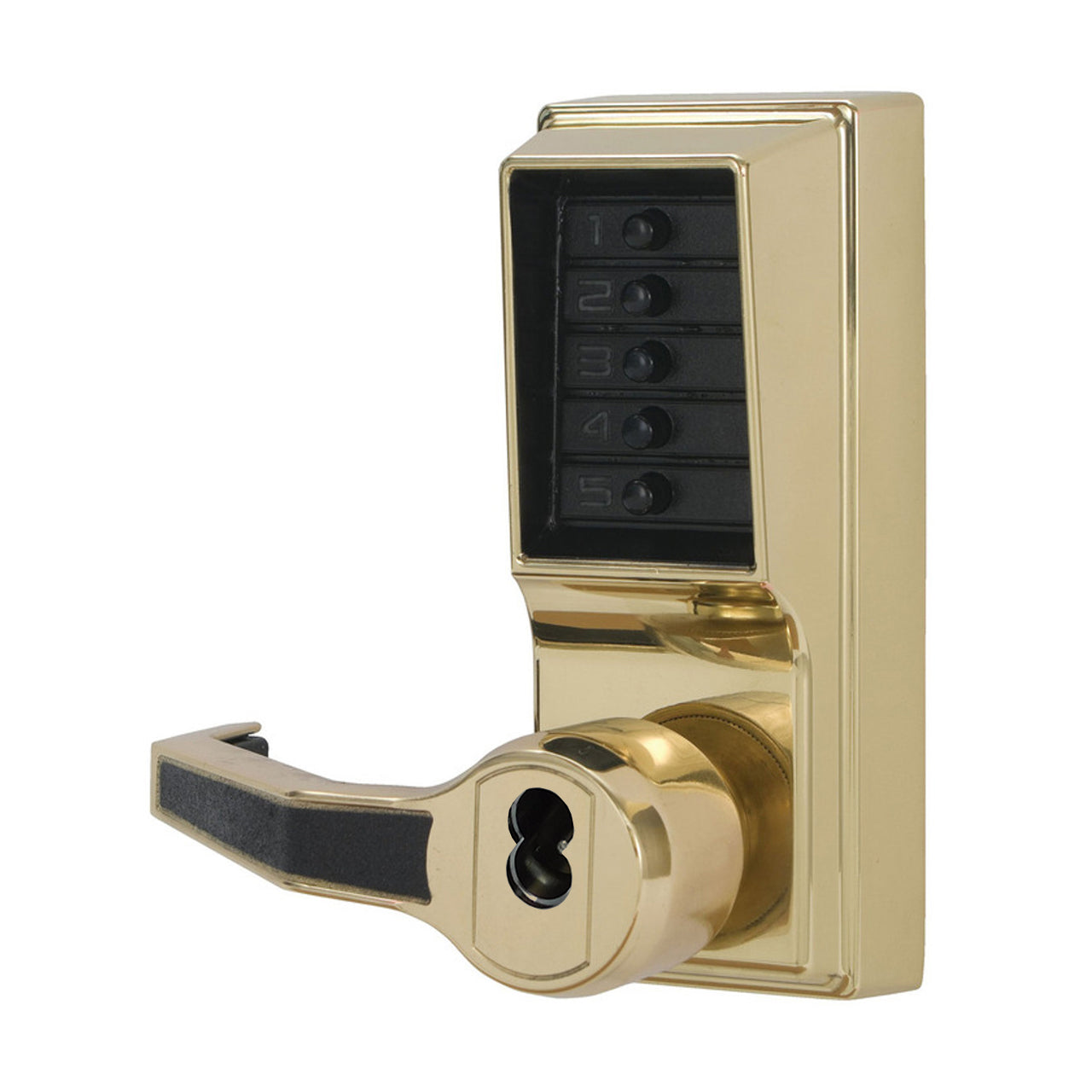

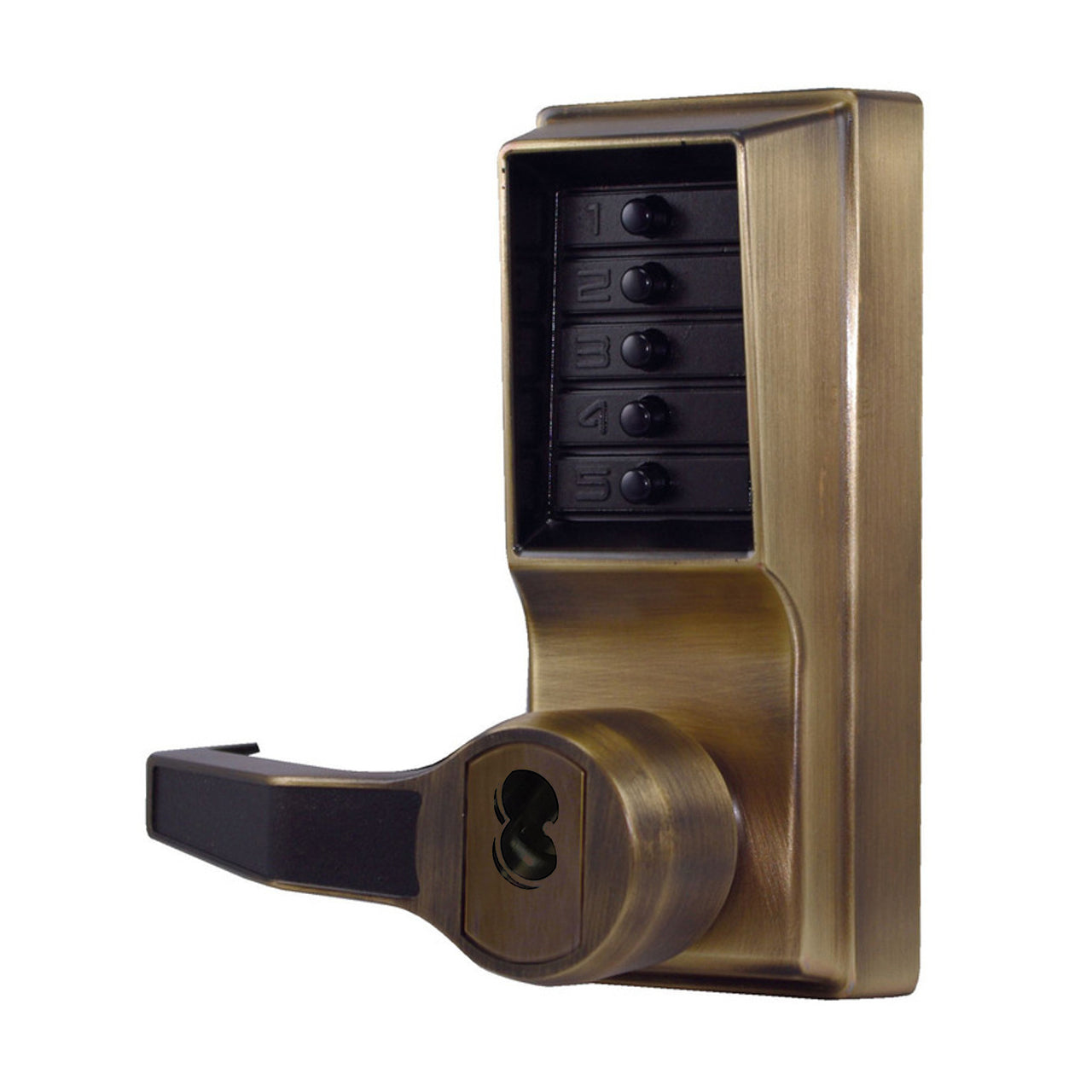

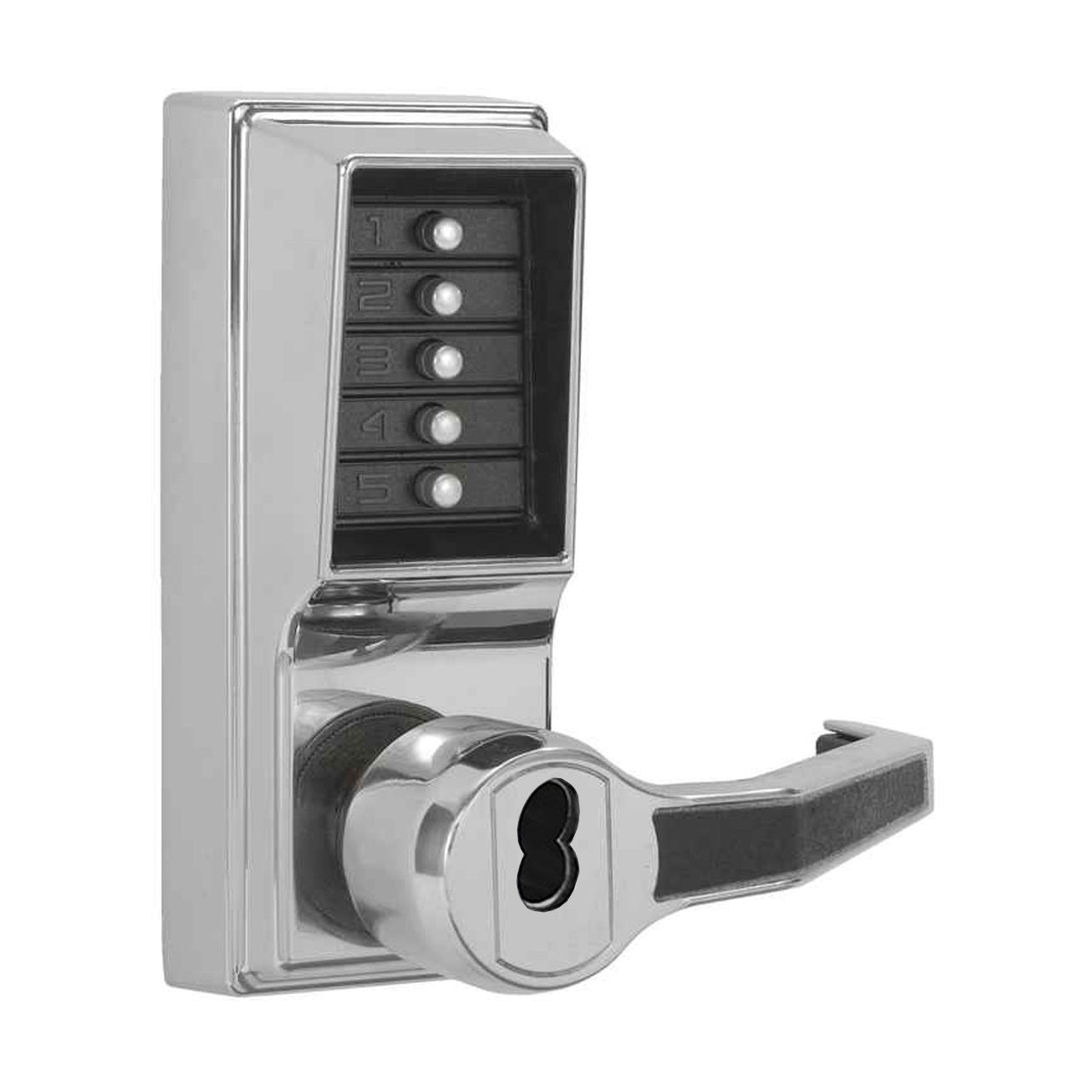

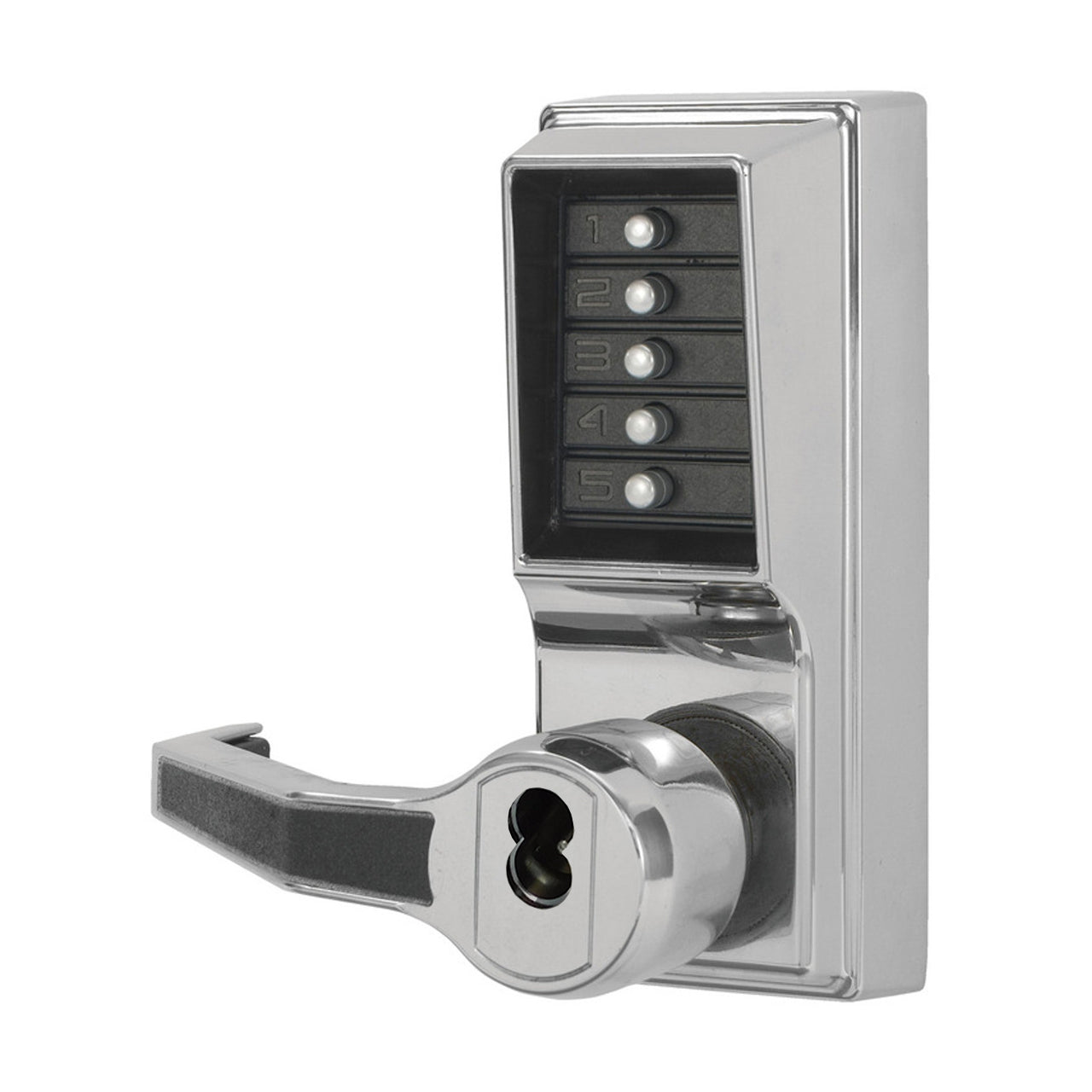

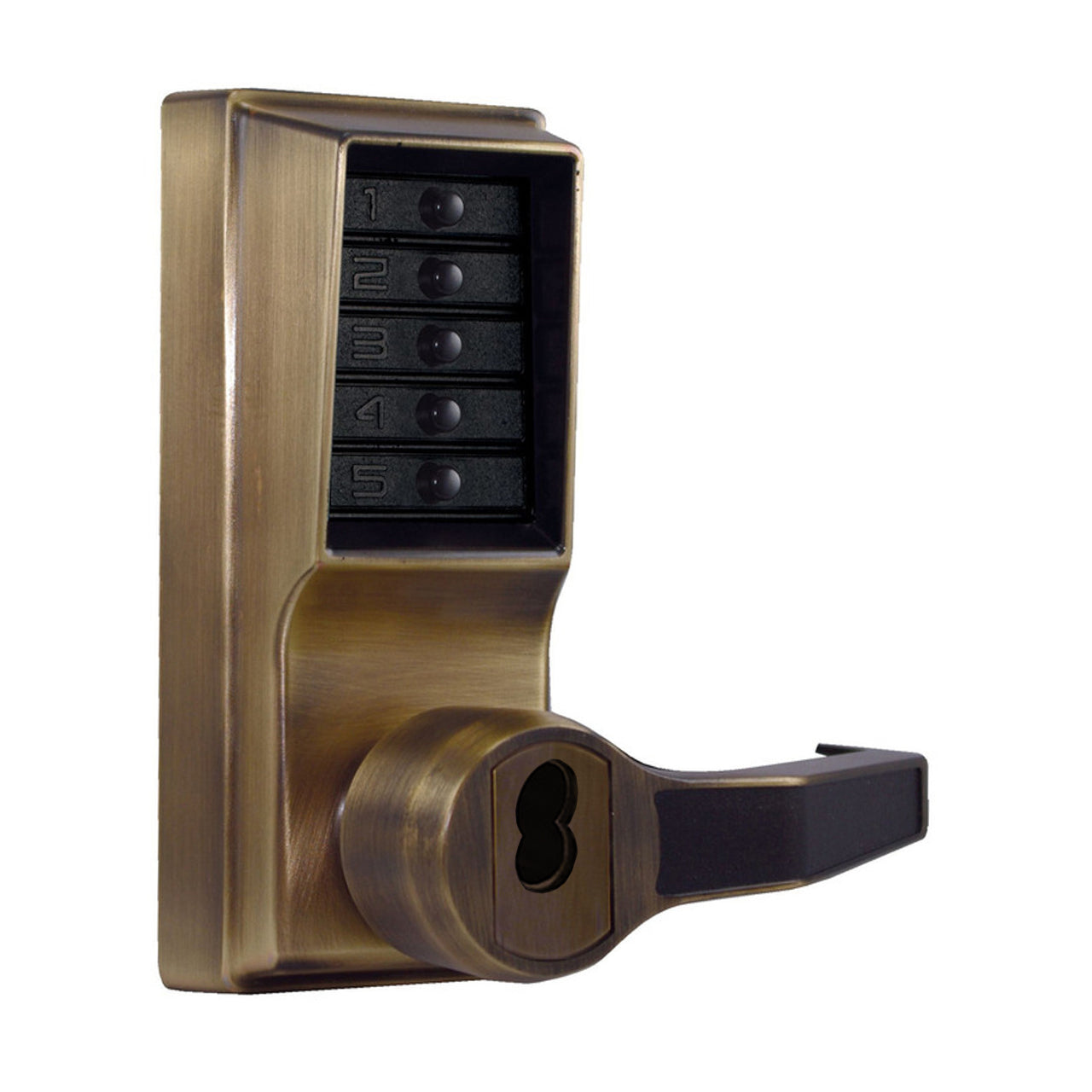

Simplex L1000 Mechanical Combination Lever Lock with Key Override and Passage Function

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.

The Simplex L1000 Series provides exterior access by combination, while allowing free egress. This mechanical lock, with lever option, eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

Features

• Key Override Function: Core not included
• Functions:
  • Combination Entry Only - Entry allowed only by combination
  • Combination or Passage - Entry allowed by combination or passage mode (activated by thumb turn on interior)
• Locking Device: Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
• Number of Codes: Single access code—one easy-to-manage code for all users
• Programming: Lock is easily programmed via keypad without removing lock from the door
• Handing: Factory-handed; not field reversible.

Specifications

• Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
• Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
• Door Thickness: Pre-assembled to accommodate 1-5/8" (41 mm) to 2" (51 mm) doors (please call for 1-3/8" to 2-1/4" options)
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed; not field reversible
• Backset: 2-3-4"
• Minimum Stile Recommended: 5" (127 mm)
• Strike: Standard strike plate; ASA strike plate
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
• Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty
