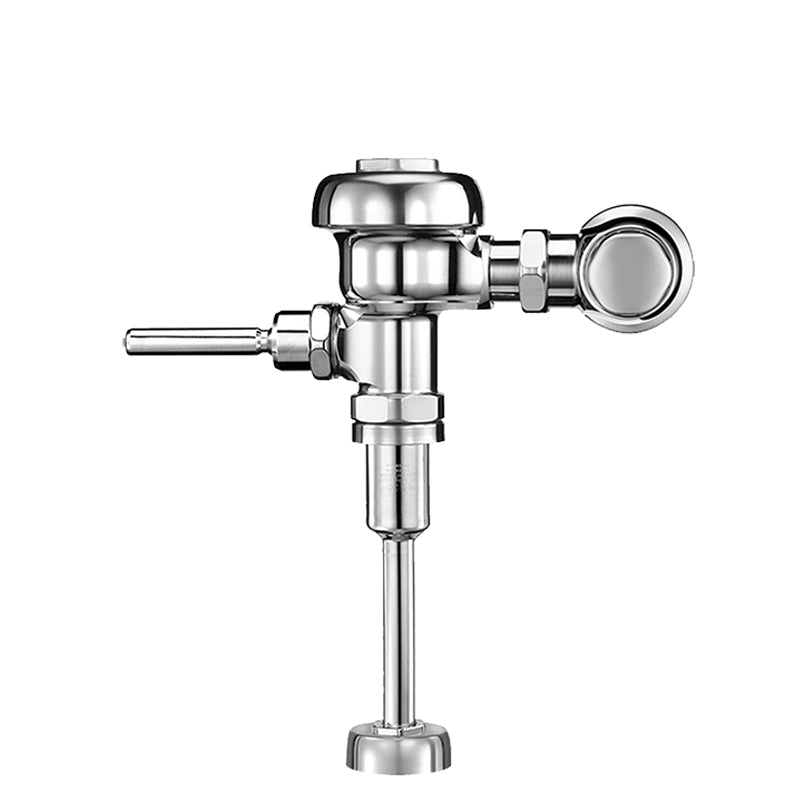

Sloan 3782645 - 186 Manual Urinal Flushometer - Top Spud - 0.5 GPF

0.5 GPF, Dual-Filtered Fixed Bypass Diaphragm, Polished Chrome Finish, Single Flush, Sloan Exposed Manual Urinal Flushometer

Features

• Quiet, Exposed, Diaphragm Type, Chrome Plated High Efficiency Urinal Valve
• 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop with Vandal Resistant Stop Cap
• Vacuum Breaker with Flush Connection
• Spud Coupling and Spud Flange for 3/4" Top Spud
• Sweat Solder Adapter with Cover Tube and Cast Wall Flange
• Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
• High Efficiency flush accuracy
• Diaphragm, Handle Packing and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine Resistance
• ADA Compliant Metal Oscillating Non-Hold-Open Handle
• Dual Filtered Fixed Bypass Diaphragm

Specifications

• Flush Volume: 0.5 gpf (1.9 Lpf)
• Finish: Polished Chrome (CP)
• Valve: Diaphragm
• Bypass: Dual-Filtered Fixed Bypass Diaphragm (DFB)
• Valve Body Material: Semi-red Brass
• Fixture Type: Urinal
• Fixture Connection: Top Spud
• Rough-In Dimension: 11-1/2" (292mm)
• Spud Coupling: 3/4" (19mm)
• Supply Pipe: 3/4" (19mm)
