SS-6-1HN - Stainless 3/8" MNPT x 3/8" MNPT Straight Pipe Fitting
Free Shipping on all orders over $89
Most orders ship same day!
Order by phone or Questions? (800) 468 5997
Tylok SS-6-1HN - Stainless 3/8" MNPT x 3/8" MNPT Straight Pipe Fitting
Instrumentation Pipe Fittings
Tylok Instrumentation Pipe Fittings are offered in popular configurations such as reducing adapters, reducing bushings, pipe unions, elbows, tees, crosses, etc.
Fittings are manufactured to the same high quality standards as other Tylok Fittings. Each fitting is thoroughly cleaned to eliminate system
contamination and features an attractive surface finish to enhance the appearance of modern scientific instrumentation and equipment.
Fittings are manufactured from materials meeting applicable ASTM or ASME specifications, with pipe threads which meet or exceed ANSI/ASME B1.20.1 requirements. Strict quality controls procedures are followed throughout production.
Pipe thread connections are very common in today’s industry. They are relatively easy to work with because of the common sizes and dimensions throughout manufacturing. It is important to use a thread sealant. These products range from pipe “dopes” to Teflon tape, all of which can be purchase through your local Tylok Distributor.
Quality Management System
SAI Global has registered Tylok International’s Quality Management System to ISO 9001. The quality system complies with the international standard ISO 9001 and its technical equivalent, ANSI/ISO/ASQ 9001. Tylok strives to continuously improve the effectiveness of the Quality Management System.
Features
- Tylok Instrumentation Pipe Fittings are manufactured to the same high quality standards as other Tylok Fittings.
- Each fitting is thoroughly cleaned to eliminate system contamination and features an attractive surface finish to enhance the appearance of modern scientific instrumentation and equipment.

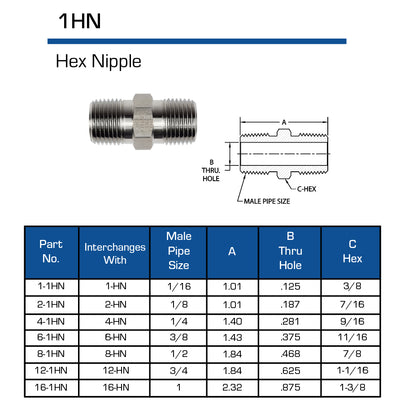

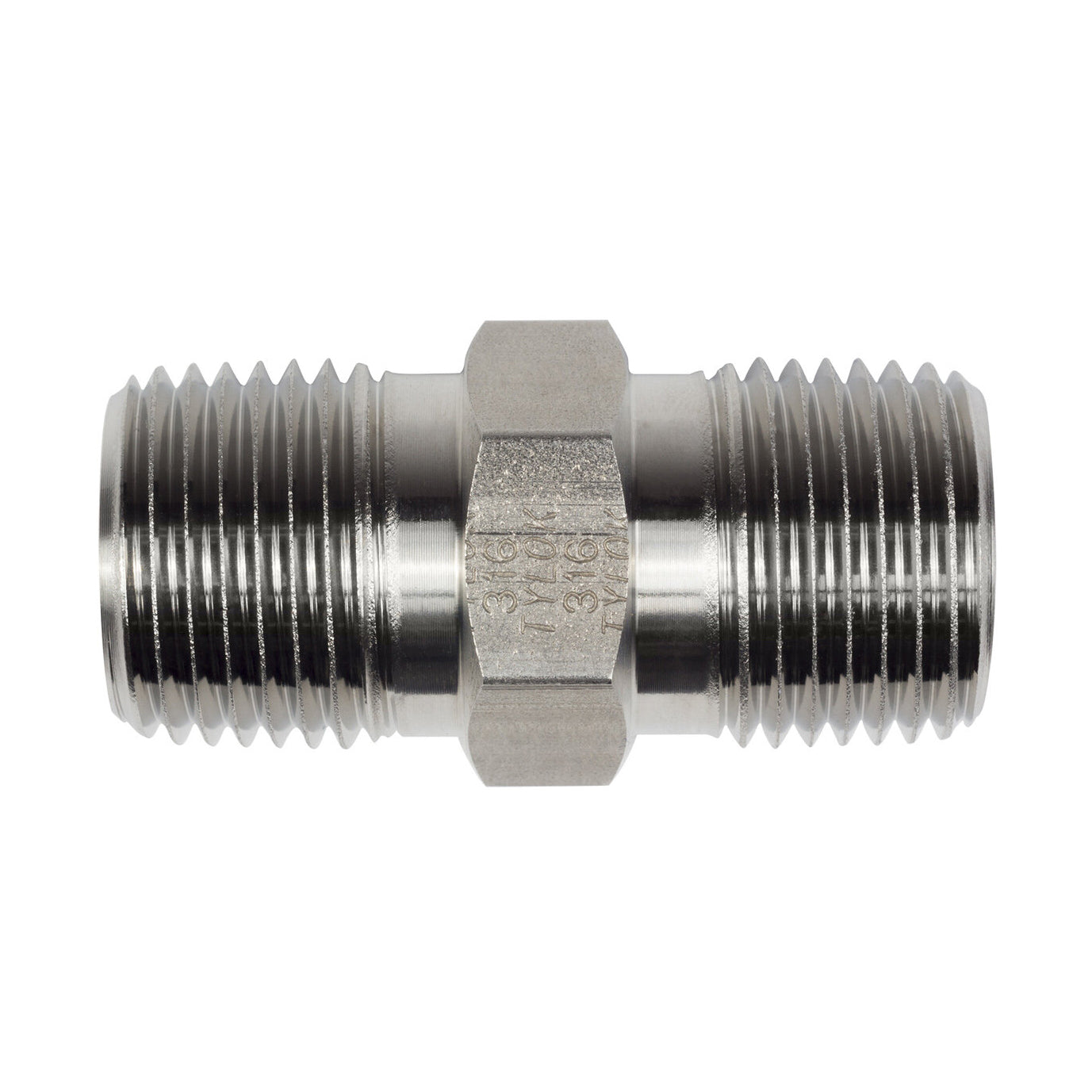

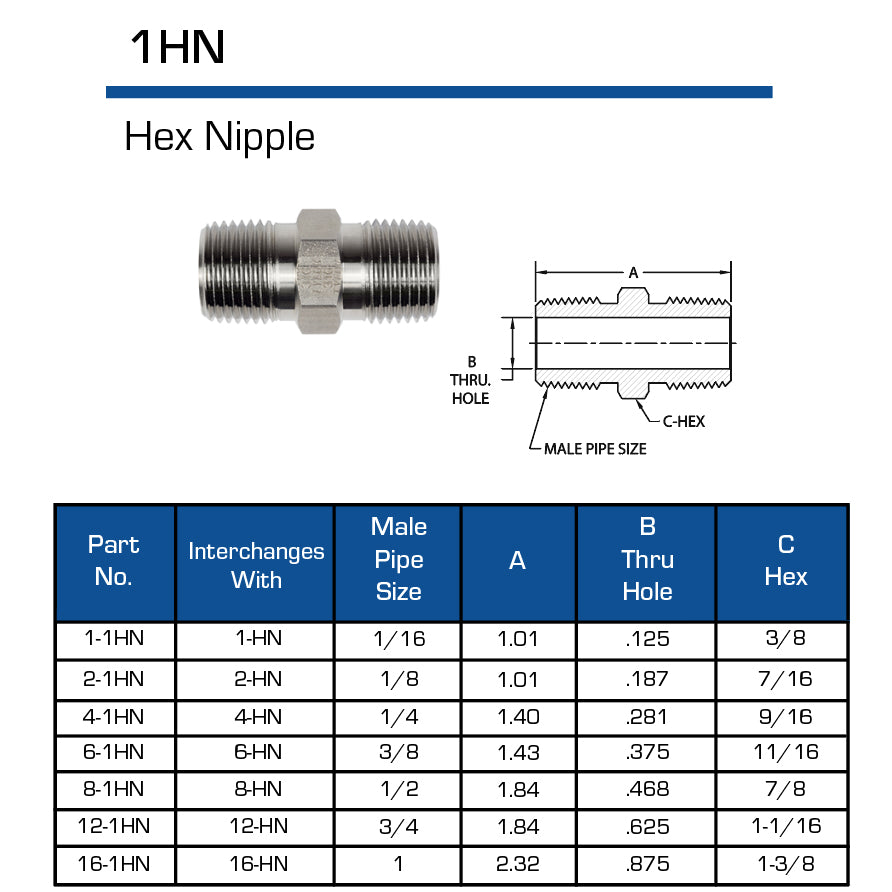

- Hex Nipple
- Male Pipe Size: 3/8"
- Length: 1.43"
- Thru Hole: 0.375"
- Hex: 11/16"
